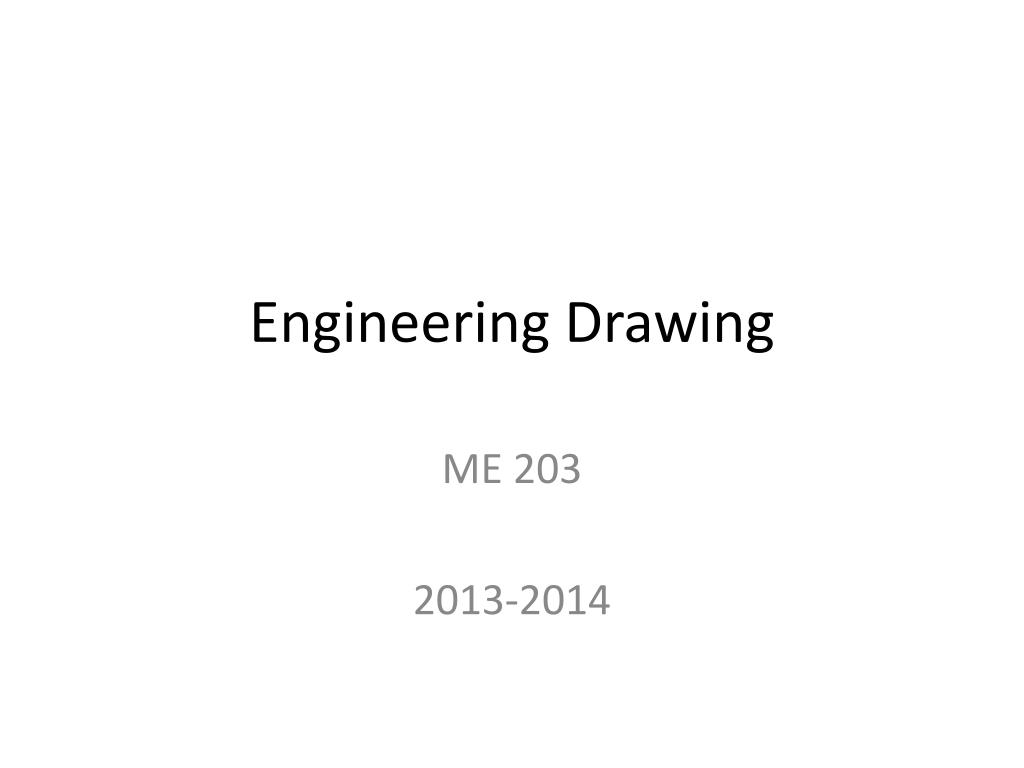

  1. Engineering Drawing ME 203 2013-2014

  2. Introduction • Course Aim • Projection & assembly of mechanical elements • Draw different mechanical elements with suitable fits and tolerances

  3. Introduction • Course content • Machine drawing standards • Threaded fasteners • Locking devices • Power screws • Springs • Keys and cotters • Bearings • Gears • Welding joints

  4. Introduction • Teaching and learning methods • Lectures • Tutorial • Student assessments • 9th week exam (written) 20% • Continues assessment (in class & homework, quizzes) 30% • Final assessment (written) 50%

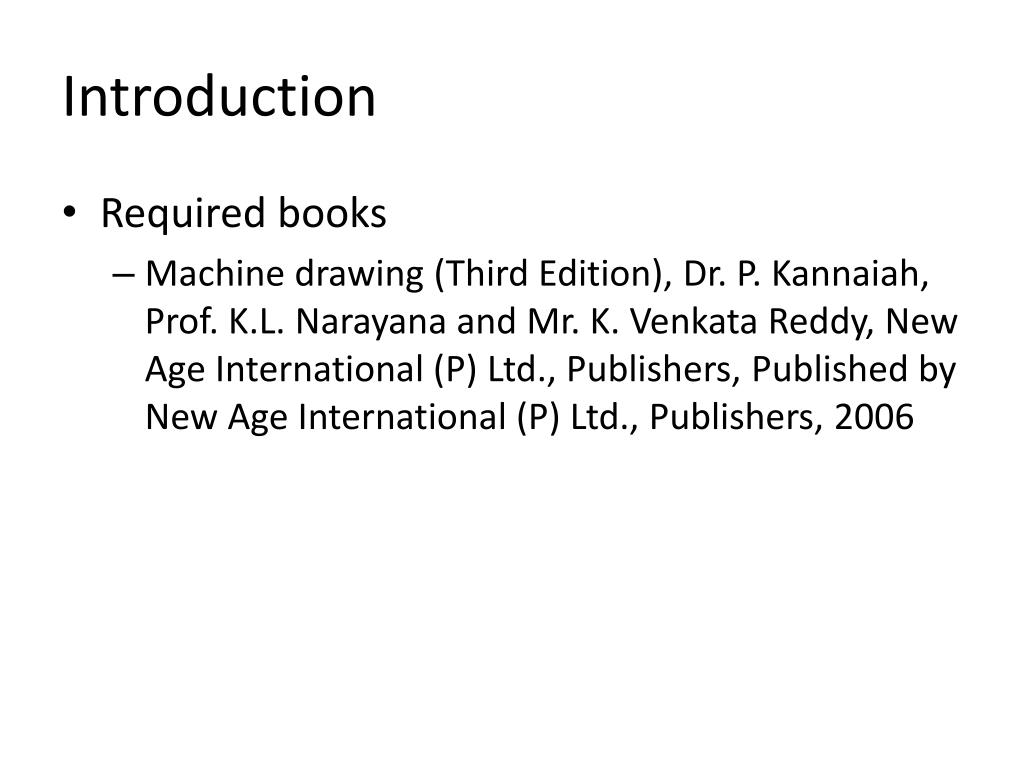

  5. Introduction • Required books • Machine drawing (Third Edition), Dr. P. Kannaiah, Prof. K.L. Narayana and Mr. K. VenkataReddy, New Age International (P) Ltd., Publishers, Published by New Age International (P) Ltd., Publishers, 2006

  6. Chapter one Introduction to Engineering Graphics Communication

  7. Development of Engineering Graphics Product Data Management (Solid Work) Multiview Drawings Francesca (1420-92) Production Lifecycle Management Cartesian Coordinates Descartes (1596-1650).

  8. Engineering Drawing

  9. Graphic Language • engineer must have proficiency in • language, both written and oral, • Symbols associated with basic sciences • graphic language. Irrespective of language barriers, the drawings can be effectively used in other countries, in addition to the country where they are prepared. Thus, the engineering drawing is the universal language of all engineers.

  10. Graphic Language • Importance of graphic language • Build new structures • Create new machines • Representing the existing ones. Without engineering drawing, it would have been impossible to produce objects An engineer should posses good knowledge, not only in preparing a correct drawing but also to read the drawing correctly.

  11. Classification of Drawing • Machine drawing

  12. Classification of Drawing • Production drawing

  13. Classification of Drawing • Part drawing

  14. Classification of Drawing • Assembly drawing

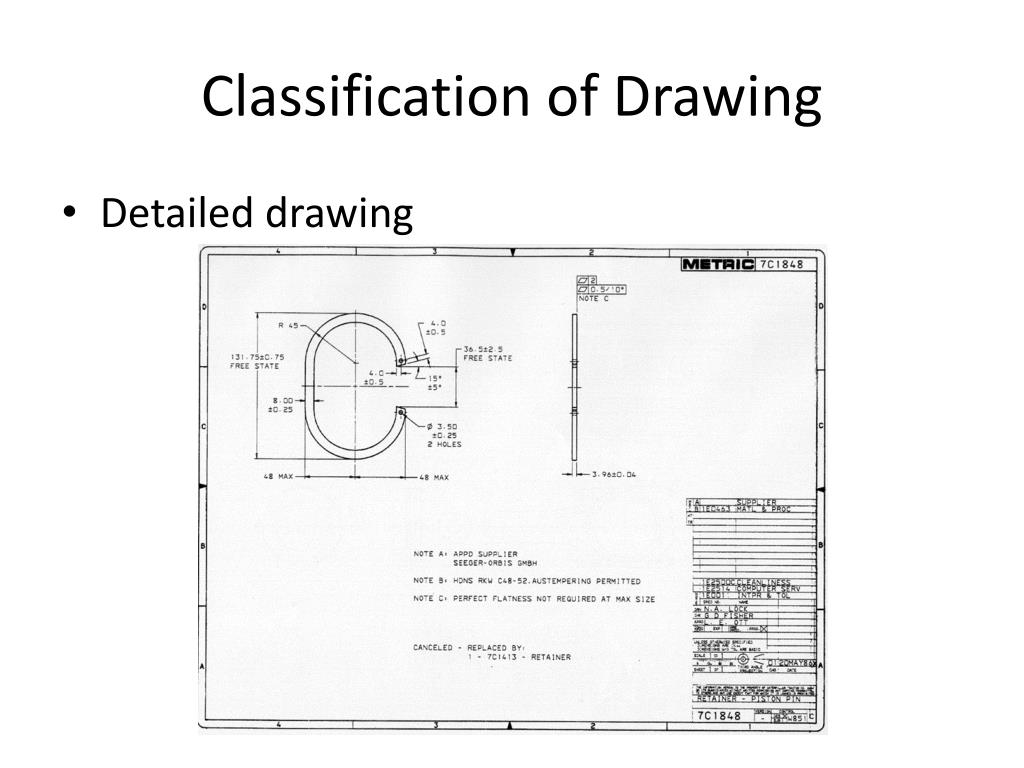

  15. Classification of Drawing • Detailed drawing

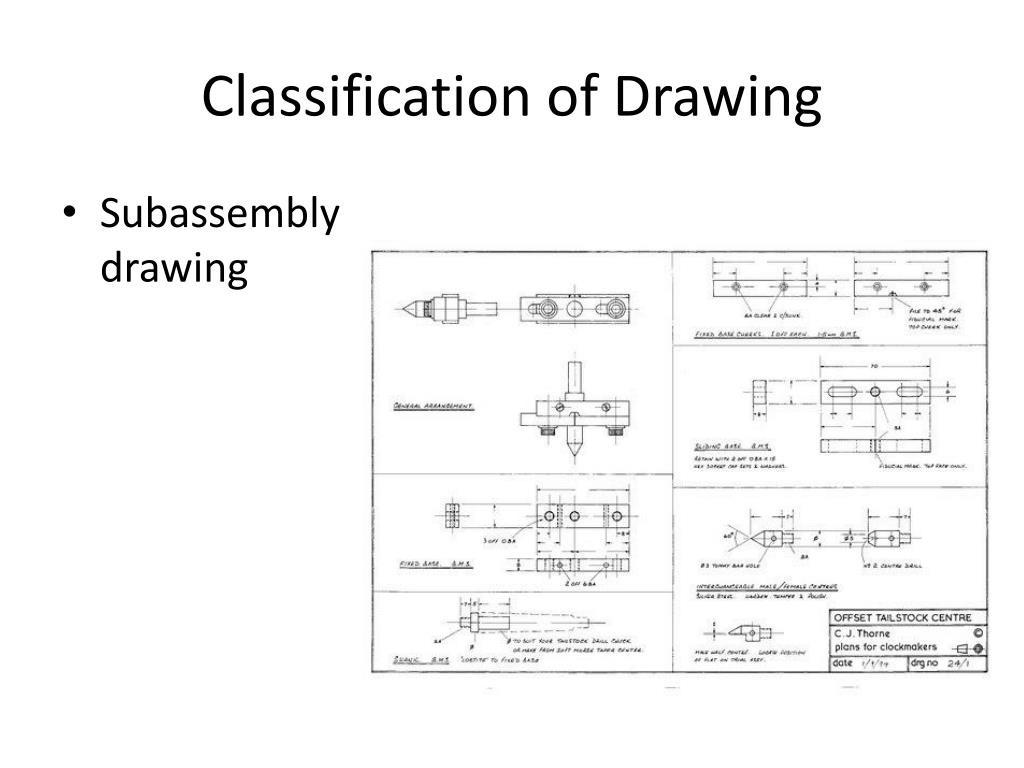

  16. Classification of Drawing • Subassembly drawing

  17. Classification of Drawing • Installation assembly drawing

  18. Classification of Drawing • Installation for catalog drawing

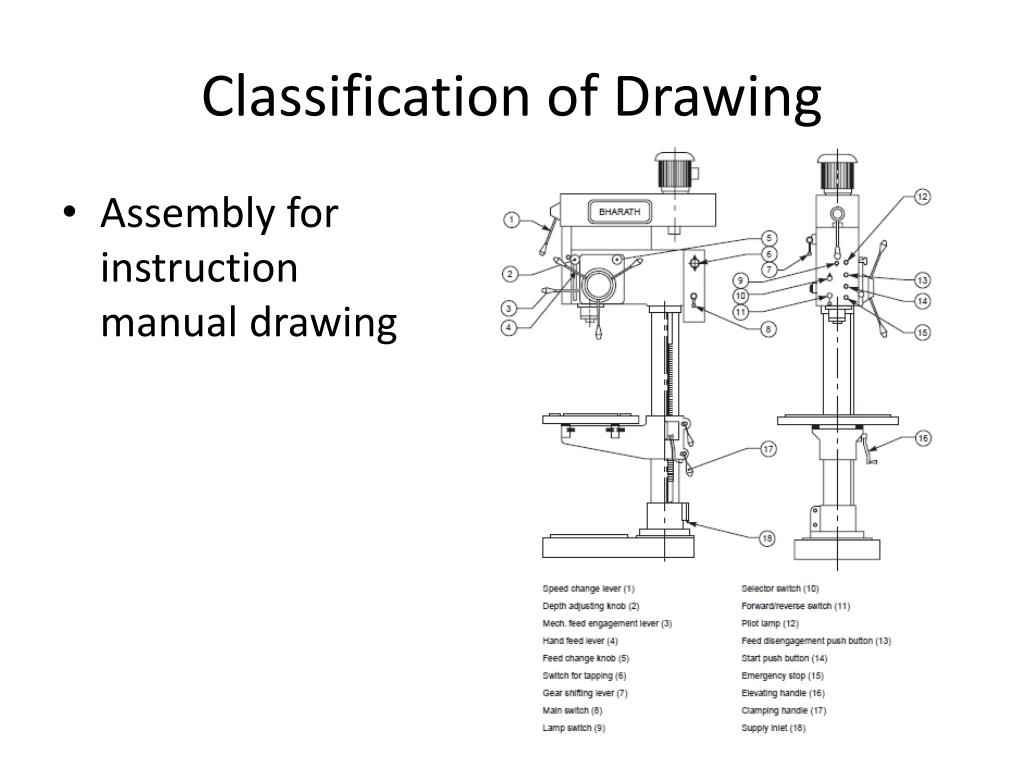

  19. Classification of Drawing • Assembly for instruction manual drawing

  20. Classification of Drawing • Tabular Drawings

  21. Classification of Drawing • Exploded assembly drawing

  22. Classification of Drawing • Schematic assembly drawing

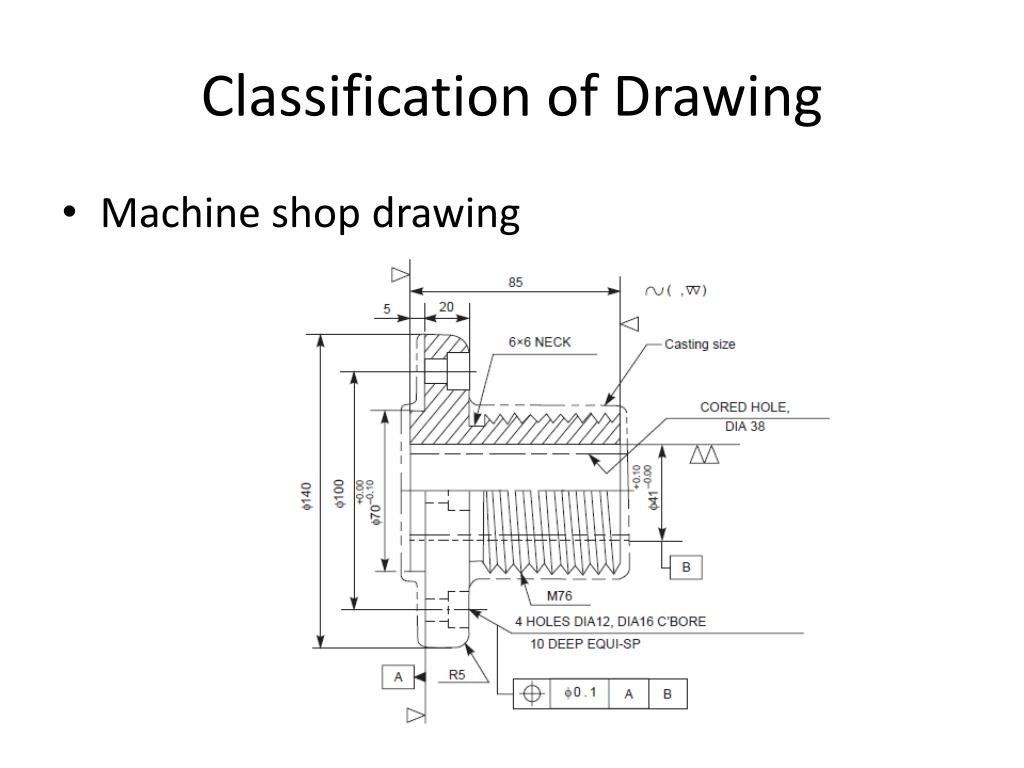

  23. Classification of Drawing • Machine shop drawing

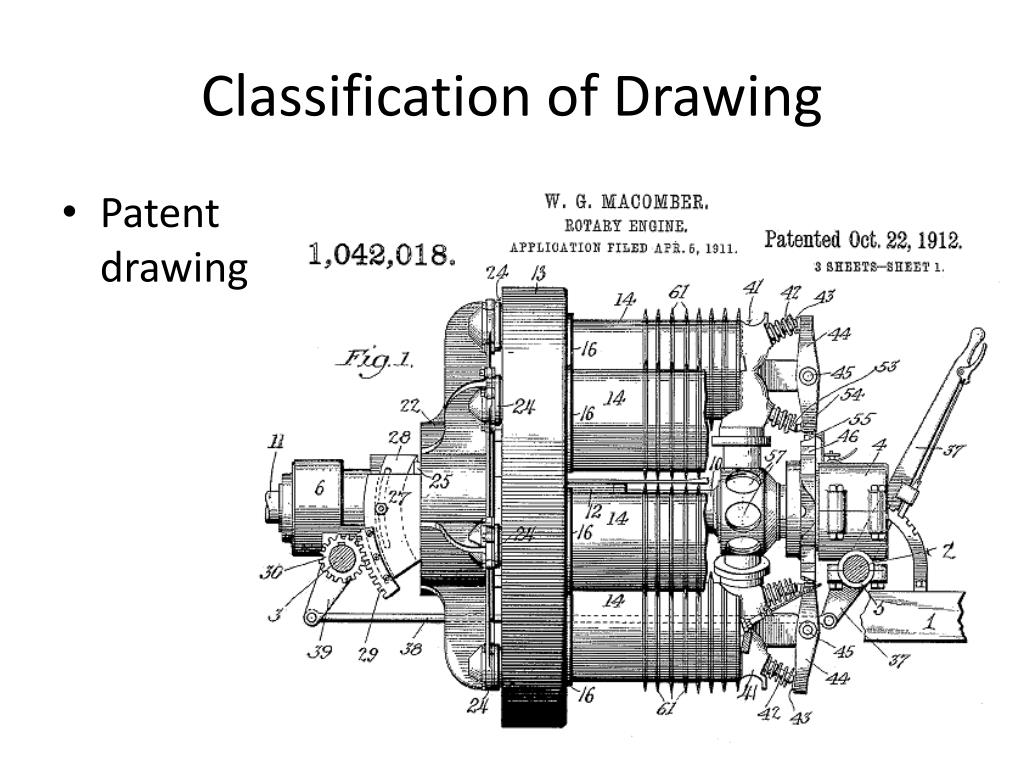

  24. Classification of Drawing • Patent drawing

  25. Chapter two Principle of Drawing

  26. Drawing sheet -Sheet Size • Sheet size A5 A3 A4 A2 A1 A0 A4

  27. Drawing sheet-Sheet Size

  28. Drawing sheet- Sheet Size • The basic principles involved in arriving at the sizes of drawing sheets are: • X : Y = 1 : • Example : A4 210:297 = 1:

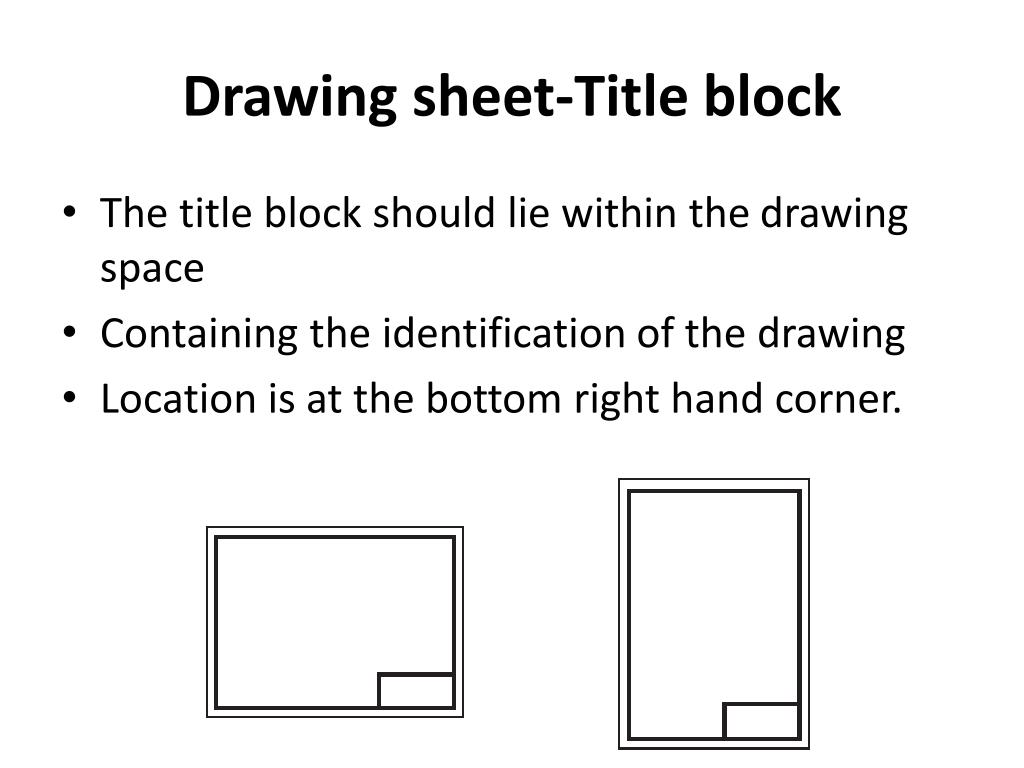

  29. Drawing sheet-Title block • The title block should lie within the drawing space • Containing the identification of the drawing • Location is at the bottom right hand corner.

  30. Drawing sheet-Title block • The title block can have a maximum length of 170 mm. • providing the following information: • Title of the drawing • Sheet number • Scale • Symbol, denoting the method of projection • Name of the firm • Initials of staff drawn, checked and approved.

  31. Drawing sheet-Title block

  32. Drawing sheet-Title block PHAROS UNIVERSITY , FACULTY OF ENGINEERING 20 Power Screw 15 TITLE: DATE : 28/9/2013 SCALE: 1:2 10 Student ID # / SEC # ROLL NO: NAME: 10 instructor PLATE NO: EVALUATED BY 10 Exe Sheet # Example 001 75 110 To be used in all drawings

  33. Drawing sheet-Title block 20 mm 100mm 10

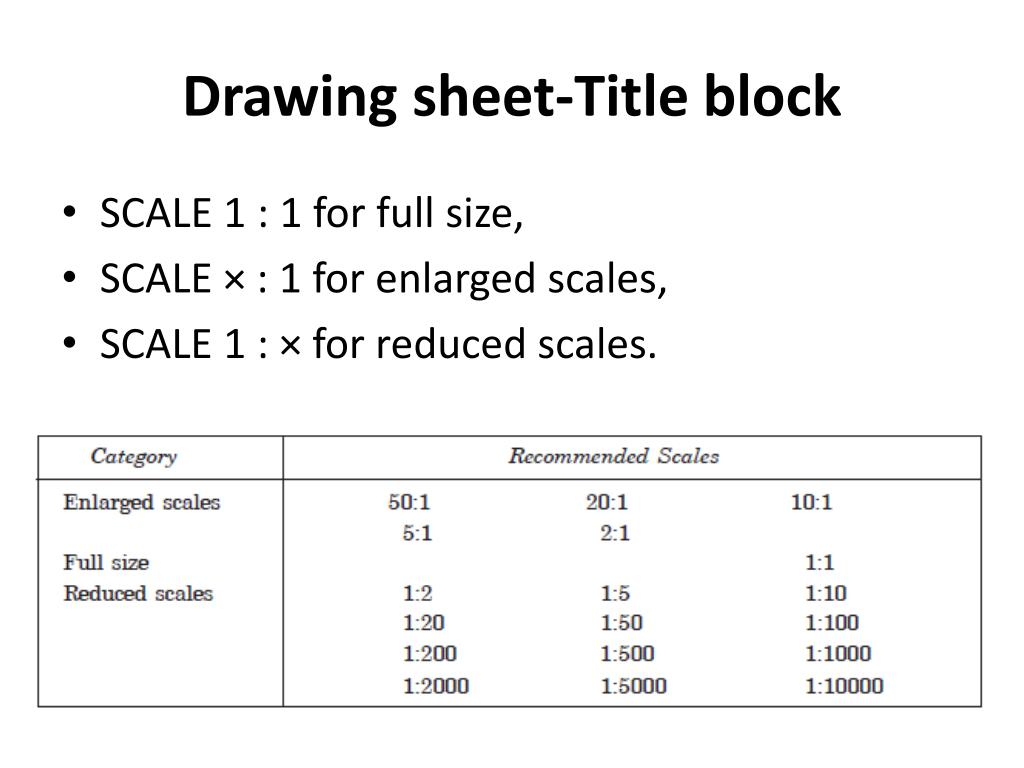

  34. Drawing sheet-Title block • SCALE 1 : 1 for full size, • SCALE × : 1 for enlarged scales, • SCALE 1 : × for reduced scales.

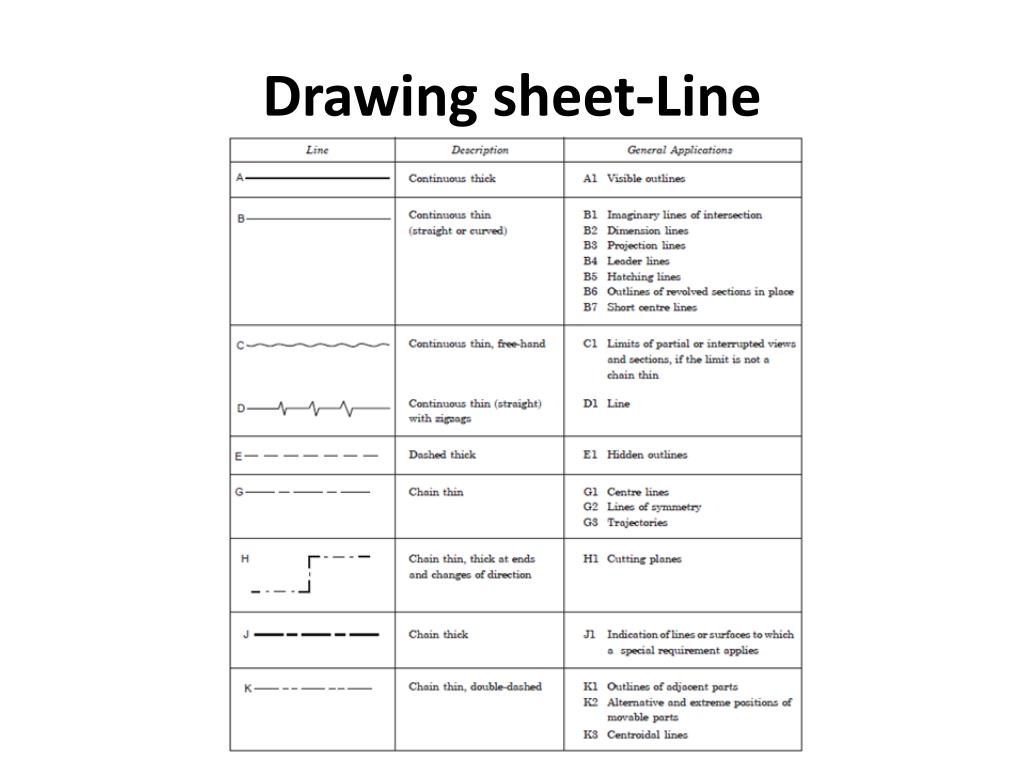

  35. Drawing sheet-Line

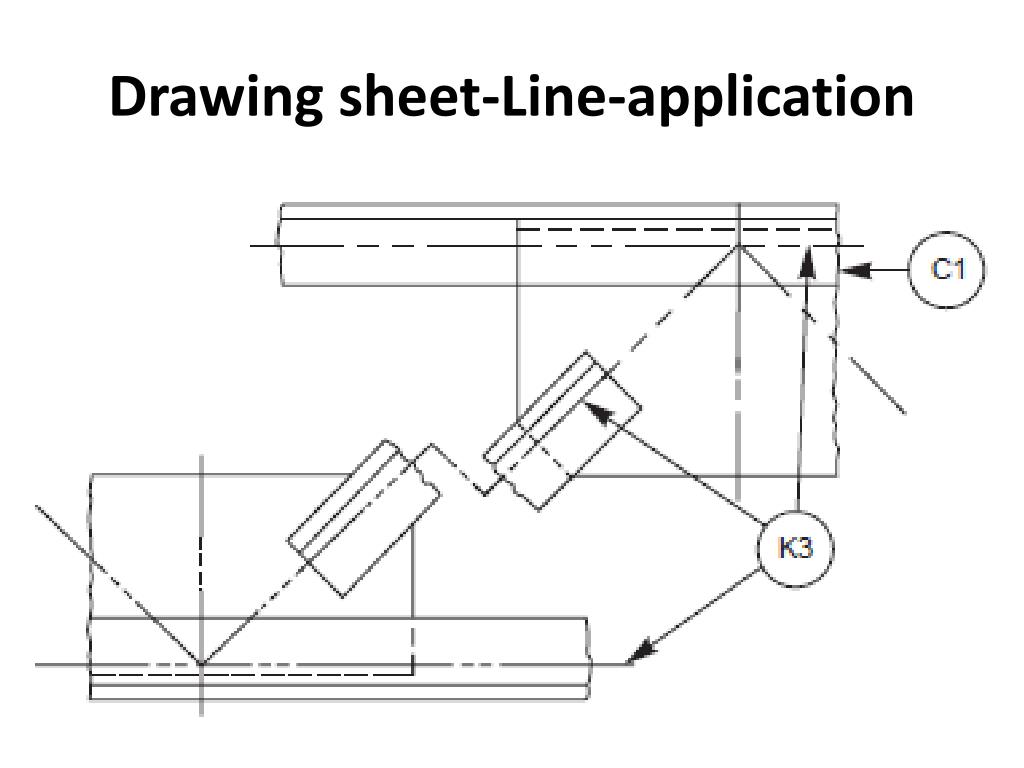

  36. Drawing sheet-Line-application

  37. Drawing sheet-Line-application

  38. Drawing sheet-Line-application • Order of Priority of Coinciding Lines

  39. Drawing sheet-Line-application • Order of Priority of Coinciding Lines

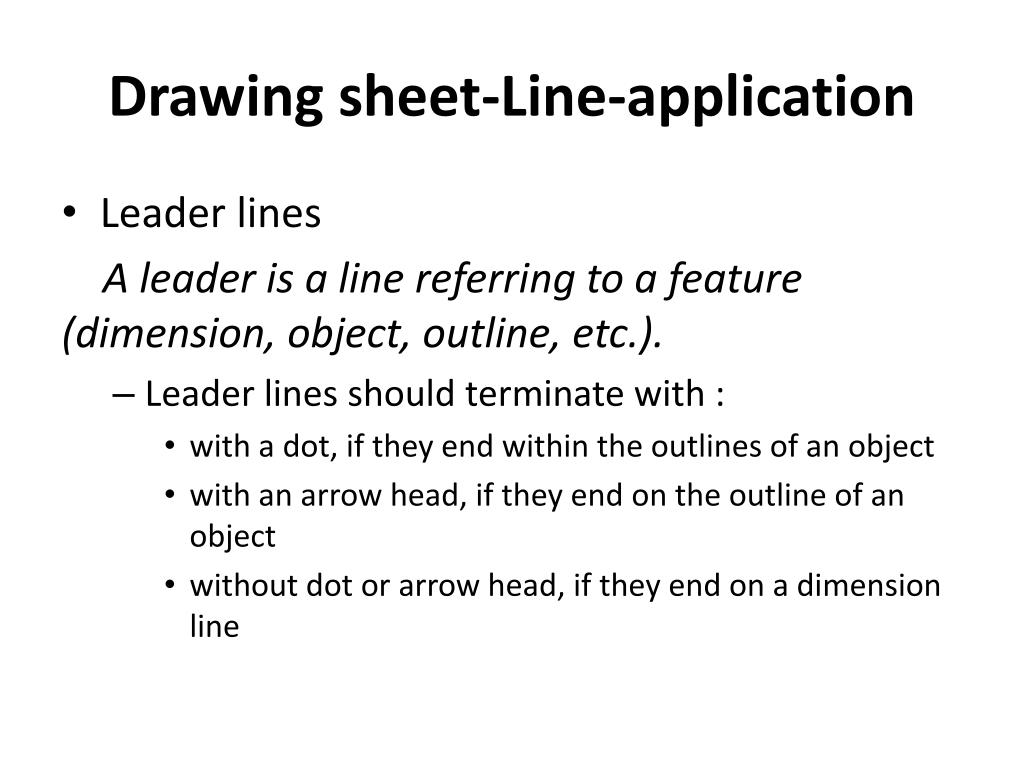

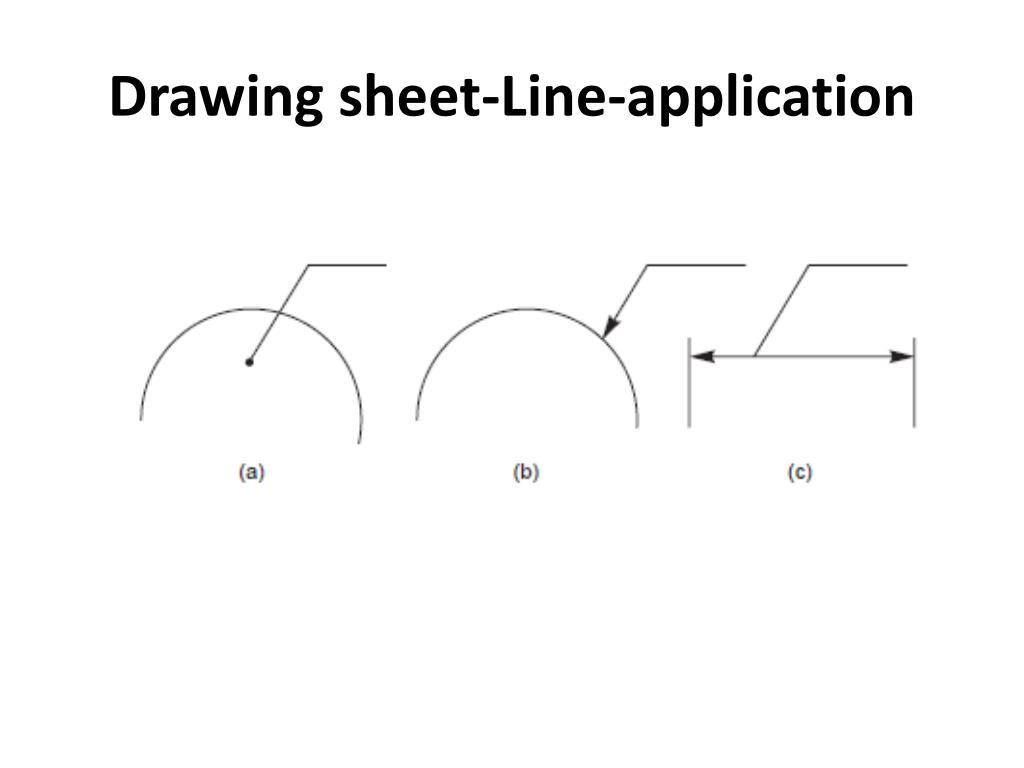

  40. Drawing sheet-Line-application • Leader lines A leader is a line referring to a feature (dimension, object, outline, etc.). • Leader lines should terminate with : • with a dot, if they end within the outlines of an object • with an arrow head, if they end on the outline of an object • without dot or arrow head, if they end on a dimension line

  41. Drawing sheet-Line-application

  42. Leader lines point to the corresponding part. Balloons containing part numbers.

  43. Balloons are placed in orderly horizontal or vertical rows.

  44. The leader lines; • should not cross, • be as parallel as possible.

  45. Sketching, Text, and Visualization

  46. Examples of Sketches: Multiview Sketch

  47. Examples of Sketches: Pictorial Sketch NOTE: There are also “technical sketches” used in industry which may include notes, and several versions that show motion.

  48. Sketches use “proportion”, not scale! Proportion allows the designer to use approximate values to create a balanced looking object. Sketches are…accurate freehand drawings which use single lines to represent edges and features. Multi-line sketching is NOT used in engineering design. (Scribbling!)

  49. Question! How do you know when a sketch or CAD drawing is complete? ANSWER: When the production people can make the part without having to ask you any questions! Most drawings not only have views of the object, but also we include written notes and dimensions to aid in its production.

  50. Projection types: Drawings use various types of projection (how we view the object), to enhance our ability to visualize what we are being asked to see or understand. Let’s look at the various styles of projection used…
