    1. Engineering Drawing ELEC 105 Engineering Fundamentals II Dr. Ron Hayne

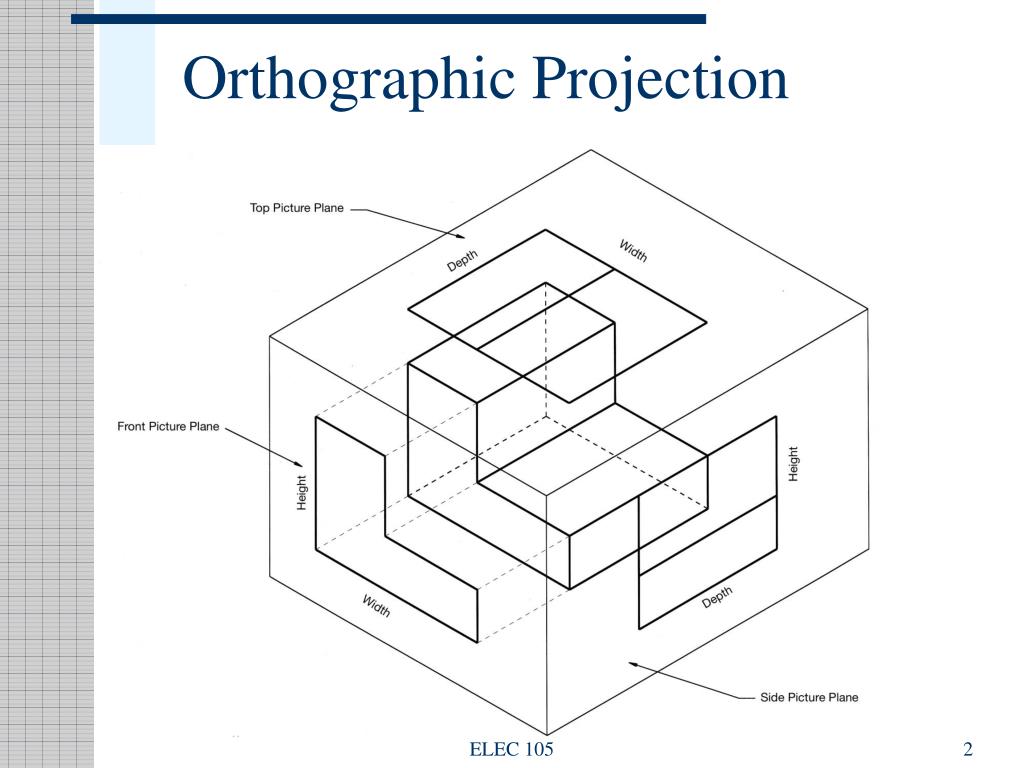

    2. Orthographic Projection ELEC 105

    3. Google SketchUp http://sketchup.google.com/ ELEC 105

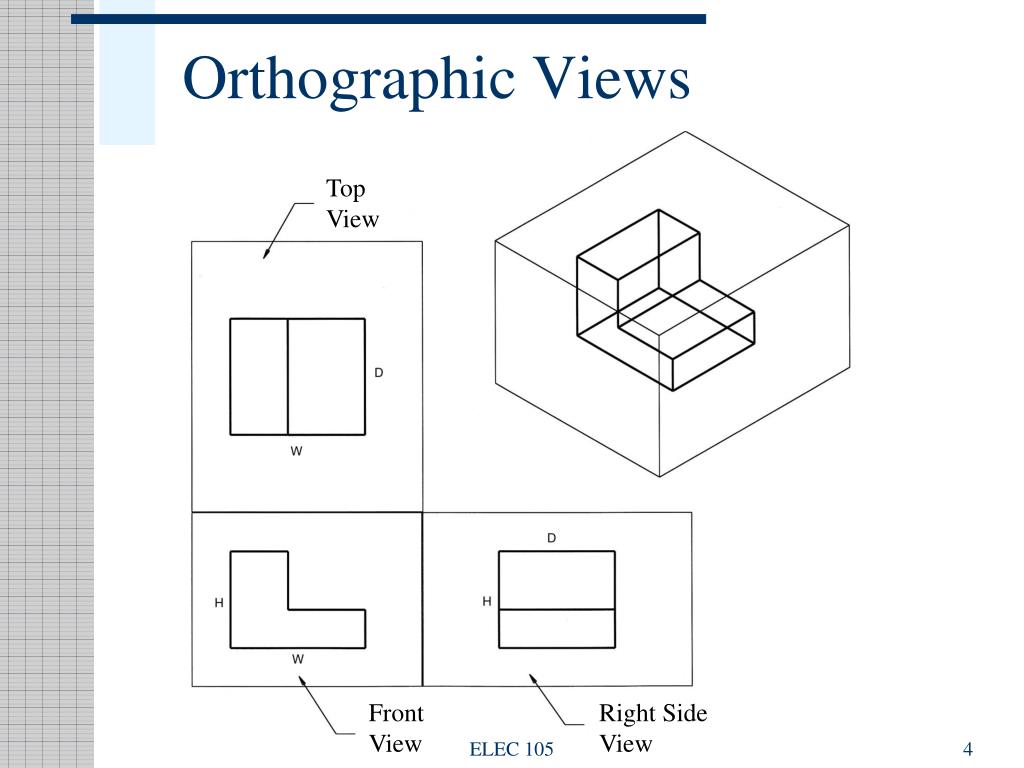

    4. Orthographic Views Top View Front View Right Side View ELEC 105

    5. Meaning of Lines ELEC 105

    6. Meaning of Lines ELEC 105

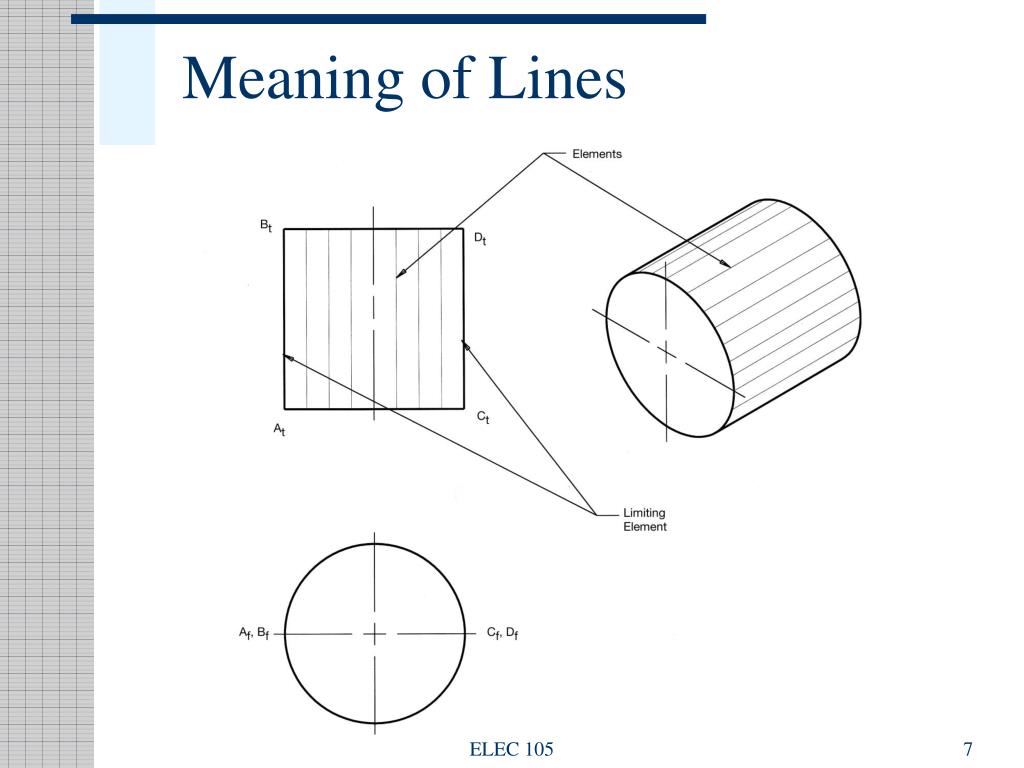

    7. Meaning of Lines ELEC 105

    8. Hidden Lines ELEC 105

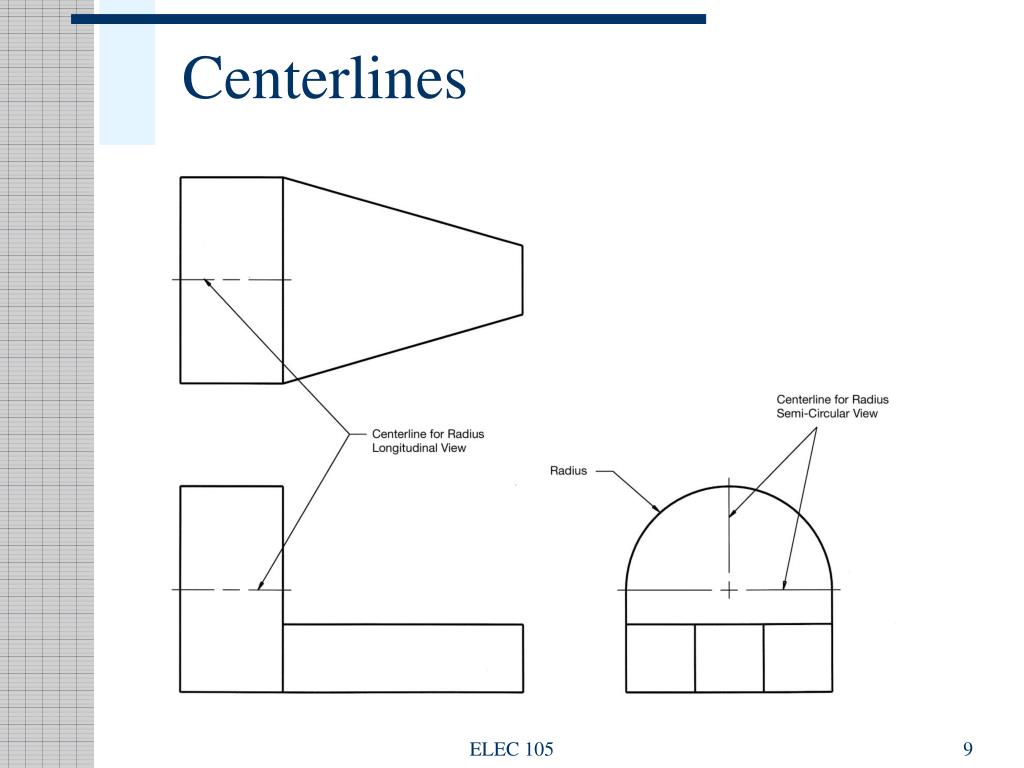

    9. Centerlines ELEC 105

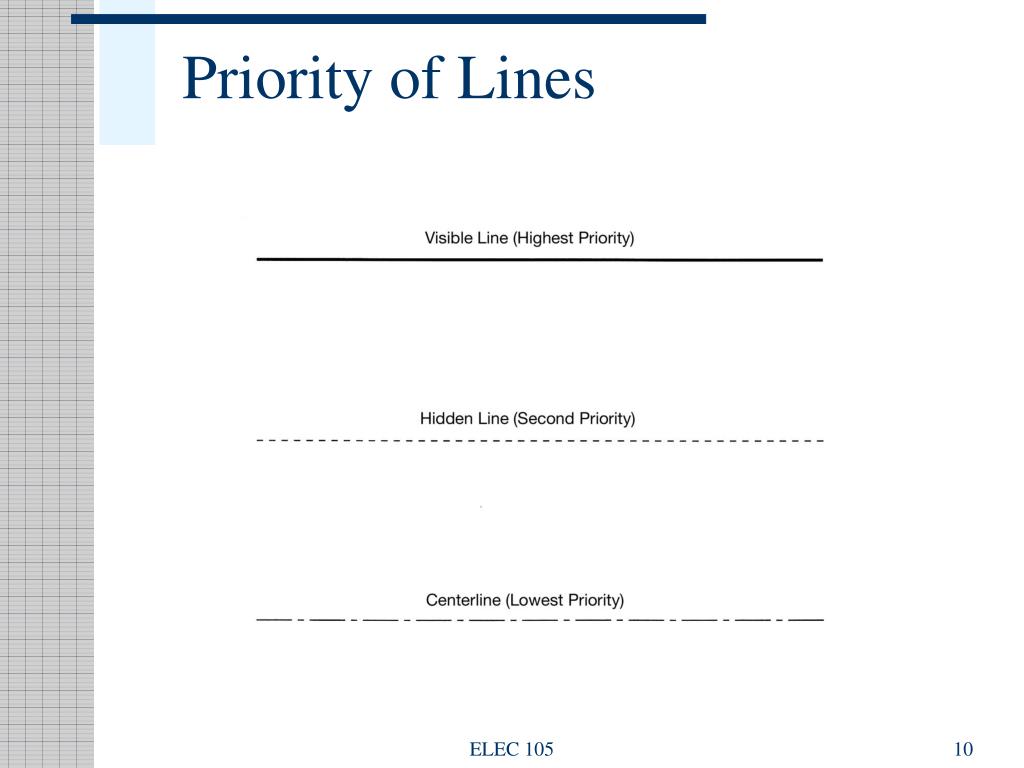

    10. Priority of Lines ELEC 105

    11. Isometric Sketching ELEC 105

    12. Isometric Coordinate System ELEC 105

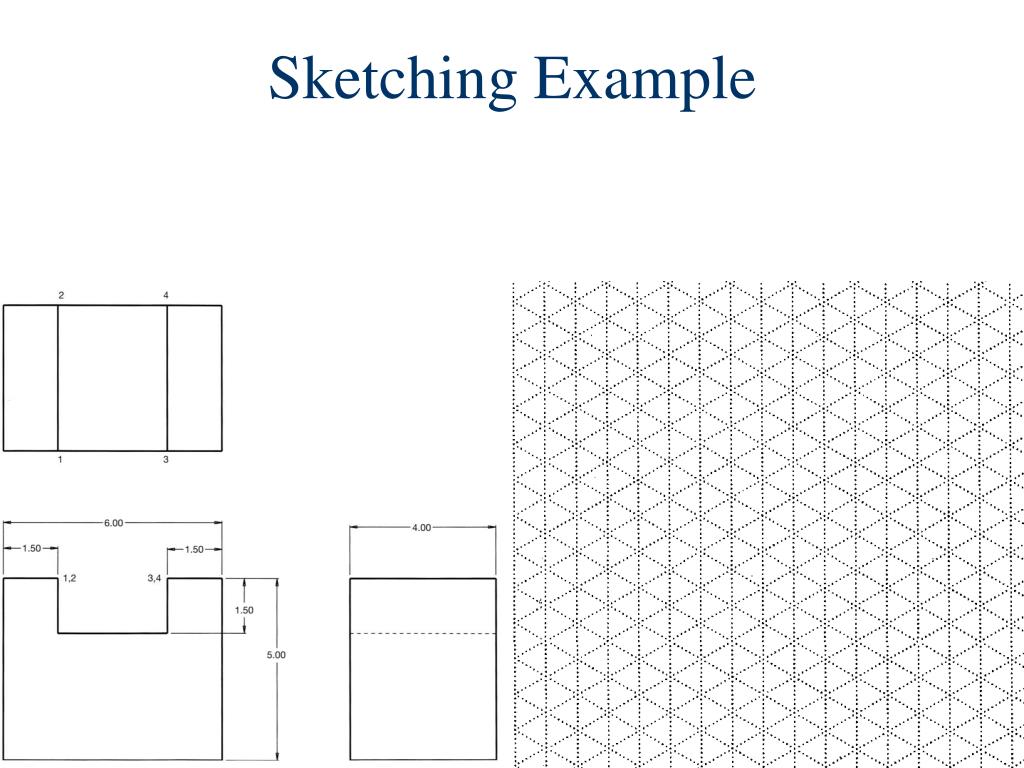

    13. Sketching Example

    14. Sketching Example

    15. Sketching Example ELEC 105

    16. Another Example ELEC 105

    17. Sketching Example

    18. Another Example

    19. Orthographic Views

    20. Google SketchUp ELEC 105
