osha region iv

OSHA Region IV

Electrical Outreach

General Industry Photos

29 CFR 1910 Regulations

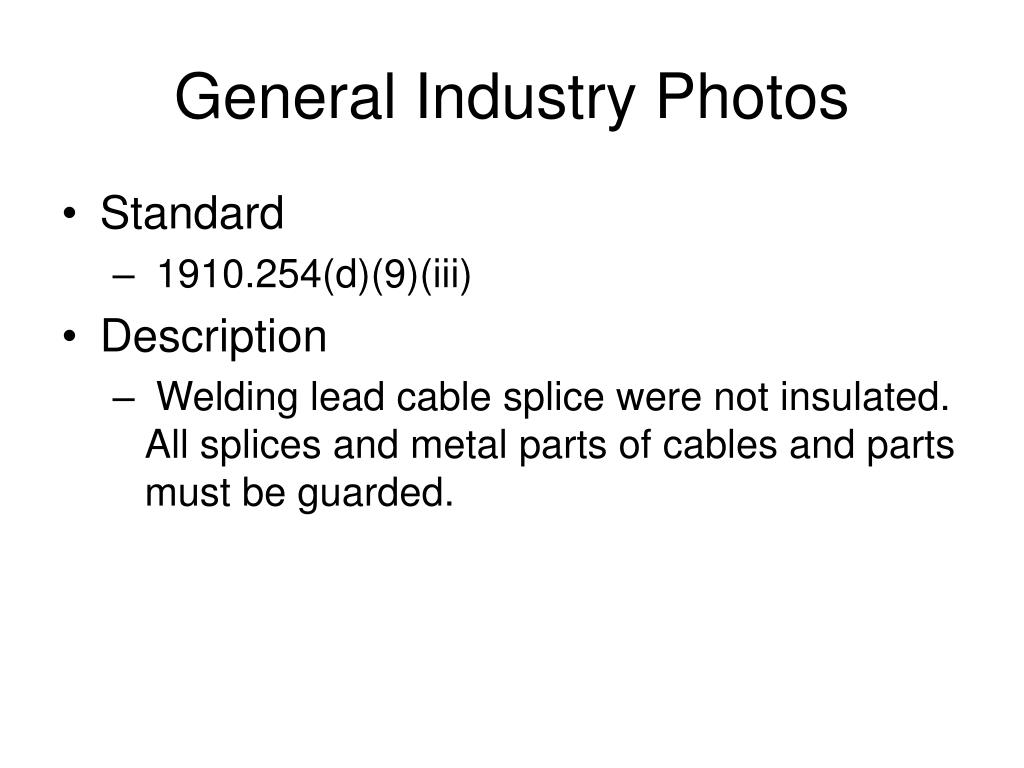

general industry photos
General Industry Photos
  • Standard
    • 1910.254(d)(9)(iii)
  • Description
    • Welding lead cable splice were not insulated. All splices and metal parts of cables and parts must be guarded.

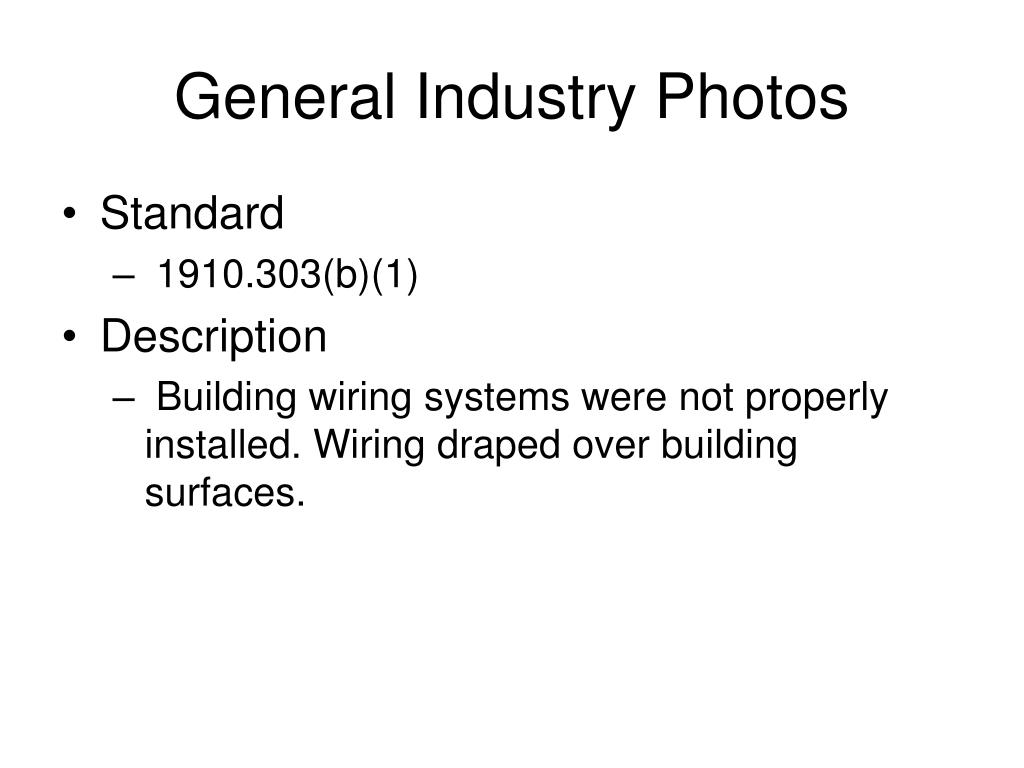

general industry photos4
General Industry Photos
  • Standard
    • 1910.303(b)(1)
  • Description
    • Building wiring systems were not properly installed. Wiring draped over building surfaces.

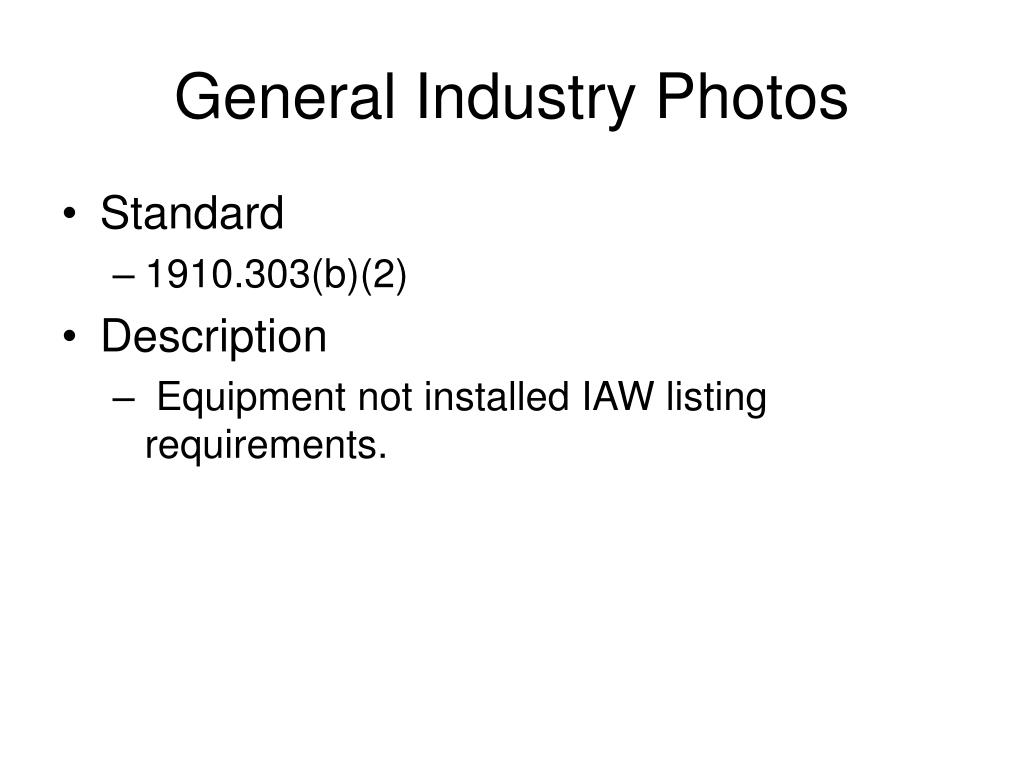

general industry photos6
General Industry Photos
  • Standard
    • 1910.303(b)(2)
  • Description
    • Equipment not installed IAW listing requirements.

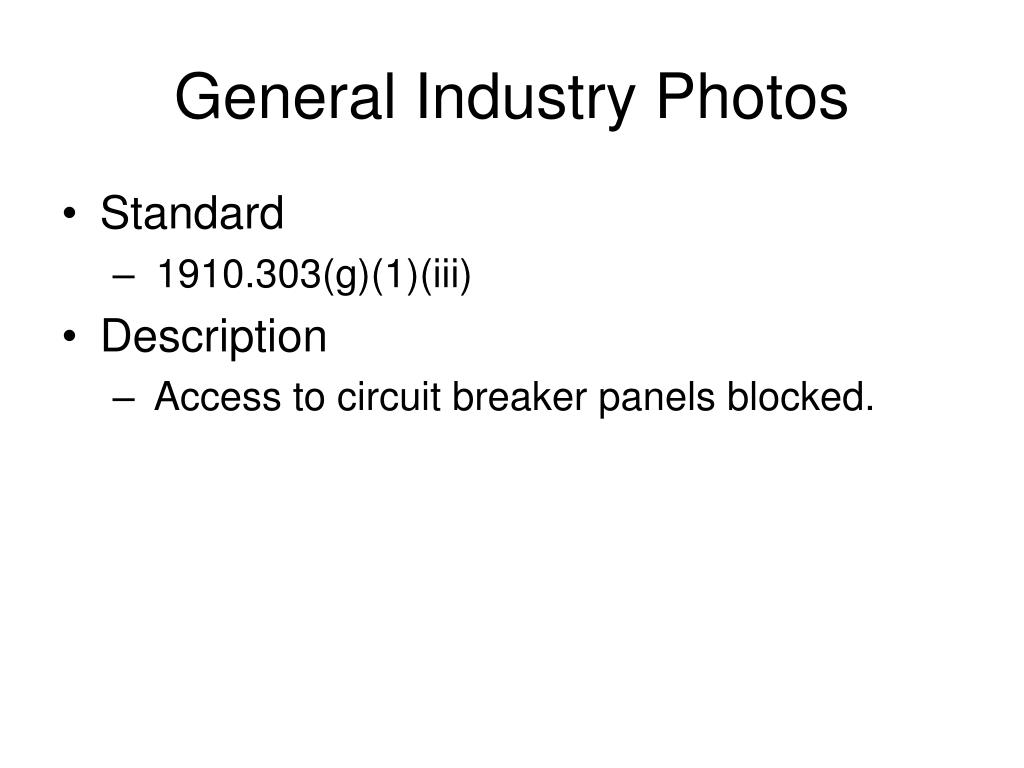

general industry photos8
General Industry Photos
  • Standard
    • 1910.303(g)(1)(iii)
  • Description
    • Access to circuit breaker panels blocked.

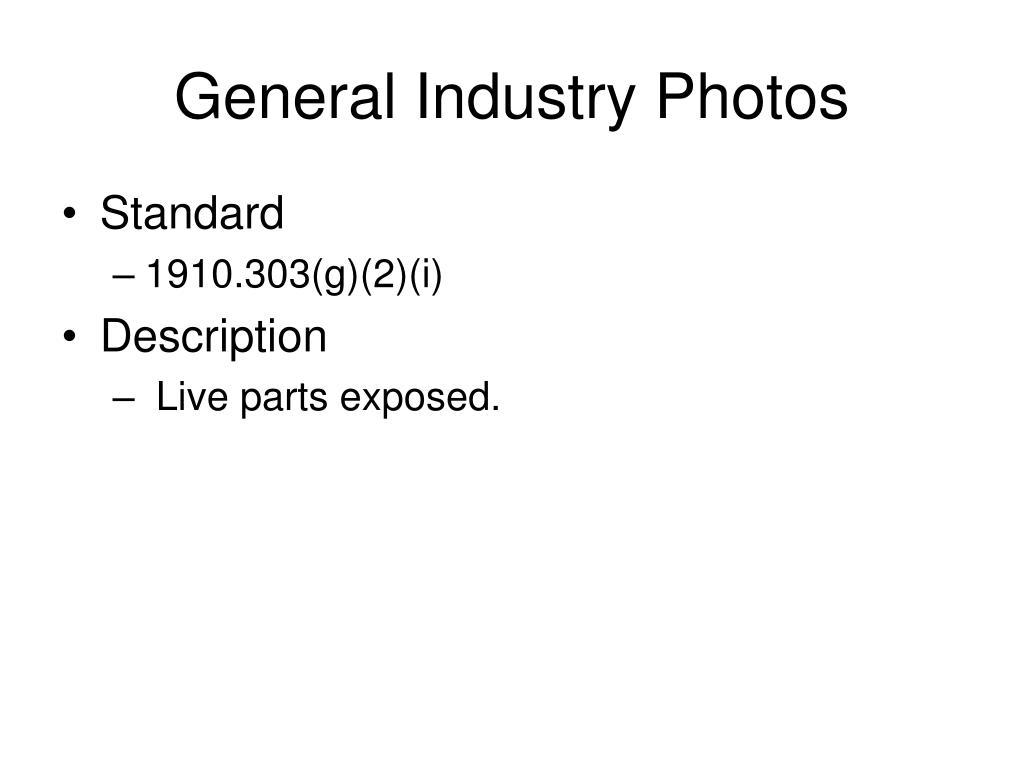

general industry photos10
General Industry Photos
  • Standard
    • 1910.303(g)(2)(i)
  • Description
    • Live parts exposed.

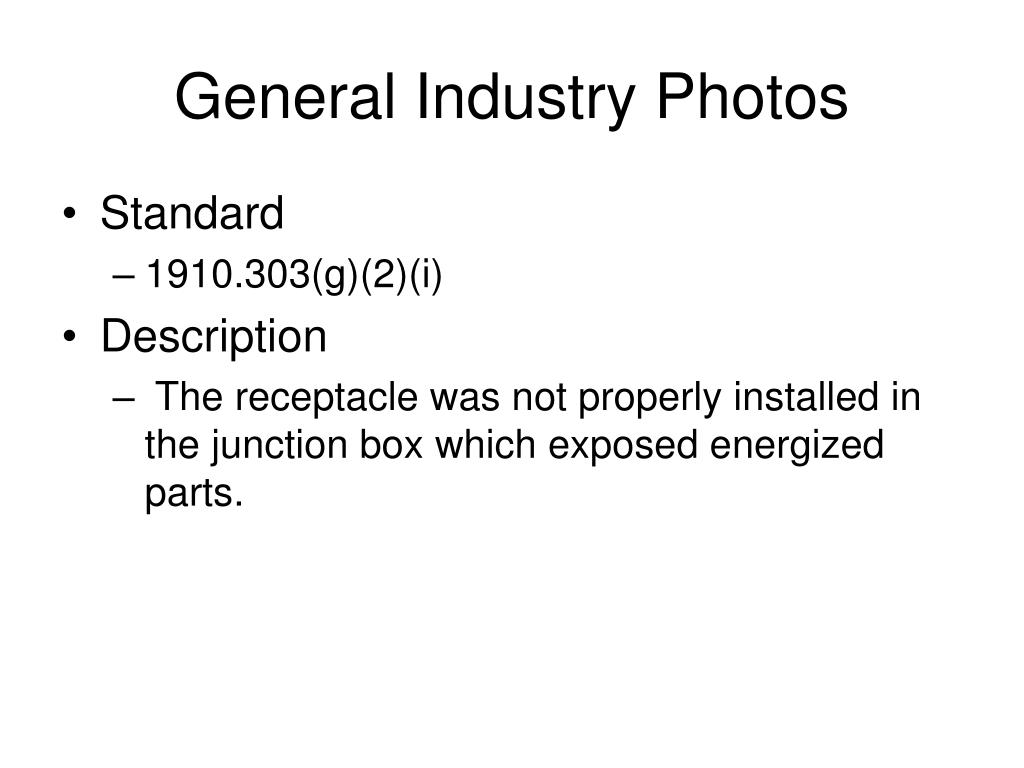

general industry photos12
General Industry Photos
  • Standard
    • 1910.303(g)(2)(i)
  • Description
    • The receptacle was not properly installed in the junction box which exposed energized parts.

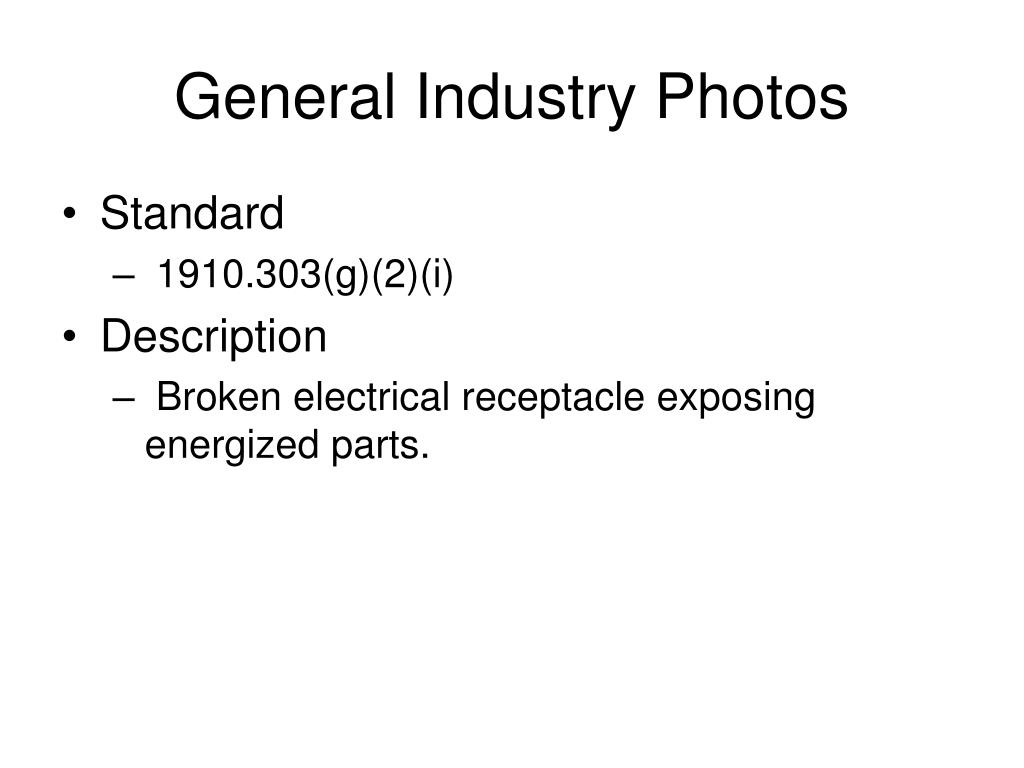

general industry photos14
General Industry Photos
  • Standard
    • 1910.303(g)(2)(i)
  • Description
    • Broken electrical receptacle exposing energized parts.
general industry photos16
General Industry Photos
  • Standard
    • 1910.303(g)(2)(i)
  • Description
    • Live parts of 480 VAC electrical system exposed. All live parts are required to be guarded.
general industry photos18
General Industry Photos
  • Standard
    • 1910.303(g)(2)(i)
  • Description
    • Front cover removed from circuit breaker panel. Live parts exposed.

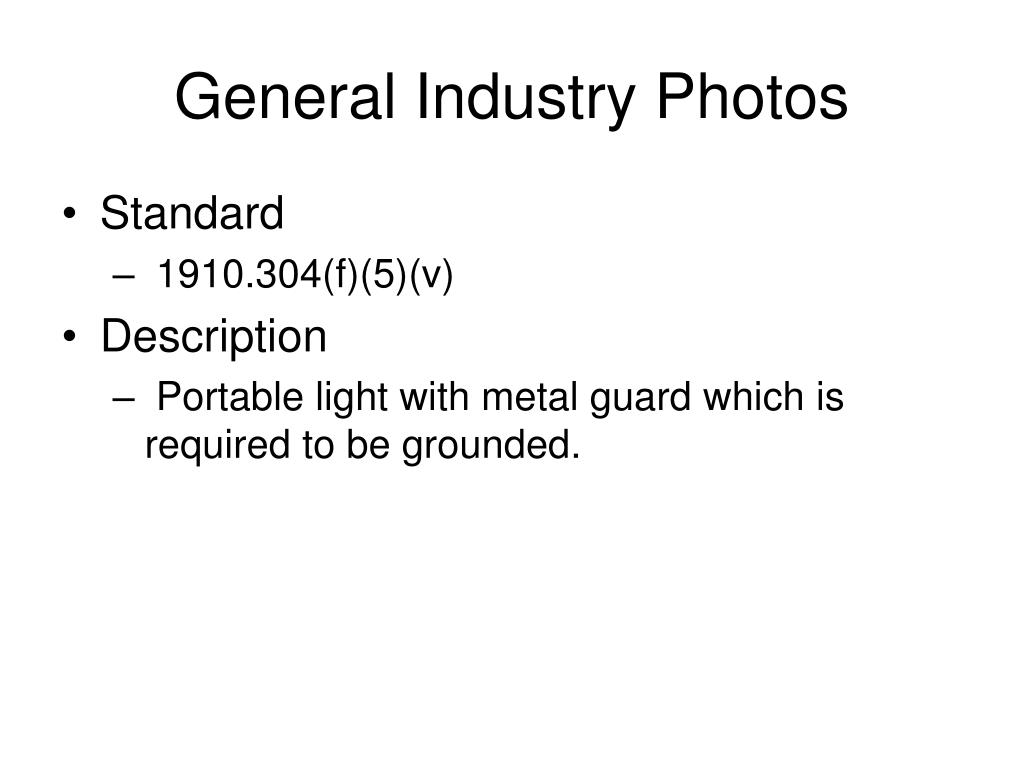

general industry photos20
General Industry Photos
  • Standard
    • 1910.304(f)(5)(v)
  • Description
    • Portable light with metal guard which is required to be grounded.
general industry photos22
General Industry Photos
  • Standard
    • 1910.304(f)(5)(v)
  • Description
    • The ground pin was removed from the electric plug.

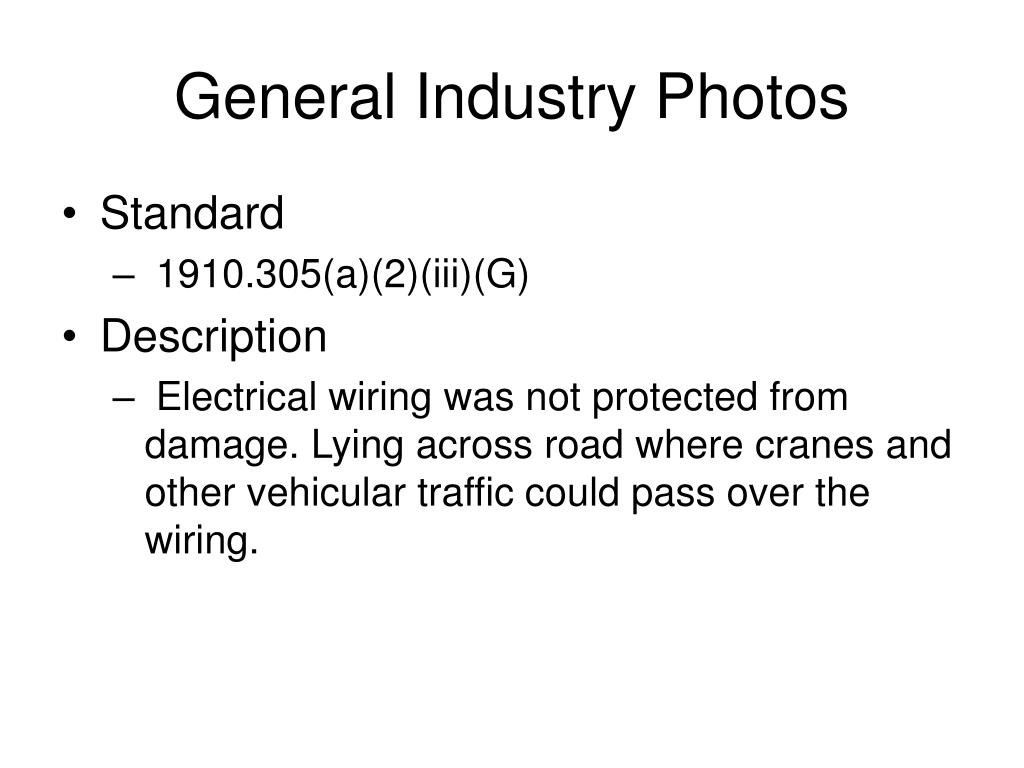

general industry photos24
General Industry Photos
  • Standard
    • 1910.305(a)(2)(iii)(G)
  • Description
    • Electrical wiring was not protected from damage. Lying across road where cranes and other vehicular traffic could pass over the wiring.

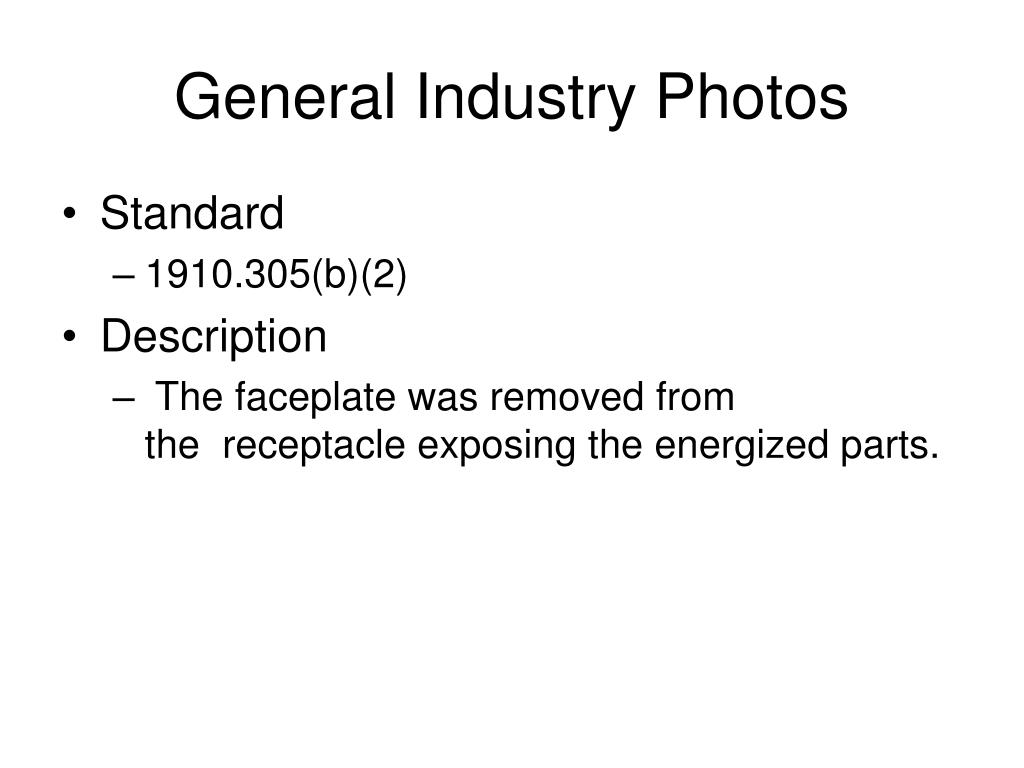

general industry photos26
General Industry Photos
  • Standard
    • 1910.305(b)(2)
  • Description
    • The faceplate was removed from the  receptacle exposing the energized parts.
general industry photos28
General Industry Photos
  • Standard
    • 1910.305(e)(1)
  • Description
    • Electrical systems were not designed for wet and damp locations
general industry photos30
General Industry Photos
  • Standard
    • 1910.305(g)(2)(iii)
  • Description
    • The electrical plug did not have adequate strain relief which causes stress on the contacts.

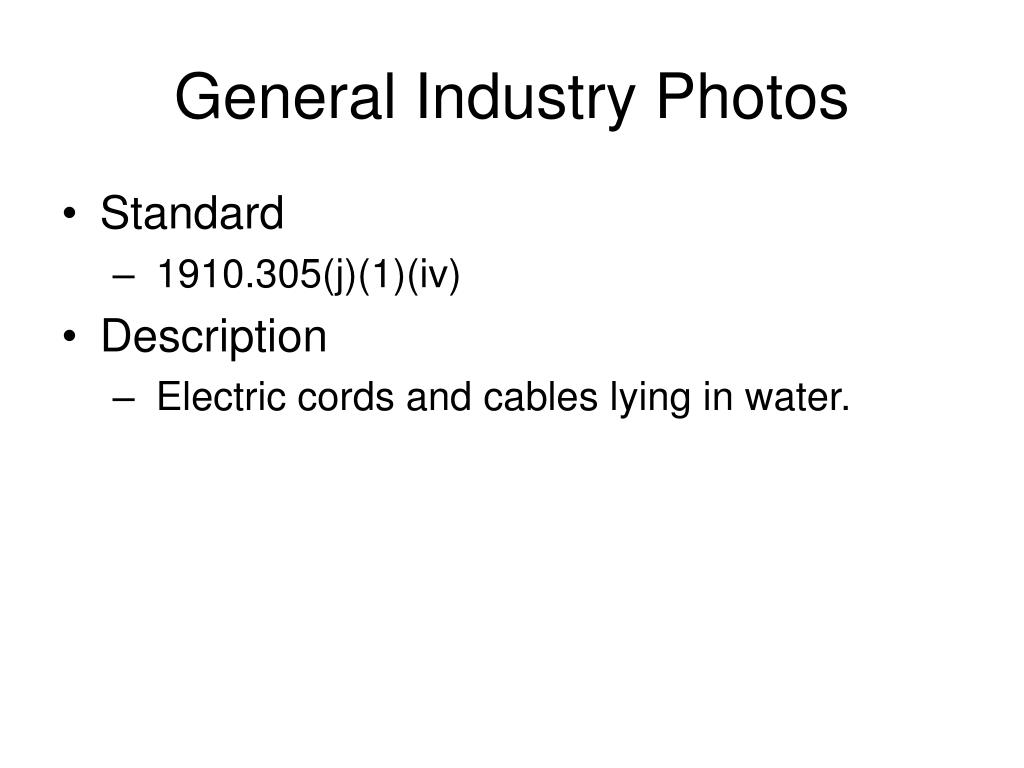

general industry photos32
General Industry Photos
  • Standard
    • 1910.305(j)(1)(iv)
  • Description
    • Electric cords and cables lying in water.
general industry photos34
General Industry Photos
  • Standard
    • 1910.305(j)(1)(iv)
  • Description
    • The receptacle which was approved for wet and damp locations was damaged.
general industry photos36
General Industry Photos
  • Standard
    • 1910.307(b)(1)
  • Description
    • Electrical wiring was not approved for hazardous locations. Paint spray area.

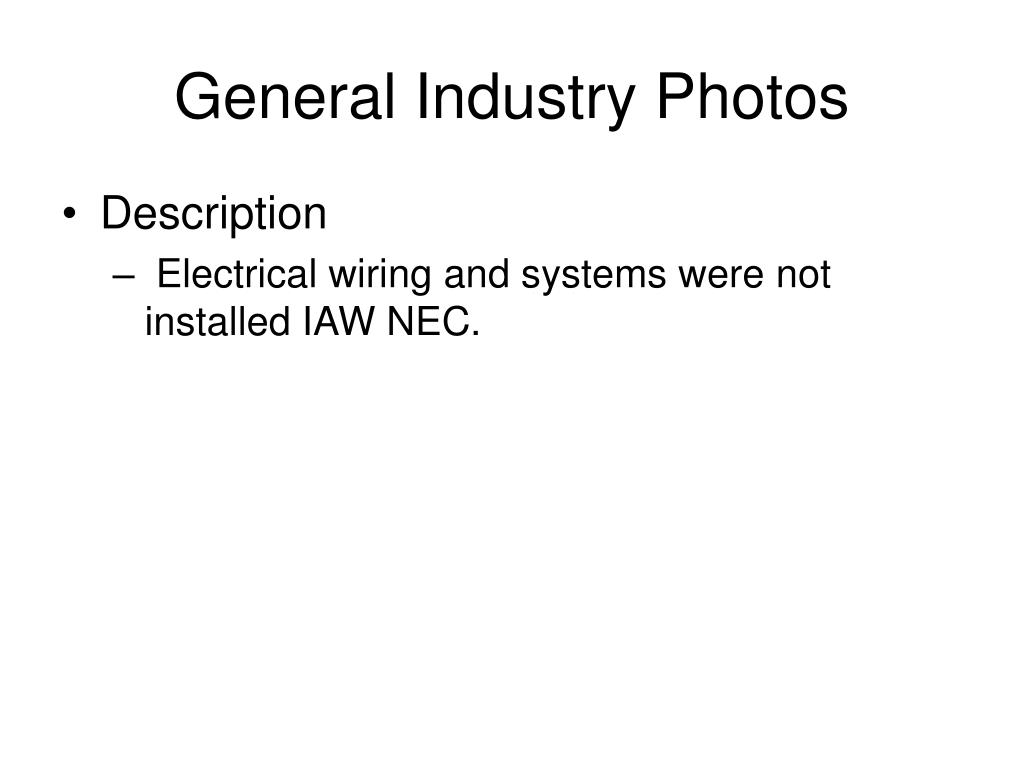

general industry photos38
General Industry Photos
  • Description
    • Electrical wiring and systems were not installed IAW NEC.
