carburetor ice

Carburetor Ice

The Insidious Killer

Presented by:

Aerospace Services International, Inc.

Navy Flying Club Managers Workshop, 1999

agenda
Agenda
  • The Killer
  • How does it happen?
  • Observations
  • Detecting Ice
  • Carb Heat on Takeoff?
  • Just be SAFE!!
the killer
The Killer!
  • Carburetor ice is an insidious killer that appears without warning, often when least expected.
  • Because it can form and “ambush” a pilot unexpectedly, we must exercise prudence when dealing with “Carburetor Ice”.
how does it happen
Carburetor creates a fuel/air mixture.

Air is forced through a narrow opening in the intake, called a venturi.

Air and fuel is mixed and a volatile mixture is created.

Side effect of this reduction in pressure is a concurrent reduction in temperature.

Moisture + below freezing temperature =

Carburetor Ice (The Killer)

How Does it Happen?
observations
Observations
  • Weird Stuff
  • Cessna 150/172 Skyhawks
  • Piper Cherokee
  • Beechcraft
  • Carburetor Heat
    • Meant to prevent the formation of ice, not to remove it.
detecting ice
Detecting Ice
  • Is there anything we can do or is it a fact of life we have to live with?
    • Carburetor Air Temperature Gauge
    • Iceman Probe

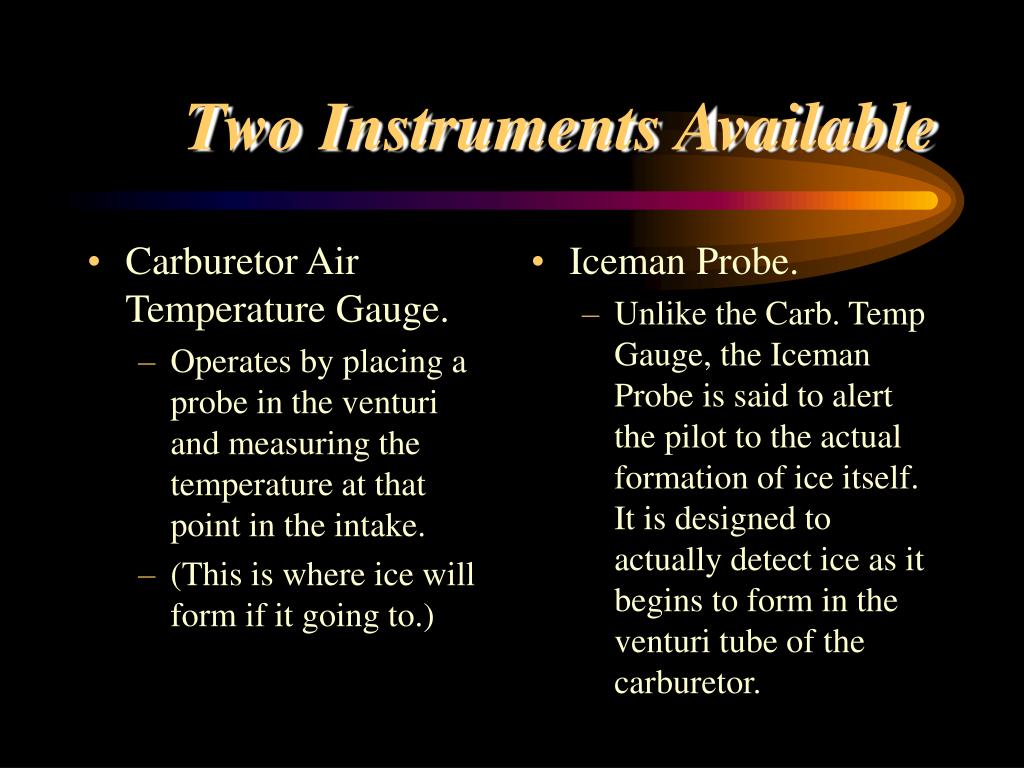

two instruments available
Carburetor Air Temperature Gauge.

Operates by placing a probe in the venturi and measuring the temperature at that point in the intake.

(This is where ice will form if it going to.)

Iceman Probe.

Unlike the Carb. Temp Gauge, the Iceman Probe is said to alert the pilot to the actual formation of ice itself. It is designed to actually detect ice as it begins to form in the venturi tube of the carburetor.

Two Instruments Available
carb heat
Carb Heat
  • The only thing that can “reduce or prevent” carb ice, is the application of carb heat early and often. If your Aircraft is not equipped with detection instruments, apply carb heat if you have the slightest suspicion that conditions may be conducive to ice forming in the carburetor.
carb heat on takeoff

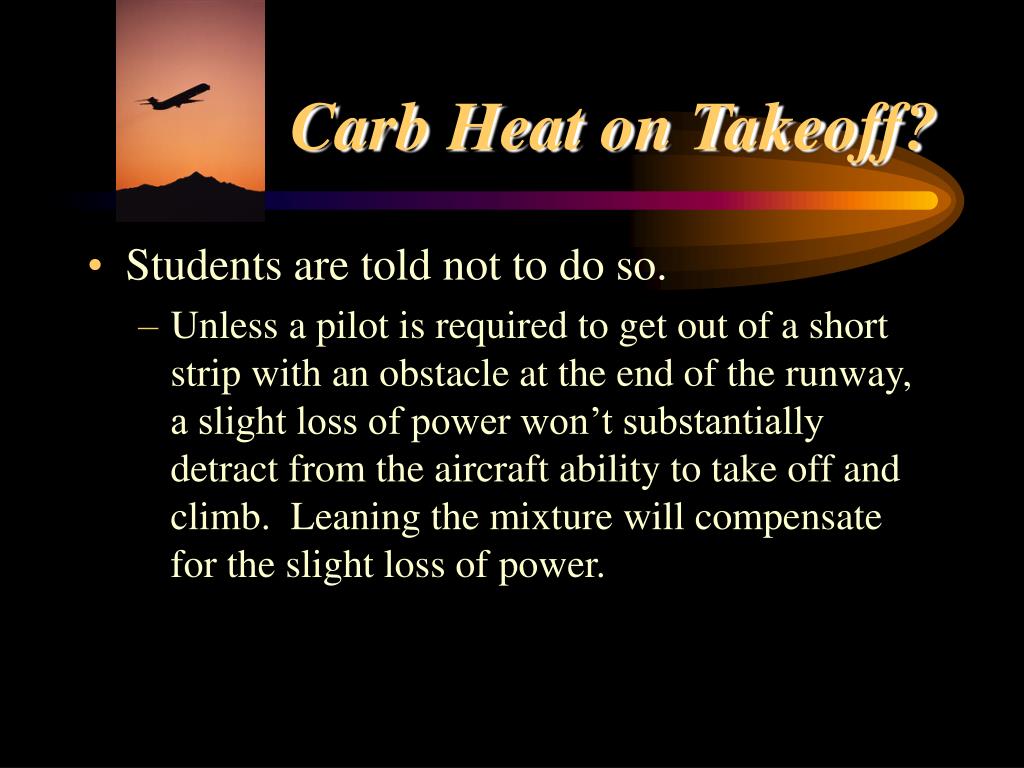

Carb Heat on Takeoff?
  • Students are told not to do so.
    • Unless a pilot is required to get out of a short strip with an obstacle at the end of the runway, a slight loss of power won’t substantially detract from the aircraft ability to take off and climb. Leaning the mixture will compensate for the slight loss of power.
just be safe
Just be Safe!!
  • No matter what your experience level, always be aware of the possibility of Carburetor Ice. Students and Instructors should make sure carb heat is applied when simulating a forced landing due to engine failure.
conclusion
Conclusion
  • Proper pre-flight planning can keep you from experiencing carb ice.
  • Use the chart and you won’t be surprised.
  • FLY SAFE!
