Presentation Transcript
idle speed
Idle Speed
  • Idle speed should be adjusted with the engine at operating temperature and the ignition timing set
idle mixture
Idle Mixture
  • Idle mixture is controlled by the idle mixture screws
  • Engine should be at operating temperature
  • Idle speed should already be adjusted
  • Vacuum method
    • Adjust idle screws to obtain highest idle vacuum
  • Idle speed
    • Adjust idle screws to obtain highest idle rpm
  • Gas analyzer method
    • Adjust to obtain the highest CO2 (4-gas)
    • Adjust to obtain the lowest average CO and HC
float adjustment holley

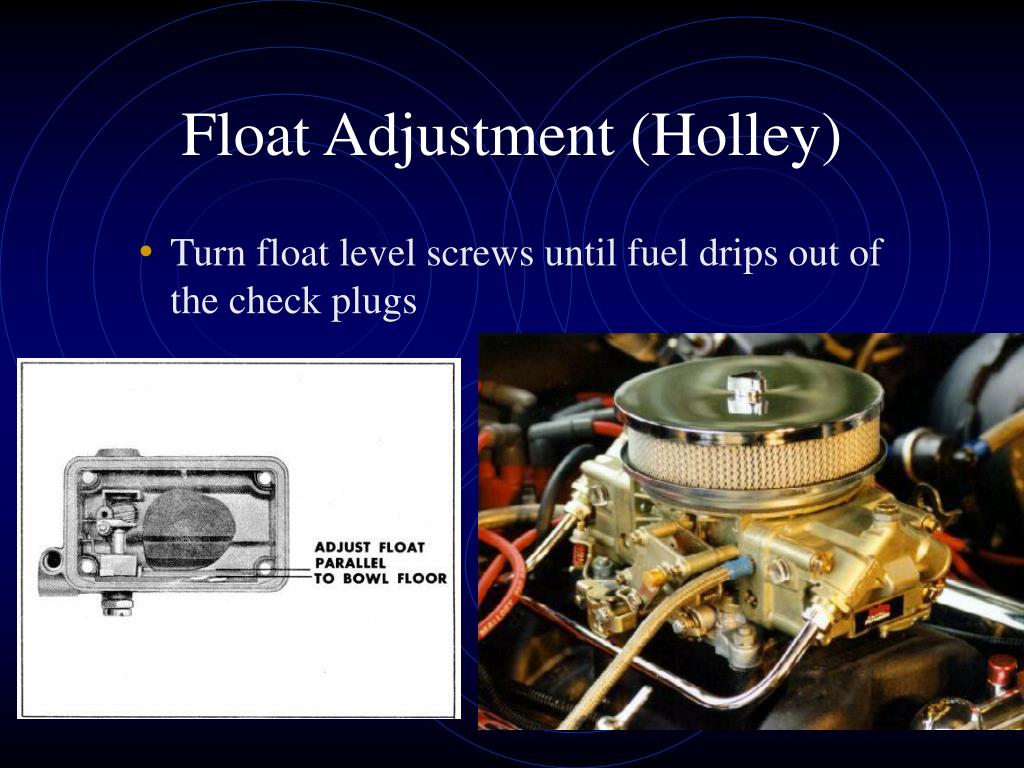

Float Adjustment (Holley)
  • Turn float level screws until fuel drips out of the check plugs
float adjustment edelbrock and quadrajet
Float Adjustment (Edelbrock and Quadrajet)
  • Carburetor must be disassembled to adjust the float level
