  1. CLX-3160Series Mechanism

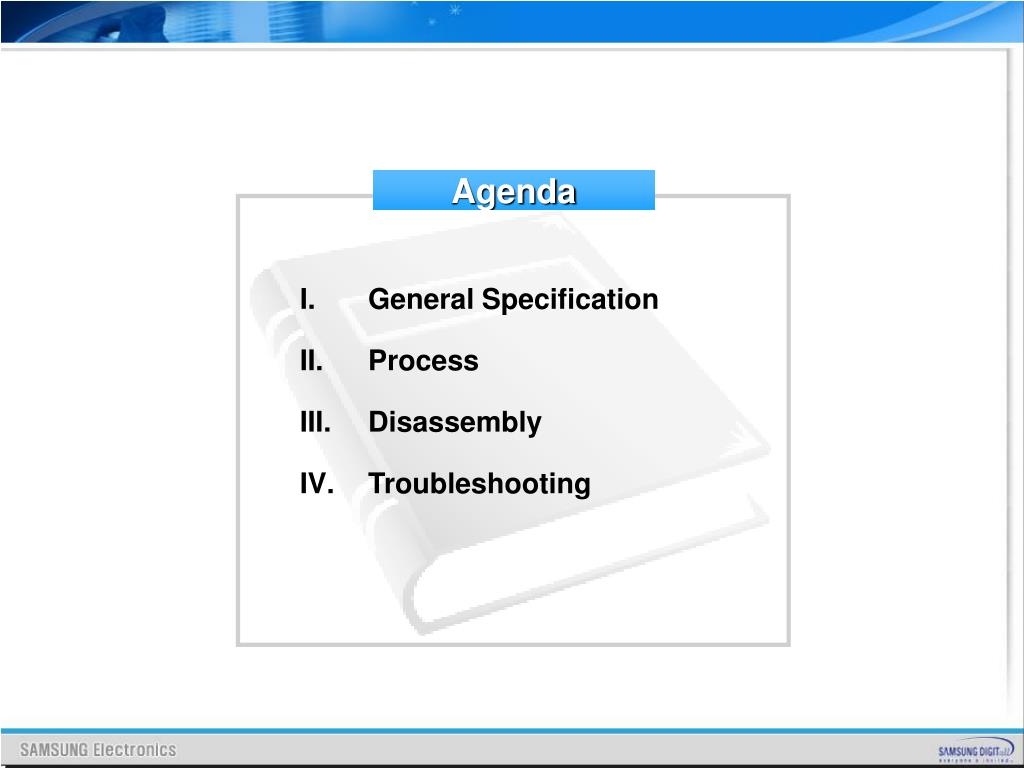

  2. Agenda • General Specification • Process • Disassembly • Troubleshooting

  3. Ⅰ. General Specification Objectives • Understanding the General specifications of CLX-3160N,CLX-3160FN • Comprehension of the feature of major elements.

  4. Ⅰ. General Specification General Feature CLX-3160N CLX-3160FN Size (WxDxH) 466x429x486mm Weight(w/o Packing, Inc.Toner) 20.5 kg Power Consumption Avg. Operation Less than 350 W Sleep mode Less than 30W Noise Printing/Copy 49/52 db Standby 35 db

  5. Ⅰ. General Specification Print CLX-3160N CLX-3160FN Printing Type Color Laser Printing Printing Speed Black 16 ppm(A4)/Color 4 ppm(A4) Print Language SPL-C (Samsung Printer Language) FPOT Cold Approx. 45 seconds (Black) Ready Approx. 14 seconds (Black) Memory 128 MB Resolution Color/Mono 1200 x 600 dpi

  6. Ⅰ. General Specification Scan CLX-3160N CLX-3160FN Scan method Color CCD Scan Speed Approx. 15 seconds Halftone 256 Levels Scan size Max Doc. width 216mm(8.5”) Effective Scan width 208mm(8.2”) Scan to E-mail Yes Resolution Color/Mono 4800 x 4800 dpi(Enhanced)

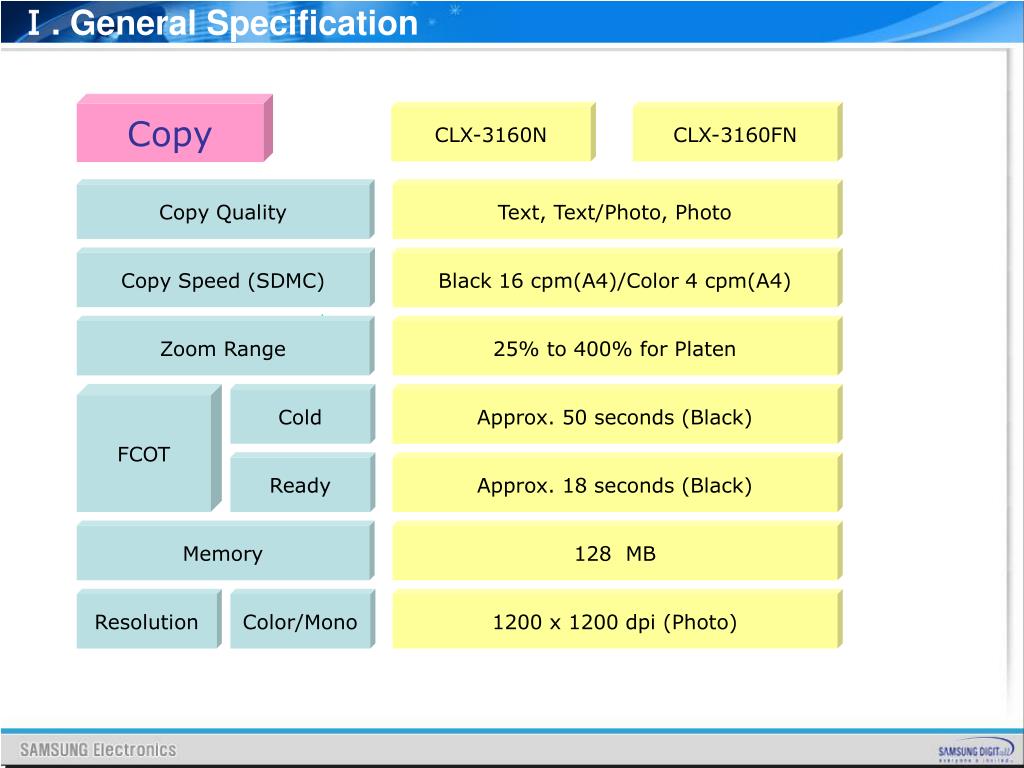

  7. Ⅰ. General Specification Copy CLX-3160N CLX-3160FN Copy Quality Text, Text/Photo, Photo Copy Speed (SDMC) Black 16 cpm(A4)/Color 4 cpm(A4) Zoom Range 25% to 400% for Platen FCOT Cold Approx. 50 seconds (Black) Ready Approx. 18 seconds (Black) Memory 128 MB Resolution Color/Mono 1200 x 1200 dpi (Photo)

  8. Ⅰ. General Specification Fax/Tel CLX-3160N CLX-3160FN Handset N/A No On hook dial N/A Yes Communication system N/A PSTN/PABX Resolution N/A 203*196 Dpi (Fine) Color FAX N/A Yes Memory N/A 4 MB TX Speed N/A 3 Sec.

  9. Ⅰ. General Specification Paper Handling CLX-3160N CLX-3160FN 150 sheets Capacity(20lb) Main Tray 150 sheets 1 sheet Manul Tray 1 sheet 250 sheets Optional Cassette(SCF) 250 sheets Face Down: 100 sheets/20lb Output Capacity Face Down: 100 sheets/20lb Software Win 98,2000,XP,ME Mac OS:10.3,4 Linux:redhat,fedora Supporting OS Win 98,2000,XP,ME Mac OS:10.3,4 Linux:redhat,fedora

  10. Ⅰ. General Specification CRU CLX-3160N CLX-3160FN Toner Kit(5% Coverage) Color(Y,M,C) 1,000 pages 1,000 pages Mono 2,000 pages 2,000 pages Waste Toner Tank 5,000 pages (Black) 5,000 pages (Black) Image Unit 20,000 pages (Black) 20,000 pages (Black) FRU Fuser 100,000 images 100,000 images ITB 100,000 images 100,000 images T2 Roller 100,000 pages 100,000 pages Pick-up Roller 5,000 pages 5,000 pages 20,000 pages ADF rubber pad 20,000 pages

  11. Ⅰ. General Specification Review CLP-3160 is Color Laser Multi Function Printer and its print speed is 4(C)/16(M) ppm(A4).

  12. Ⅱ. Process Objectives • Understanding the basic structures and operating principle of each parts • Studying the printing process and electronic photo process • Comprehension of System Layout

  13. Electronic Photo Process

  14. Ⅱ. Process 9 4 6 5 7 8 3 2 1 Engine Layout Paper Input (Cassette) LSU (Laser Scanning Unit) 2 1 2nd Transfer Roller Fuser 4 3 ITB (Intermediate Transfer Belt) 1st Transfer Roller 6 5 OPC (Organic Photo Conductor) Developers (Y, M, C, & K) 8 7 Toner Kits (Y, M, C, & K) 9

  15. Ⅱ. Process Scan Unit Layout

  16. Ⅱ. Process System Layout 1. Cassette Feeding Method : Cassette Type Feeding Standard : Center Loading Feeding Capacity : Cassette 150 Sheets(75g/㎡, 20lb Paper Standard) Manual Feeder 1 Sheet Paper Detecting Sensor : Photo Sensor (Empty, Registration, Exit) Paper Size Sensor : None

  17. Ⅱ. Process System Layout 2. LSU(Laser Scan Unit) Consisted of LD(Laser Diode) and Polygon Motor Control. Error Phenomenon Polygon Motor Error The Rotation of Polygon Motor can not reach stable H-sync Error Though the rotation of Polygon Motor reach stable, the signal of H-sync is not occurred

  18. Ⅱ. Process System Layout 3. 2nd Transfer Ass’y The life span: Print over 100,000 sheets (in 15~30 ℃) Specification: Similar to BigBang(CLP-5XX) Ass’y.

  19. Ⅱ. Process System Layout 4. Fuser Ass’y Heat Lamp : New Part - Knuckle Type Heat Roller : Similar to BigBang. 2 Pressure Roller : One is similar to HummingBird, the Other is a new added part comparing with other Fuser Thermistor – Temperature-Measuring Device Thermostat – Critical Temperature-Detecting Device

  20. Ⅱ. Process System Layout 5&6. ITB(Intermediate Transfer Belt) & 1st Transfer Roller The life span: Print over 100,000 Images The ITB unit includes 1st Transfer Roller

  21. Ⅱ. Process System Layout 7&8. OPC(Organic Photo-Conductor) & Developer The life span: Print over 44,000 Images (Both) Imagine Unit consists of 4 kinds of Developer , OPC, and Deve. Main Frame

  22. Ⅱ. Process System Layout 9. Toner Kits The life span: Color -> 1000 images (5% Coverage Print-Out) Black -> 2000 images (5% Coverage Print-Out)

  23. Ⅱ. Process System Layout 10. Driver Ass’y It is a power delivery unit by gearing By driving the motor, it supplies the power to the feeding unit, the fusing unit, and the distributing unit. The Main Motor is similar to BigBang Main Motor.

  24. Ⅱ. Process System Layout 11. Scan Ass’y 3 in 1 : CLX-3160N 4 in 1 : CLX-3160FN Scanning Method: Color CCD(600 x 1200 dpi) Copy speed : SDMC 16cpm/A4(B/W), 4cpm/A4(Color)

  25. Ⅱ. Process System Layout 12. Manual Tray For customer convenience in managing special paper Capacity : 1 sheet

  26. Ⅱ. Process System Layout 13. Optional Tray (SCF) For customer convenience in managing paper Capacity : 250 sheets

  27. Ⅱ. Process Review • What is the function of paper-sensor? • How long is life of Trans-Roller? • What is the function of Thermistor and Thermostat.

  28. Ⅲ. Disassembly Objectives • Practicing the skill of decomposition and assembly. • Understanding the basic structures of major part (Engine, Scan).

  29. Ⅲ. Disassembly CLX-3160N CLX-3160FN Let’s see a ‘Service Manual’ ▶

  30. Ⅲ. Disassembly Review • Can you disassemble and assemble ML-1610?

  31. Ⅲ. Disassembly Objectives • Building ability to deal with various problems raised in the field by reviewing troubleshooting. • Check the solution of each problem. • Check the difference of each Jam.

  32. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 1. Vertical Black Line and Band Description: 1. Straight thin black vertical lines are shown in the print-out. 2. Dark black vertical bands are shown in the print-out. Check and Cause Solution • Damaged developer roller, deformed Doctor-blade or cleaning blade in the toner cartridge. • Scratched surface of the charge roller in the toner cartridge. • Depression or deformation of the surface of the 2nd transfer roller. • Replace the Imaging Unit and test again • Replace the Imaging Unit and test again • Replace the 2nd transfer roller and test again

  33. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 2. Vertical White Line Description: White vertical voids in the image. Check and Cause Solution • Contamination of the window or internal lenses of LSU mirror. • Foreign object inside the toner cartridge. • Toner is low in the developer. • The rollers in the fuser is defective, void occur periodically at the top of a image. • Contamination of the OPC Drum. • Depression or deformation of the surface of the 2nd transfer roller • Clean the LSU window with recommended cleaner(IPA). Clean the window with a clean cotton swab. If inside of the LSU is contaminated-replace LSU. • Replace the Imaging Unit. • Replace the Toner Kits. • Open the rear cover and check the ribs that correspond to the position of the voids. Remove if found. • If the problems are not solved, replaced the Imaging Unit. • Replace the 2nd transfer roller.

  34. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 3. Horizontal Black Bands Description: Dark or blurry horizontal stripes occur in the printing periodically (These may occurs at regular intervals down the page.) Check and Cause Solution • Bad contacts on the Imaging Unit high voltage terminals. • The rollers in the Imaging Unit may be contaminated. • Charge roller – 37.7 mm • Supply roller – 47.5 mm • Develop roller – 35.2 mm • Transfer roller – 46.2 mm • Clean all HV terminals in the Imaging Unit and on the set frame. Ensure all toner or paper dust, particles are removed. • Clean the right Gear that has relatively small tooth gap on the OPC. • If the problems are not solved, replaced the toner cartridge.

  35. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 4. Black/White Spot Description: 1. Dark or blurry spots occur periodically in the printing 2. White spots occur periodically in the printing Check and Cause Solution • OPC drum & rollers in the Developer or chager may be damaged and contaminated with foreign matter or paper particles. • Replace the Imaging Unit and test again

  36. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 5. Light Image Description: The printed image is light, with no ghost. Check and Cause Solution • Develop roller is contaminated or the toner is almost empty. • Bad contact caused by dirty terminals on the Imaging Unit or set. • Abnormal output from the HVPS. • Replace the Imaging Unit and try to print out again. • Clean the cartridge and set contacts. Gently clean dirt from inside of the set. • Replace the HVPS if the problem are not solved by the above four instructions.

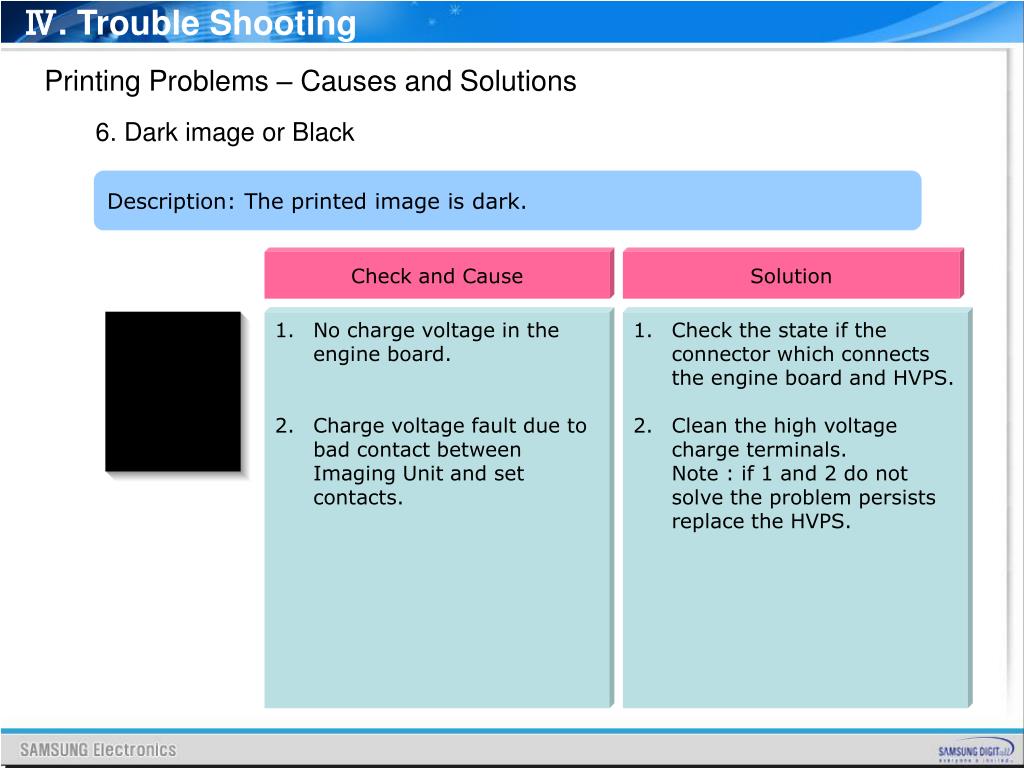

  37. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 6. Dark image or Black Description: The printed image is dark. Check and Cause Solution • No charge voltage in the engine board. • Charge voltage fault due to bad contact between Imaging Unit and set contacts. • Check the state if the connector which connects the engine board and HVPS. • Clean the high voltage charge terminals. • Note : if 1 and 2 do not solve the problem persists replace the HVPS.

  38. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 7. Uneven Density Description: Print Density is uneven between left and right. Check and Cause Solution • The pressure force in the left and right springs of the 2nd transfer roller is not even, the springs are damaged, the 2nd transfer roller is improperly installed, or the 2nd transfer roller bushing or holders are damaged. • Toner is low. • The toner level on the Developing Roller is not even in the Imaging Unit due to the damaged blade. • Replace the left and right bush and spring assemblies. • Replace Toner Kit and try to print out. • Replace the Imaging Unit.

  39. Ⅳ. Printing Problems &Solution Printing Problems 8. Strain in the Face of the Page Description: The background on the face of the printed page strained Check and Cause Solution • Toner leakage due to improperly sealed Imaging Unit. • Poor Toner cartridge OPC cleaning. • Replace the Imaging Unit. • Replace the Imaging Unit.

  40. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 9. Strains on Back of Page Description: The back of the page is strained at 46.2 or 75.5 mm intervals. Check and Cause Solution • 2nd Transfer roller is contaminated. • Pressure roller in Fuseris contaminated. • Replace the transfer roller if it is contaminated. • 2. Disassemble the fuser and clean the Heat Roller and Pressure Roller. Check and clean the area between the Heat Roller and the Thermistor. (Caution: Take care not to deform the rollers)

  41. Ⅳ. Trouble Shooting Printing Problems – Causes and Solutions 10. Blank Page Print out(1) Description: Blank page is printed. Check and Cause Solution • Bad ground contacts in OPC. • Check if the Ground-OPC or the OPC Groung. • Remove contamination of the terminals in the Imaging Unit and the unit.

  42. Ⅳ. Printing Problems &Solution Printing Problems 11. Ghost Description: Ghost occur at 75.4mm intervals of the OPC drum or 27mm intervals of the developing roller in the whole Printing Check and Cause Solution • Bad contacts caused by contamination from toner particles between high voltage terminal in the main body and the one in the HVPS board • The life of Imaging Unit is expired. • 2nd Transfer roller life(100,000 sheets) has expired. • Damaged cleaning blade in the Imaging Unit • Clean all HV contacts. If problem persist replace the HVPS. • Replace the Imaging Unit • Check the 2nd transfer roller lifetime and replace it. • Replace the Imaging Unit

  43. Ⅳ. Trouble Shooting Paper Feeding Problems – Causes and Solutions 1. Wrong Print Position Description: Printing begins at wrong position on the paper. Check and Cause Solution 1. Wrong sensor timing caused by defective feed sensor actuator. • Replace the defective actuator.

  44. Ⅳ. Trouble Shooting Paper Feeding Problems – Causes and Solutions 2. Jam 0 Description: 1. Paper does not exit from the cassette. 2. Jam-0 occurs when the paper feeds into the printer Check and Cause Solution • Check the Solenoid. • Check the cassette knock-up plate and springs. • Check the paper separator pad. • Check the pick-up roller for contamination and correct assembly. • If continuous clusters occur, check all rollers between pick-up and registration sensor. • Replace the solenoid. • Repair/replace as required. • Clean with soft cloth dampened with IPA(Isopropyl Alcohol) or water. Replace if required. • Clean with soft cloth dampened with IPA(Isopropyl Alcohol) or water. Replace if required. • Ensure all rollers are clean and free to operate correctly.

  45. Ⅳ. Trouble Shooting Paper Feeding Problems – Causes and Solutions 3. Jam 1 Description: 1. Paper is jammed in front of or inside the fuser. 2. Paper is stuck in the exit roller and in the fuser just after passing through the Actuator-Feed Check and Cause Solution • If the recording paper is stuck in the exit roller and in the fuser just after passing through the Actuator-Feed, Feed Actuator may be defective. • Reassemble the Actuator-Feed and spring-Actuator if the movement is bad. Replace if necessary.

  46. Ⅳ. Trouble Shooting Paper Feeding Problems – Causes and Solutions 4. Jam 2 Description: 1. Recording paper is jammed in front of or inside the fuser. 2. Recording paper is stuck in the discharge roller and in the fuser just after passing through the Actuator-Feed. Check and Cause Solution • If the paper is rolled in the Fuser Roller. • - It occurs when the Heat Roller or Pressure Roller is seriously contaminated with toner. • If the paper is stuck in the fuser: disassemble the fuser and remove the jammed paper and clean the surface of the pressure roller with dry gauze. Check all ribs.

  47. Ⅳ. Trouble Shooting Paper Feeding Problems – Causes and Solutions 5. Paper rolled in the fuser Description: Paper rolled around fuser rollers or ‘Concertina’ jam Check and Cause Solution • Contamination of the pressure roller or heat roller. • After disassembling the fuser, clean contamination from between the heat roller and the thermistor and also clean contamination from the preesure roller. Clean the surface of the rollers with IPA or water.

  48. Ⅳ. Trouble Shooting Scanner, OPE Problems – Causes and Solutions 1. Scan Lock Error Description: CCDM doesn’t move. Display ‘scan lock error’ on LCD Check and Cause Solution • Check if the switch is pulled out completely to the unlock • mark inside platen glass • Are you sure that switch is • pulled out completely? • Pull out the switch with • ice green color • Push ‘cancel’ button

  49. Ⅳ. Trouble Shooting Scanner, OPE Problems – Causes and Solutions 2. Nothing Displayed on LCD Description: LCD does not display anything Check and Cause Solution • Check if OPE connection cable was connected well with main board. • If not, • OPE connection cable • connect well with main • board • 2. After connected well, Try to • reboot the printer

  50. Ⅳ. Trouble Shooting Scanner, OPE Problems – Causes and Solutions 3. Copy image cann’t identify Description: Copy image look like ‘haze line’ Check and Cause Solution • CCD’s flat cable was not • connected well • Retry connect the flat cable on the CCDM.
