Presentation Transcript

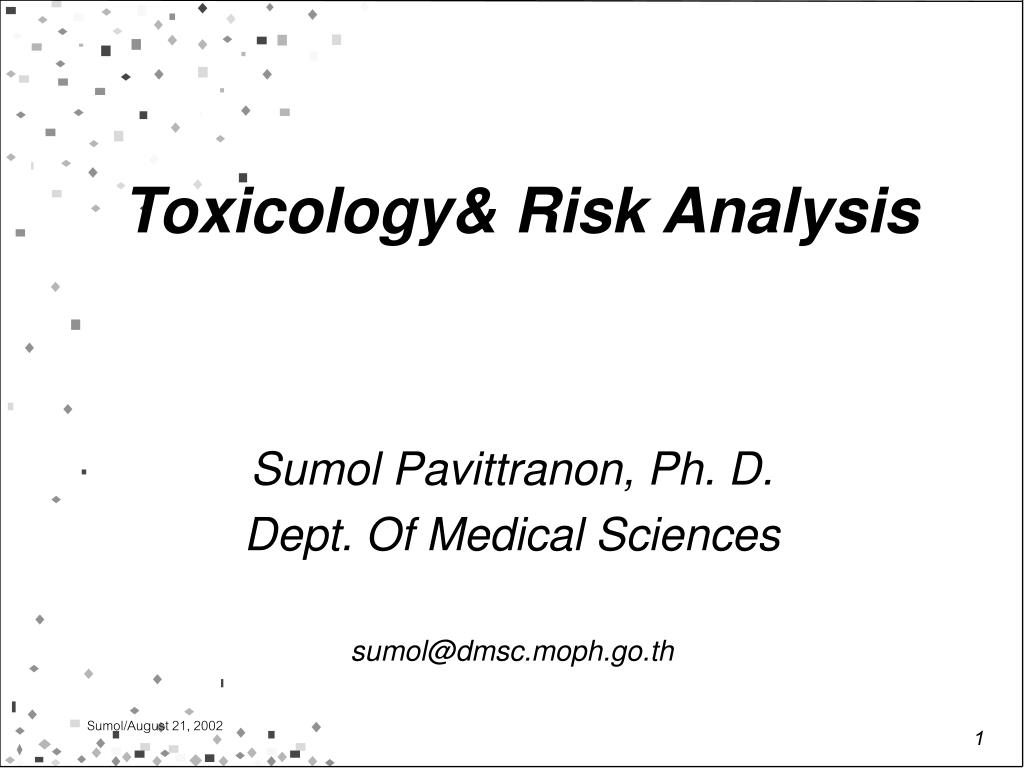

Toxicology risk analysis l.jpg

Toxicology& Risk Analysis

Sumol Pavittranon, Ph. D.

Dept. Of Medical Sciences

sumol@dmsc.moph.go.th


Slide2 l.jpg

RISK

EXPOSURE

standards

DOSE

SENSiTIVITY

Extrapolate

Testing

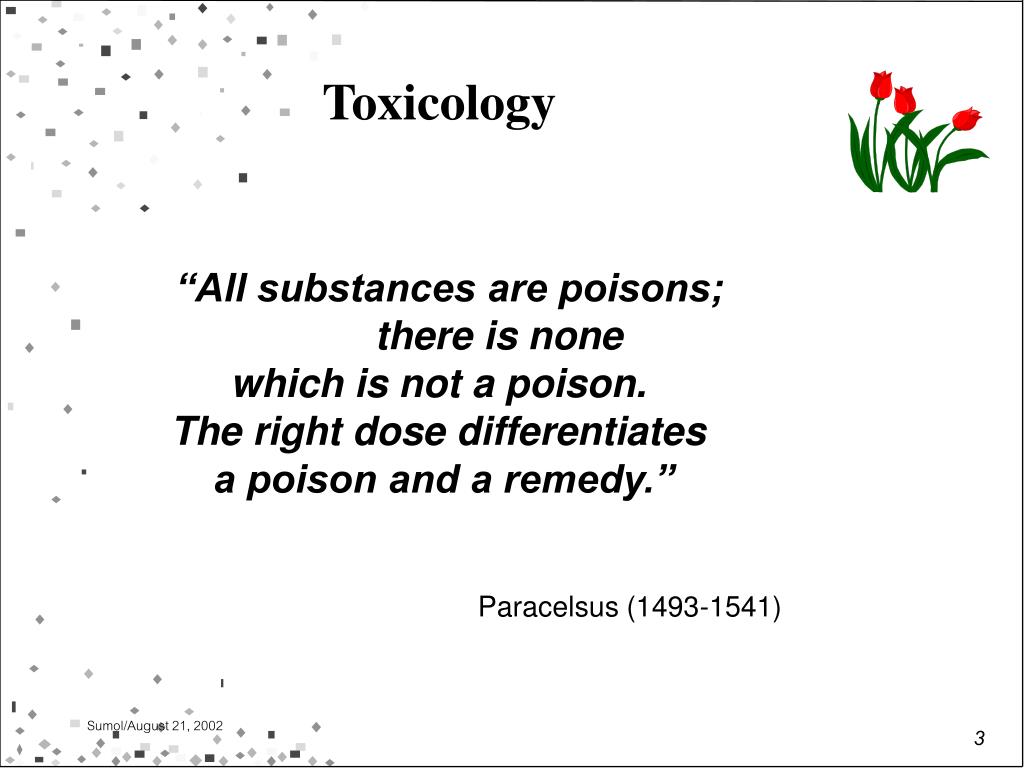

Slide3 l.jpg

Toxicology

“All substances are poisons;

there is none

which is not a poison.

The right dose differentiates

a poison and a remedy.”

Paracelsus (1493-1541)


Slide4 l.jpg

ความไม่รู้เป็นพิษที่สุดความไม่รู้เป็นพิษที่สุด

“ Ignorance is the most toxic of all”

Sumol Pavittranon

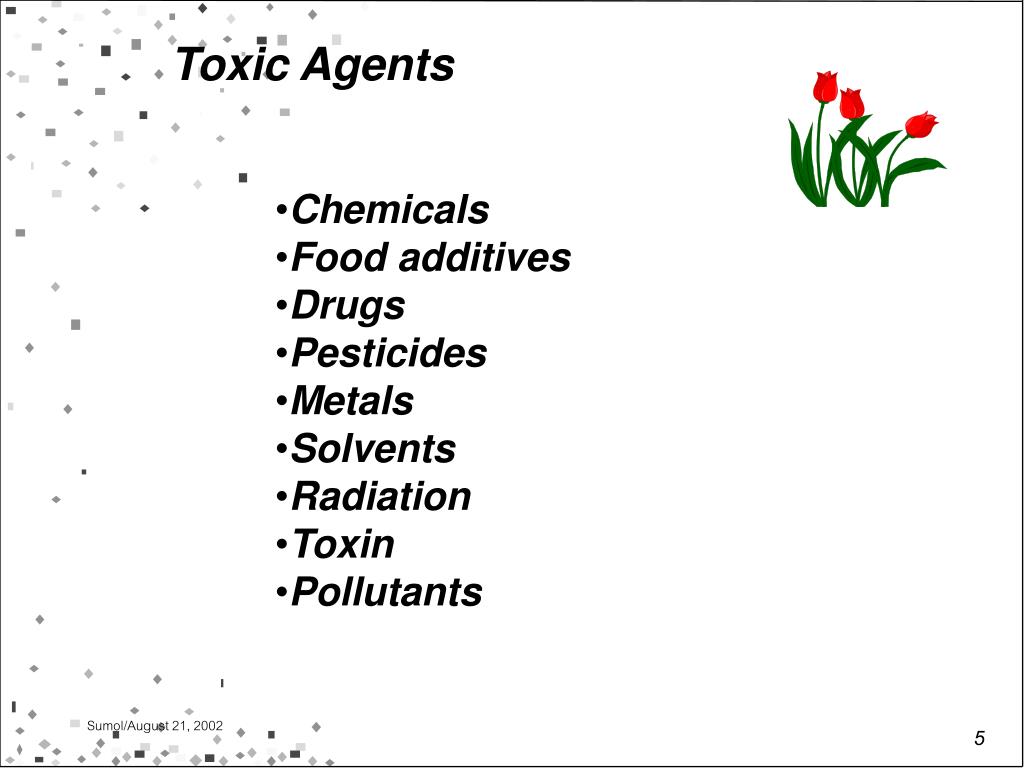

Slide5 l.jpg

Toxic Agentsความไม่รู้เป็นพิษที่สุด

  • Chemicals

  • Food additives

  • Drugs

  • Pesticides

  • Metals

  • Solvents

  • Radiation

  • Toxin

  • Pollutants

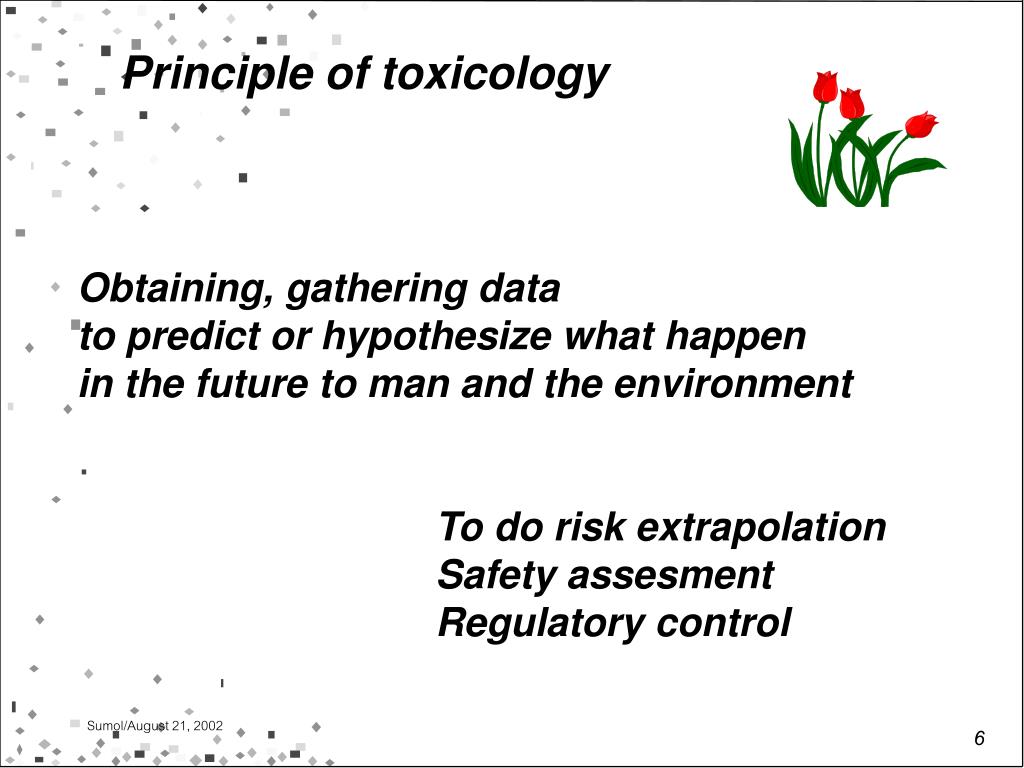

Slide6 l.jpg

Principle of toxicologyความไม่รู้เป็นพิษที่สุด

Obtaining, gathering data

to predict or hypothesize what happen

in the future to man and the environment

To do risk extrapolation

Safety assesment

Regulatory control


Slide7 l.jpg

Factors influence risk estimateความไม่รู้เป็นพิษที่สุด

  • Chemical property

  • Biological System

  • Effect or response

  • Exposure situation


Slide8 l.jpg

Toxicity Testingความไม่รู้เป็นพิษที่สุด

  • Acute toxicity

  • Subacute toxicity

  • Chronic toxicity

  • Reproductive toxicity

  • Genotoxicity

  • Neurotoxicity

  • Immunotoxicity

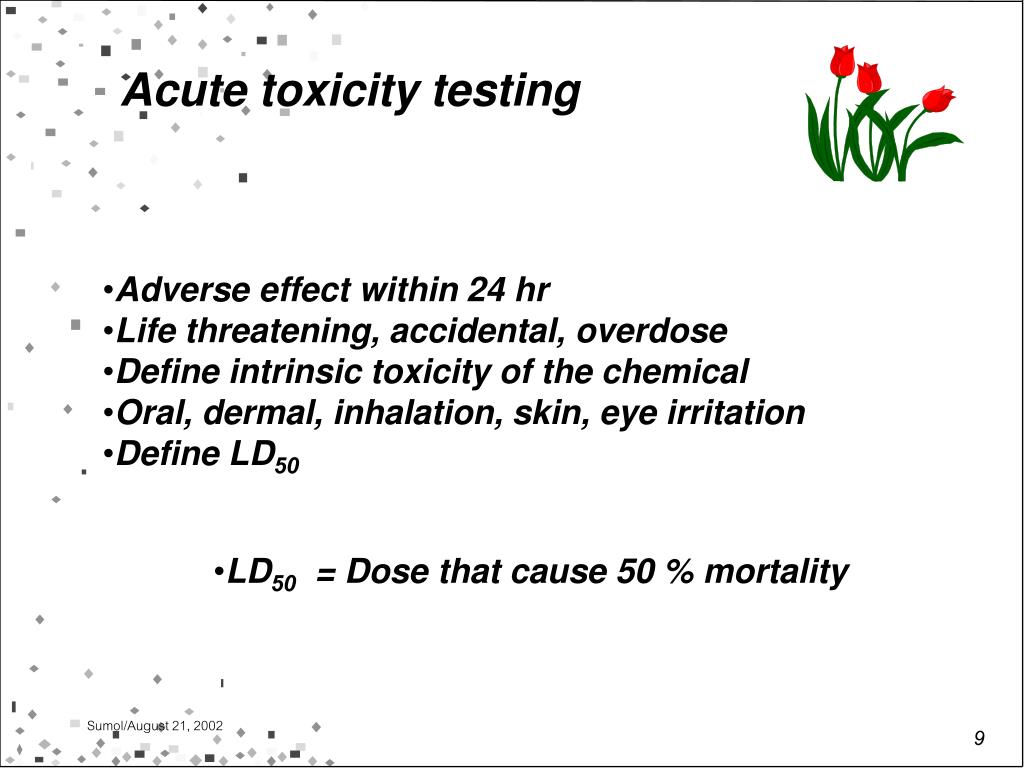

Slide9 l.jpg

Acute toxicity testingความไม่รู้เป็นพิษที่สุด

  • Adverse effect within 24 hr

  • Life threatening, accidental, overdose

  • Define intrinsic toxicity of the chemical

  • Oral, dermal, inhalation, skin, eye irritation

  • Define LD50

  • LD50= Dose that cause 50 % mortality


Slide10 l.jpg

Sub chronic testingความไม่รู้เป็นพิษที่สุด

  • Repeated dose for up to 6 months

  • 10 % life span

  • 2 spp, rodent and non-rodent

  • reflect cumulative effect, latent period

  • and reversibility

  • non-lethal parameter

  • target organ arranged

  • Data for chronic study

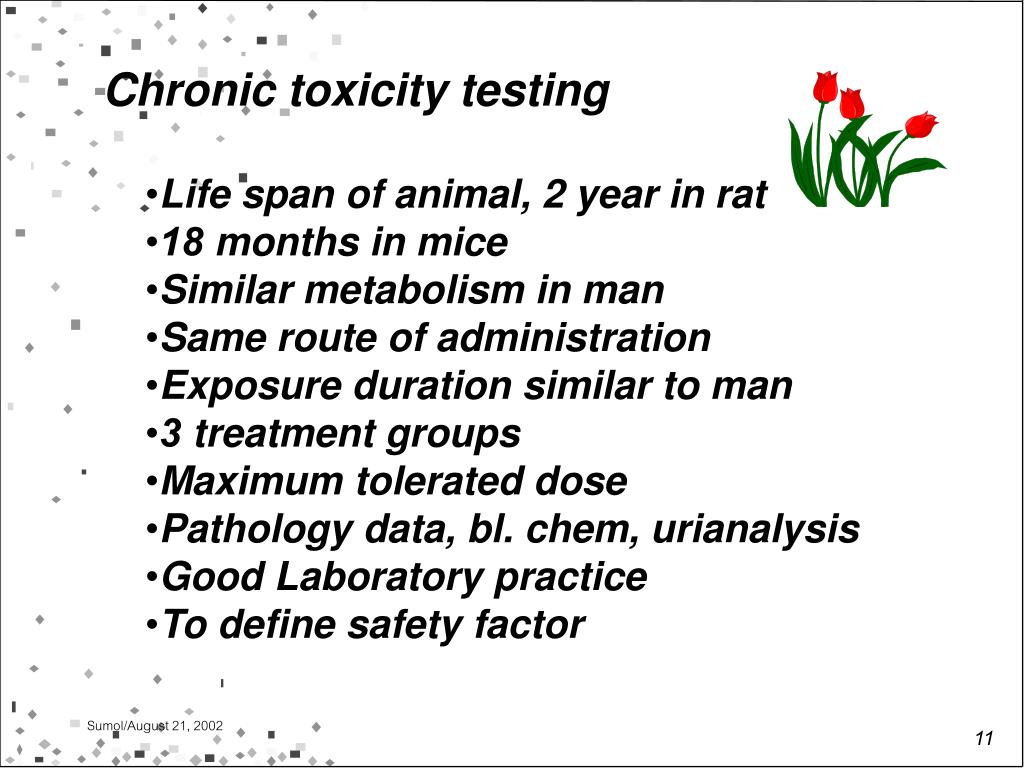

Slide11 l.jpg

Chronic toxicity testingความไม่รู้เป็นพิษที่สุด

  • Life span of animal, 2 year in rat

  • 18 months in mice

  • Similar metabolism in man

  • Same route of administration

  • Exposure duration similar to man

  • 3 treatment groups

  • Maximum tolerated dose

  • Pathology data, bl. chem, urianalysis

  • Good Laboratory practice

  • To define safety factor


Slide12 l.jpg

Animalsความไม่รู้เป็นพิษที่สุด

Rodent and non-rodent

Avain

Fish

Aquatic invertibrate

Ferret

non primates

dog

rabbit


Slide13 l.jpg

Reproductive toxicity testingความไม่รู้เป็นพิษที่สุด

  • Reproductive efficiency, 2 generation

  • Fertility profile 70 days

  • Semen analysis

  • Pathology, gross and histo

  • Oogenesis

  • In vitro method

  • Teratogenetic

  • Biochemistry parameters

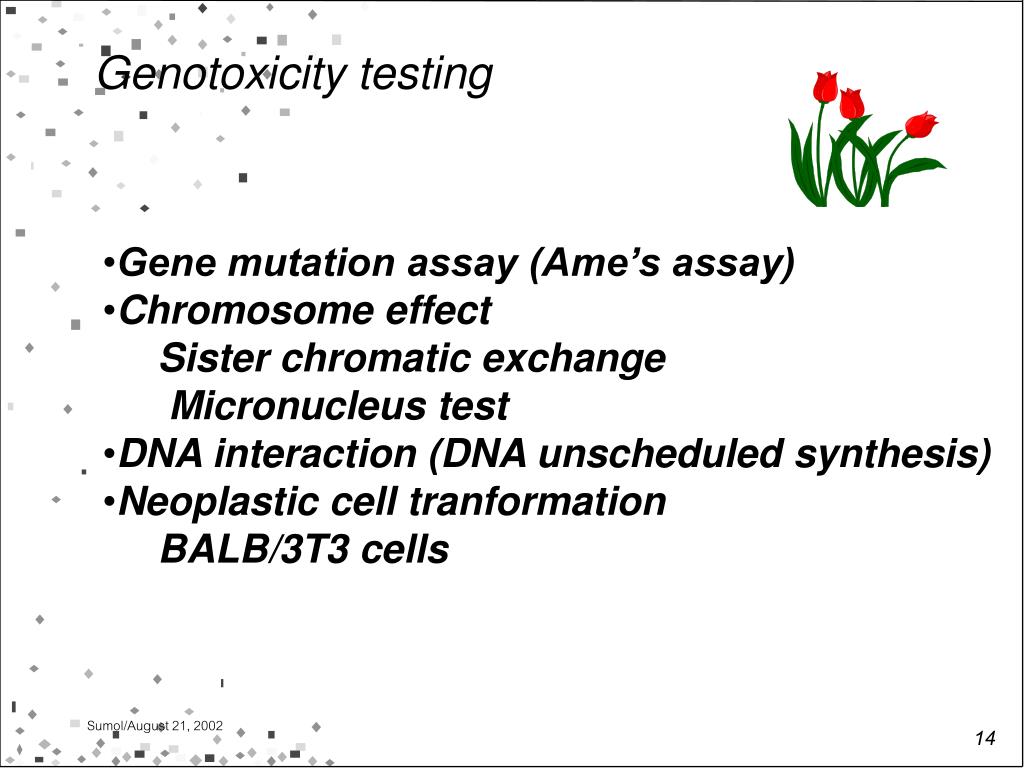

Slide14 l.jpg

Genotoxicity testingความไม่รู้เป็นพิษที่สุด

  • Gene mutation assay (Ame’s assay)

  • Chromosome effect

  • Sister chromatic exchange

  • Micronucleus test

  • DNA interaction (DNA unscheduled synthesis)

  • Neoplastic cell tranformation

  • BALB/3T3 cells


Slide15 l.jpg

Neurotoxicity testingความไม่รู้เป็นพิษที่สุด

  • Condition behaviors

  • Unconditioned behaviors

  • Affective behaviors

  • Social behavior

  • Motor acts

  • Learning & Memory

  • Biochemical

  • NTE

  • cAMP, cGMP

  • GABA

  • Dopamines


Slide16 l.jpg

Immunotoxicology testingความไม่รู้เป็นพิษที่สุด

Immune disfunction

increase tumor susceptability

decrease host resistance


Slide17 l.jpg

Dose response Relationshipความไม่รู้เป็นพิษที่สุด

Assumptions

Response vary concentration

Concentration vary dose

dose related to response


Slide18 l.jpg

Low level risk estimateความไม่รู้เป็นพิษที่สุด

One-hit model

Linear

Multistage

Weibull

Multihit

Logit

Probit Model


Slide19 l.jpg

NOEL ความไม่รู้เป็นพิษที่สุด

NOAEL

LOEL

LOAEL

Critical Points

* NOAEL = No Observed Adverse Effect Level

* End Point / การเกิดพิษ

* Uncertainty Factors (1, 5, 10, 100, 1000)

* Exposure

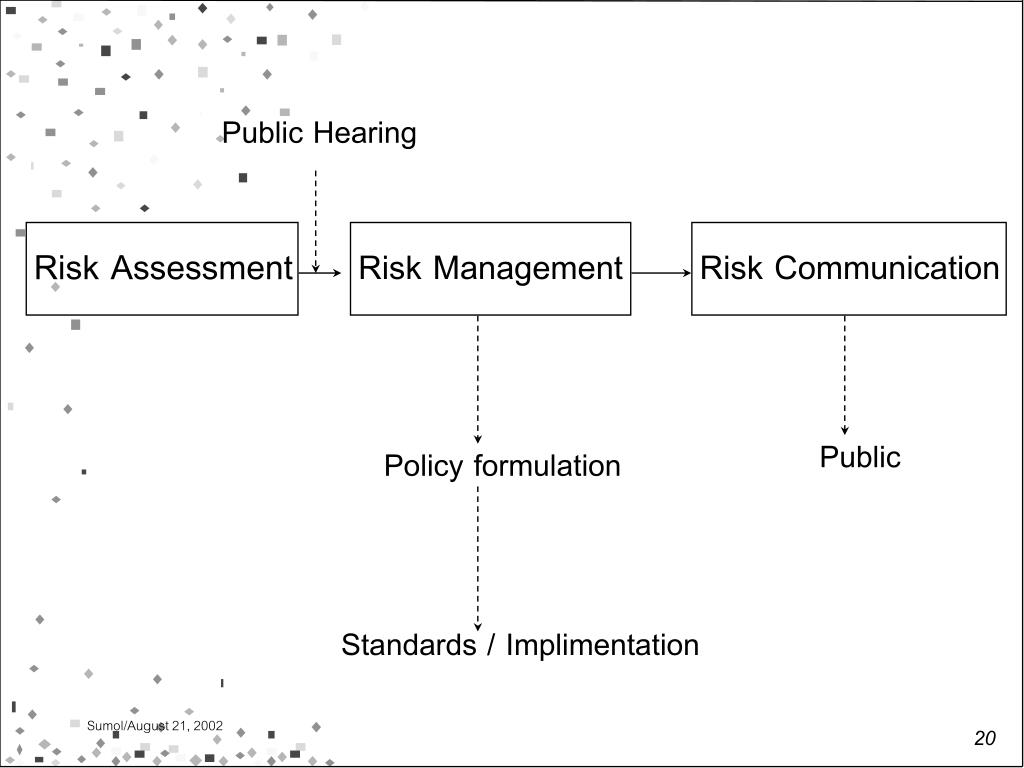

Slide20 l.jpg

Public Hearingความไม่รู้เป็นพิษที่สุด

Risk Assessment

Risk Management

Risk Communication

Public

Policy formulation

Standards / Implimentation


Slide21 l.jpg

Data submission for registrationความไม่รู้เป็นพิษที่สุด

Toxicological data

Mechanistic data

Epidemiological data

Exposure data

Efficacy data

NOAEL

Reference dose (Rfd, ADI )

Carcinogenic potency

Adverse health

effect

Total exposure

Margin of safety

Risk (MRL, TI, )

-Public health policy

-Socio-economics

-Politics

Decision making

Further data

required

Rejection

Approval

Post-marketing

monitoring and surveillance

Reassessment

Reassessment


Slide22 l.jpg

Environmental Toxicologyความไม่รู้เป็นพิษที่สุด

Emission

Control

Transport

Monitor

Human response

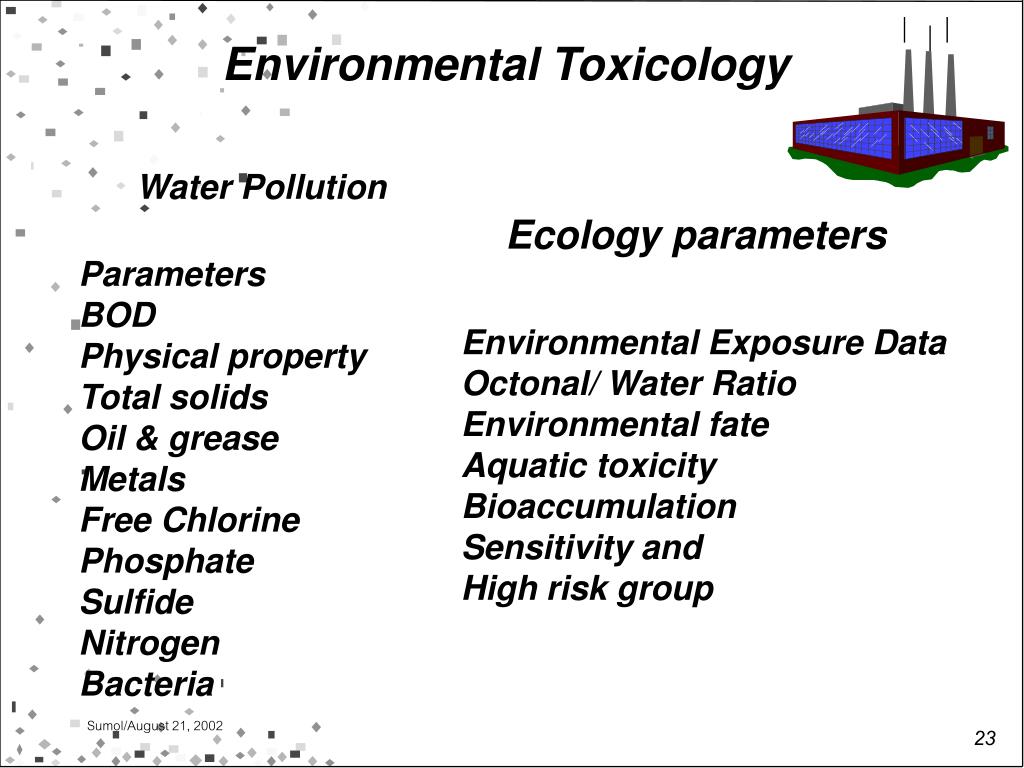

Slide23 l.jpg

Environmental Toxicologyความไม่รู้เป็นพิษที่สุด

Water Pollution

Ecology parameters

Parameters

BOD

Physical property

Total solids

Oil & grease

Metals

Free Chlorine

Phosphate

Sulfide

Nitrogen

Bacteria

Environmental Exposure Data

Octonal/ Water Ratio

Environmental fate

Aquatic toxicity

Bioaccumulation

Sensitivity and

High risk group


Slide24 l.jpg

“The Toxicologist may be able ความไม่รู้เป็นพิษที่สุด

to assess the risk of a compound,

but an acceptable risk level

will be set by the public”


Slide25 l.jpg

Referencesความไม่รู้เป็นพิษที่สุด

  • Principles and Methods of Toxicology

    • A. Wallace Hayes, Student Edition

  • Casarett and Doull’s Toxicology: The basic Sciences of Poisons

    • J. Doull, C. D. Klaassen, and M. O. Amdur

  • Human Health and the Environment

  • US Dept of Health, Education, and Welfare,

  • DHEW Publication # NIH 77-1277
