the code breakers detailed design presentation

The code Breakers Detailed Design Presentation

The Bicycle Powered Irrigation Device

Team Members:

Ali Ashraf

Ahmed Samir

Mushfiq

outline
Outline
  • Introduction
  • Product modification
  • Subsystem
  • Conclusion
introduction
Introduction

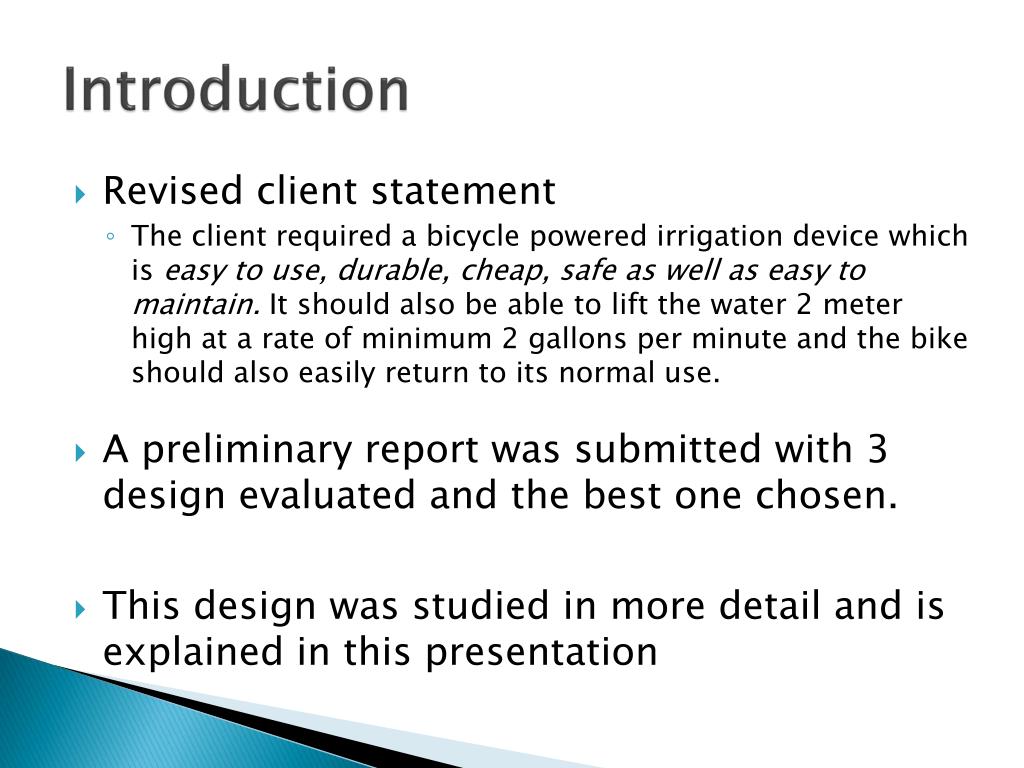

  • Revised client statement
    • The client required a bicycle powered irrigation device which is easy to use, durable, cheap, safe as well as easy to maintain. It should also be able to lift the water 2 meter high at a rate of minimum 2 gallons per minute and the bike should also easily return to its normal use.
  • A preliminary report was submitted with 3 design evaluated and the best one chosen.
  • This design was studied in more detail and is explained in this presentation
subsystems
Subsystems
  • Water lifting
  • Transition
  • Water collection
  • Bike support
  • Motor support
bike support
Bike support

0.33m

Table 1: Bill of materials for the transition subsystem:

transition subsystem

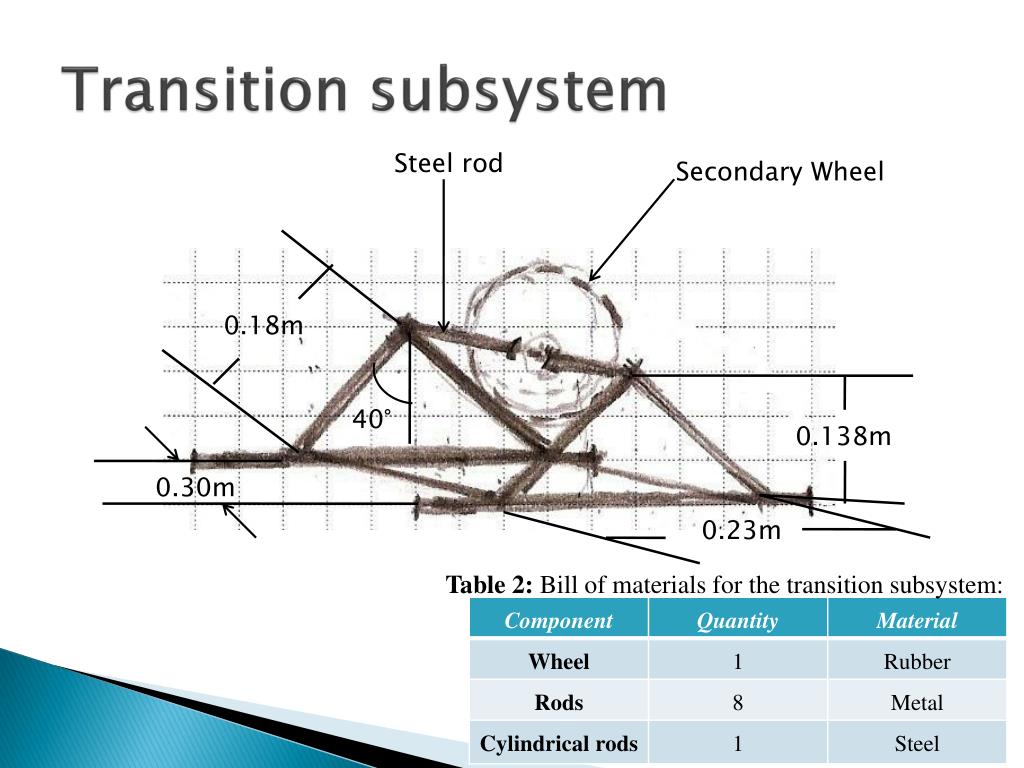

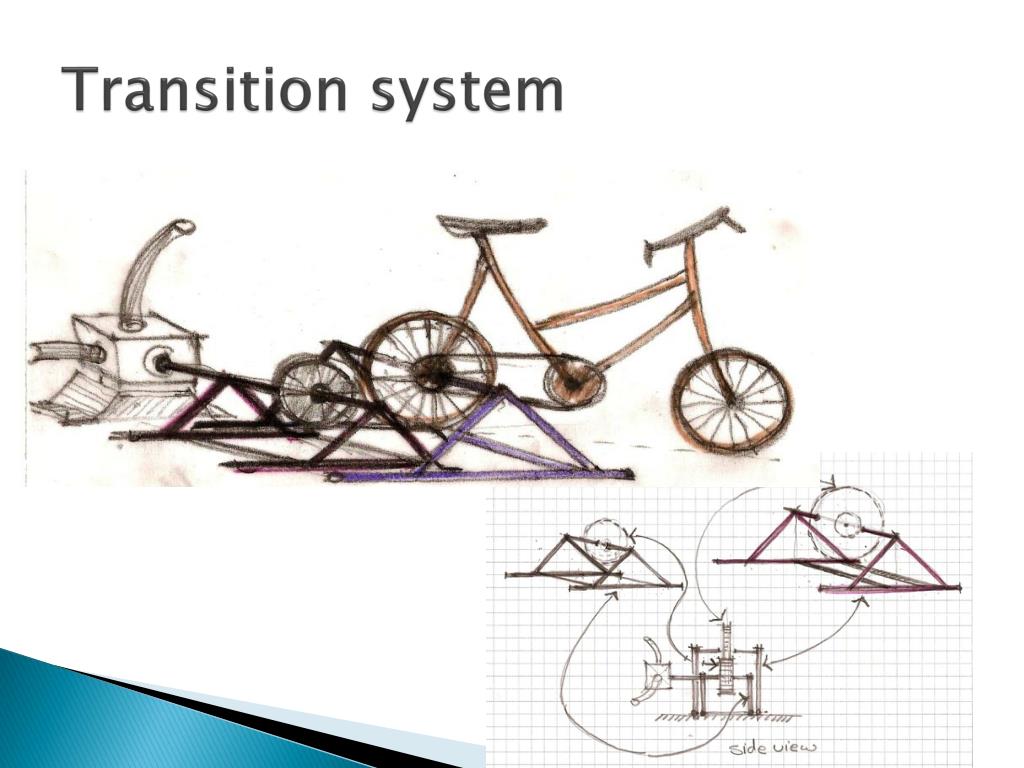

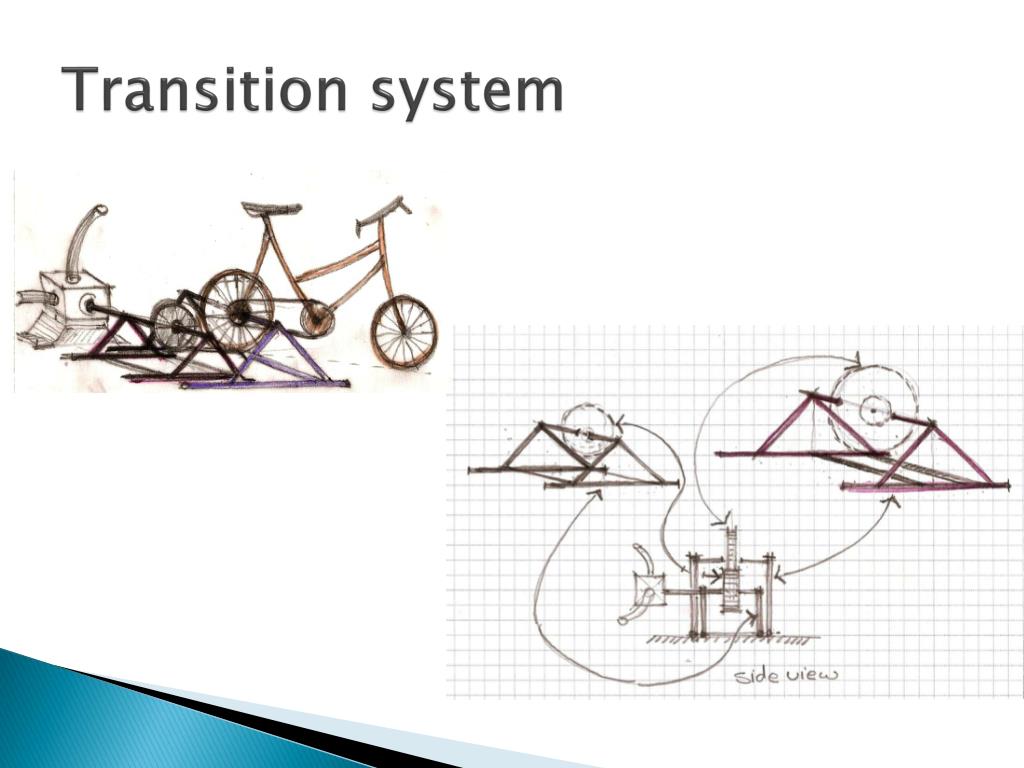

Transition subsystem

Steel rod

Secondary Wheel

0.18m

40°

0.138m

0.30m

0.23m

Table 2: Bill of materials for the transition subsystem:

water lifting subsystem
Water lifting subsystem

Shaft connecting impeller to power source

Discharge pipe

0.5m

Water inlet

Table 3: Bill of materials for the lifting subsystem:

Axial of the impeller

water collection subsystem
Water collection subsystem

Table 4: Bill of materials for the collection subsystem:

water collection subsystem1
Water collection subsystem

Container

Square rod

Base sheet

motor support subsystem
Motor support subsystem

Shaft

0.138m

0.40m

0.25m

Table 5: Bill of materials for the motor support subsystem:

conclusion
Conclusion

Any Questions
