what is flip chip
What is Flip-Chip?
  • Flip-Chip IS-
    • A method to electrically connect the die to the package carrier
      • Lead Frame or Substrate
    • The bond wire is replaced with a conductive “bump” placed directly on the die surface
      • Under-fill epoxy is used to secure the attachment and absorb stress
    • The chip is then “flipped” face down onto the package carrier using a re-flow process
    • Bump sizes range from 90-125 microns in diameter
      • Height ranges from 60-100 microns
    • Also known as C4 (Controlled Collapsible Compression Connection)
      • Invented by IBM
  • Flip-Chip is NOT-
    • A specific package like SOIC
    • A specific package type like BGA
flip chip advantages

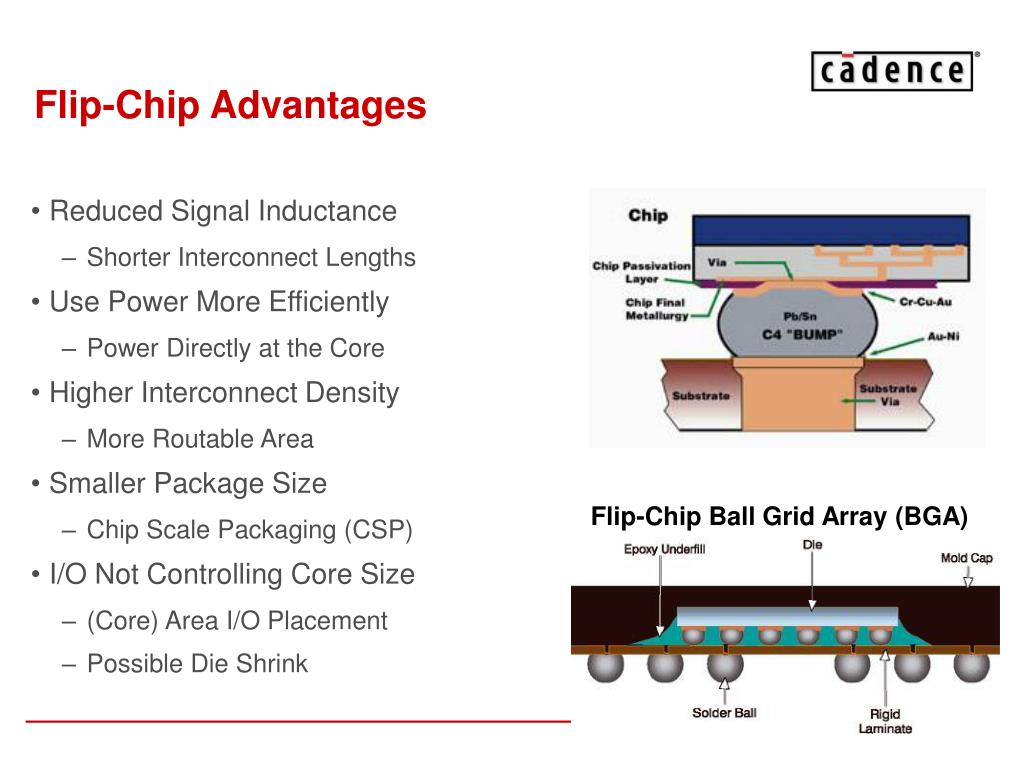

Flip-Chip Advantages
  • Reduced Signal Inductance
    • Shorter Interconnect Lengths
  • Use Power More Efficiently
    • Power Directly at the Core
  • Higher Interconnect Density
    • More Routable Area
  • Smaller Package Size
    • Chip Scale Packaging (CSP)
  • I/O Not Controlling Core Size
    • (Core) Area I/O Placement
    • Possible Die Shrink

Flip-Chip Ball Grid Array (BGA)
