LADDERS AND STAIRWAYS TRAINING

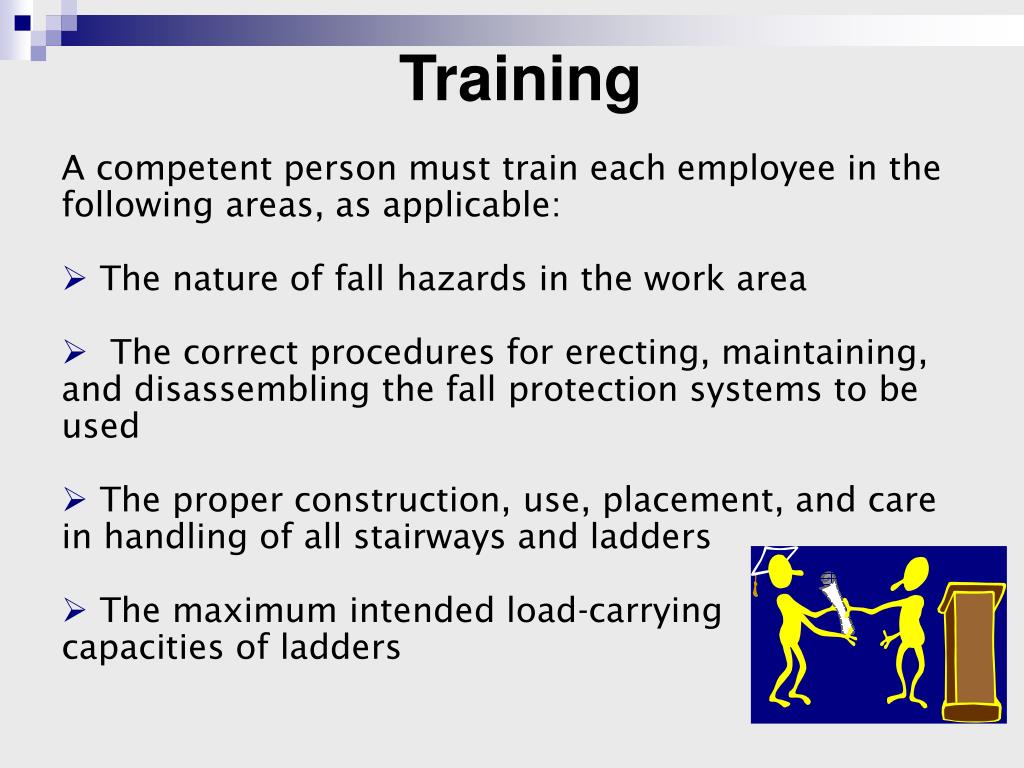

Training • A competent person must train each employee in the following areas, as applicable: • The nature of fall hazards in the work area • The correct procedures for erecting, maintaining, and disassembling the fall protection systems to be used • The proper construction, use, placement, and care in handling of all stairways and ladders • The maximum intended load-carrying capacities of ladders

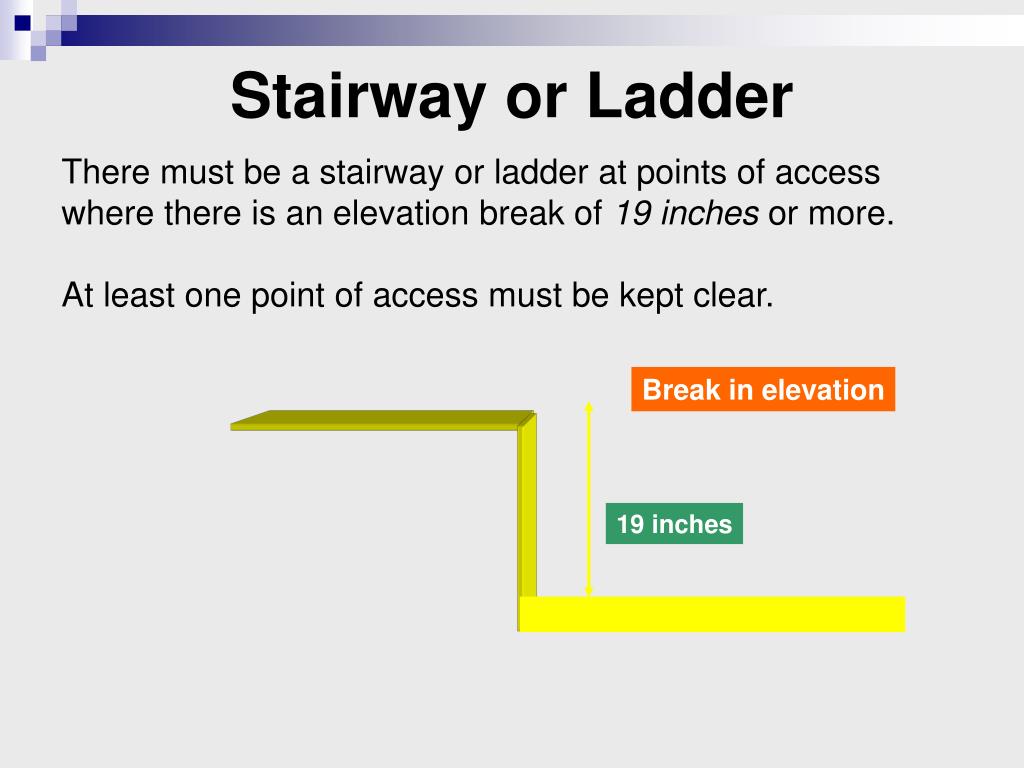

Stairway or Ladder There must be a stairway or ladder at points of access where there is an elevation break of 19 inches or more. At least one point of access must be kept clear. Break in elevation 19 inches

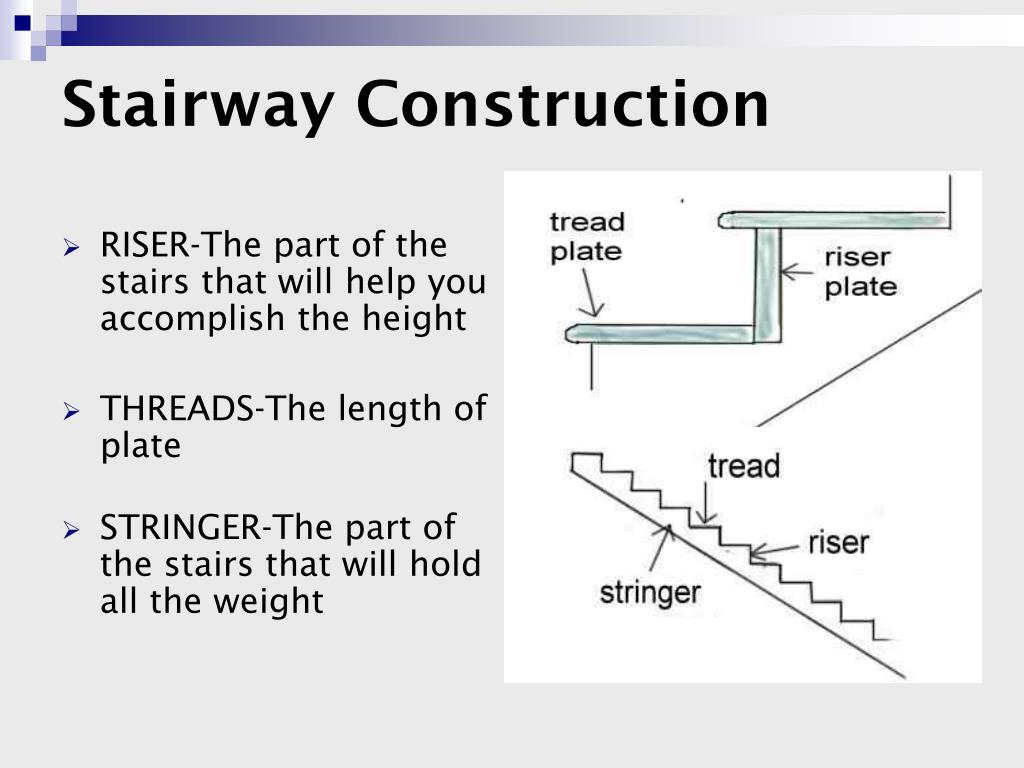

Stairway Construction • RISER-The part of the stairs that will help you accomplish the height • THREADS-The length of plate • STRINGER-The part of the stairs that will hold all the weight

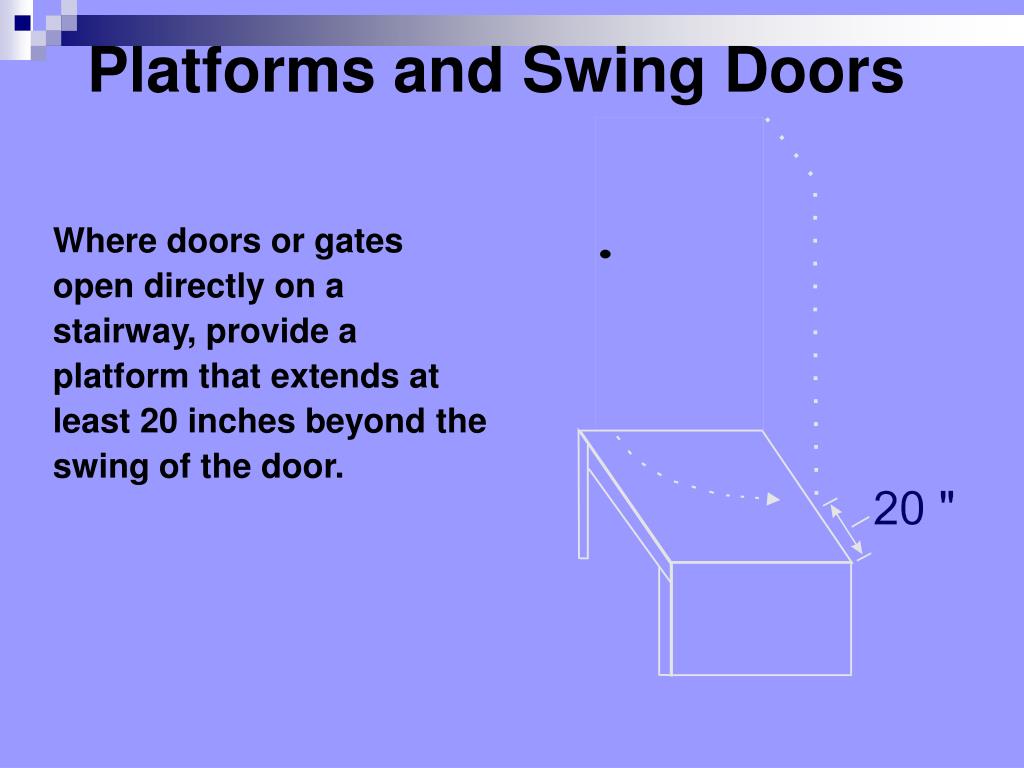

Platforms and Swing Doors Where doors or gates open directly on a stairway, provide a platform that extends at least 20 inches beyond the swing of the door.
Stairway Landings Stairways landings must be at least 30 inches deep and 22 inches wide at every 12 feet or less of vertical rise Unprotected sides of landings must have standard 42 inch guardrail systems Landing

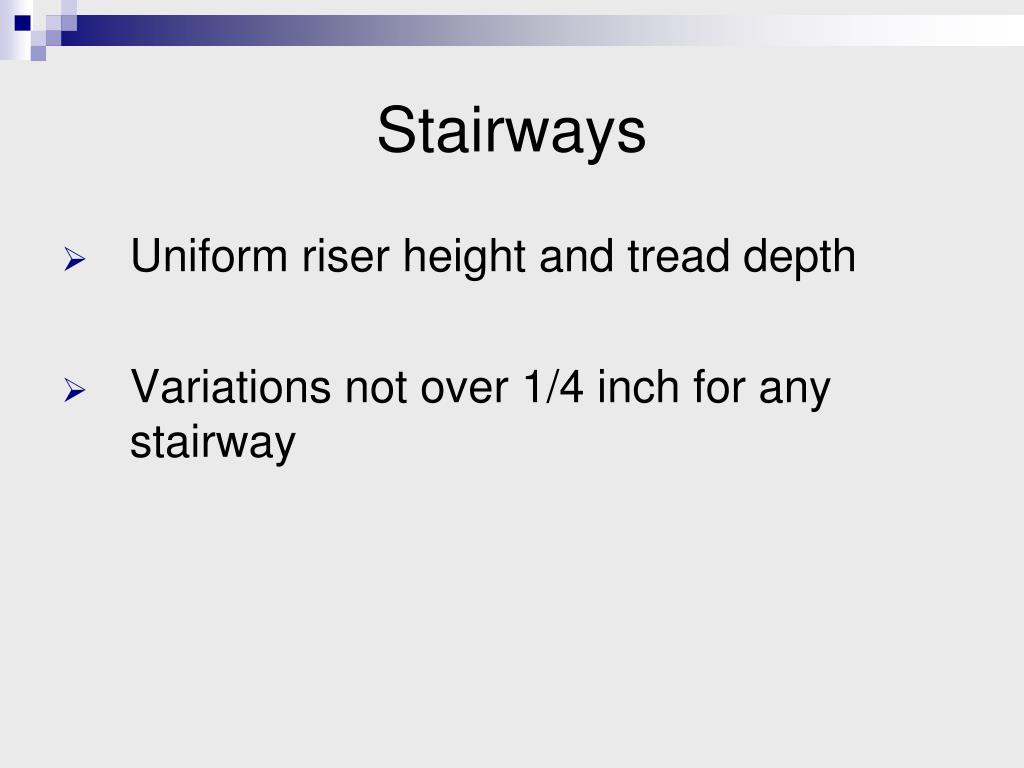

Stairways • Uniform riser height and tread depth • Variations not over 1/4 inch for any stairway

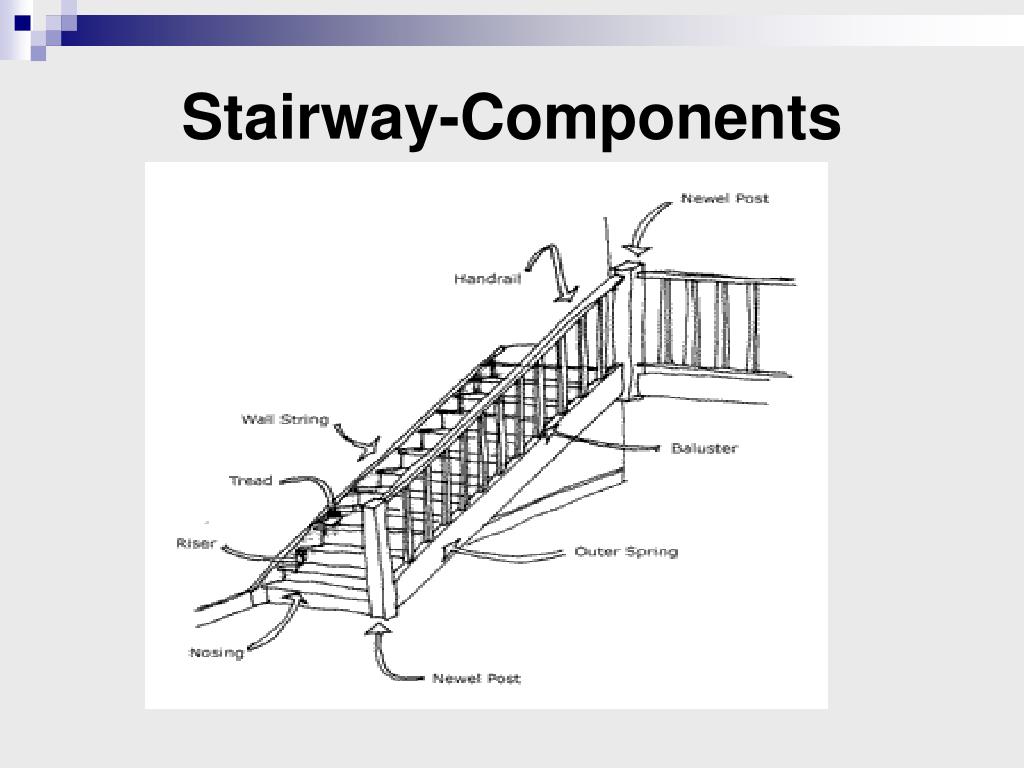

Key Components for Stairway Safety • Treads • Rails • Handrails • Stair rails • Guardrails • Landings and Platforms

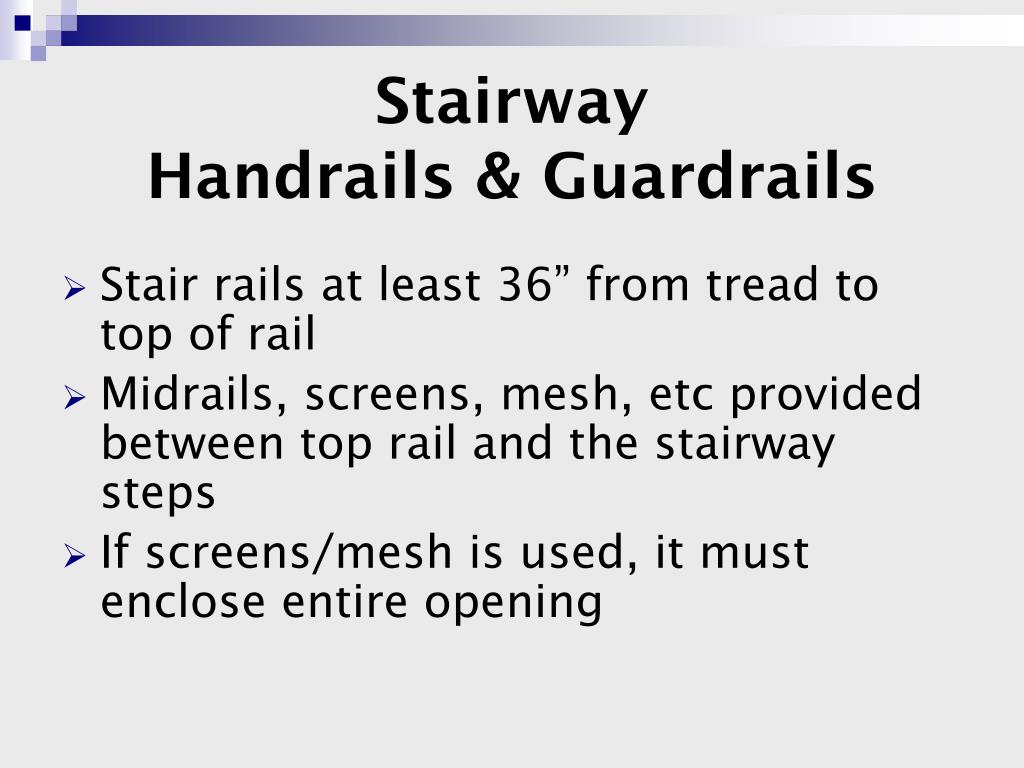

Stairway Handrails & Guardrails • Stair rails at least 36” from tread to top of rail • Midrails, screens, mesh, etc provided between top rail and the stairway steps • If screens/mesh is used, it must enclose entire opening

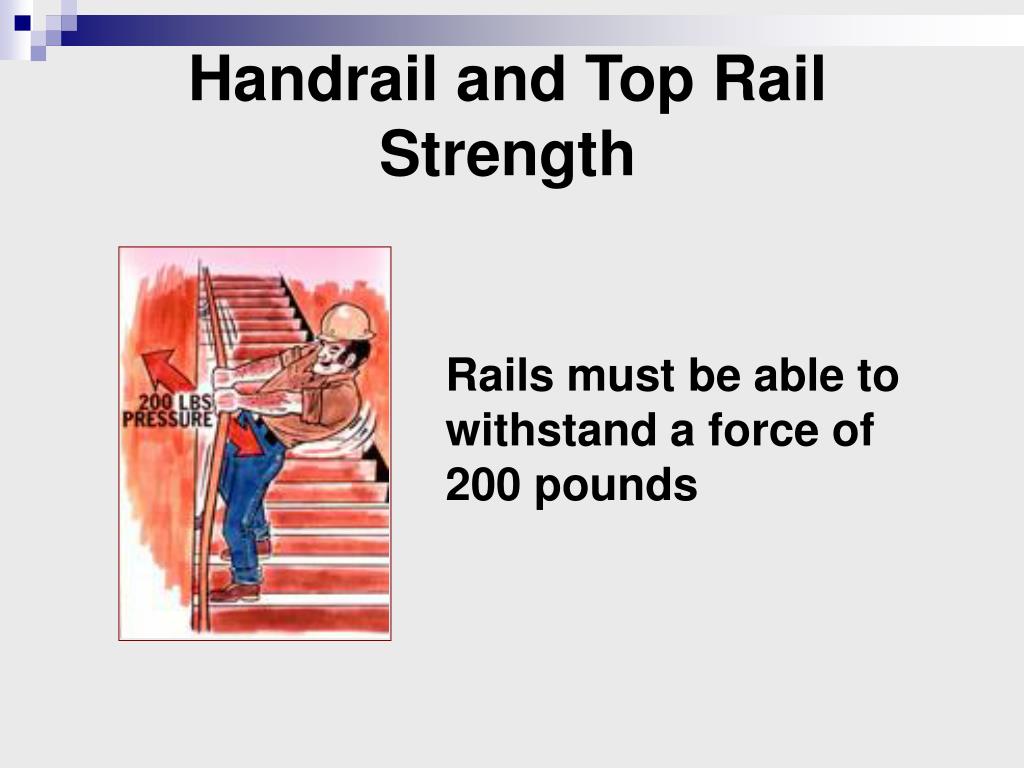

Handrail and Top Rail Strength Rails must be able to withstand a force of 200 pounds
Handrails Stairways with four or more risers, or higher than 30 inches, must be equipped with at least one handrail. The stairway to this platform has more than 4 risers and is not guarded. The platform requires guarding.
Instructions and Communications • One way communication • Two way communication

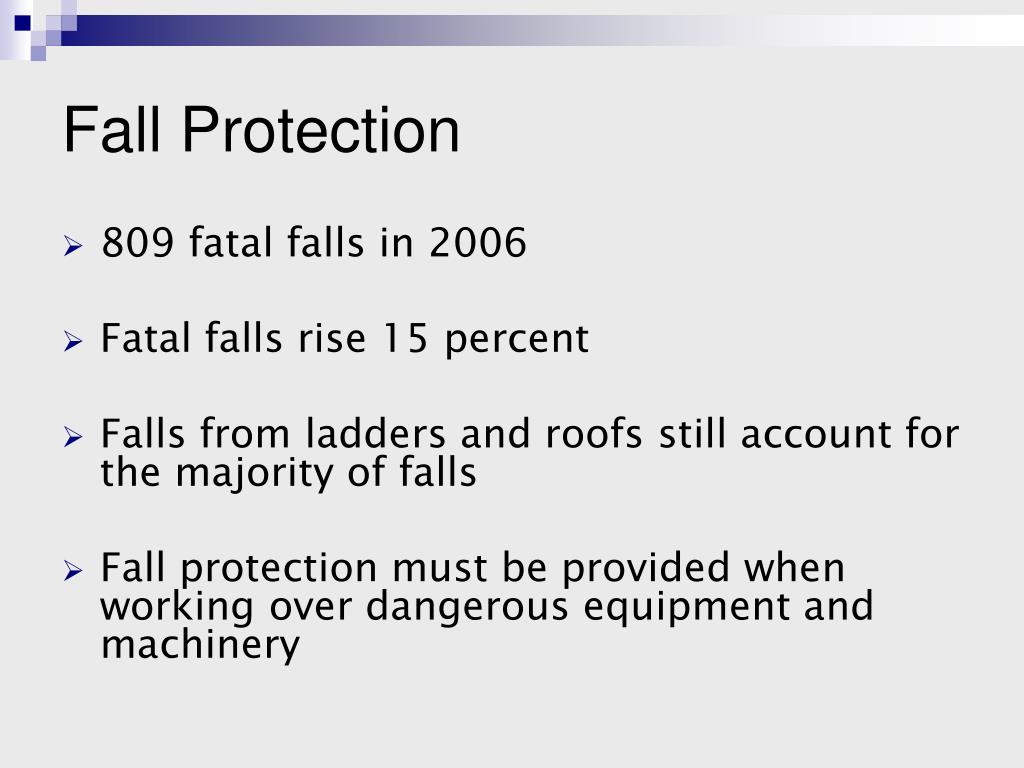

Fall Protection • 809 fatal falls in 2006 • Fatal falls rise 15 percent • Falls from ladders and roofs still account for the majority of falls • Fall protection must be provided when working over dangerous equipment and machinery

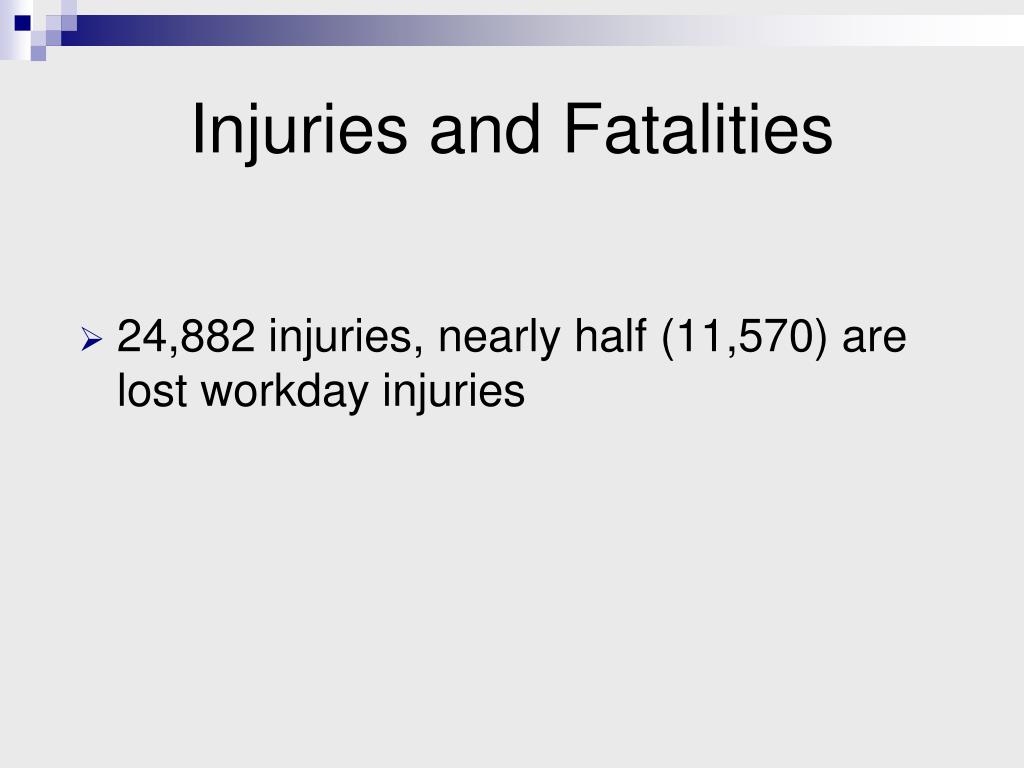

Injuries and Fatalities • 24,882 injuries, nearly half (11,570) are lost workday injuries

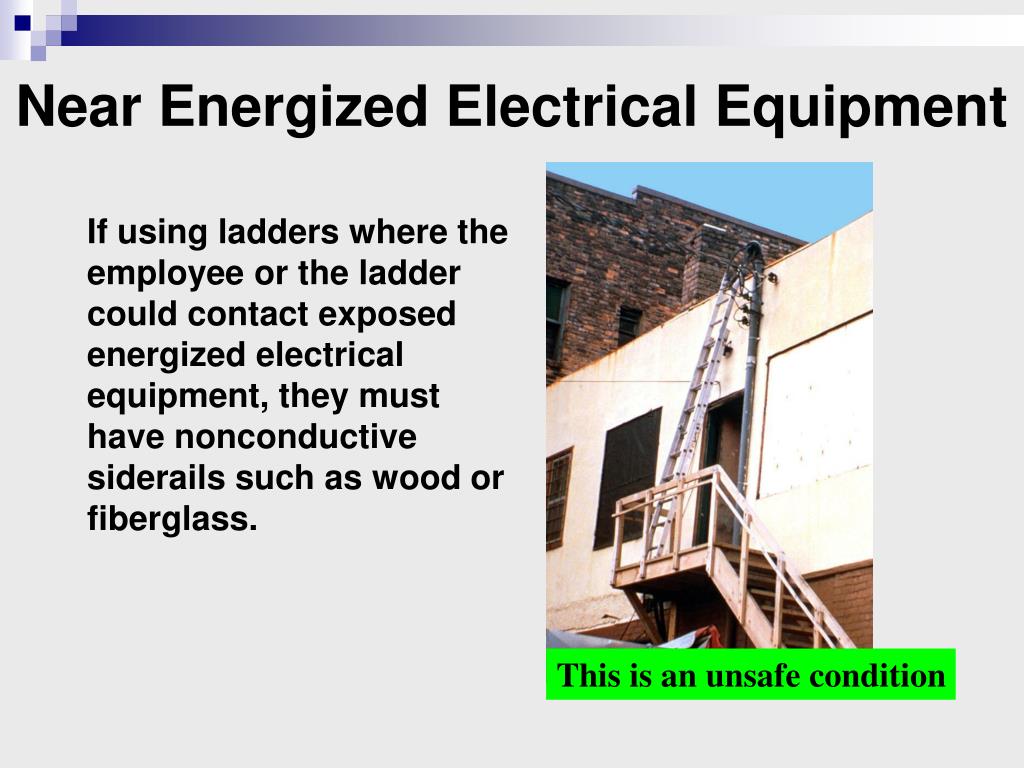

Near Energized Electrical Equipment If using ladders where the employee or the ladder could contact exposed energized electrical equipment, they must have nonconductive siderails such as wood or fiberglass. This is an unsafe condition

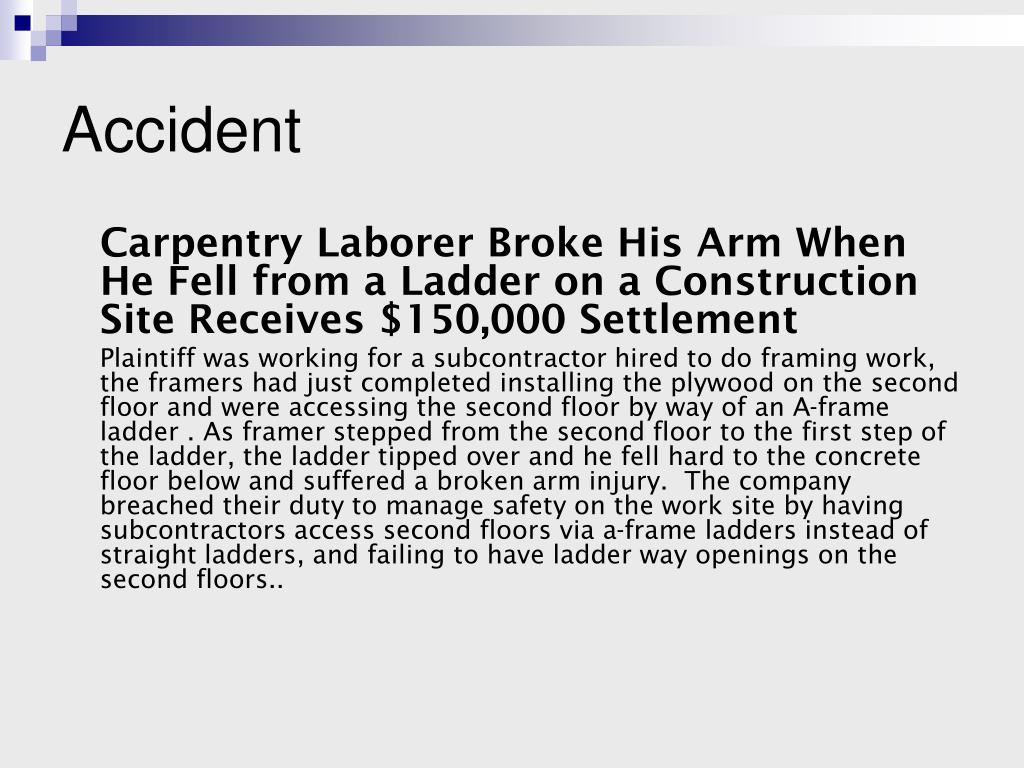

Accident Carpentry Laborer Broke His Arm When He Fell from a Ladder on a Construction Site Receives $150,000 Settlement Plaintiff was working for a subcontractor hired to do framing work, the framers had just completed installing the plywood on the second floor and were accessing the second floor by way of an A-frame ladder . As framer stepped from the second floor to the first step of the ladder, the ladder tipped over and he fell hard to the concrete floor below and suffered a broken arm injury. The company breached their duty to manage safety on the work site by having subcontractors access second floors via a-frame ladders instead of straight ladders, and failing to have ladder way openings on the second floors..
