  1. Minerals under the microscope

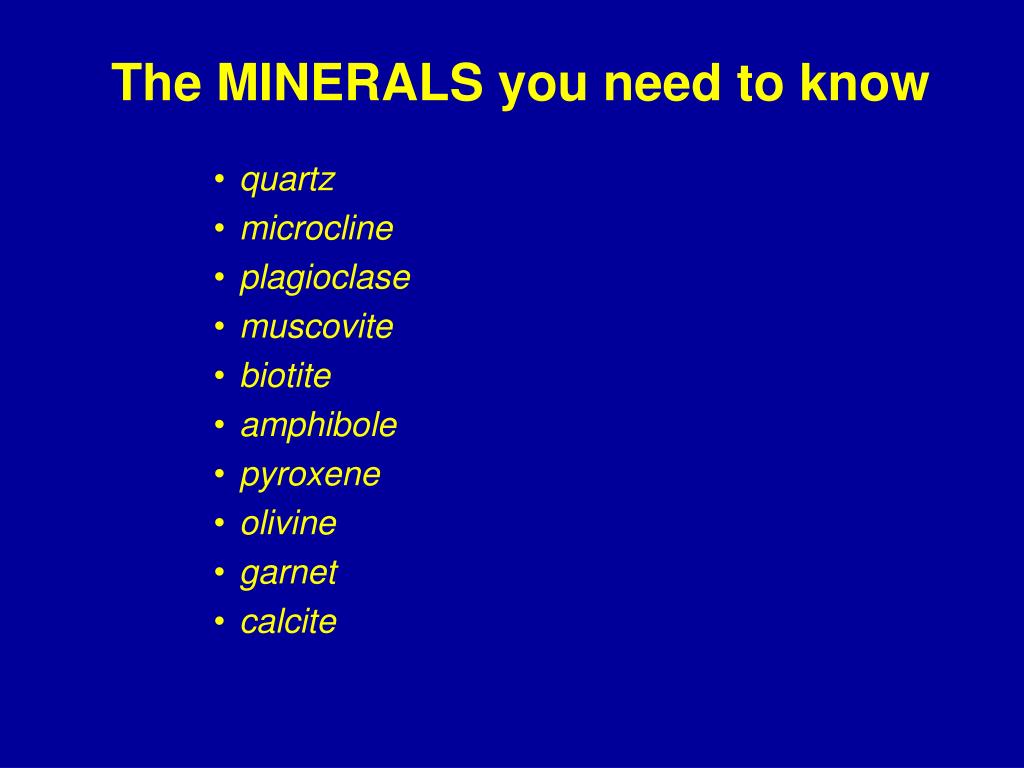

  2. The MINERALS you need to know • quartz • microcline • plagioclase • muscovite • biotite • amphibole • pyroxene • olivine • garnet • calcite

  3. Quartzgrains in sandstone quartz quartz quartz quartz PPL XPL

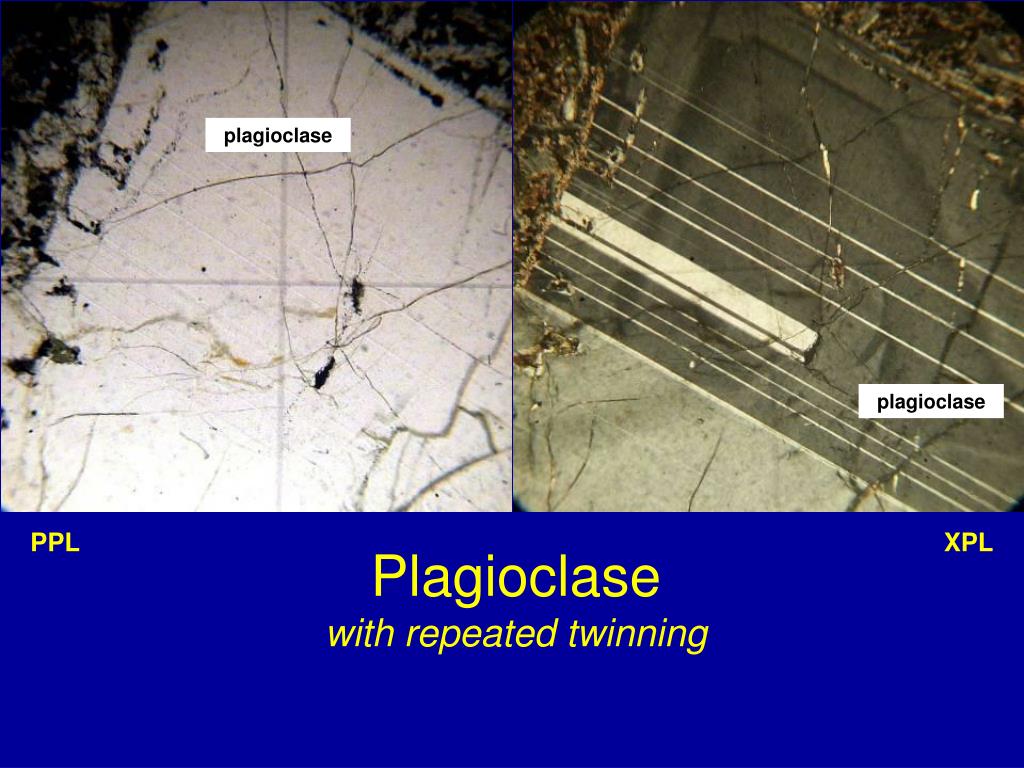

  4. plagioclase Plagioclasewith repeated twinning plagioclase PPL XPL

  5. Microclinegrain in centre showing its distinctive cross-hatched twinning microcline microcline PPL XPL

  6. Muscovite clear under PPL but with perfect cleavage and bright interference colours muscovite muscovite PPL XPL PPL XPL

  7. feldspar feldspar Biotitepleochroic with one perfect cleavage; strong natural colour masks polarisation colours making look greenish under XPL biotite biotite PPL : lower view rotated to show pleochroism XPL biotite

  8. Amphibolepleochroic with 2 cleavages at 60o or 120o distinguishing it from biotite or pyroxene amphibole amphibole PPL : lower view showing pleochroism XPL

  9. Pyroxenewell-formed crystal seen here with 2 cleavages at 90o: brightly coloured under XPL pyroxene pyroxene enlarged PPL XPL

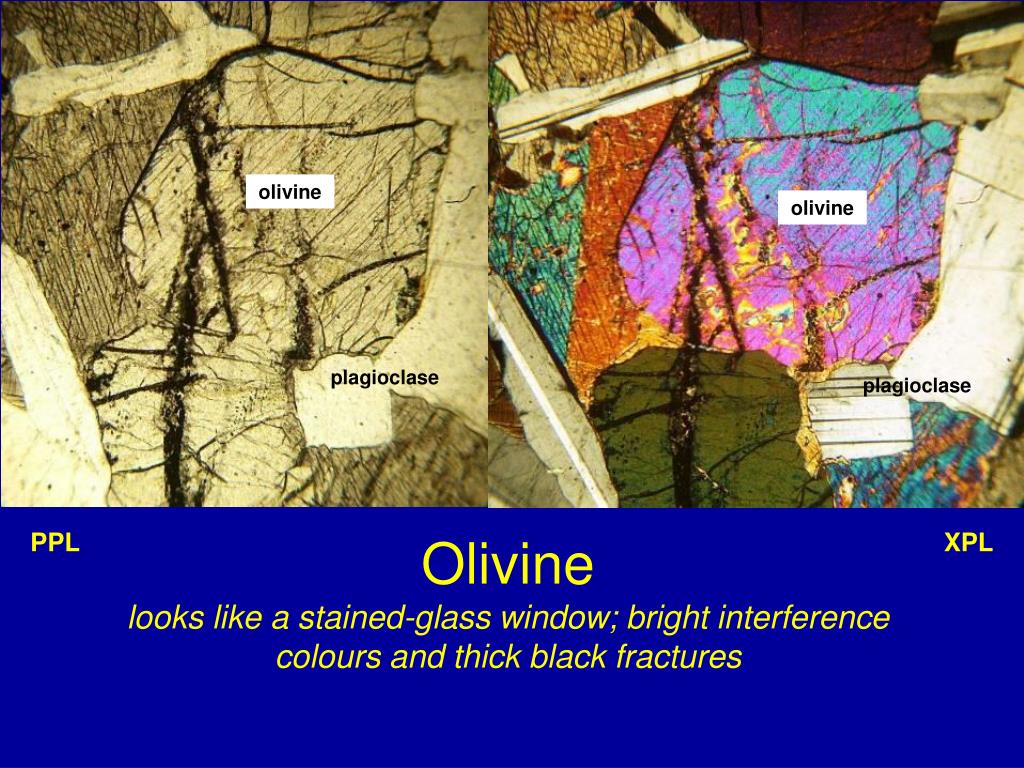

  10. Olivinelooks like a stained-glass window; bright interference colours and thick black fractures olivine olivine plagioclase plagioclase PPL XPL

  11. Garnetrounded crystal,transparent under PPL but goes extinct under XPL garnet garnet PPL XPL

  12. Calcitemay show both high and low relief, transparent under PPL with 2 perfect cleavages at 120o. Under XPL it shows pearly shades calcite calcite PPL XPL
