sige bicmos 65 ghz bpsk transmitter and 30 to 122 ghz lc varactor vcos with up to 21 tuning range

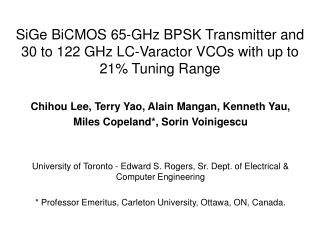

SiGe BiCMOS 65-GHz BPSK Transmitter and 30 to 122 GHz LC-Varactor VCOs with up to 21% Tuning Range

Chihou Lee, Terry Yao, Alain Mangan, Kenneth Yau,

Miles Copeland*, Sorin Voinigescu

University of Toronto - Edward S. Rogers, Sr. Dept. of Electrical & Computer Engineering

* Professor Emeritus, Carleton University, Ottawa, ON, Canada.

outline
Motivation

VCO and BPSK transmitter circuit topologies

Design methodology for lowest phase noise VCOs

Experimental results

Conclusions

Outline
motivation
Advanced communications (60-GHz radio) and radar systems (77-GHz cruise control).

Investigate a systematic VCO design methodology focused on lowest phase noise.

Motivation
outline1
Motivation

VCO and BPSK transmitter circuit topologies

Design methodology for lowest phase noise VCOs

Experimental results

Conclusions

Outline
fundamental mode vco topology
Fundamental Mode VCO Topology
  • Differential Colpitts Configuration
  • C2 implemented as accumulation-mode nMOS varactor.
  • Cascode for improved isolation of output from resonant tank, and power gain.
  • LEE & Resistive tail bias with low-pass filter to reduce bias circuit’s noise contribution.
push push vco topology
Push-Push VCO Topology
  • Active and passive components operate at ½ output frequency
  • Similar topology as fundamental-mode VCO except output is taken at Q2 & Q4’s base.
  • Intrinsically isolated output.
  • Allows differential tuning (VTUNE+POS, VTUNE,-NEG).
vco schematics
35-GHz VCO (Fund.)VCO Schematics

70-GHz VCO (Push-Push)

outline2
Motivation

VCO and BPSK transmitter circuit topologies

Design methodology for lowest phase noise VCOs

Experimental results

Conclusions

Outline
designing for lowest phase noise
VCO Design Parameters:

VTANK – tank voltage swing

QTANK – tank quality factor

JBIAS – current density

C1:C2 – capacitance ratio

LB – base inductance

IBIAS – bias current

Designing for Lowest Phase Noise

Simulation Test Circuit

2 optimum current density j bias
2. Optimum Current Density (JBIAS)

OPTIMUM JBIAS

OPTIMUM JBIAS = optimum noise current density (Jopt) of cascode.

3 optimum base inductance l b
3. Optimum Base Inductance (LB)

Smallest LB results in Lowest Phase Noise

vco design methodology
Maximize quality factor (Q) of resonant tank.

Bias transistors at optimum noise current density Jopt.

VCO Design Methodology

Show a simulated plot of Jopt @ 40 GHz & fT, fMAX for cascoded transistor configuration

vco design methodology con t
Choose smallest reproducible base inductance (LB).VCO Design Methodology (con’t)
  • Sweep IBIAS to minimize phase noise while choosing C1:C2 ratio to maximize VTANK while maintaining fosc.
  • Add inductive emitter degeneration LE.
  • [Li and Rein, JSSC 2003]
vco design space examined
13 VCOs & Oscillators fabricated to examine the impact on phase noise of:

Base inductance (LB)

Accumulation-mode nMOS varactors versus. MIM capacitors

Addition of LE

Operation on 2nd harmonic versus. operation on fundamental.

VCO Design Space Examined
outline3
Motivation

VCO and BPSK transmitter circuit topologies

Design methodology for lowest phase noise VCOs

Experimental results

Conclusions

Outline
fabrication technology
Jazz Semiconductor’s commercial SBC18 0.18 m BiCMOS process.Fabrication Technology
  • Peak fT and fMAX near 155 GHz.

NFmin extracted from measured y-parameters [S. P. Voinigescu, et. al, JSSC 1997]

microphotographs
Family of 13 VCOs:Microphotographs

Fundamental-Mode: (8) 35 GHz, (2) 60 GHz,

Push-Push: (1) 70 GHz, (2) 120-GHz

lowest phase noise design space
Lowest Phase Noise Design Space

Impact of: 1. Base Inductance

2. Inductive Emitter Degeneration (LE)

60 ghz vco measurements
Averaged Spectral Plots:60-GHz VCO Measurements

(A) VCO (B) Fixed Freq. Oscillator

push push vco measurements
Spectral Plots:Push-Push VCO Measurements
  • 70-GHz VCO
  • POUT > -14 dBm

(b) 120-GHz VCO

POUT > -30 dBm

bpsk transmitter meas con t
BPSK Transmitter Meas. (con’t)

With DATA (27-1 PRBS pattern):

outline4
Motivation

VCO and BPSK transmitter circuit topologies

Design methodology for lowest phase noise VCOs

Experimental results

Conclusions

Outline
conclusions
Presented, with experimental validation, a systematic VCO design methodology for lowest phase noise.

Compared to a MIM capacitor, accumulation-mode nMOS varactors degrades phase noise by 1-2 dB.

Inductive degeneration lowers phase noise by 3-4 dB.

Operation on 2nd harmonic increases tuning range by 50% - at expense of lower POUT

First 65-GHz BPSK transmitter.

Conclusions
acknowledgements
Jazz Semiconductor, Gennum Corporation.

Canadian Foundation for Innovation, Micronet, Canadian Microelectronics Corporation, NSERC.

Marco Racanelli and Paul Kempf.

Acknowledgements
