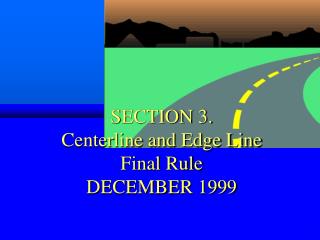

SECTION 3. Centerline and Edge Line Final Rule DECEMBER 1999

Loading in 2 Seconds...

play fullscreen
1 / 12

SECTION 3. Centerline and Edge Line Final Rule DECEMBER 1999 - PowerPoint PPT Presentation


  • 87 Views
  • Uploaded on

SECTION 3. Centerline and Edge Line Final Rule DECEMBER 1999. Not in 1988 MUTCD . Definitions for: Roadway Traveled Way. Definitions. Not in 1988 MUTCD . Definitions for: Collector Highway Arterial Highway. Definitions. Section 3B.1 1988 MUTCD, fifth para. Markings are recommended

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'SECTION 3. Centerline and Edge Line Final Rule DECEMBER 1999' - lieu


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript
definitions
Not in 1988 MUTCD

Definitions for:

Roadway

Traveled Way

Definitions

SECTION 3. CENTERLINE / EDGE LINE

definitions1
Not in 1988 MUTCD

Definitions for:

Collector Highway

Arterial Highway

Definitions

SECTION 3. CENTERLINE / EDGE LINE

center line markings
Section 3B.1 1988 MUTCD, fifth para.

Markings are recommended

1 ...rural districts on two-lane pavements > 16 feet or > 35 MPH

2 …residence and business districts…through highways…significant volumes

3 On all undivided pavements > 4 lanes

SHALL be placed paved 2-way traveled ways

1 Urban and rural arterials and collectors with traveled ways 6 m (20 ft) or more in width with an ADT > 6000

2. Urban and rural traveled ways with > 3 lanes

Center Line Markings

SECTION 3. CENTERLINE / EDGE LINE

center line markings1
Section 3B.1 1988 MUTCD, fifth para.

Recommends

4. At other locations where an engineering study indicates a need for them.

Center line markings should… paved, 2-way traveled ways …

1. Urban arterials and collectors with traveled ways > 6 m and >4000 ADT

2. Rural arterials and collectors with traveled ways > 5.4 m and > 3000 ADT

Center Line Markings

SECTION 3. CENTERLINE / EDGE LINE

center line markings2
Not in MUTCD

Center line markings may be placed on other 2-way traveled ways on any streets and highways

Center Line Markings

SECTION 3. CENTERLINE / EDGE LINE

center line markings3
Not in MUTCD

Engineering study for traveled ways < 4.8 m (16 ft).

Center Line Markings

SECTION 3. CENTERLINE / EDGE LINE

edge line markings
Section 3B.6, second paragraph

The lines shall be white except ... left edge of each roadway of divided streets and highways, and one-way roadways in the direction of travel, they shall be yellow.

Section 3B.6, first paragraph --Edge line markings shall be white, except they shall be yellow for the left edge in the direction of travel of the traveled ways of a divided and a one way street or highway.

Edge Line Markings

SECTION 3. CENTERLINE / EDGE LINE

edge line markings1
Section 3B.6 second paragraph

Edge lines shall be provided on all Interstate highways, on rural multilane divided highways, and may…..

Section 3B.6, first paragraph --Edge line markings shall be placed for paved traveled ways on streets and highways

Freeways

Expressways, and

Rural arterials.

Edge Line Markings

SECTION 3. CENTERLINE / EDGE LINE

edge line markings2
Section 3B.6 1988 MUTCD, second paragraph

Edge lines shall ... and may be used on other classes of roads.

Edge ling markings should be placed on paved travel ways for streets and highways with the following characteristics:

Rural collectors > 6 m

Paved streets and highways... engineering study

Edge Line Markings

SECTION 3. CENTERLINE / EDGE LINE

edge line markings3
Not in MUTCD

Edge line markings may be placed:

on the traveled way with or without center line markings

may be excluded … engineering judgment… curbs or markings.

Edge Line Markings

SECTION 3. CENTERLINE / EDGE LINE

compliance date
Not in 1988 MUTCD

3 years after the effective date of the Final Rule, or

when lane markings are replaced ..., or when the highway is resurfaced or reconstructed.

Compliance Date

SECTION 3. CENTERLINE / EDGE LINE
