Presentation Transcript
slide1

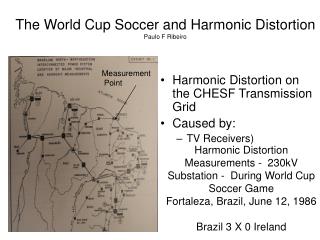

The World Cup Soccer and Harmonic DistortionPaulo F Ribeiro

Measurement

Point

  • Harmonic Distortion on the CHESF Transmission Grid
  • Caused by:
    • TV Receivers)

Harmonic Distortion Measurements - 230kV Substation - During World Cup Soccer Game Fortaleza, Brazil, June 12, 1986Brazil 3 X 0 Ireland

slide3
Voltage at the 230kV - Detail of 13.2kV Residential Feeder Disconnection (before the beginning of the match)

7th Harmonic

Led to Flexibility and Higher Tolerance

Clearly indicates the origin the harmonic source / contribution to the 5th harmonic distortion on the 230kV bus.
