mississippi river bridge an analysis of alternatives

Mississippi River BridgeAn Analysis of Alternatives

DRAFT Final Report Presentation

January 31, 2007

overview
Overview
  • Study Objectives
  • Alternatives Considered
  • Comparison of Alternatives
  • Key Findings
  • Choices for the Future
study objectives
Study Objectives
  • Provide common understanding
    • Existing and projected traffic conditions
    • Bridge alternatives
    • Capital costs
    • Committed funding
    • Potential funding shortfalls
  • Identify options for moving forward

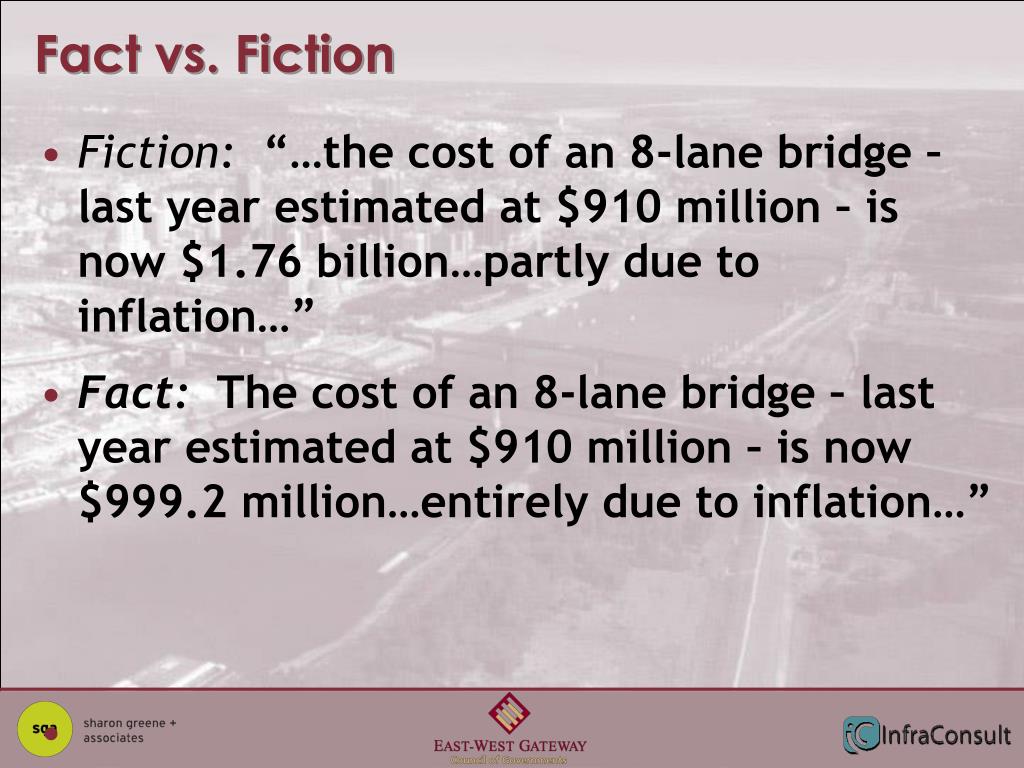

fact vs fiction
Fact vs. Fiction
  • Fiction: “…the cost of an 8-lane bridge – last year estimated at $910 million – is now $1.76 billion…partly due to inflation…”
  • Fact: The cost of an 8-lane bridge – last year estimated at $910 million – is now $999.2 million…entirely due to inflation…”
existing daily crossings
Existing Daily Crossings

Source: Mississippi River Crossings: Average Daily Traffic History, Illinois Department of Transportation.

slide7

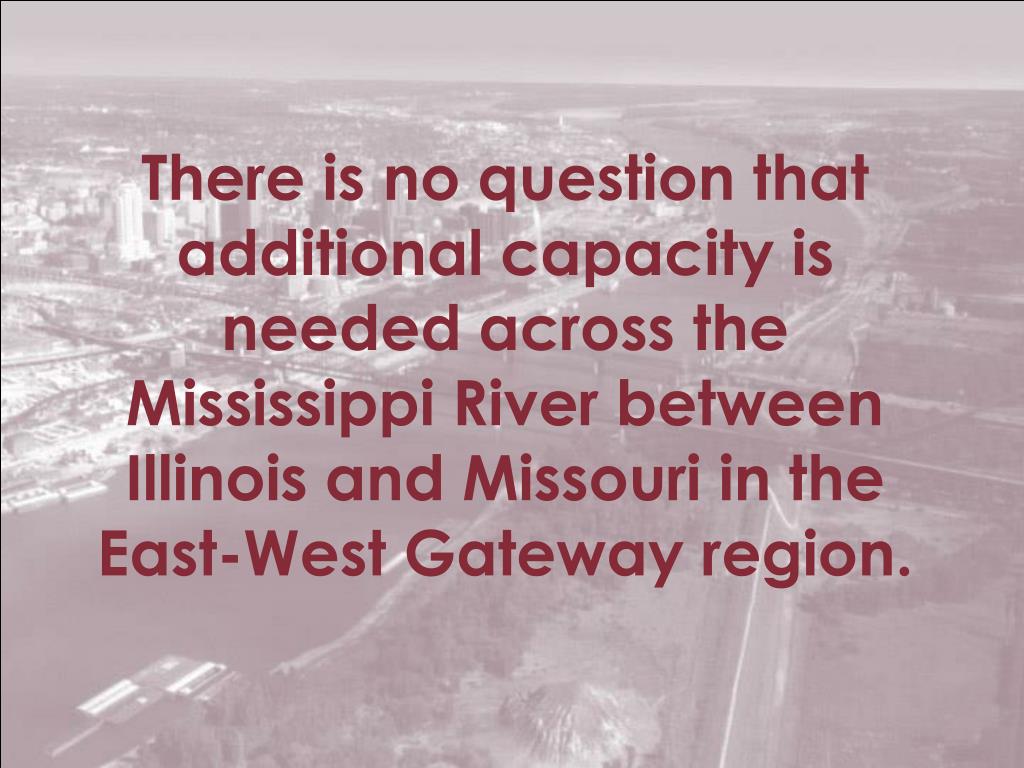

There is no question that additional capacity is needed across the Mississippi River between Illinois and Missouri in the East-West Gateway region.

bridge alternatives components
Bridge Alternatives: Components
  • Proposed MRB (I-70)
  • Proposed MLK “Coupler”
  • Proposed I-64 Connector and “Tri-Level” Interchange
  • Proposed IL-3 Relocation & Connector
build alternatives considered
“Build” Alternatives Considered
  • New Mississippi River Bridge (MRB: I-70)
    • Current EIS/ROD pending
    • Capital cost (YOE): $999.2 million
  • New Mississippi River Bridge with all connectors and ramps (MRB: I-70/I-64/IL-3)
    • Capital cost (YOE): $1,762.5 million
  • New Mississippi River Bridge with principal connectors and ramps (MRB: I-70/I-64)
    • Capital cost (YOE): $1,561.5 million
  • Proposed Martin Luther King Bridge “Coupler”
    • Capital cost (YOE): $545.9 million
other alternatives considered
Other Alternatives Considered
  • Improvements to Existing Network (“TSM”)
    • Connectors, ramps, geometric improvements
    • Capital cost: $450 million (+/-)
  • “No Build”
    • Reference point or “datum”
    • Capital cost: $0
mrb i 70
MRB: I-70
  • Components:
    • I-70 Bridge
  • Cost Estimate: $999.2M (YOE)
  • Proposed Schedule: 2009-2014
  • NEPA Status: ROD proposed 2007
  • Potential Committed Funding:
    • SAFETEA-LU Earmarks: $239M
    • Additional IDOT Funding: $210M
  • Tolling Considered: Yes

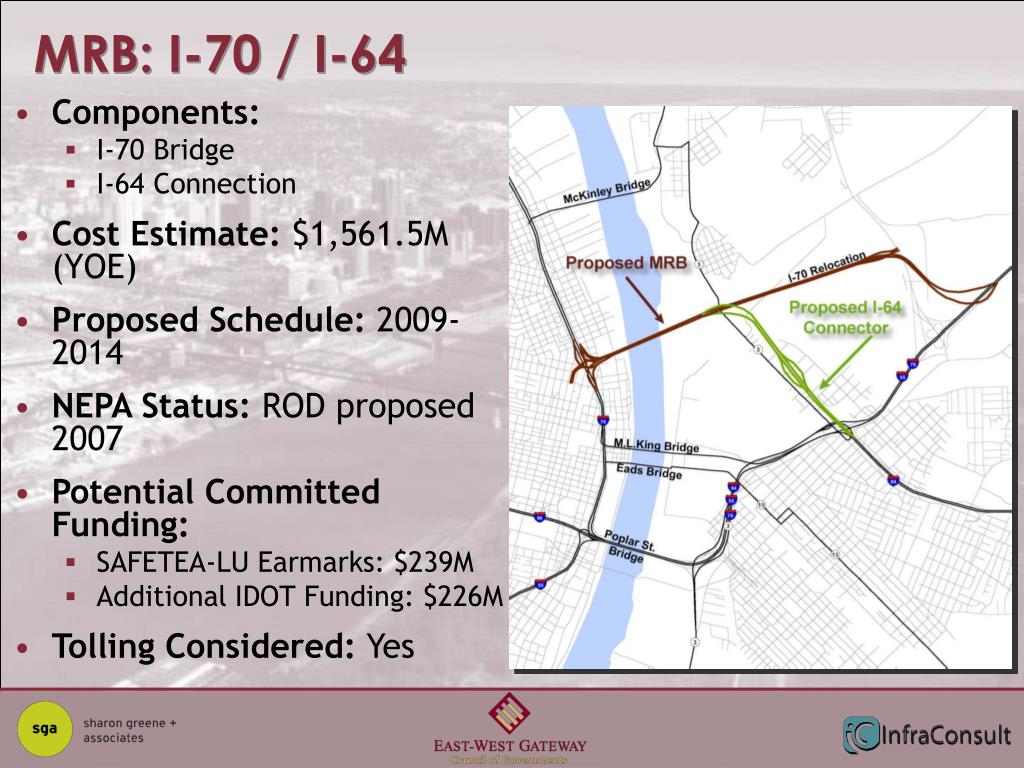

mrb i 70 i 64 il 3
MRB: I-70/ I-64 / IL-3
  • Components:
    • I-70 Bridge
    • I-64 Connection
    • IL-3 Relocation & Connection
  • Cost Estimate:$1,762.5M (YOE)
  • Proposed Schedule:2009-2014
  • NEPA Status: ROD proposed 2007
  • Potential Committed Funding:
    • SAFETEA-LU Earmarks: $239M
    • Additional IDOT Funding: $226M
  • Tolling Considered: Yes
mrb i 70 i 64
MRB: I-70 / I-64
  • Components:
    • I-70 Bridge
    • I-64 Connection
  • Cost Estimate: $1,561.5M (YOE)
  • Proposed Schedule: 2009-2014
  • NEPA Status: ROD proposed 2007
  • Potential Committed Funding:
    • SAFETEA-LU Earmarks: $239M
    • Additional IDOT Funding: $226M
  • Tolling Considered: Yes

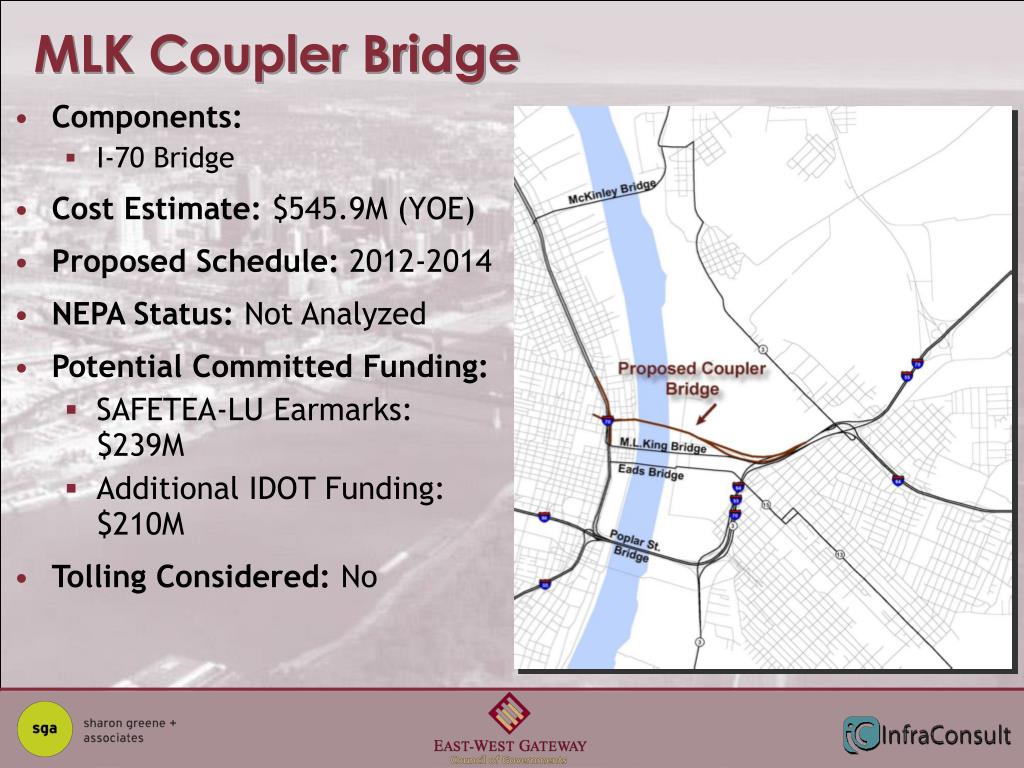

mlk coupler bridge
MLK Coupler Bridge
  • Components:
    • I-70 Bridge
  • Cost Estimate: $545.9M (YOE)
  • Proposed Schedule: 2012-2014
  • NEPA Status: Not Analyzed
  • Potential Committed Funding:
    • SAFETEA-LU Earmarks: $239M
    • Additional IDOT Funding: $210M
  • Tolling Considered: No
comparison of alternatives
Comparison of Alternatives
  • Enhance network capacity
  • Improve local, regional, and national movement of people and goods
  • Reduce congestion and traffic delay
  • Provide redundancy for periods during which one or more of the other bridges are partially or fully closed for repairs and rehabilitation
forecasts and projections
Forecasts and Projections
  • Utilized updated EWG modeling system
  • Based on comprehensive household surveys done in 2002
  • Validated “on the ground” with 2002 traffic

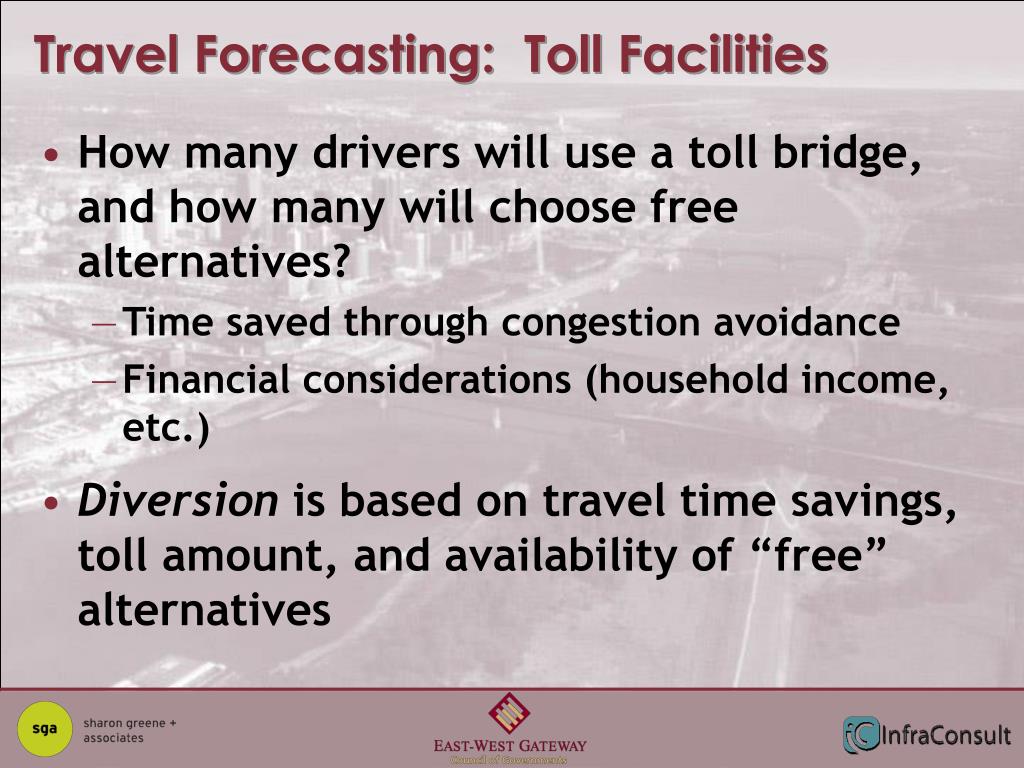

travel forecasting toll facilities
Travel Forecasting: Toll Facilities
  • How many drivers will use a toll bridge, and how many will choose free alternatives?
    • Time saved through congestion avoidance
    • Financial considerations (household income, etc.)
  • Diversion is based on travel time savings, toll amount, and availability of “free” alternatives
projected traffic 2020 downtown bridges traffic volume comparison
Projected Traffic:2020 Downtown Bridges Traffic Volume Comparison

MRB

Poplar

Source: East-West Gateway Council of Government Travel Demand Model Run

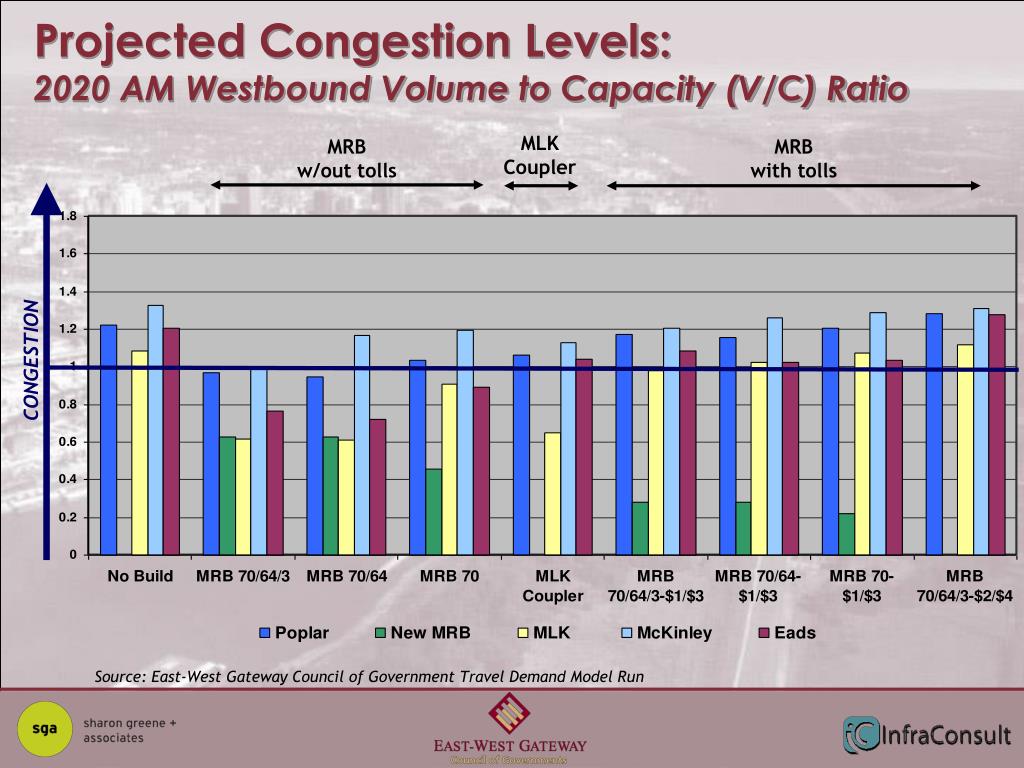

projected congestion levels 2020 am westbound volume to capacity v c ratio
Projected Congestion Levels:2020 AM Westbound Volume to Capacity (V/C) Ratio

MLKCoupler

MRBw/out tolls

MRBwith tolls

CONGESTION

Source: East-West Gateway Council of Government Travel Demand Model Run

projected congestion levels 2020 pm eastbound volume to capacity v c ratio
Projected Congestion Levels:2020 PM Eastbound Volume to Capacity (V/C) Ratio

MLKCoupler

MRBw/out tolls

MRBwith tolls

CONGESTION

Source: East-West Gateway Council of Government Travel Demand Model Run

local and regional travel
Local and Regional Travel

Source: East-West Gateway Council of Government Travel Demand Model Run

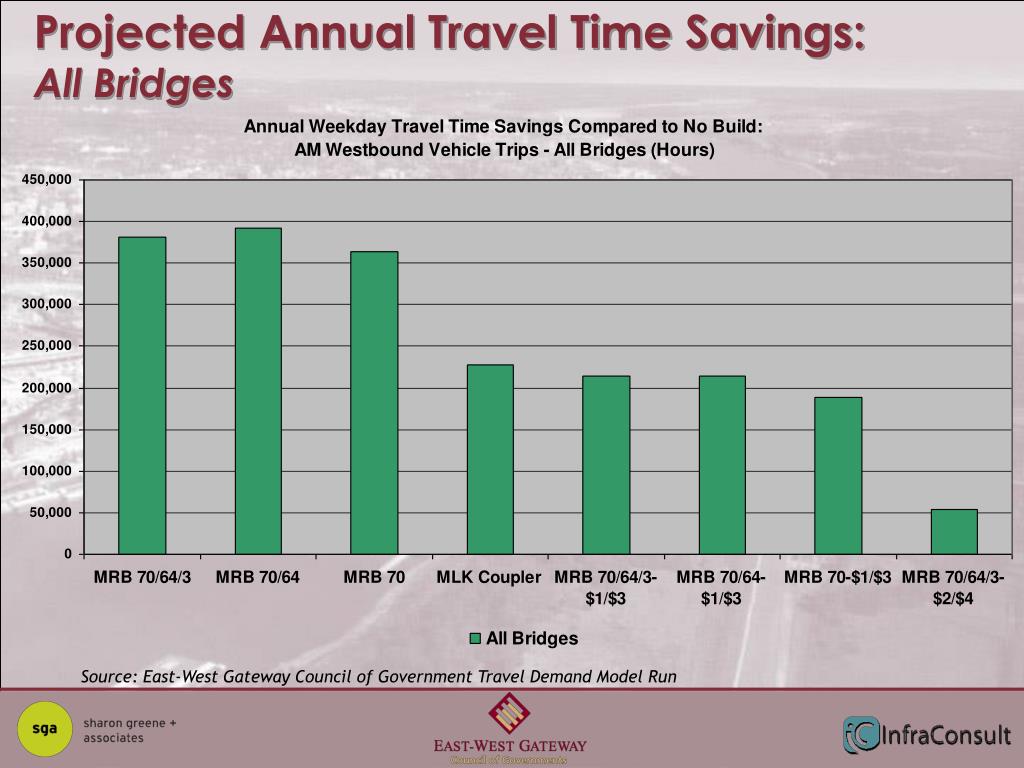

projected annual travel time savings all bridges
Projected Annual Travel Time Savings:All Bridges

Source: East-West Gateway Council of Government Travel Demand Model Run

key findings
Key Findings
  • MRB 70 does not optimize transportation benefits without the I-64 connection
  • MRB 70/64 connection is the most cost-effective “MRB” alternative, with a capital cost of $1.56 billion
  • MLK Coupler provides some 60% of the user benefits of MRB 70/64 at about 35% of the cost
  • Tolling reduces the effectiveness of all MRB alternatives
funding sources
Funding Sources
  • Committed Sources
    • SAFETEA-LU Earmarks ($239 million)
    • IDOT Funding ($210 million)
  • Potential Sources
    • Local/regional taxes/assessments
    • Additional federal support
    • Tolls
      • Public Tolling Authority
      • Public-Private Partnership/Concession

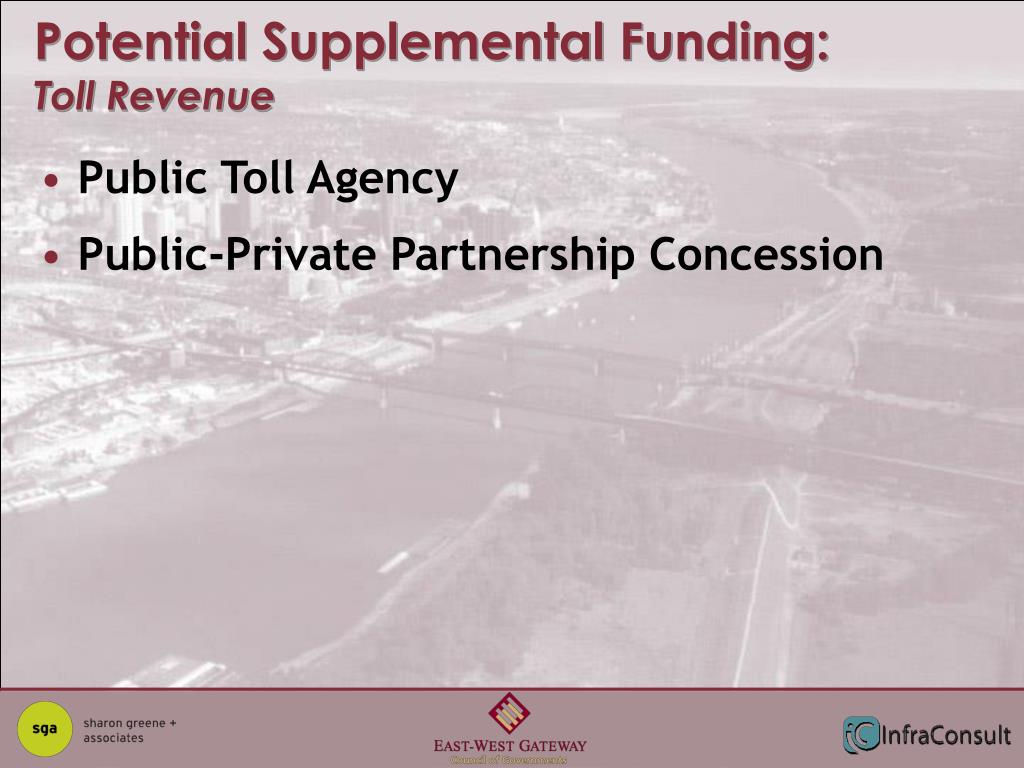

potential supplemental funding toll revenue
Potential Supplemental Funding: Toll Revenue
  • Public Toll Agency
  • Public-Private Partnership Concession

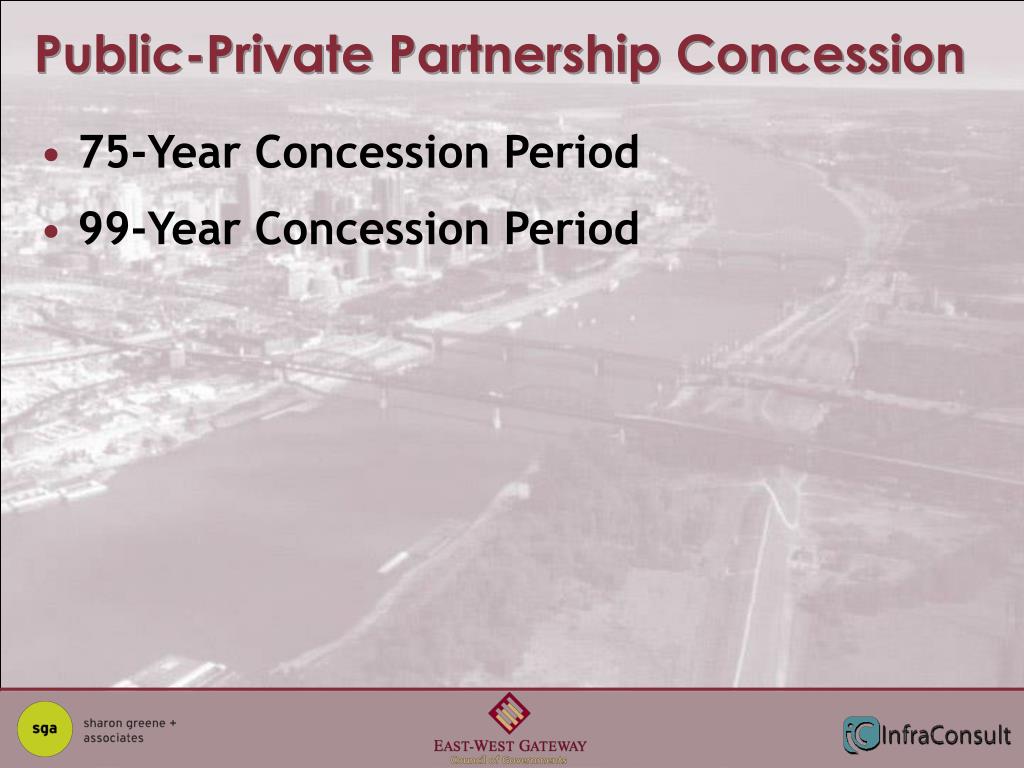

public private partnership concession
Public-Private Partnership Concession
  • 75-Year Concession Period
  • 99-Year Concession Period

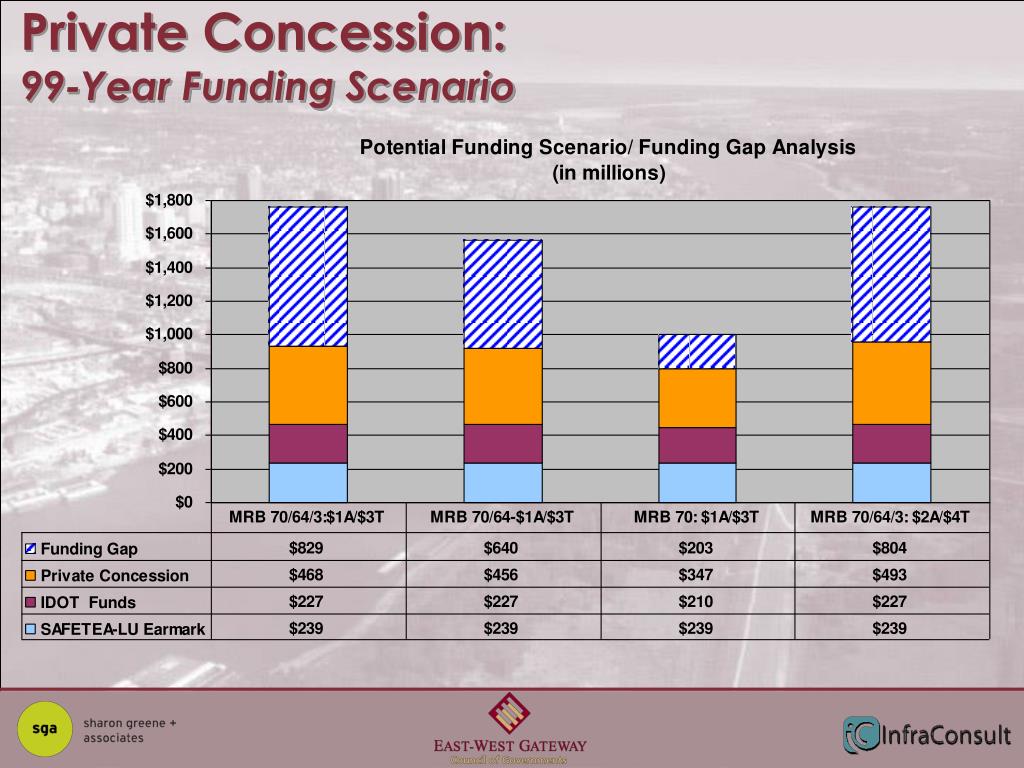

what is the funding potential order of magnitude estimates
What is the Funding Potential? (Order of Magnitude Estimates)

Public-Private PartnershipConcession Approach:99-Year Period

Public-Private PartnershipConcession Approach:75-Year Period

Public Toll Agency Approach

$80 - $160 M

$180 - $360 M

$250 - $470 M

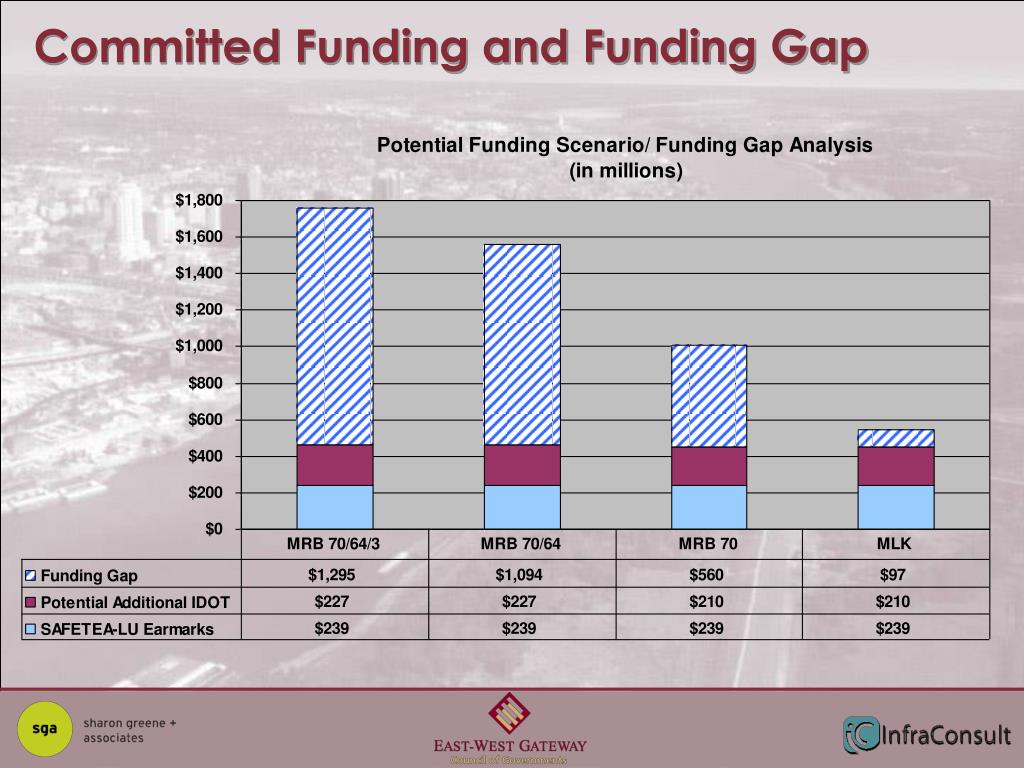

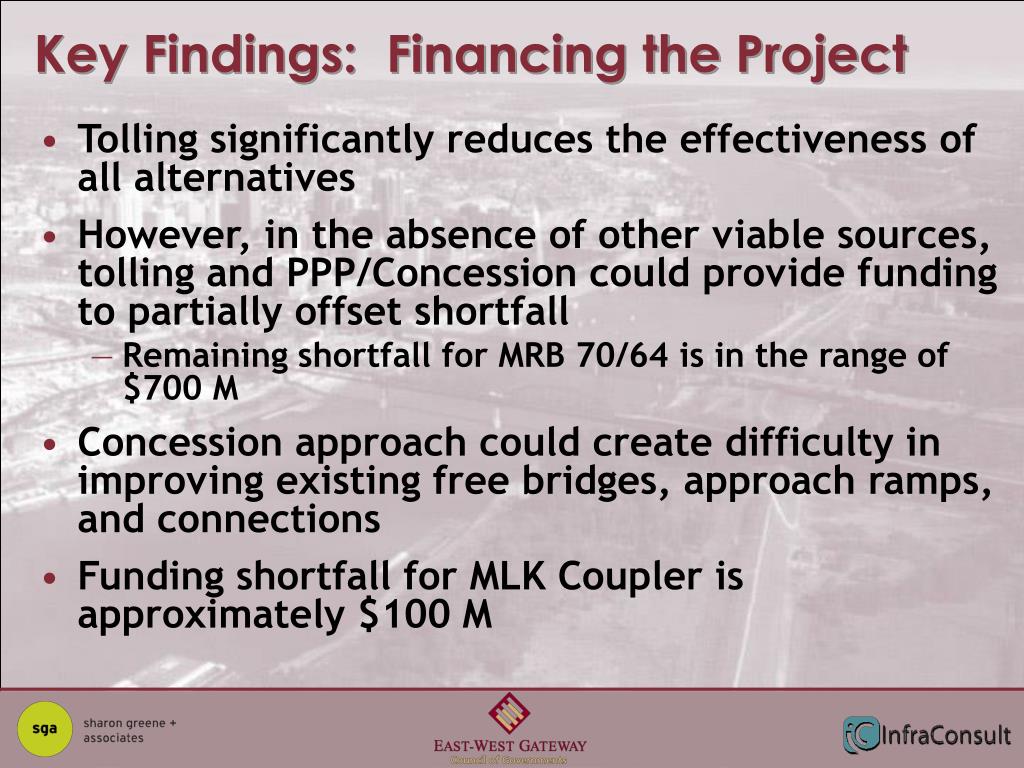

key findings financing the project
Key Findings: Financing the Project
  • Tolling significantly reduces the effectiveness of all alternatives
  • However, in the absence of other viable sources, tolling and PPP/Concession could provide funding to partially offset shortfall
    • Remaining shortfall for MRB 70/64 is in the range of $700 M
  • Concession approach could create difficulty in improving existing free bridges, approach ramps, and connections
  • Funding shortfall for MLK Coupler is approximately $100 M
choices for the future
Choices for the Future
  • Can all parties agree on numbers and forecasts?
  • Can Missouri and Illinois find common ground?
    • If there are insufficient sources of funds, will Illinois accept “discounted” tolls for Illinois residents to achieve equity?
    • If a toll authority or concession cannot be achieved, will Missouri accept the MLK Coupler alternative?
  • Is the St. Louis business community willing to “pitch in?”
  • In the absence of consensus, should the committed funds be used for early action projects, and defer building the bridge?
choices for the future36
Choices for the Future

Option 1:

  • Move forward with most significant components of new bridge: MRB 70/64
  • Close funding gap
    • Identify additional funding sources – public/private
    • Achieve consensus on tolling
choices for the future37
Choices for the Future

Option 2:

  • Move forward with MLK “Coupler”
  • Initiate design and environmental studies
  • Close funding gap
    • Identify additional public funding sources
choices for the future38

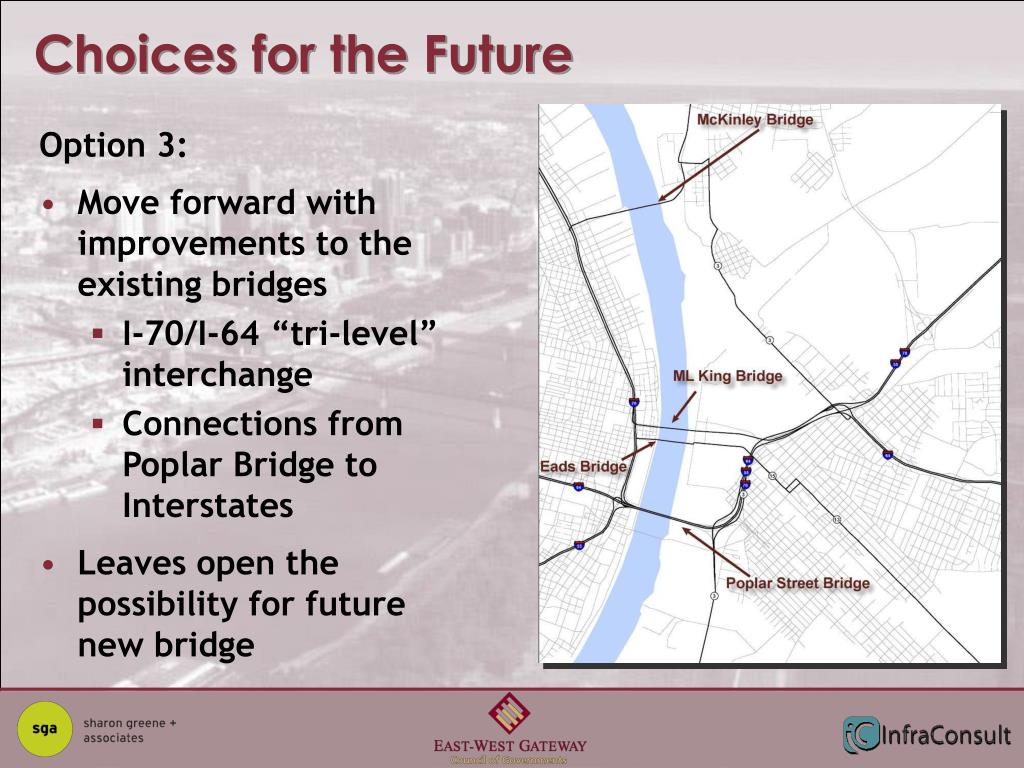

Option 3:

Move forward with improvements to the existing bridges

I-70/I-64 “tri-level” interchange

Connections from Poplar Bridge to Interstates

Leaves open the possibility for future new bridge

Choices for the Future
choices for the future39
Option 4:

Do nothing

Reprogram federal earmarked funds

Choices for the Future
mississippi river bridge an analysis of alternatives40

Mississippi River BridgeAn Analysis of Alternatives

Final Report Presentation

January 31, 2007

Sharon Greene & Associates
