JACTO KNAPSACK SPRAYERS

JACTO KNAPSACK SPRAYERS. ACCESSORIES. PJH . 20 litres. 1.35 m long hose. Metal piston pump for long life and chemical resistance –Volume: 620 ml and piston cup diameter: 35 mm. Convenient top handle for easy carrying and storage.

liam
Download Presentation

JACTO KNAPSACK SPRAYERS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

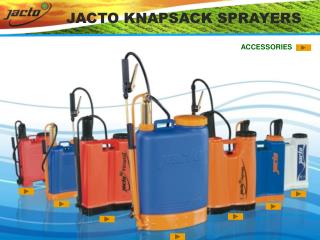

  1. JACTO KNAPSACK SPRAYERS ACCESSORIES

  2. PJH 20 litres 1.35 m long hose Metal piston pump for long life and chemical resistance –Volume: 620 ml and piston cup diameter: 35 mm Convenient top handle for easy carrying and storage Extra-large fill opening and strainer for faster filling, reducing chance of spillage In-tank pump for safety Accurate scale measures litres, gallon and imperial gallons Adjustable shoulder straps with metal hook for easy loading on the back Ergonomic shape fits on the operator’s back for maximum comfort Internal mechanical agitator for constant mixing High density polyethylene UV resistant tank Anti-corrosion electrostatic powder painting Heavy-duty trigger valve is field serviceable. Filter Inside Metal bushings for long-life resistance Metal spray lance for long-life durability Net weight: 5.5 kg

  3. PJ-16, PJ-18 and PJ-21 16, 18, 21 litres 1.35 m long hose Metal piston pump for long life and chemical resistance –Volume: 620 ml and piston cup diameter: 35 mm Convenient top handle for easy carrying and storage Large fill opening and deep strainer for faster filling, reducing chance of spillage In-tank pump for safety Accurate scale measures litres, gallon and imperial gallons Adjustable shoulder straps with metal hook for easy loading on the back Ergonomic shape fits on the operator’s back for maximum comfort Internal mechanical agitator for constant mixing High density polyethylene UV resistant tank Anti-corrosion electrostatic powder painting Heavy-duty trigger valve is field serviceable. Filter Inside Metal bushings for long-life resistance Metal spray lance for long-life durability Net weight: PJ-16: 4.2 kg PJ-18: 4.4 kg PJ-21: 4.6 kg

  4. Versatili / HD 16 and 20 litres 1.65 m long PVC+rubber hose Polypropylene/Polyacetal piston pump –Volume: 900 ml and piston cup diameter: 45 mm Convenient top handle for easy carrying and storage Large fill opening and deep strainer for faster filling, reducing chance of spillage Heavy-duty trigger valve is field serviceable. Filter Inside In-tank pump for safety Accurate scale measures litres, gallon and imperial gallons Quick-adjust shoulder straps for easy load Ergonomic shape fits on the operator’s back for maximum comfort Lever and Lance parking device for easy carrying and storage Right-hand and Left-hand operation Polypropylene UV resistant tank Internal mechanical agitator for constant mixing No screw for manual easy maintenance Metal bushings for long-life resistance Internal valve prevents over-pressurising the piston pump Net weight: 16 L: 3.4 kg 20 L: 3.7 kg

  5. Supremo 16 litres 1.65 m long PVC+rubber hose Polypropylene/Polyacetal piston pump –Volume: 900 ml and piston cup diameter: 45 mm Convenient top handle for easy carrying and storage Large fill opening and deep strainer for faster filling, reducing chance of spillage Heavy-duty trigger valve is field serviceable. Filter Inside In-tank pump for safety Accurate scale measures litres, gallon and imperial gallons Quick-adjust shoulder straps with smooth shoulder pad Ergonomic shape fits on the operator’s back for maximum comfort Lever and Lance parking device for easy carrying and storage Right-hand and Left-hand operation Polypropylene UV resistant tank Transparent Internal mechanical agitator for constant mixing No screw for manual easy maintenance Metal bushings for long-life resistance Internal valve prevents over-pressurising the piston pump Net weight: 4.0 kg Bely Belt – avoid the tank shaking on the back EcoValve – pressure and flow rate valve control

  6. X-15 15 litres 1.65 m long PVC+rubber hose Polypropylene/Nylon piston pump –Volume: 1 litre and piston cup diameter: 45 mm Convenient top handle for easy carrying and storage Large fill opening and deep strainer for faster filling, reducing chance of spillage In-tank pump for safety Accurate scale measures litres, gallon and imperial gallons Quick-adjust shoulder straps Ergonomic shape fits on the operator’s back for maximum comfort Right-hand and Left-hand operation High density polyethylene UV resistant tank Internal mechanical agitator for constant mixing Heavy-duty trigger valve is field serviceable. Filter Inside Internal valve prevents over-pressurising the piston pump Net weight: 4.8 kg

  7. ACCESSORIES FOR KNAPSACK SPRAYERS • 907837 – Pliable boom • 761882 – Spray hood • 902296 – Boom 500 • 1 • 073296 – Bed boom • 100016 – extension160 • 336115 – Nozzle “Y”

  8. ACCESSORIES FOR KNAPSACK SPRAYERS • 834309 – Flow calibrator • 728139 – Extension600 • 962959 Measuring cup • 2 • 590513 – Eco Valve • Constant pressure and flow rate valve control • Trigger valves • Spray lances
