SM-VIDMON1i(e) Glue Detection Systems for the Corrugated Box Industry

7950 CASTLEWAY DR. INDIANAPOLIS, IN 46250

317-577-3000 www.frakesengineering.com

Contact Dan Turner x 245 or Jim Frakes x 224

EXCLUSIVEU.S. AGENTSFOR

  • Smofad Control Systems (Aust) Pty Ltd
  • Phone: Murray 0417384680 or John 0409421175
  • e-mail: mdicker@smofad.com.au
  • e-mail: jwain@smofad.com.au
  • Copyright 1996-2002
  • Australian and International Patents Pending
recommending a strategy

Recommending a strategy

A monitoring system that gives you total quality assurance.

100% inspection of all outgoing production.

“State of the Art” video and micro processor technology ensuring reliability and long term life.

1

vision statement
Vision statement
  • Our vision is to provide our customer with a high quality inspection system that gives them a competitive edge.
  • To offer a service and support network that compares to none.
  • “Sensing your solutions” is not just a catch phrase it is a promise.

2

goal and objectives
Goal and objectives
  • To achieve zero defect on all outgoing products.
  • To satisfy our customers and to assist in their Total Quality Assurance, with top quality products and services.
  • To provide historical logging, allowing efficient diagnosis of reoccurring faults in the manufacturing process.
  • Flexibility with configurations & software to meet customer needs.

3

today s environment
Today’s environment
  • Today, market leaders require total quality management solutions.
  • It’s a cut throat market, businesses are looking for a competitive edge.
  • Smofad Glue Monitoring Systems are one way of achieving that goal.

4

how did we get here
How did we get here?
  • Smofad Control Systems was formed in July 1997 by Murray Dicker and John Wain.
  • Smofad has proven over the years that all of their products are reliable and innovative.
  • Smofad products are second to none.
  • Smofads systems Actually WORK !

5

available options on glue monitoring systems
Available options on Glue Monitoring Systems
  • Dual cameras can be fitted for internal and external gluing applications.
  • Spray system can be fitted to identify individual reject product.
  • Remote monitoring of PLC programs and camera images.
  • Backup service and support.

6

special features
Special Features
  • Automatic box recognition
  • History and error logging
  • Diagnostics, password protected
  • Active alarm monitoring
  • Configurable customer preset
  • Detection of skewed cartons
  • Start and stop positions of glue lines
  • Thickness of glue lines
  • Tab detection

7

slide9

The Process

  • The box is fed through by the operator.

8

slide10

The Process

  • The Automatic Box Recognition system or (ABR) scans the box. To acquire first box data.

9

slide11

The Process

  • The ABR displays the box layout and all relevant dimensions.

10

slide12

The Process

  • The operator now ACCEPTS or REJECTS the job.

11

customer glue line positioning specification
Customer Glue Line Positioning Specification

A. The glue MUST START 10mm after the START of the glue flap.

B. The glue MUST FINISH 10mm before the END of the glue flap.

C. The OUTSIDE glue line MUST be 10mm from the edge of the box.

12

slide14

Production history and error logging

Current production run data is displayed, discriminating to sub levels of rejection.

13

slide15

Failed Internal Camera Images, showing defective products.Initiating Alarms and Feeder stops.

14

slide16

Internal Camera Image 1

Example of Cardboard Slot stuck in glue headThe following images are actual and were taken at high speed

Inspection Result = Fail

15

glue blobs at head causing glue lines to continue on after glue solenoid had turned off

Internal Camera Image 3

Glue blobs at head causing glue lines to continue on afterglue solenoid had turned off

Inspection Result = Fail

17

slide19

Internal Camera Image 4

Skewing of box

Inspection Result = Fail

18

no glue

Internal Camera Image 5

No Glue

Inspection Result = Fail

It can be seen in the adjacent image, that NO Glue has been applied to the box. The graph below indicates that the camera has reported this condition back to the PLC which in this case, (consec rejects set to 3) initiated a feeder stop and alarm.

19

slide22

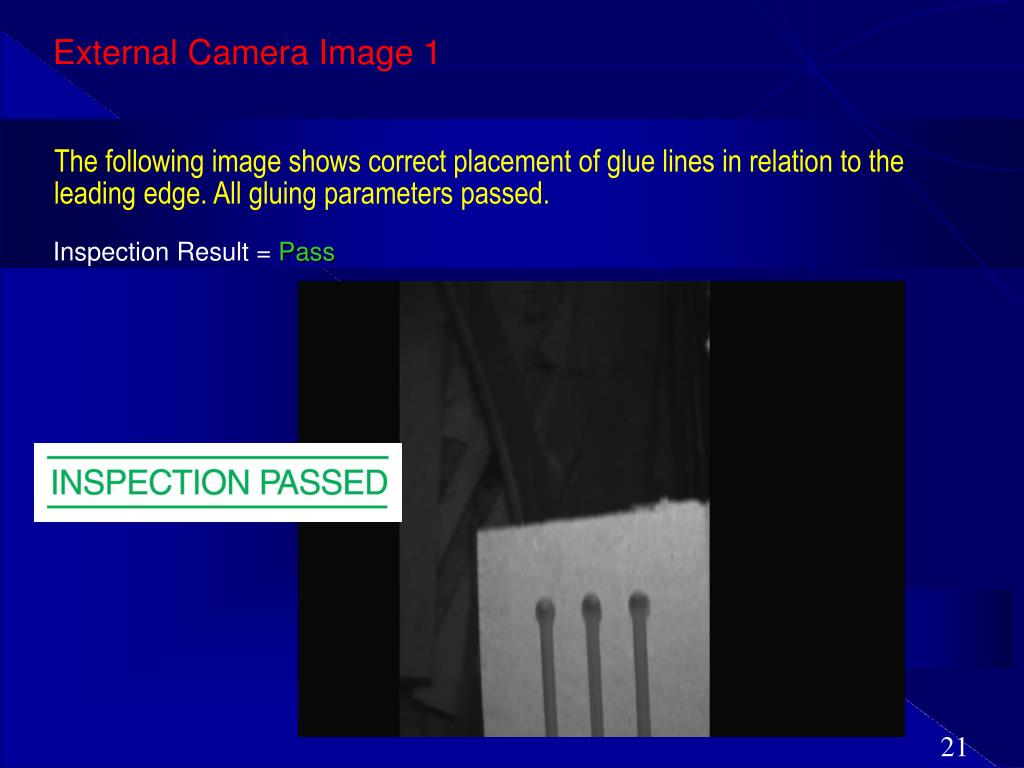

External Camera Image 1

The following image shows correct placement of glue lines in relation to the leading edge. All gluing parameters passed.

Inspection Result = Pass

21

slide23

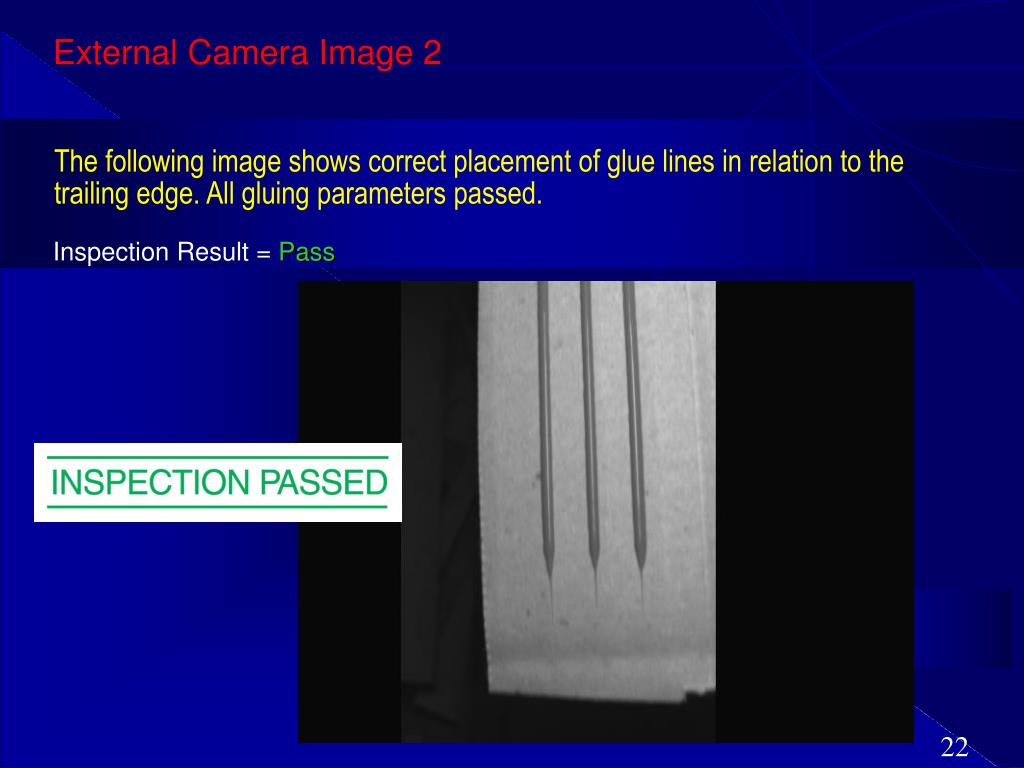

External Camera Image 2

The following image shows correct placement of glue lines in relation to the trailing edge. All gluing parameters passed.

Inspection Result = Pass

22

configurable customer presets
Configurable customer presets

Customer specs can be accessed and changed at any time.

23

diagnostics with password protection
Diagnostics with password protection

Setup, customer parameters, and diagnostics are available via a security coded password.

24

active alarm visual display
Active alarm visual display

Active alarms are displayed automatically, identifying the alarm for the operator, this is accompanied by a audible siren.

25

slide29

Onsite Communications

The latest visit has introduced remote communications with the Internal Gluing Inspection Camera. Interim software has been loaded onto key personnel’s PC’s which allow them to access LIVE images over the Amcor network via Ethernet communications. This function has been very well received, and shows the flexibility and connectivity of the system. Presently, only one person can view images at a time, but this will change shortly to allow multiple people to access images simultaneously. If required a database could be created to store all images as a quality assurance record keeping tool.

28

slide30

Onsite Communications

  • The operator can view live images at their station via a PC monitor accessed from the network.
  • Customer Key Personal can access live images from anywhere on the customers network.

29

slide31

Remote Communications

  • SMOFAD has successfully accessed live images via remote communications between Melbourne, Australia and Auckland, New Zealand.
  • Now includes global access.
  • This provides low cost backup service and support.
  • Allows quick and effective diagnosis of problems and upgrades.

30

slide32

Conclusions

This state of the art technology has certainly proved its worth, and will evolve further in time. It is a credit to Amcor in its commitment to improve their processes and quality with the use of innovative and technologically advanced systems. The benefits of such are already being realised, with the potential to increase and deliver quality products to its customers.

Murray Dicker & John Wain

Smofad Control Systems

Copyright 1996-2003

Australian and International Patents Pending

31

slide33

Murray Dicker74 - 76 Charles RoadLilydale, VictoriaAustralia, 3140

Ph. 0417384680

Ph (61) 417384680

www.smofad.com.au

mdicker@smofad.com.au

John Wain34 Wimmera Crescent Keilor Downs, Victoria Australia, 3038

Ph. 0409421175

Ph. (61) 409421175

www.smofad.com.au

jwain@smofad.com.au

Proudly Australian

Copyright 1996-2004

Australian and International Patents Pending
