Interpreting the data: Parallel analysis with Sawzall

Interpreting the data: Parallel analysis with Sawzall LIN Wenbin 25 Mar 2014

OUTLINE • Introduction • Motivation • System model • Language • Performance • Future work & Conclusion

Introduction • Many data sets are too large, too dynamic • Files distributed across many disks on many computers • An analysis may consume months of CPU time • With a thousand machines that will only take a few hours of real time • Break our calculations into two phases • Evaluates the analysis on each record individually • Aggregates the results

Introduction • GFS and MapReduce • Fault tolerance and reliability and provide a powerful framework upon which to implement a large, parallel system for distributed analysis • Sawzall • Expressing the analysis cleanly and executing it quickly

Motivation • Google's server logs • Stored as large collections of records(protocol buffers) • Partitioned over many disks within Google File System (GFS) • Perform calculations • Write MapReduce programs

Motivation • Parallelism • Separating out the aggregators • Providing a restricted model for distributed processing (one record at a time) • Clearer, more compact, more expressive • Support domain-special types at a lower level • Easier to write quick scripts

System model • Sawzalllanguage written in C++ • The compiler and byte-code interpreter are part of the same binary • Aggregators are implemented by saw • Implemented above MapReduce, running Sawzall in the map phase and the aggregators in the reduce phase • MapReduce manages the distribution of execution and aggregation machines, locates the computation, and handles machine failure and other faults

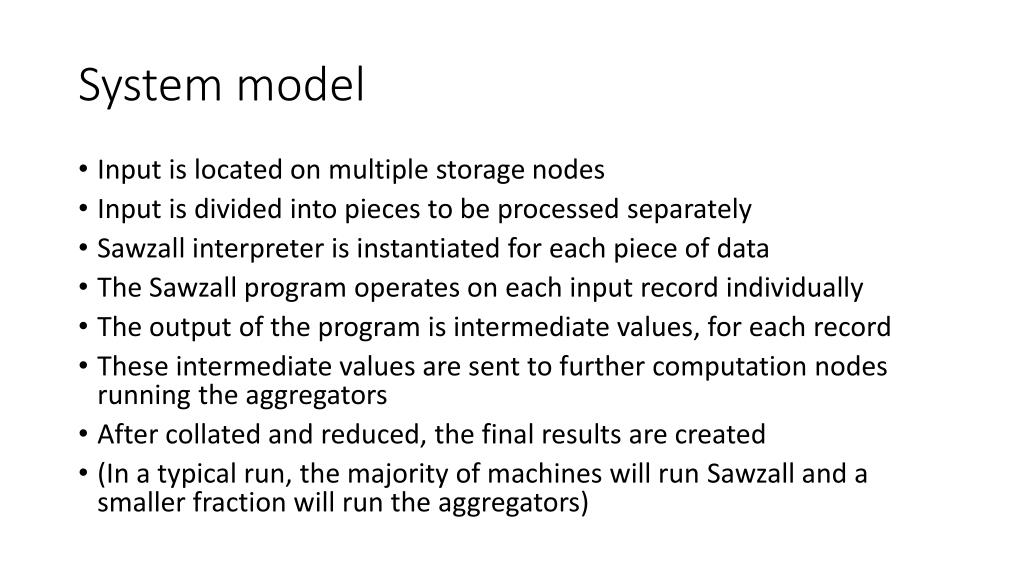

System model • Input is located on multiple storage nodes • Input is divided into pieces to be processed separately • Sawzall interpreter is instantiated for each piece of data • The Sawzall program operates on each input record individually • The output of the program is intermediate values, for each record • These intermediate values are sent to further computation nodes running the aggregators • After collated and reduced, the final results are created • (In a typical run, the majority of machines will run Sawzall and a smaller fraction will run the aggregators)

System model • saw command • program Sawzall source file • Input_files standard Unix shell file-name-matching metacharacters • destination names of the output files • @ the number of files (the number of aggregation machines)

Language • Example 1 • Overview • Aggregators • Indexed aggregators • Example 2 • Quantifiers • Example 3

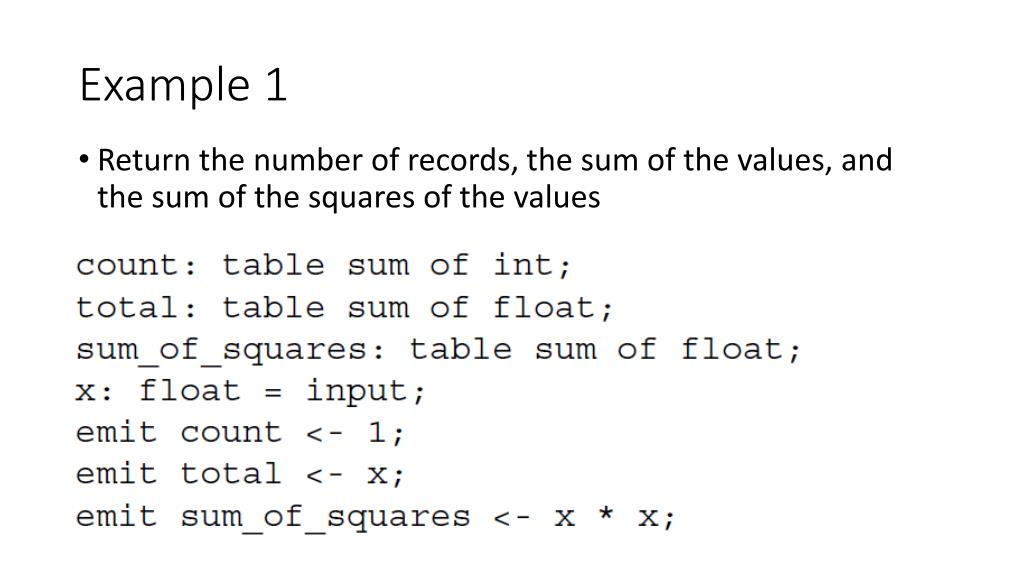

Example 1 • Return the number of records, the sum of the values, and the sum of the squares of the values

Overview • Basic types • intsigned 64-bit quantity • float 64-bit IEEE floating-point value • boolBoolean value • time unsigned 64-bit quantity recording microseconds • Array-like types • bytes string of 8-bit unsigned bytes • strings string of 16-bit Unicode characters. • Compound types • arrays an (unspecified) number of components, all of the same type • maps key-value pairs • tuples a fixed number of members of possibly different types

Overview • Declarations • Statements • emit (send intermediate values to the aggregators)

Overview • proto (imports the DDL for a protocol buffer from a file) • static (avoid initialization for every record)

Aggregators • Collection (A list of all the duplicatesemitted values in arbitrary order) • Sum (Summation of all the emitted arithmeticvalues) • Maximum (The highest-weighted values) • Top (The most popular values)

Indexed aggregators • An aggregator can be indexed • Create a distinct individual aggregator for each unique value • Find the 1000 most popular request for each country, for each hour

Example 2 • Show how the queries are distributed around the globe

Example 2 • Query distribution

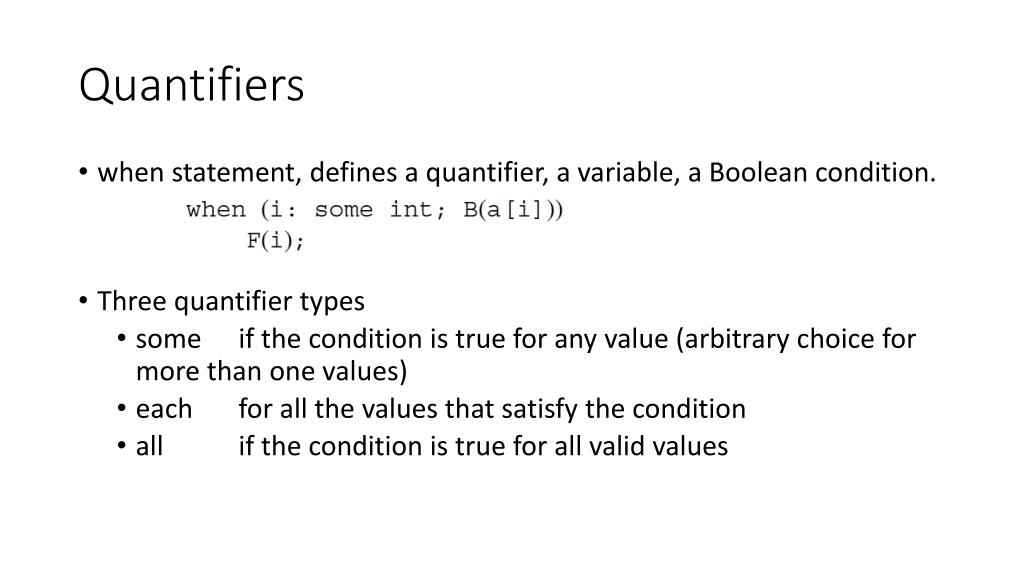

Quantifiers • when statement, defines a quantifier, a variable, a Boolean condition. • Three quantifier types • some if the condition is true for any value (arbitrary choice for more than one values) • each for all the values that satisfy the condition • all if the condition is true for all valid values

Example 3 • Count the occurrences of certain words, for each day

Performance • Test the single-CPU speed of Sawzall interpreter • Compare with that of other interpreted languages • Test how the speed scales • Run program using different numbers of machines

Test the single-CPU speed of Sawzallinterpreter • Computes pixel values for displaying the Mandelbrot set • Measure basic arithmetic and loop performance • Recursive function to calculate the first 35 Fibonacci numbers • Measures function invocation • 2.8 GHz x86 desktop machine

Test the single-CPU speed of Sawzallinterpreter • 1.6 times slower than interpreted Java • 21 times slower than compiled Java • 51 times slower than compiled C++

Test how the speed scales • 450 GB sample of compressed query log data • count the occurrences of certain words • 50 – 600 2.4 GHz Xeon computers

Test how the speed scales • Sawzallprogram

The solid line is elapsed time • The dashed line is the product of machines and elapsed time • The machine-minutes product degrades only 30%

Future work • Aggressive compilation • More complex analyses • Run once per machine, apply the accelerated binary to each input record • Interface to query an external database • Suspend processing of one record • Language extensions • Multiple passes over the data • Join operations • Join data from multiple input sources

Conclusion • New interpreted programming language called Sawzall • Programming model (one record at a time) • Interface to a novel set of aggregators • Write short, clear programs that are guaranteed to work well on thousands of machines in parallel • Know nothing about parallel programming

THANK YOU
