  1. Industrial, Gigabit Ethernet Switch Solutions Valerio Matola Sales Manager Ιούνιος 26, 2007

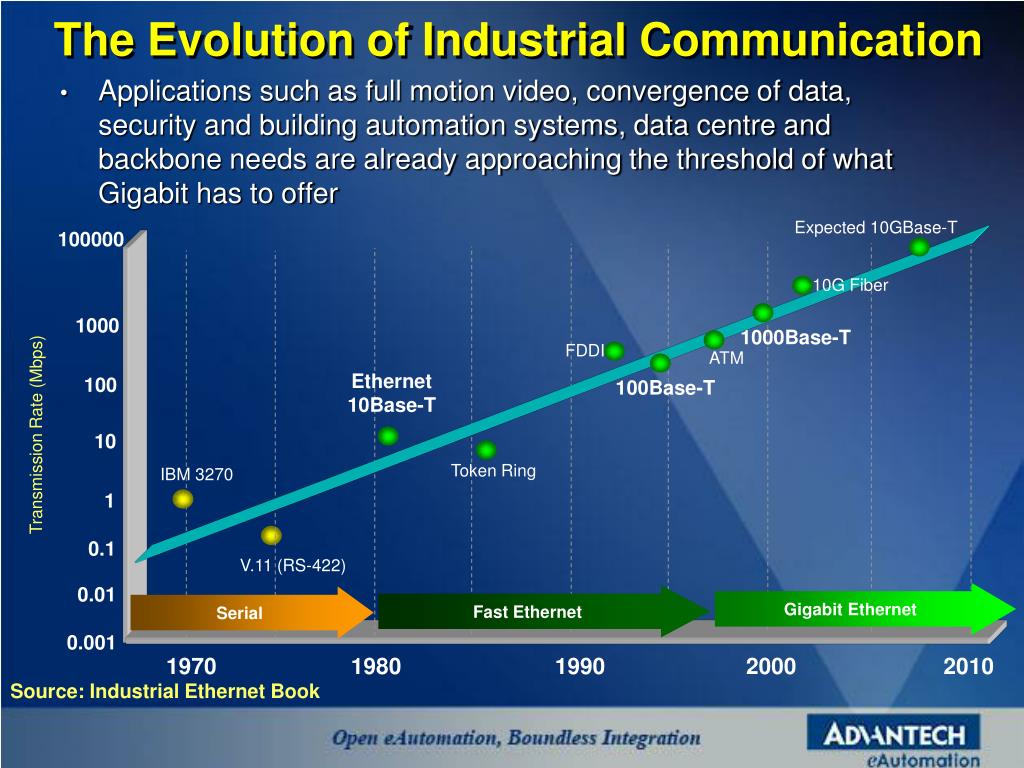

  2. The Evolution of Industrial Communication Expected 10GBase-T 100000 10G Fiber 1000 1000Base-T FDDI ATM Ethernet 10Base-T 100 100Base-T Transmission Rate (Mbps) 10 Token Ring IBM 3270 1 0.1 V.11 (RS-422) 0.01 Gigabit Ethernet Fast Ethernet Serial 0.001 1970 1980 1990 2000 2010 Source: Industrial Ethernet Book • Applications such as full motion video, convergence of data, security and building automation systems, data centre and backbone needs are already approaching the threshold of what Gigabit has to offer

  3. Communication - Major Selection Criteria 1G bps

  4. Why Gigabit Ethernet Switch? • Reduce traffic bottlenecks • Improve performance and ultimately enhance the productivity of the network • Higher bandwidth solution backwards compatible with existing technologies • Affordable TCO (Total Cost of Ownership)

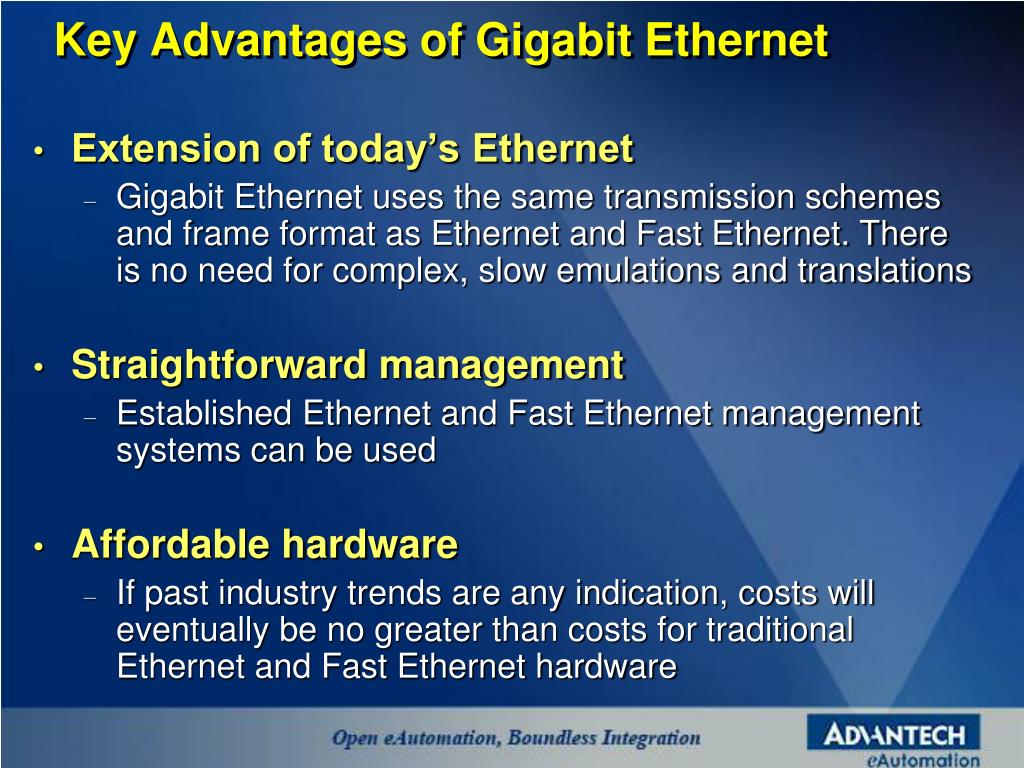

  5. Key Advantages of Gigabit Ethernet • Extension of today’s Ethernet • Gigabit Ethernet uses the same transmission schemes and frame format as Ethernet and Fast Ethernet. There is no need for complex, slow emulations and translations • Straightforward management • Established Ethernet and Fast Ethernet management systems can be used • Affordable hardware • If past industry trends are any indication, costs will eventually be no greater than costs for traditional Ethernet and Fast Ethernet hardware

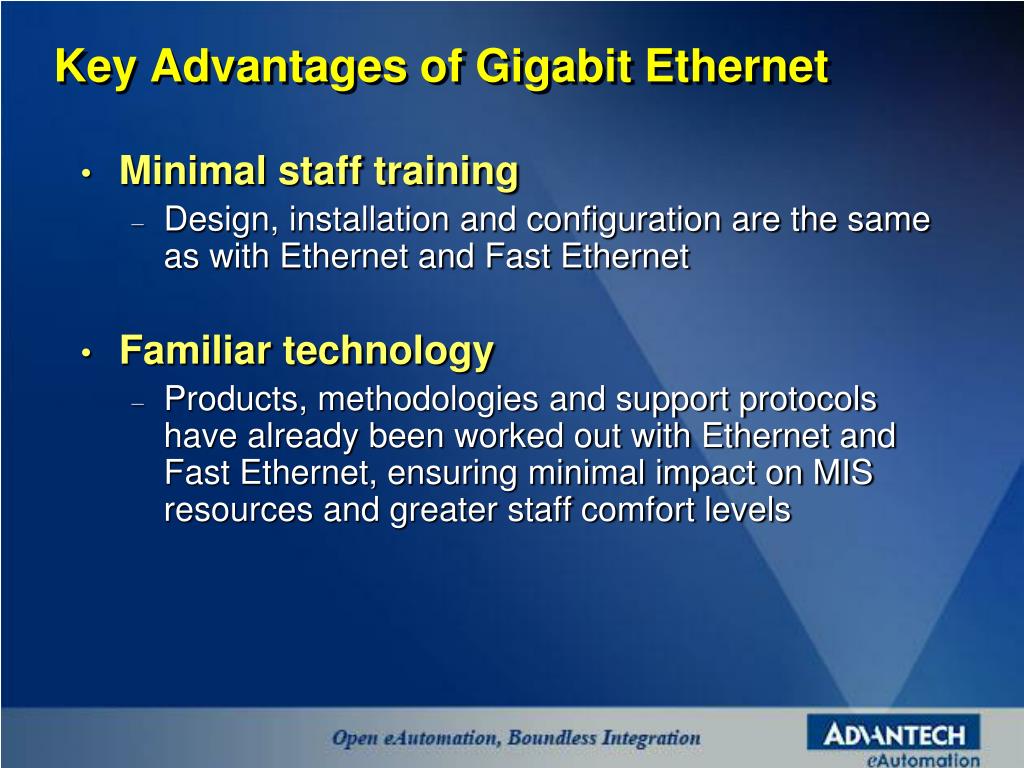

  6. Key Advantages of Gigabit Ethernet • Minimal staff training • Design, installation and configuration are the same as with Ethernet and Fast Ethernet • Familiar technology • Products, methodologies and support protocols have already been worked out with Ethernet and Fast Ethernet, ensuring minimal impact on MIS resources and greater staff comfort levels

  7. Who Need Gigabit Ethernet Switch? • Distributed Database, Image Transfer, Groupware, Video/multimedia access, combined video/voice, engineering design, and broadcast video

  8. Advantech Industrial Gigabit Ethernet Switch Solutions • Industrial Gigabit unmanaged Ethernet Switch • Industrial Gigabit redundant, managed Ethernet Switch • Industrial Gigabit Ethernet Media Converter

  9. Advantech Gigabit Ethernet Architecture Gigabit Ethernet Backbone Gigabit Ethernet Networking EKI-6728 EKI-6728 Gigabit Fiber Optic Fast Ethernet Networking EKI-6628F ADAM-6841SX

  10. EKI-6628F 2x GbE and 6x 10/100 Unmanaged Switch Q2/2007 EKI-6628F • 6x 10/100Base-TX ports and 2x SFP ports optional 1000Base-SX/LX modules • Auto-MDIX for quick and easy setup • Extended 4000V ESD (Ethernet) and 3000V Surge (power supply) protection • Standard 0 to 60 C° temperature range • Redundant 10 to 48 VDC supply w/ fault relay output

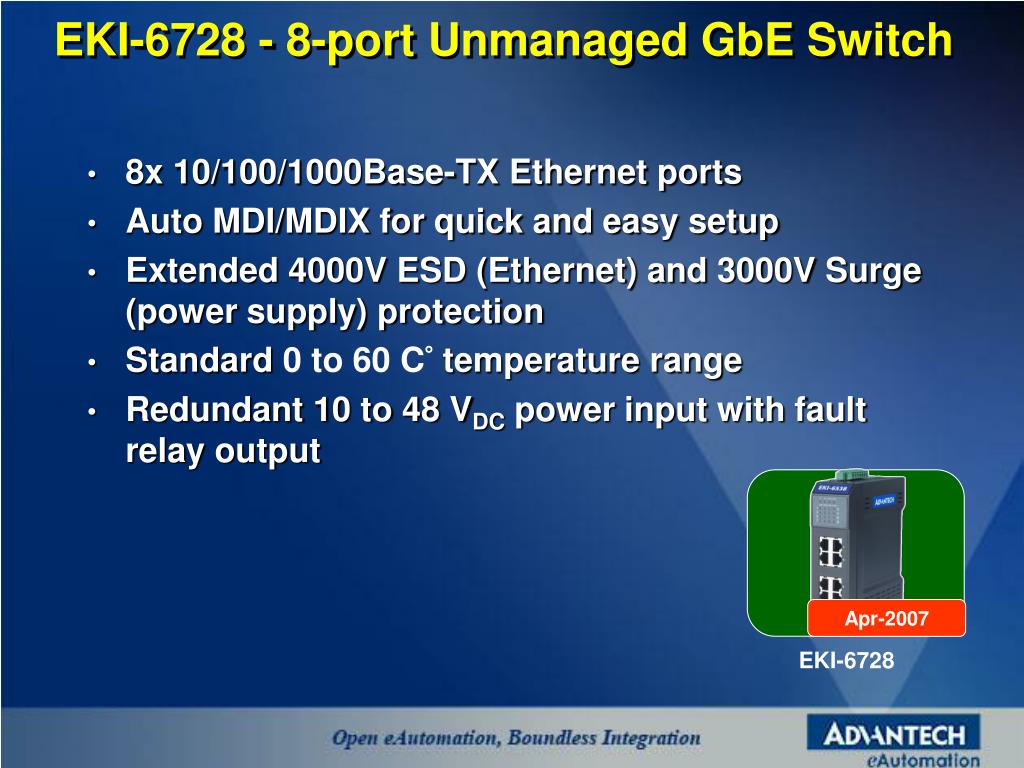

  11. EKI-6728 - 8-port Unmanaged GbE Switch Apr-2007 EKI-6728 • 8x 10/100/1000Base-TX Ethernet ports • Auto MDI/MDIX for quick and easy setup • Extended 4000V ESD (Ethernet) and 3000V Surge (power supply) protection • Standard 0 to 60 C° temperature range • Redundant 10 to 48 VDC power input with fault relay output

  12. EKI-7629C 2x GbE and 8x 10/100 Unmanaged Switch Q2/2007 EKI-7629C • 8x 10/100Base-TX Ethernet ports and 2x combo 10/100/1000Base-TX Ethernet ports or SFP ports • Auto-MDIX for quick and easy setup • Extended 4000V ESD (Ethernet) and 3000V Surge • Standard 0 to 60 C° temperature range • Redundant 10 to 48 VDC supply w/ fault relay output

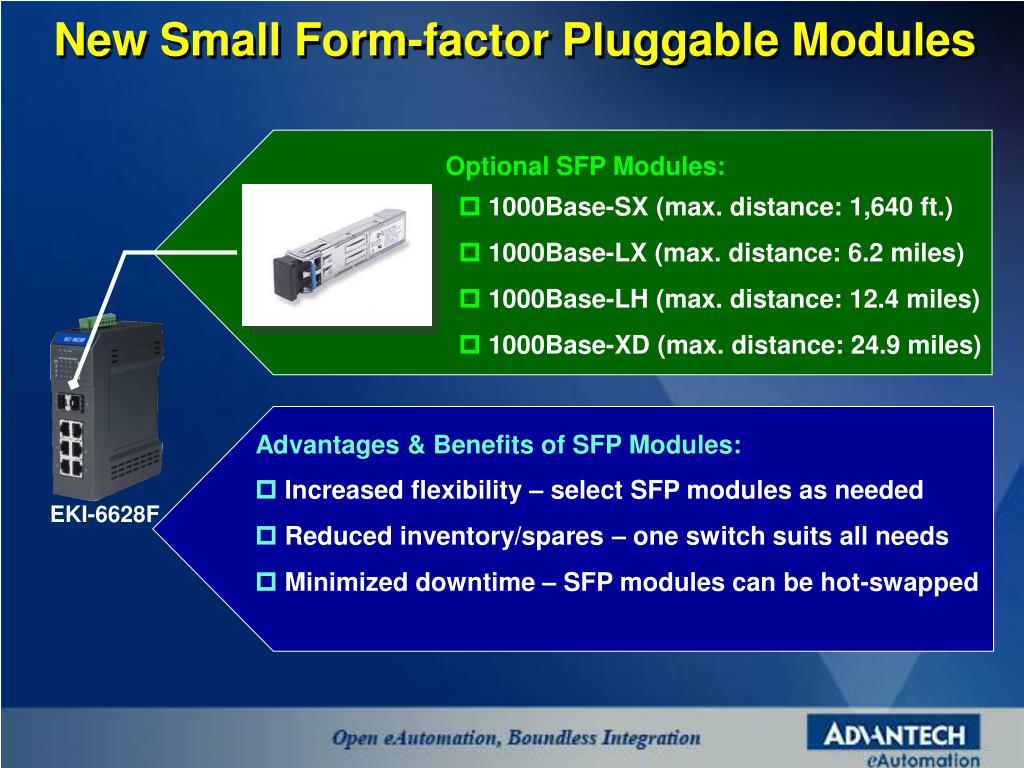

  13. New Small Form-factor Pluggable Modules Optional SFP Modules: • 1000Base-SX (max. distance: 1,640 ft.) • 1000Base-LX (max. distance: 6.2 miles) • 1000Base-LH (max. distance: 12.4 miles) • 1000Base-XD (max. distance: 24.9 miles) Advantages & Benefits of SFP Modules: • Increased flexibility – select SFP modules as needed • Reduced inventory/spares – one switch suits all needs • Minimized downtime – SFP modules can be hot-swapped EKI-6628F

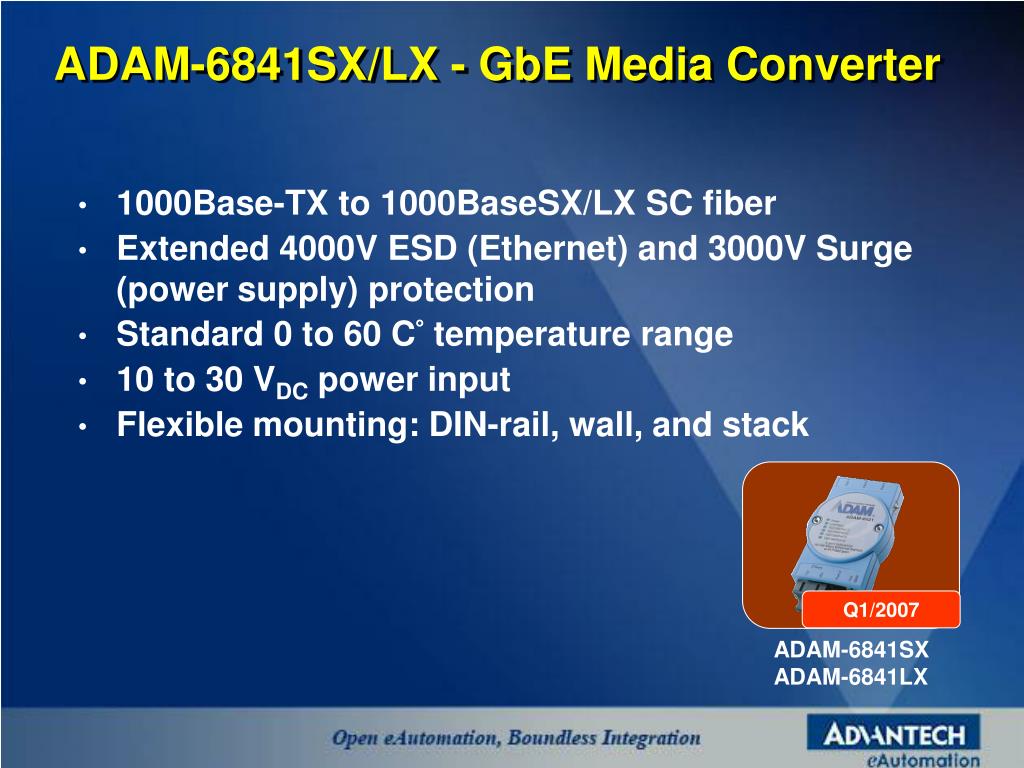

  14. ADAM-6841SX/LX - GbE Media Converter Q1/2007 ADAM-6841SX ADAM-6841LX • 1000Base-TX to 1000BaseSX/LX SC fiber • Extended 4000V ESD (Ethernet) and 3000V Surge (power supply) protection • Standard 0 to 60 C° temperature range • 10 to 30 VDC power input • Flexible mounting: DIN-rail, wall, and stack

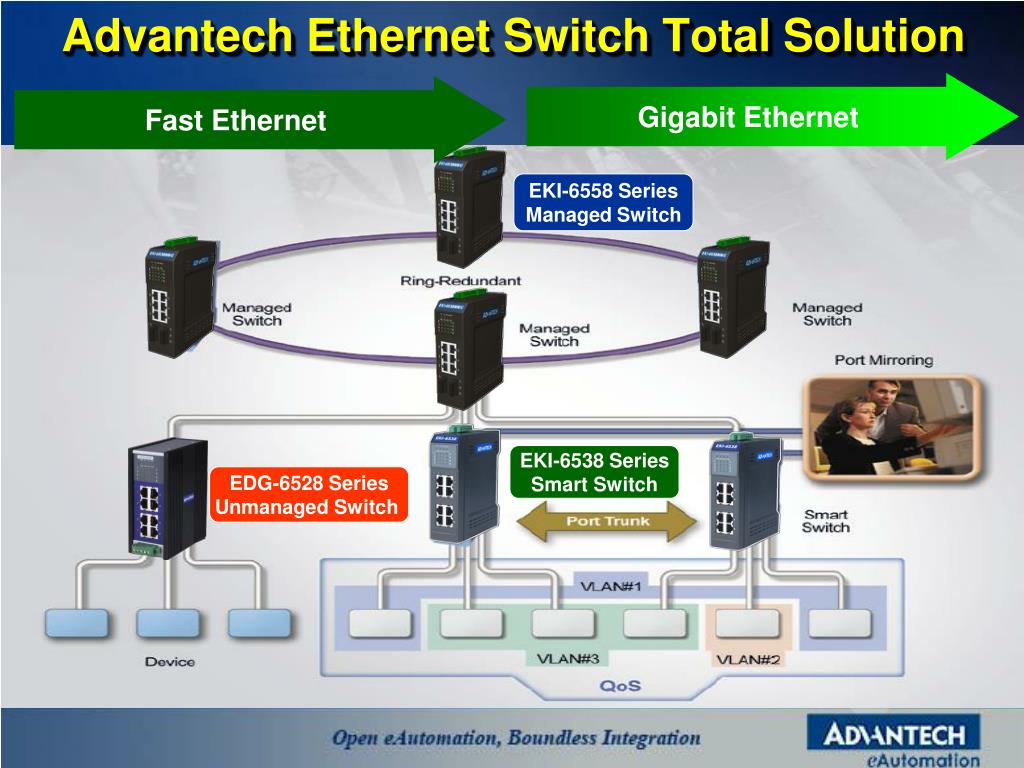

  15. Advantech Ethernet Switch Total Solution Gigabit Ethernet Fast Ethernet EKI-6558 Series Managed Switch EKI-6538 Series Smart Switch EDG-6528 Series Unmanaged Switch

  16. Application : Gigabit Ethernet at the Network Backbone Fast Ethernet Switch-to-Switch uplinks using Switches with Gigabit Ethernet uplinks Control Room Control Room 1000 Mbps Ethernet Networking EKI-6728 EKI-6728 Fast Ethernet Networking Fast Ethernet Networking ADAM-6520 ADAM-6520

  17. Application : Switch-to-Server Deployments to Boost Critical Access EKI-6728 Fast Ethernet Networking ADAM-6520 ADAM-6520 Switch-to-Server Deployments with Fast Ethernet Switch or Switch with Gigabit Ethernet uplinks. 1000 Mbps Ethernet Networking High performance Server Farm

  18. Application : Gigabit Ethernet Networking EKI-6728 Gigabit Ethernet Networking EKI-6728 EKI-6728 Gigabit Ethernet Switch creating a Gigabit Ethernet backbone

  19. Thank You! www.advantech.gr - info@advantech.gr
