Presentation Transcript
kinetic theory

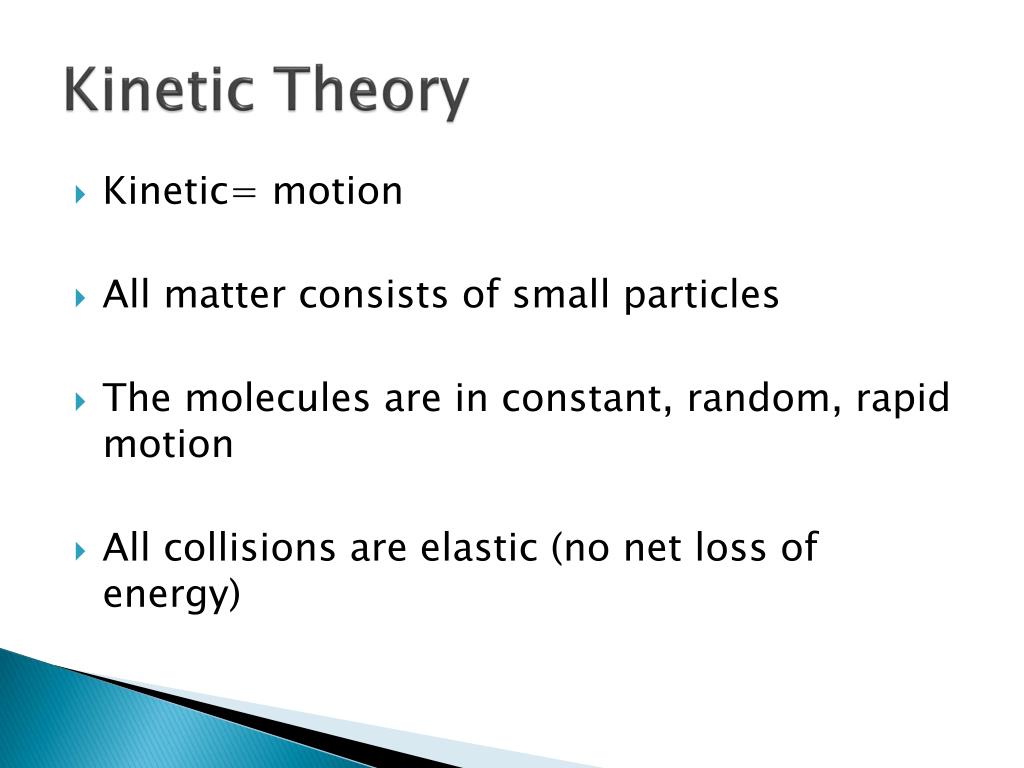

Kinetic Theory
  • Kinetic= motion
  • All matter consists of small particles
  • The molecules are in constant, random, rapid motion
  • All collisions are elastic (no net loss of energy)
slide4

As temperature increases, the molecules velocity increases, increasing the pressure on the container.

mean free path

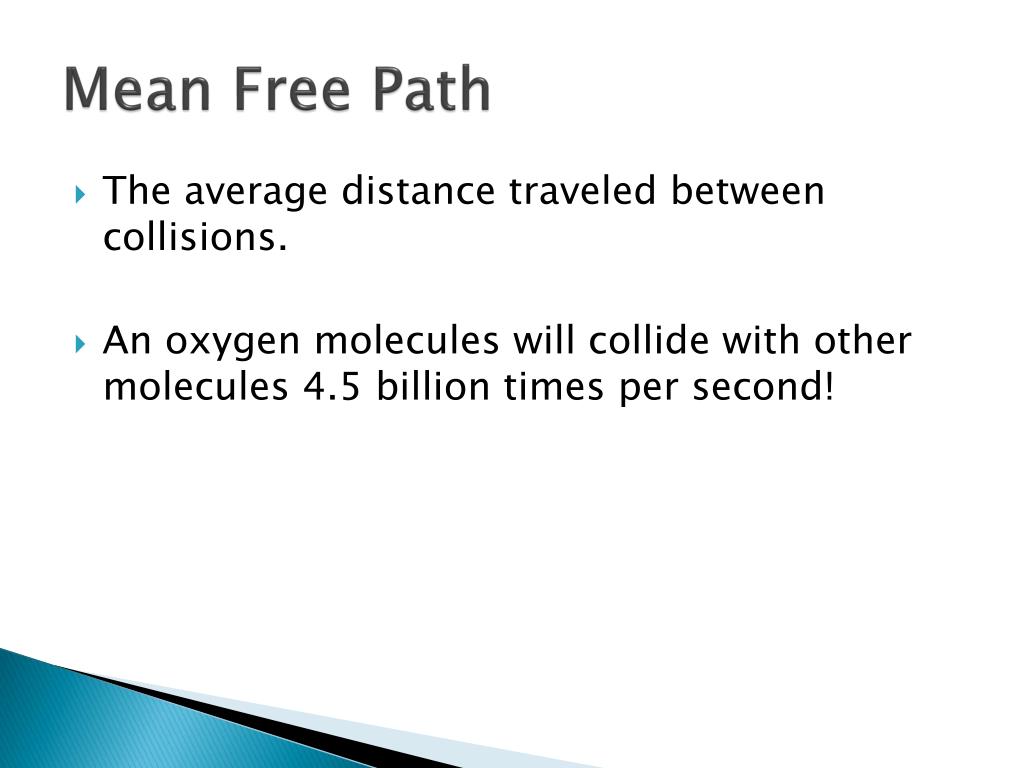

Mean Free Path
  • The average distance traveled between collisions.
  • An oxygen molecules will collide with other molecules 4.5 billion times per second!
slide6

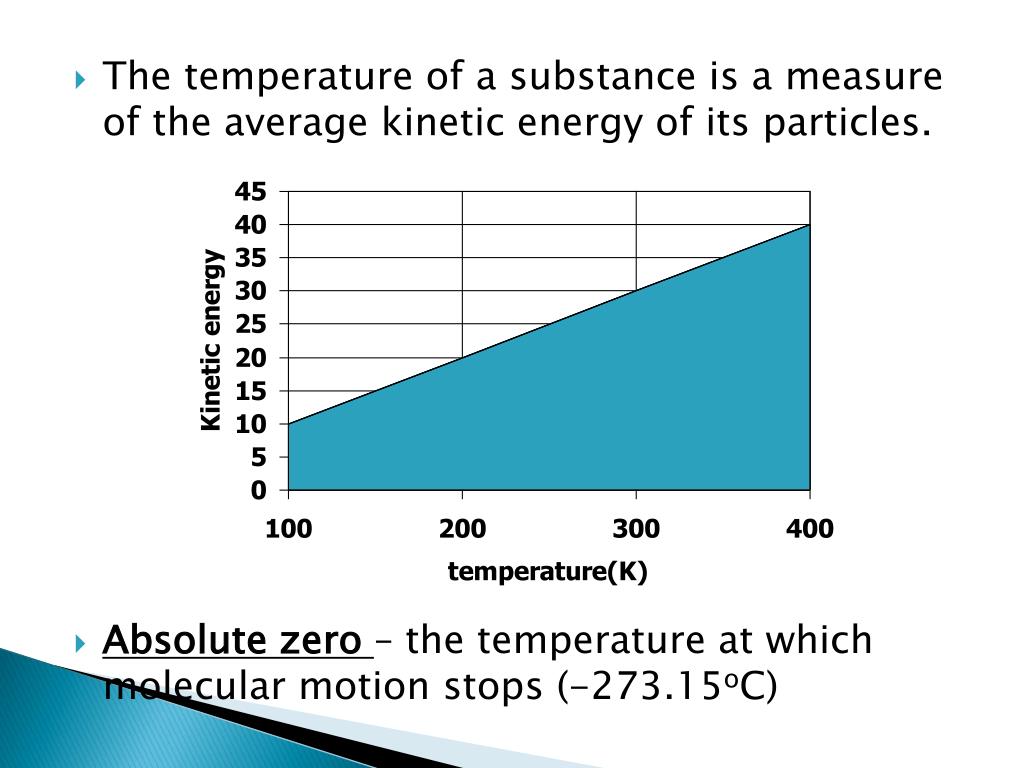

The temperature of a substance is a measure of the average kinetic energy of its particles.

  • Absolute zero – the temperature at which molecular motion stops (-273.15oC)
gas pressure
Gas Pressure
  • Caused by gas molecules colliding with the sides of a container
  • Force per unit area
  • Units:

1 atm = 101.3 kPa = 760 mmHg = 760 torr

measuring pressure
Measuring Pressure
  • Open Manometer – atmosphere exerts pressure on one side and gas sample exerts pressure on the other side
    • Add if gas pressure is greater
    • Subtract if air pressure is greater
  • Closed Manometer (barometer) – vacuum on one side, gas pressure on the other side
    • No addition or subtraction necessary
vapor pressure
Vapor Pressure
  • The pressure produced when vapor particles above a liquid collide with container walls; a dynamic equilibrium exists between the liquid and the vapor.
  • Vapor pressure increases with temperature.
  • A substance with weak intermolecular forces has a high vapor pressure and low boiling points. (these are volatile – alcohols, ethers)
  • A substance with strong intermolecular forces has a low vapor pressure and high boiling point (these are nonvolatile – water, molasses, glycerol)
phase diagrams

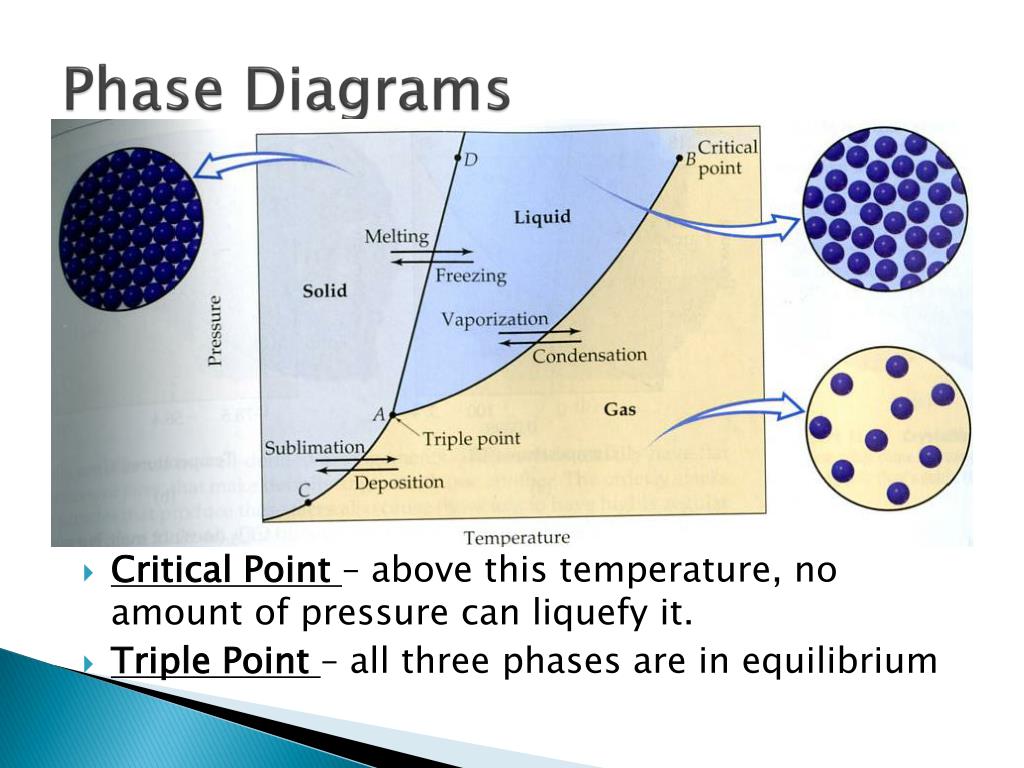

Phase Diagrams
  • Critical Point – above this temperature, no amount of pressure can liquefy it.
  • Triple Point – all three phases are in equilibrium
