  1. BladeSystem HP BladeSystem Edin Smlatić Ventex d.o.o. edin.smlatic@ventex.hr

  2. BladeSystem Agenda: HP Proliant server family Što je Blade? HP BladeSystem c-Class portfolio Kako funkcionira HP BladeSystem Management Service, Maintenance i Troubleshooting Live Demo

  3. BladeSystem HP Proliant server family • ML • Tower model • Pogodno za remote site-ove, branch office-e • Moguća tower to rack konverzija • DL • Optimiziran za rack ugradnju • BL • Optimizacija prostora, ušteda el. energije, hlađenja • Serveri, partner blade-ovi, LAN i SAN switch-evi, Virtual Connect... • SL • Dizajniran za potrebe scale-out high perfomance computing-a, uštede troškova • Shared power i hlađenje

  4. BladeSystem HP Proliant server series • ML/DL • 100 – 1P i 2P • 300 – 1P i 2P • 500 – 4P • 700 – do 8P • 900 – 4P ili 8P • BL • 200 • 400 • 600 • 800 – HP Integrity servers • Intel based CPU (xx0) • AMD based CPU (xx5) • Gx – generacija

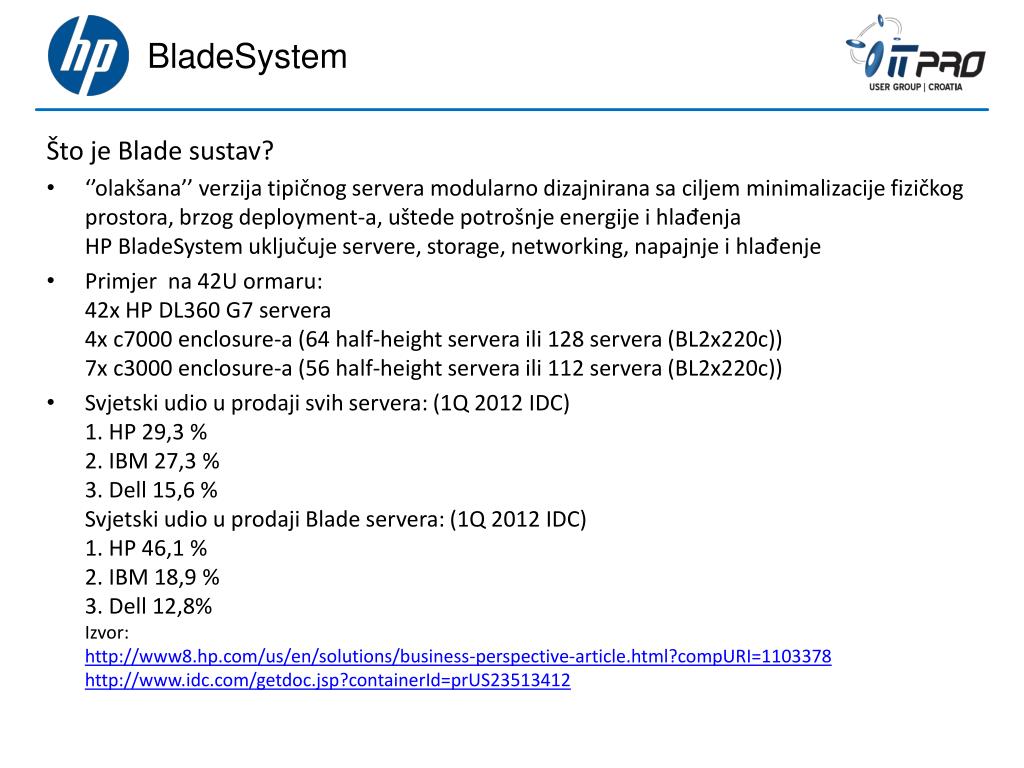

  5. BladeSystem Što je Blade sustav? • ‘’olakšana’’ verzija tipičnog servera modularno dizajnirana sa ciljem minimalizacije fizičkog prostora, brzog deployment-a, uštede potrošnje energije i hlađenjaHP BladeSystem uključuje servere, storage, networking, napajnje i hlađenje • Primjer na 42U ormaru:42x HP DL360 G7 servera4x c7000 enclosure-a (64 half-height servera ili 128 servera (BL2x220c))7x c3000 enclosure-a (56 half-height servera ili 112 servera (BL2x220c)) • Svjetski udio u prodaji svih servera: (1Q 2012 IDC)1. HP 29,3 %2. IBM 27,3 %3. Dell 15,6 %Svjetski udio u prodaji Blade servera: (1Q 2012 IDC)1. HP 46,1 %2. IBM 18,9 %3. Dell 12,8%Izvor:http://www8.hp.com/us/en/solutions/business-perspective-article.html?compURI=1103378http://www.idc.com/getdoc.jsp?containerId=prUS23513412

  6. BladeSystem HP BladeSystem evolucija:

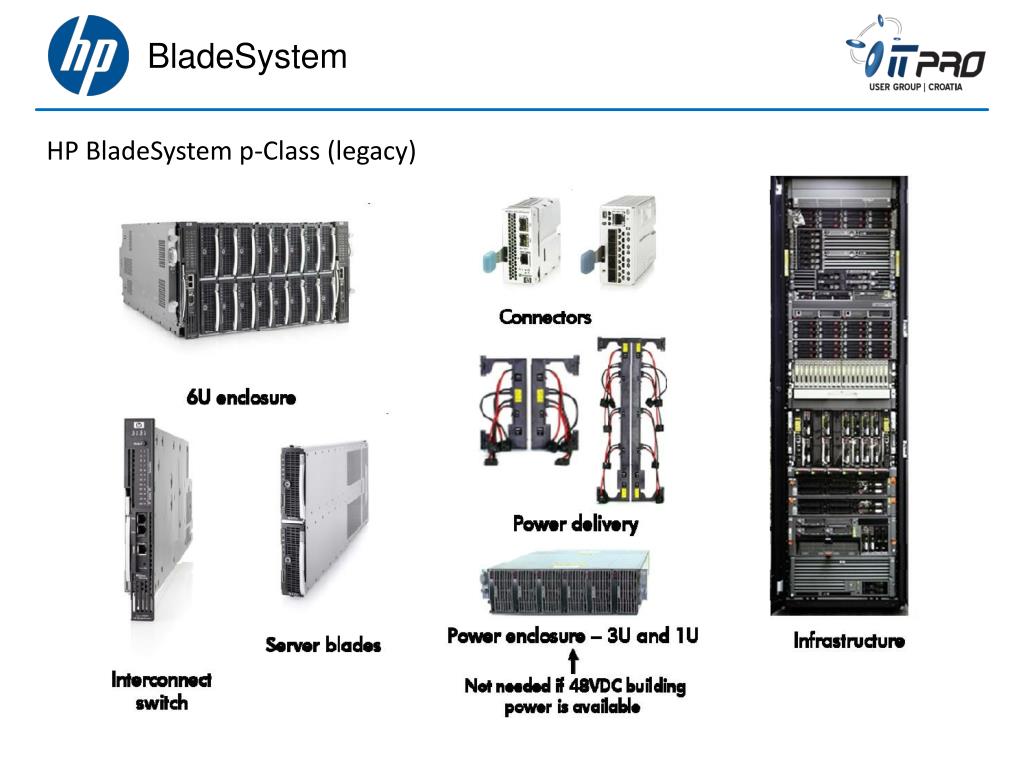

  7. BladeSystem HP BladeSystem p-Class (legacy)

  8. BladeSystem HP BladeSystem c-Class portfolio

  9. BladeSystem HP BladeSystem c-Class server blades podržani OS-ovi: • Microsoft Windows • Citrix • VMware • Netware/OES • Oracle Enterprise Linux • Red Hat Enterprise Linux • SUSE Linux Enterprise Server • Solaris

  10. BladeSystem HP BladeSystem c3000

  11. BladeSystem HP BladeSystem c7000

  12. BladeSystem HP BladeSystem c7000 presjek

  13. BladeSystem Unutrašnjost HP BL460c G6

  14. BladeSystem Unutrašnjost HP BL680c G5

  15. BladeSystem HP BladeSystem c3000 device bays numeracija

  16. BladeSystem HP BladeSystem c7000 device bays numeracija

  17. BladeSystem HP BladeSystem c3000 interconnect bays

  18. BladeSystem HP BladeSystem c7000 interconnect bays

  19. BladeSystem HP BladeSystem c7000 enclosure zoning

  20. BladeSystem HP BladeSystem c3000 enclosure zoning

  21. BladeSystem HP BladeSystem sustav napajanja • Non-Redundant - sva napajanja dostupna sustavu • Power Supply Redundant - N+1 • AC Redundant - A i B strujna linija

  22. BladeSystem HP BladeSystem c3000 PSU population

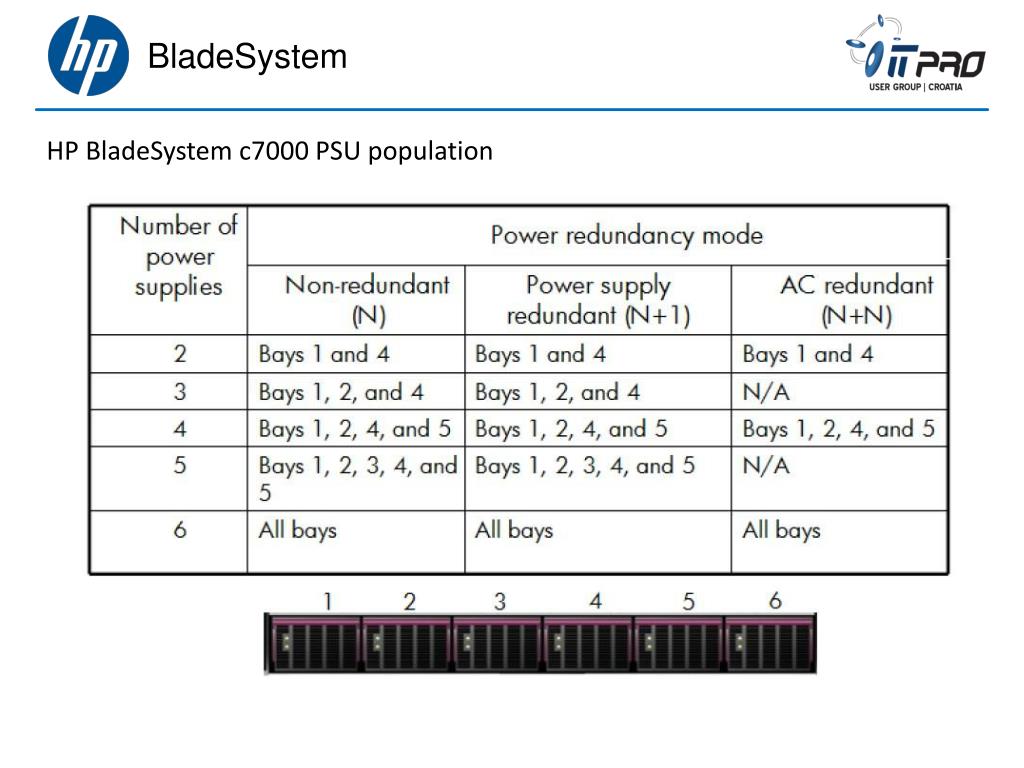

  23. BladeSystem HP BladeSystem c7000 PSU population

  24. BladeSystem HP BladeSystem c7000 prikaz protoka zraka

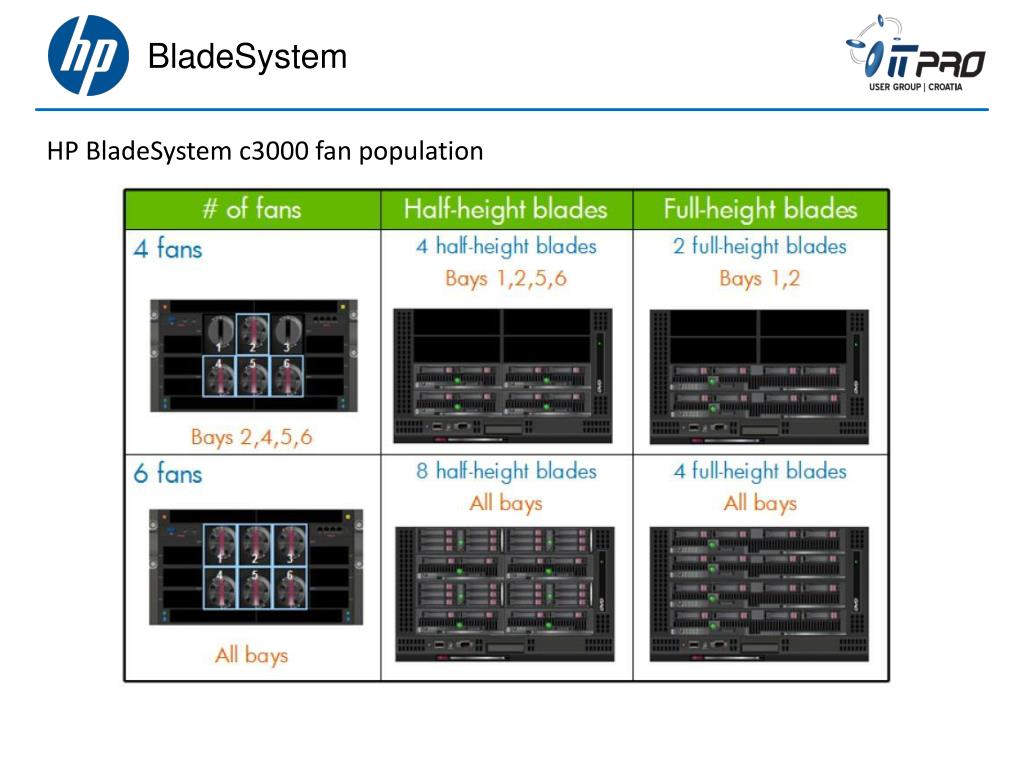

  25. BladeSystem HP BladeSystem c3000 fan population

  26. BladeSystem HP BladeSystem c7000 fan population

  27. BladeSystem Management • Proliant Support Pack • Integrated Management Log (IML) Viewer • Automatic Server Recovery (ASR) • Systems Management Homepage • Array Configuration Utility • Array Diagnostics Utility • Insight Diagnostics (Online and Offline edition) • Software Upgrade Manager • Event Notifier • Integrated Lights-Out (iLO) • Onboard Administrator (OA) • Insight Display • Systems Insight Manager (SIM) • Insight Control

  28. BladeSystem Management - iLO • Omogućava udaljeni management servera – web, CLI • Funkcionira bez dodatnog softvera • Pregled stanja servera (virtual desktop, power state, virtual media, IML) • Pojednostavljen deployment servera i automatizacija preko Insight Control Suite • Licenciranje iLO-a: • Standard – besplatan • Standard Blade Edition – besplatan za BL modele • Advanced – potrebna licenca • Novosti u iLO3 • predstavljena sa novim G7 server blade-vima • novo web sučelje - sličan Onboard Administrator-u • bolje perfomanse • Single sign-on preko Kerberos-a – nema potrebe za reautentikacijom na iLO • HW based AES enkripcija

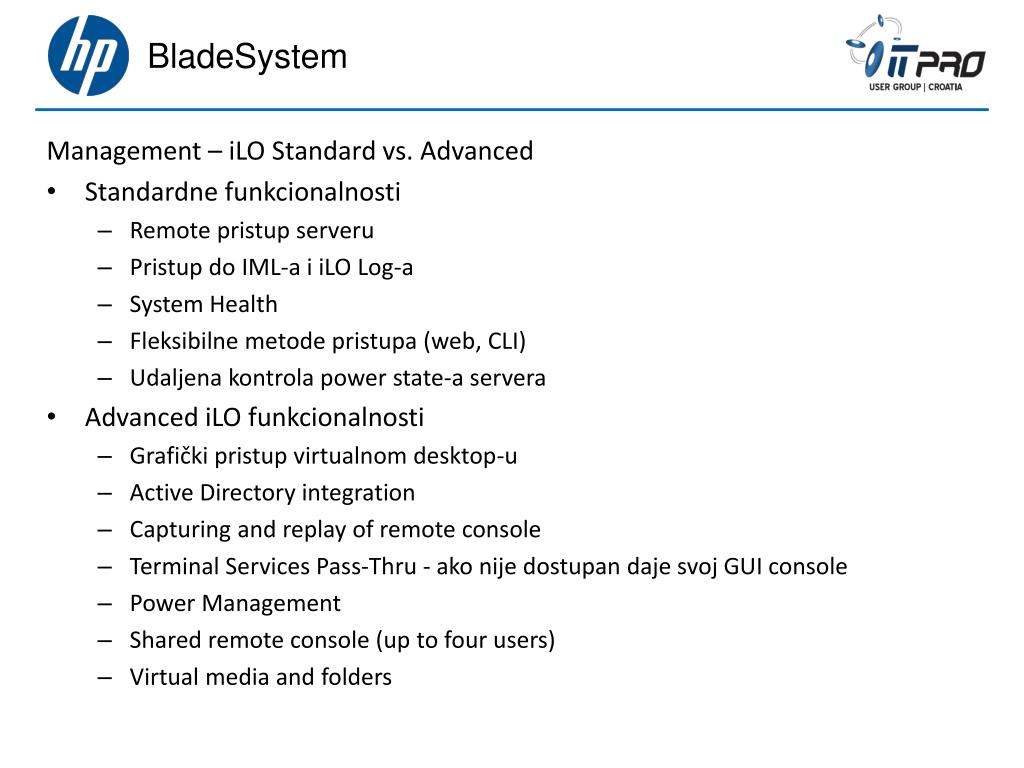

  29. BladeSystem Management – iLO Standard vs. Advanced • Standardne funkcionalnosti • Remote pristup serveru • Pristup do IML-a i iLO Log-a • System Health • Fleksibilne metode pristupa (web, CLI) • Udaljena kontrola power state-a servera • Advanced iLO funkcionalnosti • Grafički pristup virtualnom desktop-u • Active Directory integration • Capturing and replay of remote console • Terminal Services Pass-Thru - ako nije dostupan daje svoj GUI console • Power Management • Shared remote console (up to four users) • Virtual media and folders

  30. BladeSystem Management – Onboard Administrator • Mogućnosti • Upravljanje uređajima unutar blade enclosure-a • Kontrola raspodjele napajanja i hlađenja sustava • Pregled i reporting stanja sustava (health status) • Active and Passive OA • Role based security • Integracija sa HP management softverom • Enclosure Bay IP Addressing – automatsko dodijeljivanje IP adresa za iLO i Interconnect uređaje • User interface preko web-a, CLI, Insight Display-a i opcijskog KVM-a • Service Port konektor (link-up konektor) – APIPA range

  31. BladeSystem Management – Insight Display • LCD display na blade kućištu • Osnovne postavke i dijagnostika

  32. BladeSystem Management – Systems Insight Manager (SIM) • besplatan • Hardware-level management za HP proizvode (klijenti, serveri, storage, printeri, routeri, switchevi...) • System discovery and identification, Inventory data collection, Reporting • Podržani protokoli – WBEM, WMI, SNMP, DMI i SMI-S • Može se integrirati u Insight Control Suite • Glavne značajke: • Easy and rapid installation • Two user interfaces (CLI i GUI) • Automatic system discovery and identification • Fault management and event handling - centralizirano mjesto za prikaz grešaka, po nastalom eventu moze se automatizirati slijedeći korak (posalji mail, izvrši skriptu) • Data collection and inventory • Role-based security • HP Version Control - praćenje verzije drivera, firmware-a

  33. BladeSystem Management – Insight Control Suite • Koristimo ga za management IT infrastrukture • Proširuje mogućnosti HP SIM-a • Migracija servera (fizičkih i virtualnih) na nove servere, uz podršku različitih virtualizacijskih platformi • Proaktivan monitoring infrastrukture • perfomance, health, power management, perfomance analysis, iLO management, VM management • Remote management uz pomoć iLO Advanced • Power management infrastrukture • upravljanje el.energijom i hlađenjem uz pomoć Dynamic Power Capping

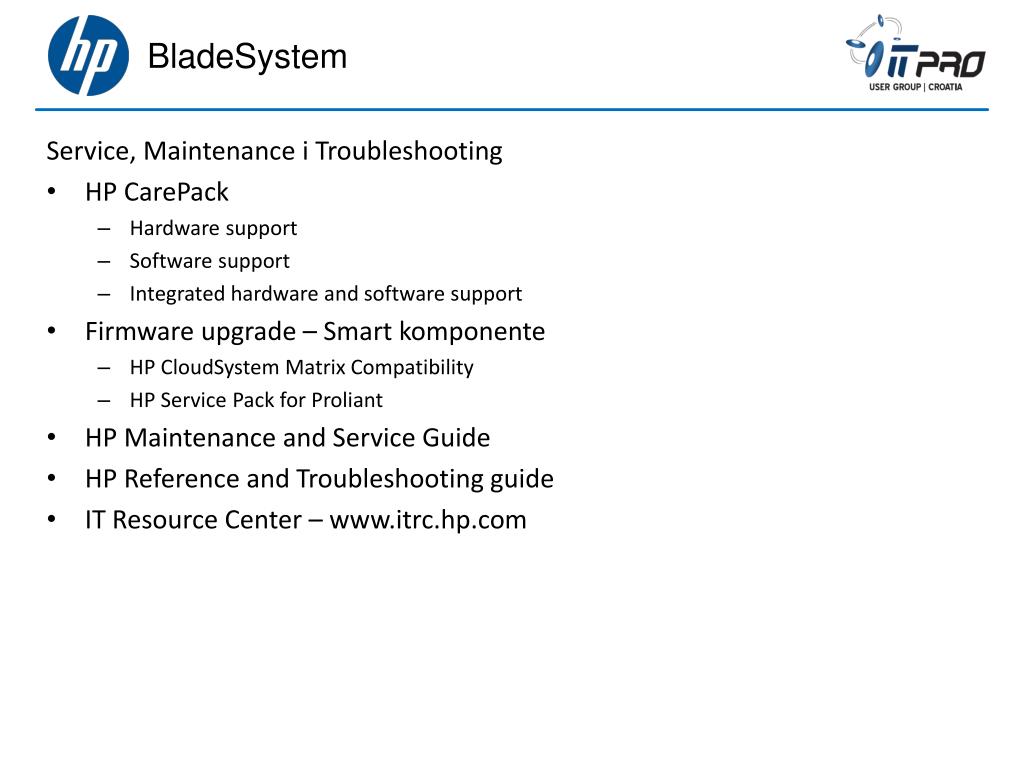

  34. BladeSystem Service, Maintenance i Troubleshooting • HP CarePack • Hardware support • Software support • Integrated hardware and software support • Firmware upgrade – Smart komponente • HP CloudSystem Matrix Compatibility • HP Service Pack for Proliant • HP Maintenance and Service Guide • HP Reference and Troubleshooting guide • IT Resource Center – www.itrc.hp.com

  35. BladeSystem Izvor materijala: HP APS Servicing HP BladeSystem 10.31 HP APS Service Fundamentals 10.31 HP BladeSystem website: http://h18004.www1.hp.com/products/blades/bladesystem/ HP BladeSystem Family Guide: http://h20195.www2.hp.com/v2/GetPDF.aspx/4AA1-4286ENW.pdf Autorska prava: Korišteni materijali u prezentaciji autorsko su pravo Helwett Packard-a. Više informacija na http://www.hp.com

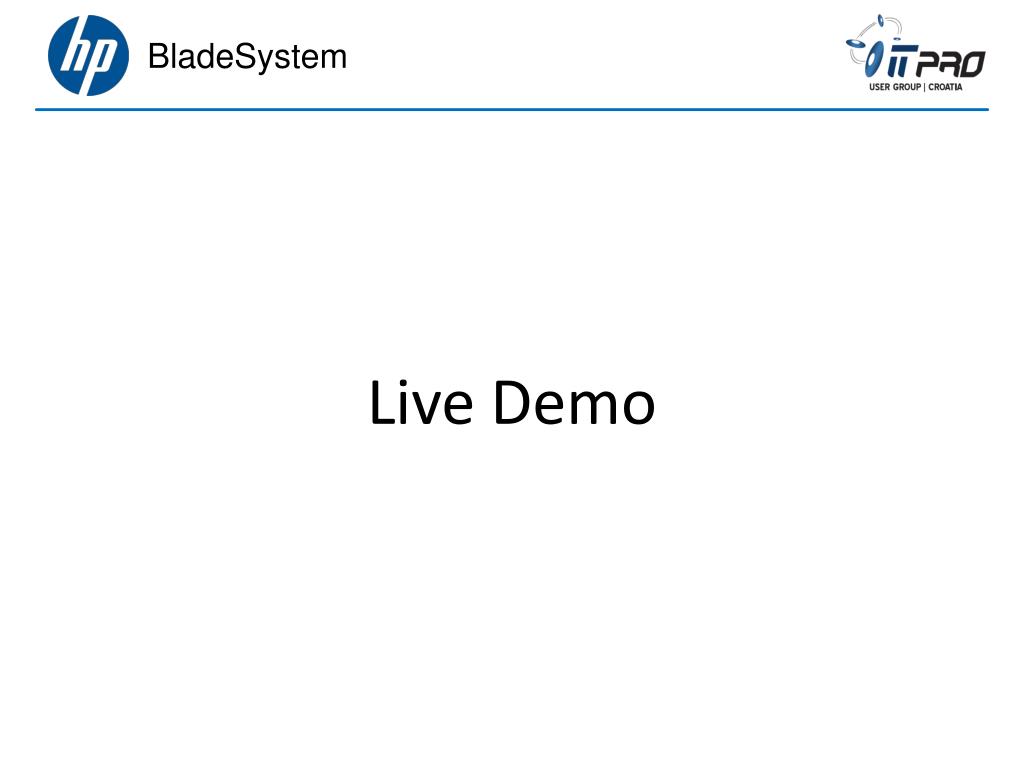

  36. BladeSystem Live Demo

  37. BladeSystem Hvala 
