Presentation Transcript
slide1

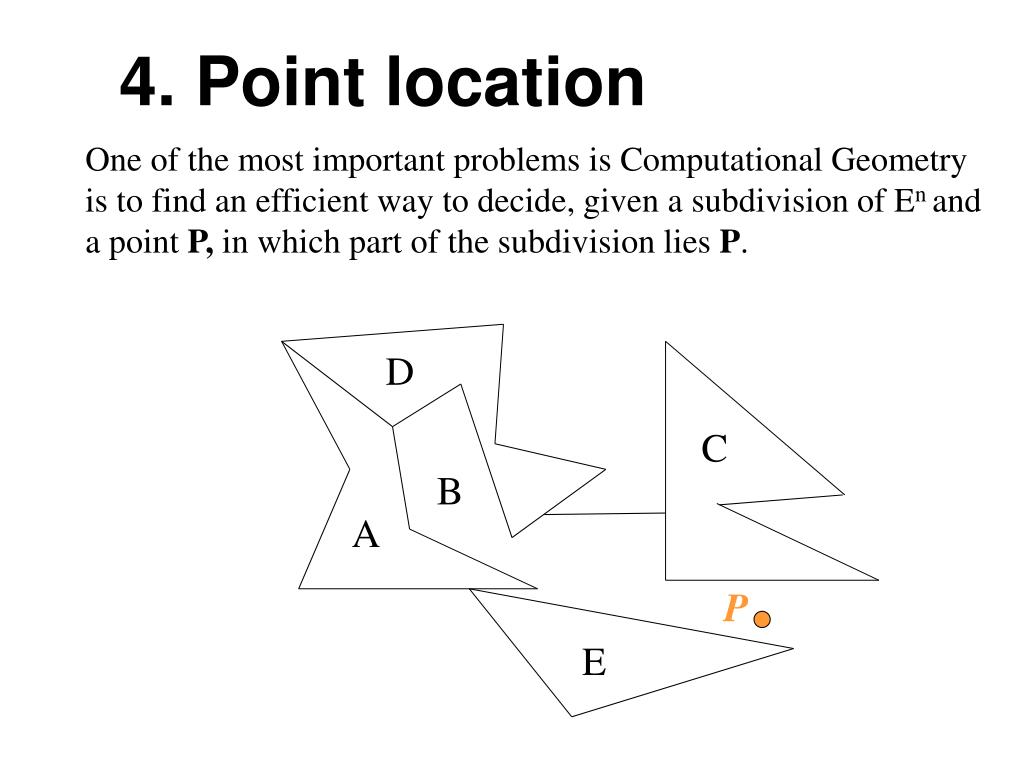

4. Point location

One of the most important problems is Computational Geometry

is to find an efficient way to decide, given a subdivision of En and

a point P, in which part of the subdivision lies P.

D

C

B

A

P

E

slide2

Point location (cont.)

A natural way to start the search is to divide the plane into vertical

stripes and to decide the position of P in two steps:

- the stripe, (1)

- the facet of the stripe(2).

D

C

B

A

P

E

slide3

Point location (cont.)

But it turn out that the number of facets in this construction

can be O (n2) in terms of the number of edges!

Example with 2(1 + 2 + 3 +...+ n) + 1 + n = (n+1)2 facets!

If the vertical lines end at the fist intersection with the edges of the

subdivision, the number of trapezoids is

N 3 n+ 1 (eq. 4.1).

slide4

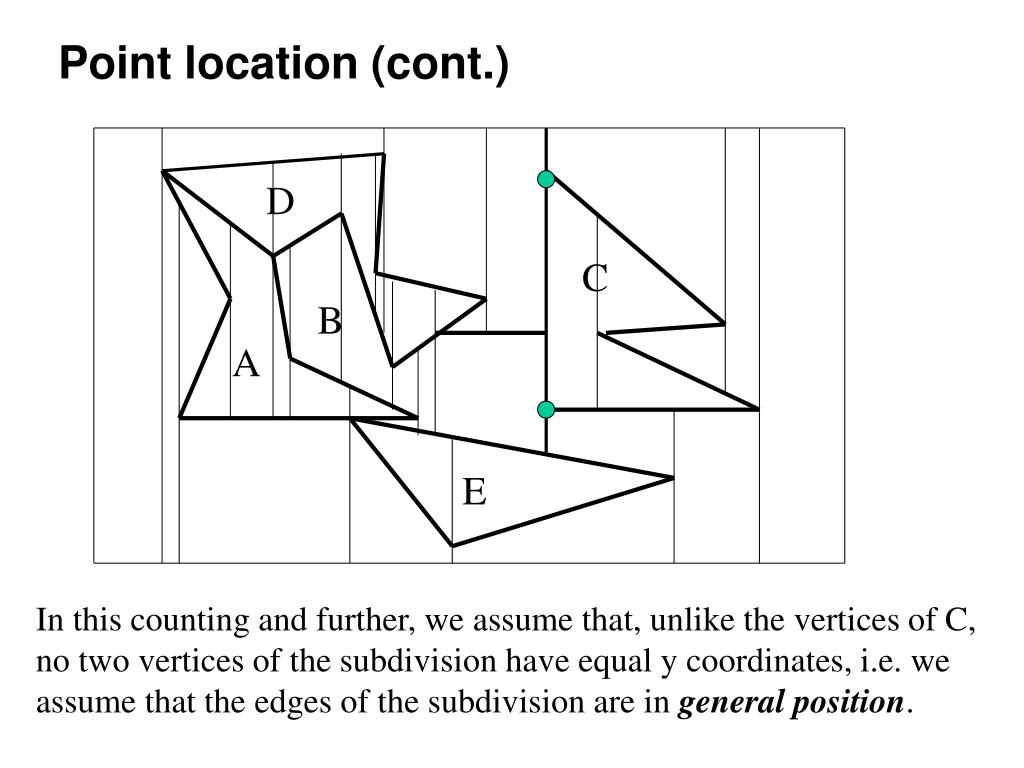

Point location (cont.)

D

C

B

A

E

In this counting and further, we assume that, unlike the vertices of C,

no two vertices of the subdivision have equal y coordinates, i.e. we

assume that the edges of the subdivision are in general position.

slide5

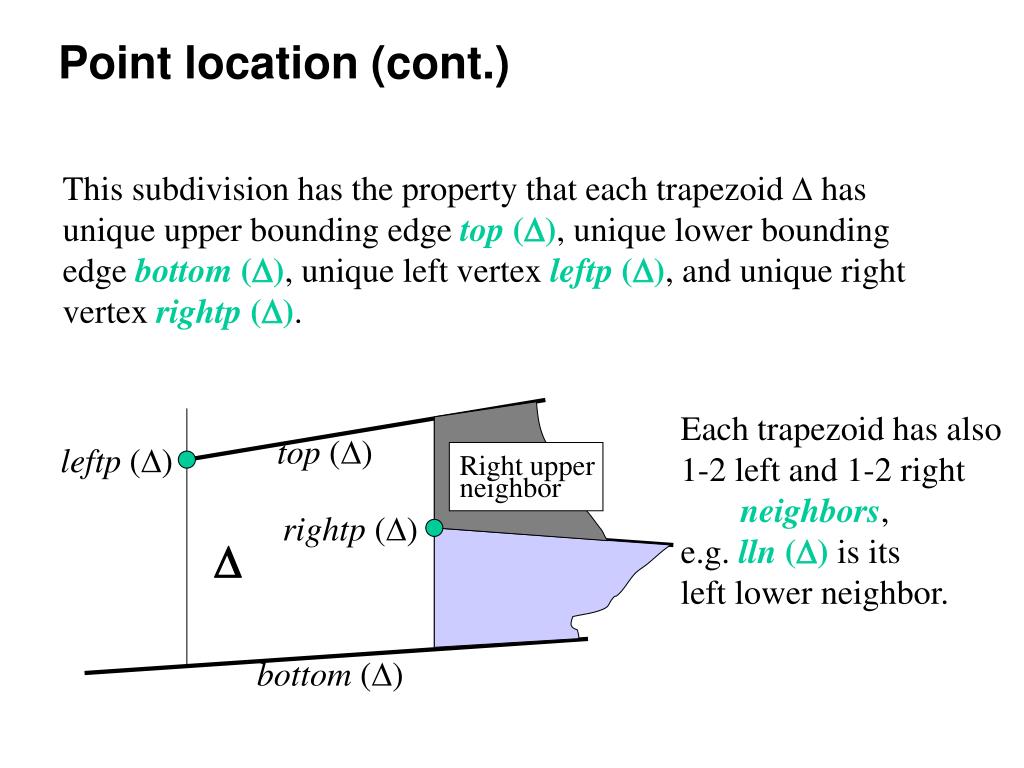

Point location (cont.)

This subdivision has the property that each trapezoid  has unique upper bounding edge top (), unique lower bounding edge bottom (), unique left vertex leftp (), and unique right vertex rightp ().

Each trapezoid has also

1-2 left and 1-2 right

neighbors,

e.g. lln () is its

left lower neighbor.

top ()

leftp ()

Right upper

neighbor

rightp ()

bottom ()

slide6

Point location (cont.)

Back to eq. 4.1.

• The number of trapezoids is L + 1 where L is the number of the vertices leftp (), since each trapezoid, with the exception of the leftmost one, has exactly one such vertex.

•Further, to each vertex leftp () a unique edge may be assigned:

bottom (), or top (), or top (1), 1=lln ().

1

•Finally, in this assignment, each of n input vertices can only once have either of these 3 roles, which proves eq. 4.1.

slide7

Point location (Trapezoidal Map)

Algorithm 8 = Trapezoidal Map

(Implementation = Exercise 20)

The algorithm is incremental on the set of edges. So we may think

about the structure as about a set S of edges. Adding edge at a time

we update the data structure and the search structure. Theedges may have only endpoints in common. They are not sorted.

  • (1) Data structure (DS):
  • For each edgee we save:
  • the right and the left endpoint of e, the facet whose top is e, and the facet whose bottom is e.
  • For each facet  we save:
  • - leftp (), rightp (), top (), bottom (), and its neighbors.
slide8

Point location (Trapezoidal Map)

  • (2) Search Structure (SS): Oriented graph without loops, whose
  • - leafs are trapezoids of the Trapezoidal Map,
  • inner nodes are the edges from the initial set S, or their
  • endpoints.
  • There is exactly one root. The out degree of inner nodes is 2.
  • If the inner node is an edge the deciding criterion is above or
  • below*, if this is a point the criterion is left of right.
  • SS is used not only to finally locate the given point, but also to build
  • DS and SS itself inductively! More precisely,
  • in the step i we first locate the endpoints of the edge si wrt already
  • constructed SSi-1 after the step i-1,
  • then we again use SSi-1 to determine the trapezoids
  • intersected by si.
  • *above will be depicted as „left“, below as „right“
slide9

s1

B

q1

E

D

Example1.

p1

p2

C

G

A

F

s2

q2

p1

q1

q2

s1

A

G

s2

B

E

p2

s2

F

C

D

slide10

s1

B

q1

E

q3

D

Example2.

p1

G

p2

s3

H

C

I

A

F

s2

q2

= p3

p1

q1

q2

s1

A

q3

s2

B

H

s3

E

p2

s2

C

F

I

G

D

slide11

Example3.

A

q i

B

0

s i

D

C

pi

pi

q i

0

s i

A

D

C

B

slide12

Example4.1

2

q i

C2

1

B2

D2

s i

A2

q i

3

D1

E

C1

s i

pi

B1

pi

0

A1

q i

F

The glueing process is necessary

because the vertical lines intersected

with si need to be shortend to the

first intersection!

B

D

s i

E

C

pi

A

slide13

Example4.2

s i

s i

s i

q i

E

0

1

2

3

A1

A2

B1

B2

C1

C2

s i

B2

s i

D1

D2

B1

s i

s i

s i

q i

E

q i

A

F

s i

D2

s i

C

D1

E

B

D

slide14

Point location (Trapezoidal Map, expected behavior)

Theorem. A planar subdivision with n edges in general position

admits an algorithm

(1) whose running timehas expected O (n log n) time,

(2) the storage requires O (n) time, and

(3) the location of a given point q takes expected O (log n) time.

Proof of (2):

-  3n +1 leafs (trapezoids), out of which k i in step i (k i -1 new).

- (k i - 1) inner nodes (easy to check) at each step i.

(Total number of inner nodes is equal to the number of leafs.)

- Hence, the size of the search structure is  6n + 2

slide15

Point location (Trapezoidal Map, expected behavior)

Proof of (3): Let Xi be the number of nodes on the search path to q constructed in step i (in Example 1 (the path to q)X1=X2=3), and letE(X) be the expected value of X. Then:

p1

X1 q1

s1

p2

X2 s2

F

s1

B

q1

E

D

p1

p2

C

G

s2

q

A

q2

F

  • - In the step i the path leading to q is increased by at most 3 nodes.
  • - The increase happens only when a trapezoid of q is changed.
  • The change may only happen if si is top (), bottom (), or defines
  • leftp () or rightp (), where  is the new trapezoid! of q.
slide16

Point location (Trapezoidal Map, expected behavior)

  • Proof of (3) – cont.:
  • The probability of each of these events is 1/i 
  • total = 3•4• 1/i.
  • Now  E(X i) =  12/i = O (log n).

Proof of (1):

- O (log i) needed to locate the left endpoint of e i

- O (ki) needed to find the facets intersected by e i

Hence, (O (log i) + O (E (ki)) ) = O (n log n) + O (n)

= O (n log n)
