Low cost 8 Chl CDWD 2U box

Low cost 8 Chl CDWD 2U box.  1. 2.5 G Multirate Transponder. GbE/ STM-1/4/16.  2. 2.5 G Multirate Transponder. GbE/ STM-1/4/16. 8 chl WDM MUX / DeMUX. Tx. SMF. Rx. CWDM / DWDM 60 Km.  8. 2.5 G Multirate Transponder. GbE/ STM-1/4/16. Block Diagram.

latika
Download Presentation

Low cost 8 Chl CDWD 2U box

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Low cost 8 Chl CDWD 2U box 1 2.5 G Multirate Transponder GbE/ STM-1/4/16 2 2.5 G Multirate Transponder GbE/ STM-1/4/16 8 chl WDM MUX / DeMUX Tx SMF Rx CWDM / DWDM 60 Km 8 2.5 G Multirate Transponder GbE/ STM-1/4/16 Block Diagram

  2. Low cost 8 Chl CDWD 2U box • Features: • 19 inch 2U box • CWDM/DWDM Options • 8chl Terminal or 4 channel OADM options • Each channel support GbE or STM-1 or STM-4 or STM-1 • Low cost • Low power consumption, • Supplied with EMS software for management

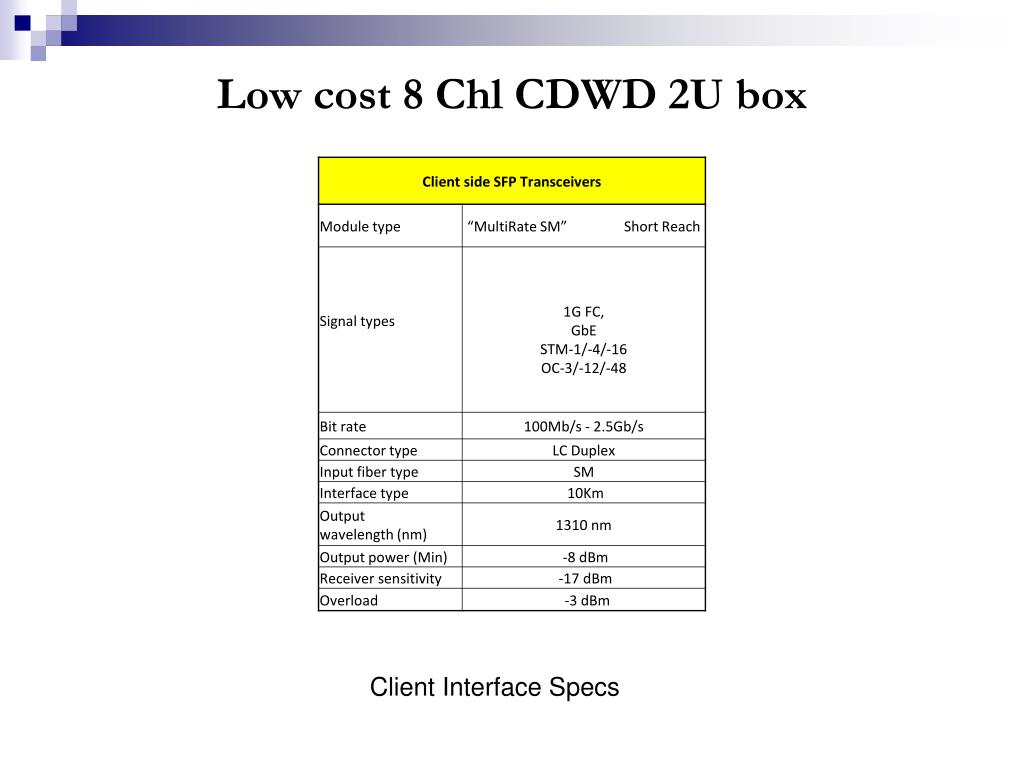

  3. Low cost 8 Chl CDWD 2U box Client Interface Specs

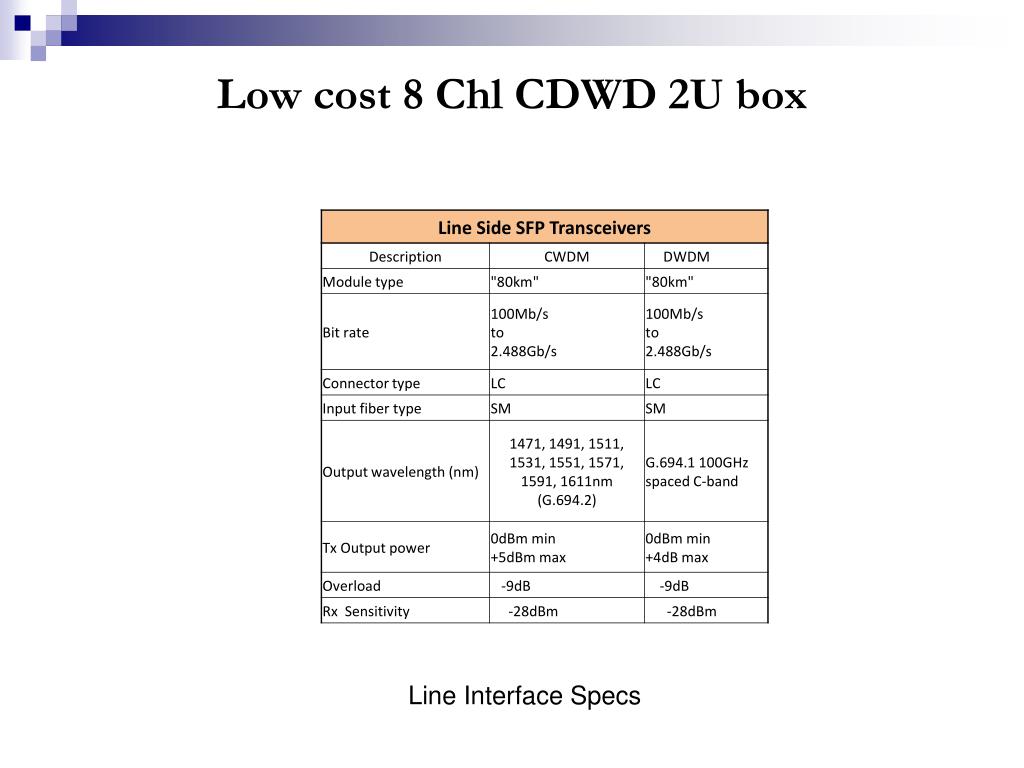

  4. Low cost 8 Chl CDWD 2U box Line Interface Specs
