the nasa ikhana uas platform

Introduction to UAV

The NASA IKHANA UAS Platform

Content provided by: V. Ambrosia, G. Buoni, B. Cobleigh, K. Howell, M. Rivas

International Symposium on Remote Sensing of the Environment

slide2

Ikhana History

Vision:

NASA’s Predator-B is a rapidly reconfigurable test system that

develops and demonstrates advanced HALE technologies leading to ROA applications that improve life here.

In the Native American Choctaw language, the word Ikhana means intelligent, conscious, or aware. This made it the perfect word to represent the aircraft NASA has selected to demonstrate technologies seeking to make unpiloted aircraft more intelligent and autonomous. In FY05, NASA initiated the procurement of a Predator-B aircraft (fig. 1 and 2) with a plan to host the flight demonstration of these advanced autonomy technologies, namely: Intelligent Mission Management (IMM) and Integrated Vehicle System Management (IVSM). The demonstrated reliability of the Predator-B allowed experimenters to focus on research instead of the platform and permit FAA-approved operations in the National Airspace (NAS).

International Symposium on Remote Sensing of the Environment

slide3

Ikhana in Construction in 2006

International Symposium on Remote Sensing of the Environment

slide4

Ikhana Specifications

Platform Specifications:

Wing Span 66 ft

Load (fuel+payload+ballast) 6400 lbs

Ballast/Payload Offset Up to 800 lbs

Operational Altitudes Up to 45,000 ft

Max Endurance Up to 30 hours

Internal Payload Bay Yes

External Pod Mounts Yes

Electrical Power 4.9 KW @ SL; 2.8KW @ Alt

Delivered:

Early FY 2007 @NASA-DFRC

Experience on Predator UAS:

NASA - none as of 2006

DOD - substantial

International Symposium on Remote Sensing of the Environment

slide5

Ikhana History

Aircraft ordered 4/05

Delivered 11/06

GCS Delivered 12/06

Fire Payload Integrated 6/07

CY 2007

CY 2006

CY 2005

COA Issued

Western States Fire Mission

Ground Station Modifications

Crew Training

International Symposium on Remote Sensing of the Environment

slide6

Ikhana Modifications

10

12

8

4

6

14

13

2

3

9

1

7

5

11

Back-up battery power increased to 3 hours

8 L1/L2 GPS antenna connections

Wiring connections from pod to power distribution, GPS antenna, and SatCom system

Payload Areas

Infrared Wildfire Scanner

International Symposium on Remote Sensing of the Environment

slide7

Ground Systems

  • Mobile Ground Control Station
    • Dual pilot control station
    • Electronic navigation charts
    • Weather
    • 6 Engineering/Science workstations
    • Range safety workstation
    • Intercom system throughout
    • Overhead mission displays
    • Telephones
    • Remote video from aircraft start-up/shut-down site
    • Downlink video and data recording
  • C-Band LOS Com-Link
  • Link to ~300 miles
  • Mobile 2.4m Ku SatCom Antenna
    • Dual redundant receiver/transmitters
    • Worldwide

International Symposium on Remote Sensing of the Environment

slide9

Ikhana Ground Control Station

International Symposium on Remote Sensing of the Environment

slide12

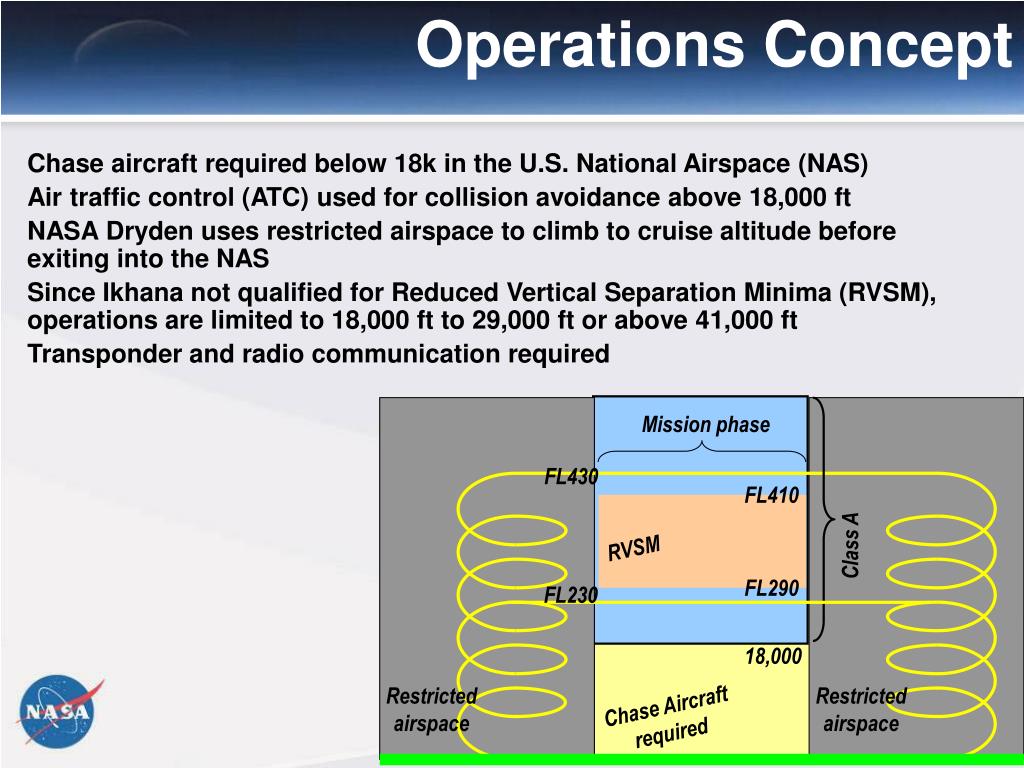

Operations Concept

Chase aircraft required below 18k in the U.S. National Airspace (NAS)

Air traffic control (ATC) used for collision avoidance above 18,000 ft

NASA Dryden uses restricted airspace to climb to cruise altitude before exiting into the NAS

Since Ikhana not qualified for Reduced Vertical Separation Minima (RVSM), operations are limited to 18,000 ft to 29,000 ft or above 41,000 ft

Transponder and radio communication required

Mission phase

FL430

FL410

Class A

RVSM

FL290

FL230

18,000

Restricted

airspace

Restricted

airspace

Chase Aircraft

required

International Symposium on Remote Sensing of the Environment

slide13

Ikhana Instrument Pods

Western States Fire Mission Pod

Specifications

Mounts to MAU-12 adaptor

Supportable on GA-ASI Altair & NASA IKHANA

Currently supporting Wild Fire Sensor

One unit in fabrication

Capable of carrying up to 1000 lbs

Dimensions ~ 10 ft x 2 ft

Available late FY06

International Symposium on Remote Sensing of the Environment

slide14

Fiber Optic Wing Shape Sensors (FOWSS)

Ikhana Fiber Optic Wing Shape Sensors (FOWSS) Project

In June 2003, the Helios Prototype unpiloted aerial vehicle (UAV) experienced significant pitch instability during low-altitude flight that lead to a catastrophic structural failure and in-flight break-up. One of the most significant lessons learned from the mishap investigation was the requirement to provide real-time measurement of wing shape. It was decided that lightweight and low profile fiber optic wing shape sensors (FOWSS), in conjunction with computationally efficient algorithms, was a promising approach to providing very accurate wing measurement calculations for eventual input to the flight control system for aero elastic motion control. FO channel covered for So. CA firestorm missions (Oct. 2007)

International Symposium on Remote Sensing of the Environment

slide15

Pilot Camera and Sensor Pod

Sensor Pod and Fairing

Forward / Downward - Looking nose camera (VIS / IR)

International Symposium on Remote Sensing of the Environment

slide16

Nose Camera Video

Taxiing

Landing

Banking

International Symposium on Remote Sensing of the Environment
