  1. The Moon

  2. The Moon • Man in the Moon • Imaginary image seen on the surface of the moon. • Drawn in the dark maria (sea) and lighter highlands of the moon. • Myths about image are found in many cultures. http://en.wikipedia.org/wiki/Man_in_the_moon

  3. Rotation and Revolution • Why do we always see the same side of the moon? • Moon’s rotation on its axis: 27.3 days • Moon’s revolution around Earth: 27.3 days • Revolution takes the same amount of time as rotation, so we always see the same side of the moon facing Earth. http://www.youtube.com/watch?v=OZIB_leg75Q http://www.theguardian.com/science/video/2013/sep/20/rotating-moon-space-nasa-video

  4. Moon Phases and Eclipses

  5. Moon Phases -the different forms the moon takes on when viewed from Earth. Moon Phases

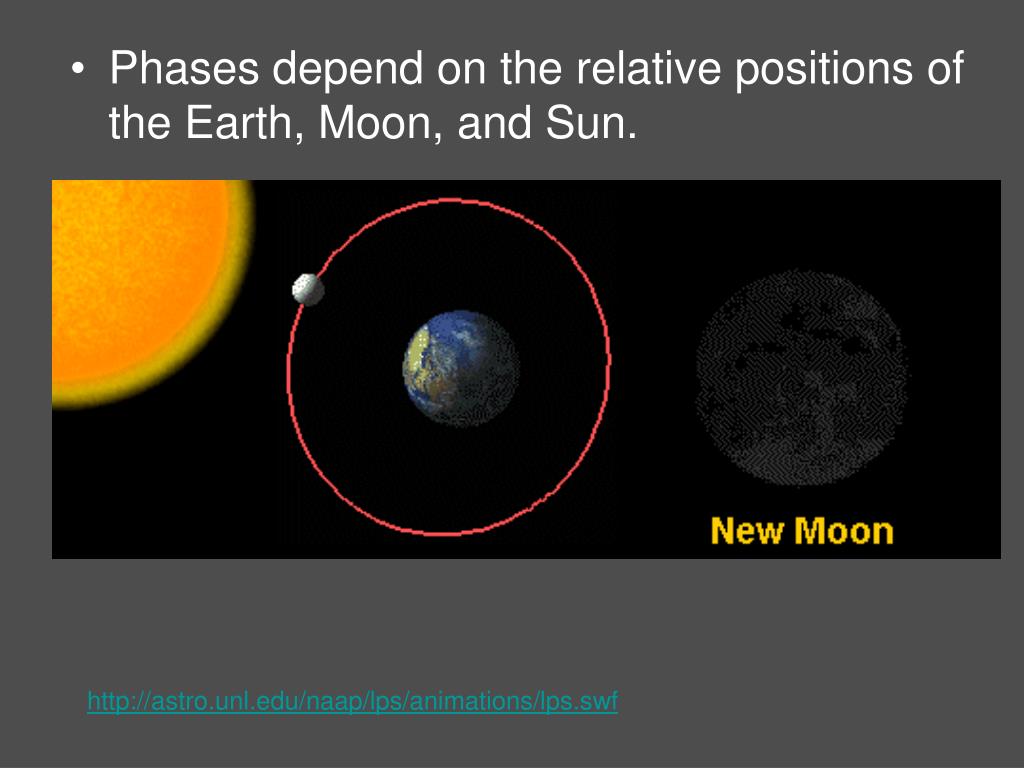

  6. Phases depend on the relative positions of the Earth, Moon, and Sun. http://astro.unl.edu/naap/lps/animations/lps.swf

  7. We only can see the “day” side of the moon when it reflects the sunlight.

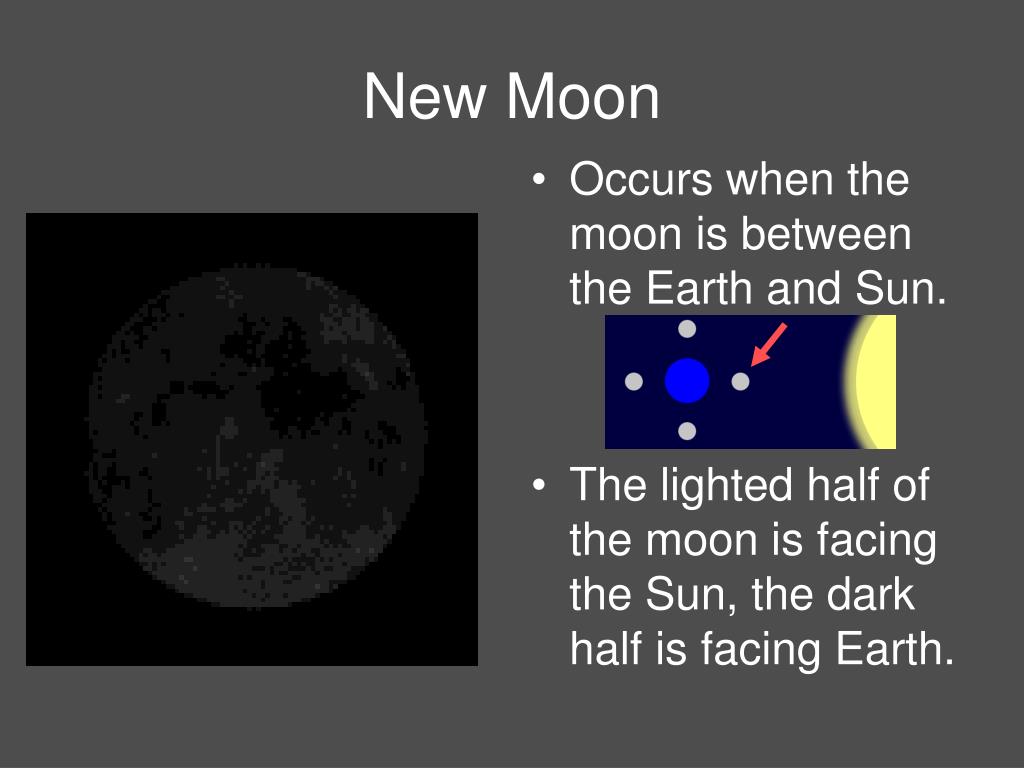

  8. Occurs when the moon is between the Earth and Sun. The lighted half of the moon is facing the Sun, the dark half is facing Earth. New Moon

  9. New Moon Position

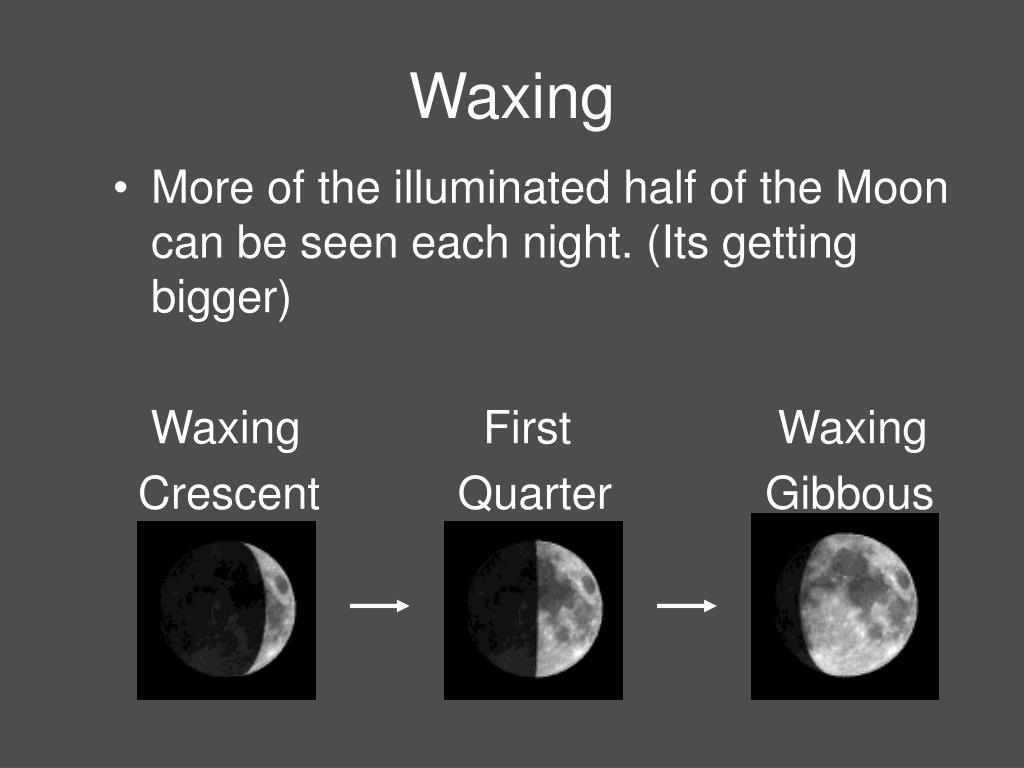

  10. More of the illuminated half of the Moon can be seen each night. (Its getting bigger) Waxing First Waxing Crescent Quarter Gibbous Waxing

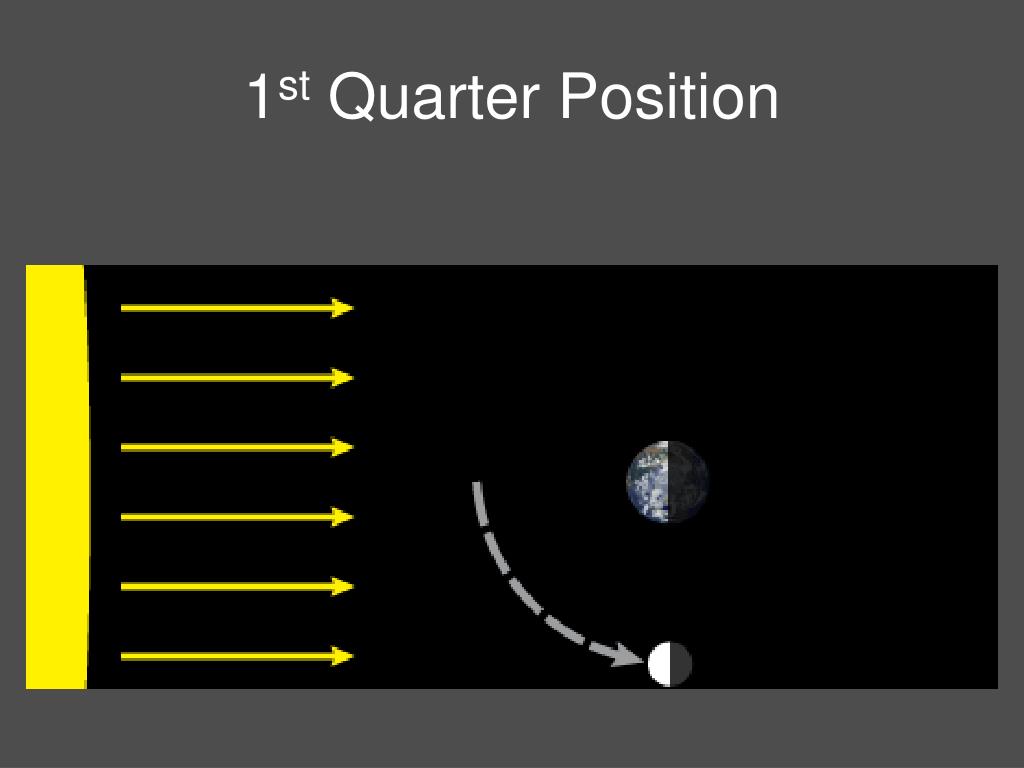

  11. 1st Quarter Position

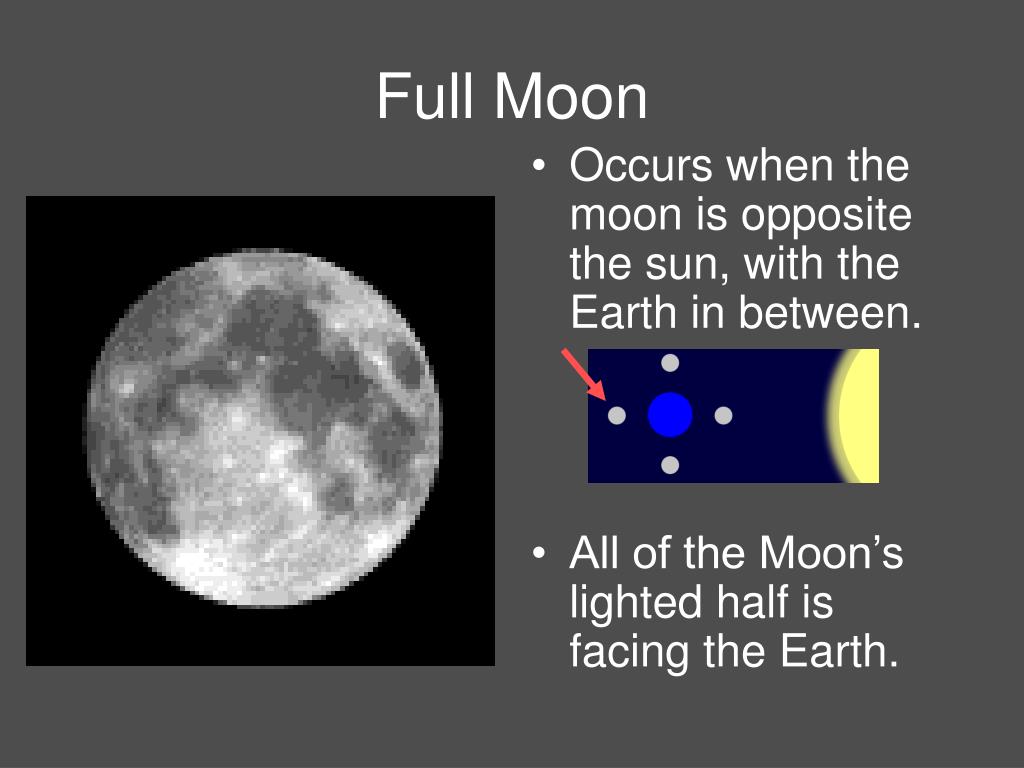

  12. Occurs when the moon is opposite the sun, with the Earth in between. All of the Moon’s lighted half is facing the Earth. Full Moon

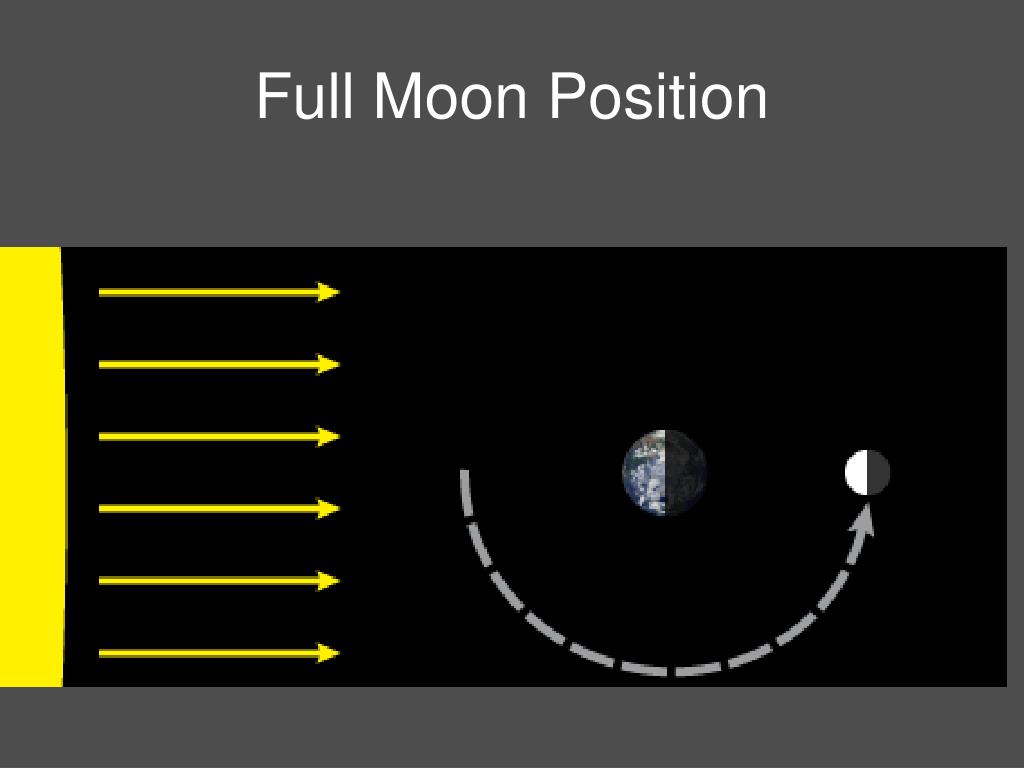

  13. Full Moon Position

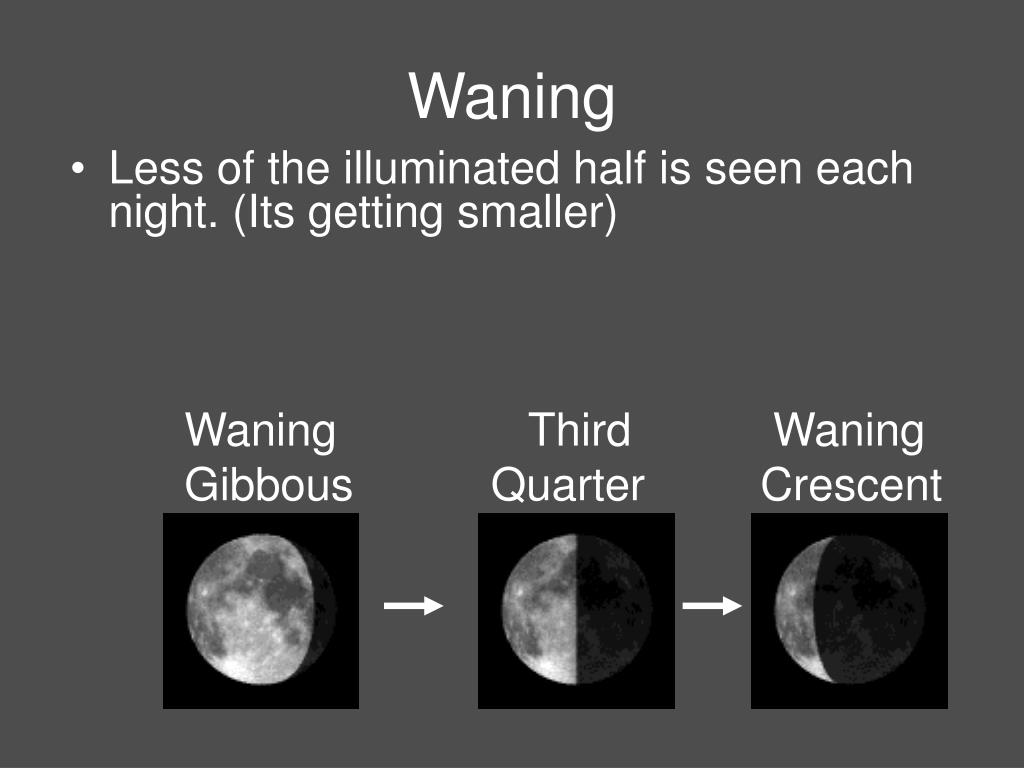

  14. Less of the illuminated half is seen each night. (Its getting smaller) Waning Third Waning Gibbous Quarter Crescent Waning

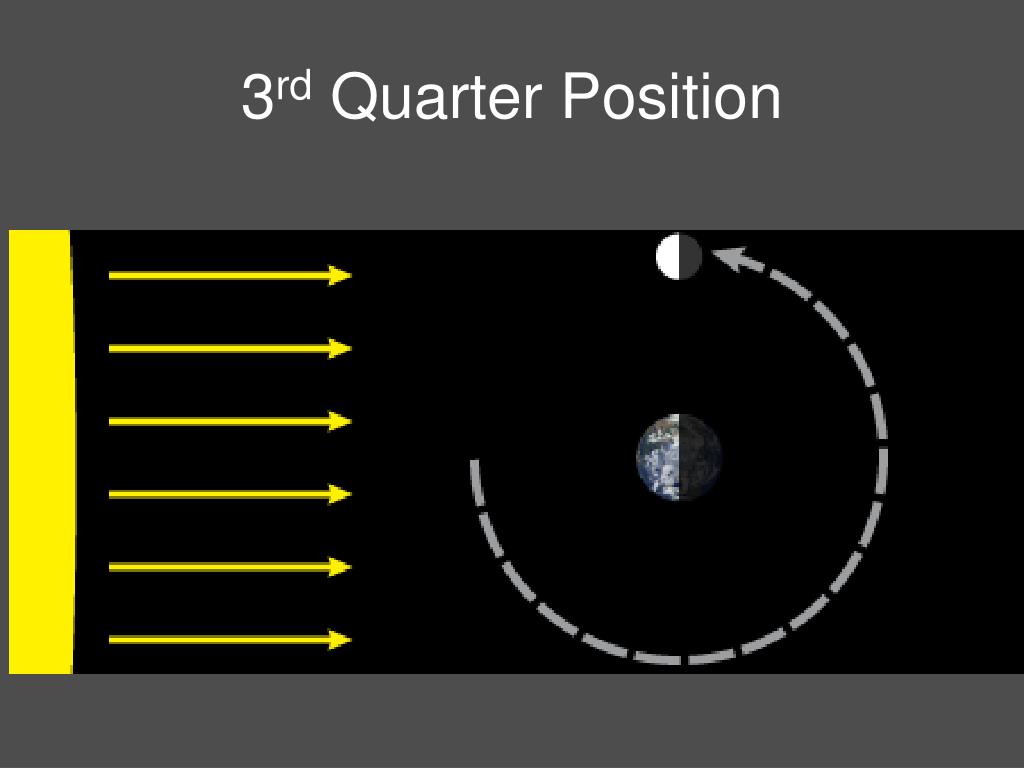

  15. 3rd Quarter Position

  16. Shadow • The Moon’s shadow appears to move from the right to the left. Left Right

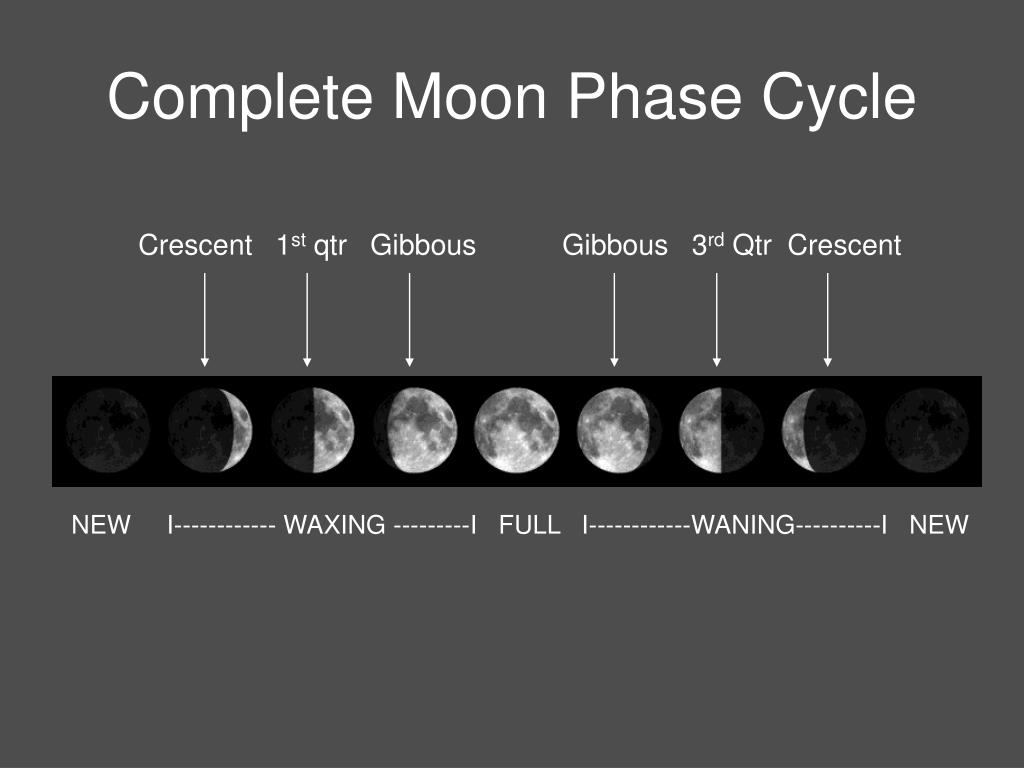

  17. Complete Moon Phase Cycle Crescent 1st qtr Gibbous Gibbous 3rd Qtr Crescent NEW I------------ WAXING ---------I FULL I------------WANING----------I NEW

  18. Oreo Moon Phases

  19. Name the Phase Quiz

  20. Full Moon

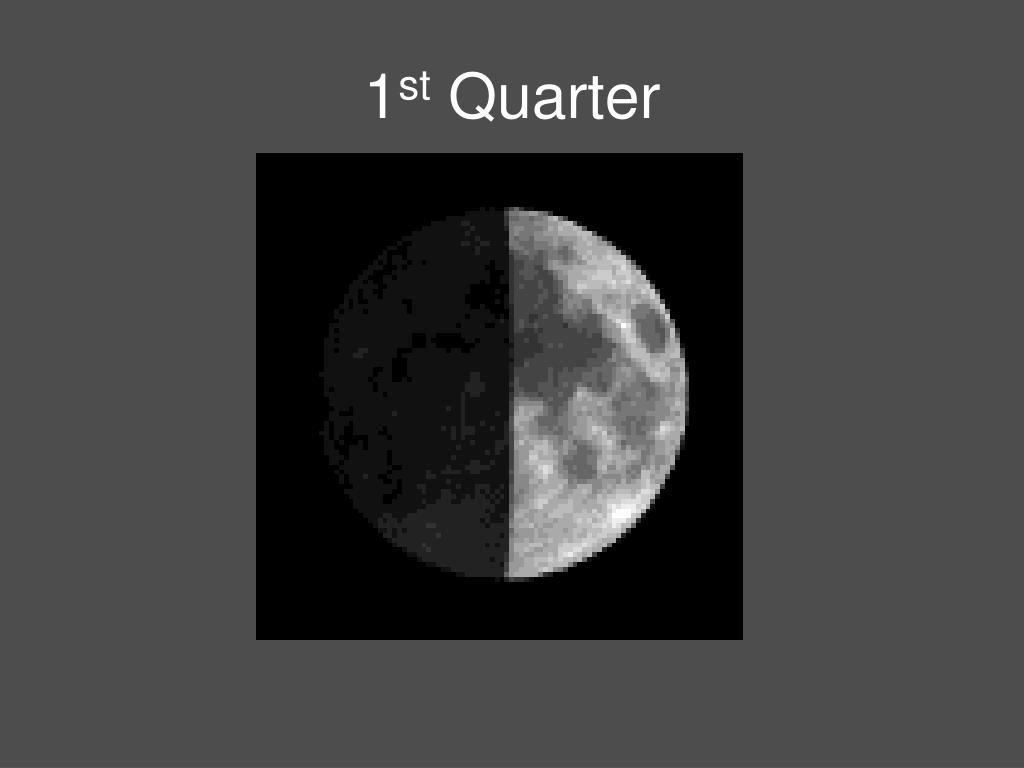

  21. 1st Quarter

  22. New Moon

  23. 3rd Quarter

  24. Waning Gibbous

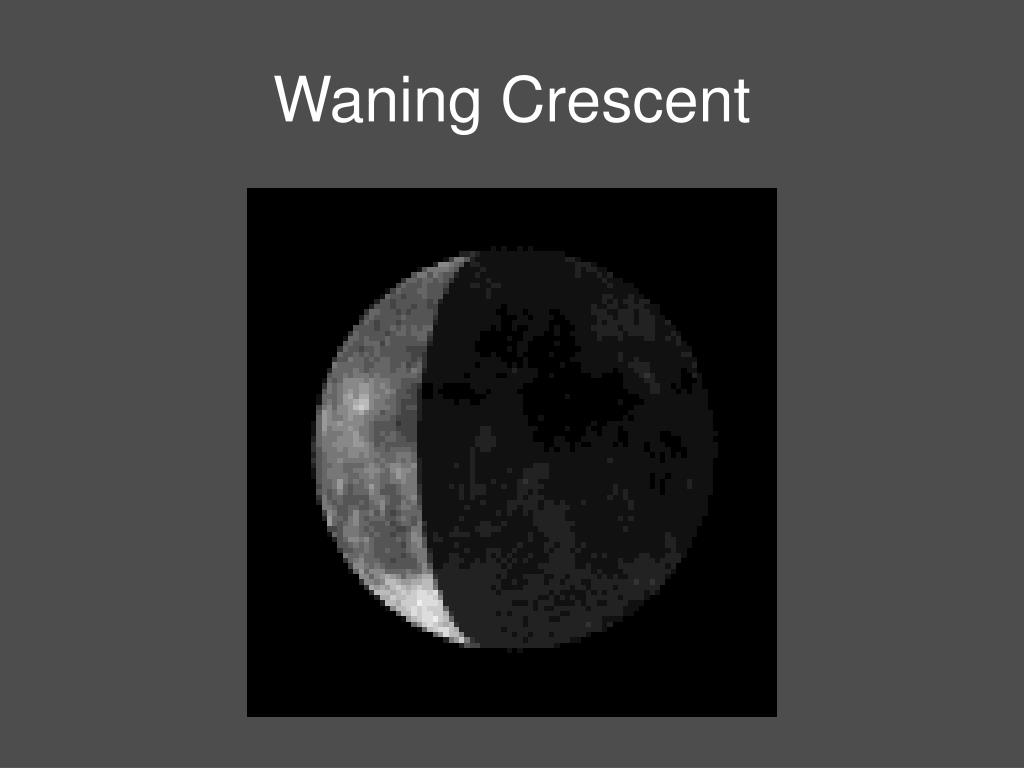

  25. Waning Crescent

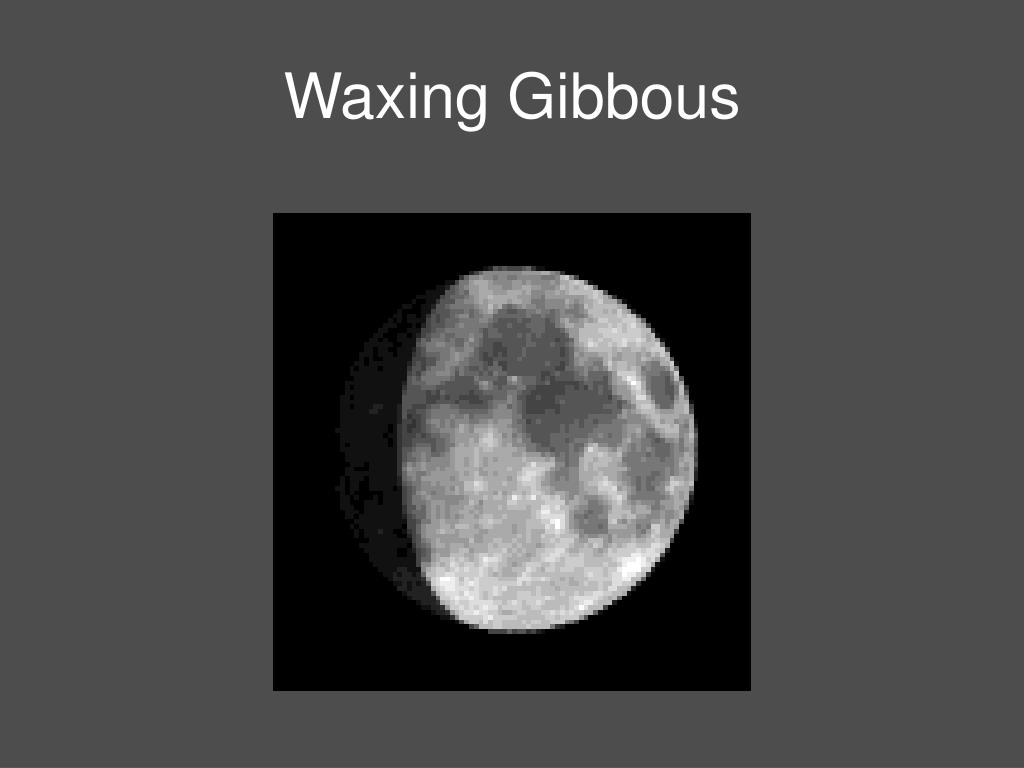

  26. Waxing Gibbous

  27. Waxing Crescent

  28. Eclipses

  29. Eclipses • Caused by the revolution of the moon. • Occurs when the moon blocks the sunlight from reaching the Earth or vice-versa.

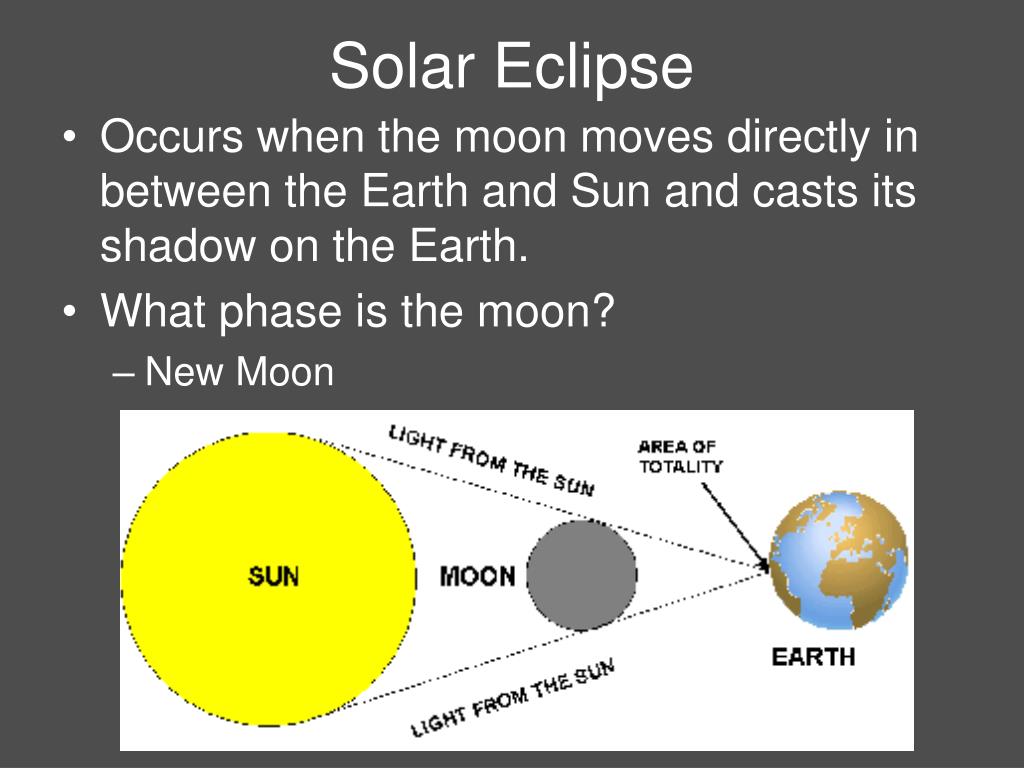

  30. Solar Eclipse • Occurs when the moon moves directly in between the Earth and Sun and casts its shadow on the Earth. • What phase is the moon? • New Moon

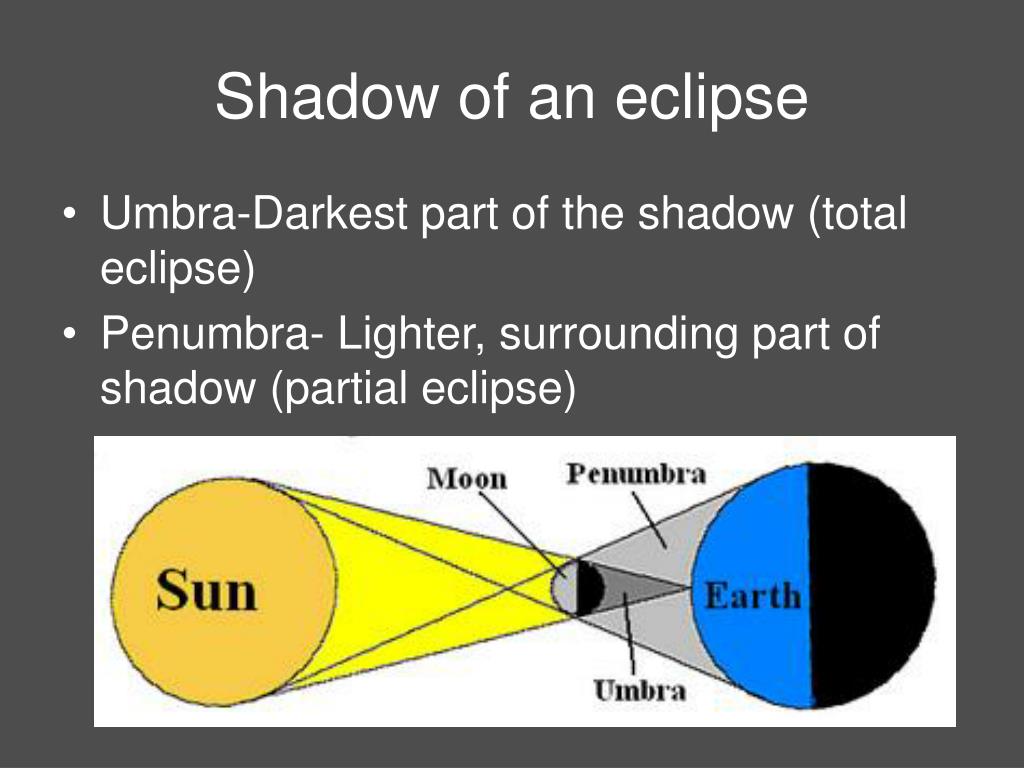

  31. Shadow of an eclipse • Umbra-Darkest part of the shadow (total eclipse) • Penumbra- Lighter, surrounding part of shadow (partial eclipse)

  32. Solar eclipse-notice the CME’S around the sun. Satellite photo of solar eclipse shadow on Earth, notice the umbra and penumbra areas.

  33. http://www.youtube.com/watch?v=XMyqPxFh5Zw

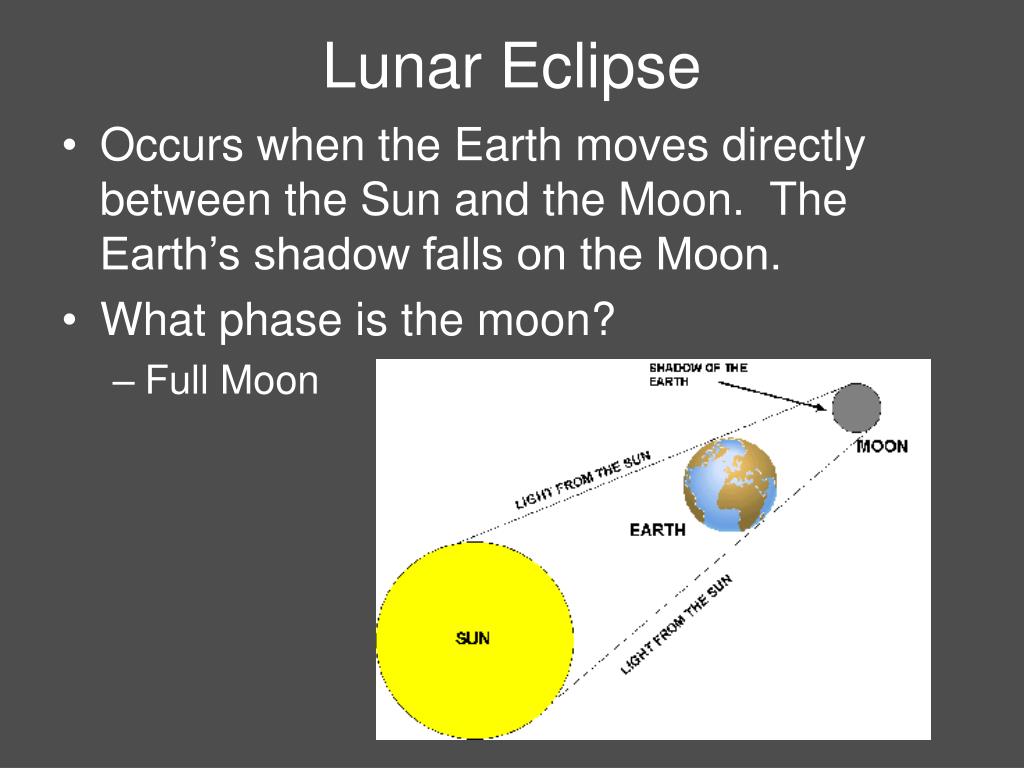

  34. Lunar Eclipse • Occurs when the Earth moves directly between the Sun and the Moon. The Earth’s shadow falls on the Moon. • What phase is the moon? • Full Moon

  35. Sometimes, when the moon is in the umbra, sunlight is bent through Earth’s atmosphere causing a red color on the moon. http://news.bbc.co.uk/1/hi/sci/tech/612949.stm http://www.youtube.com/watch?v=vMw7yamP4Rw&feature=related

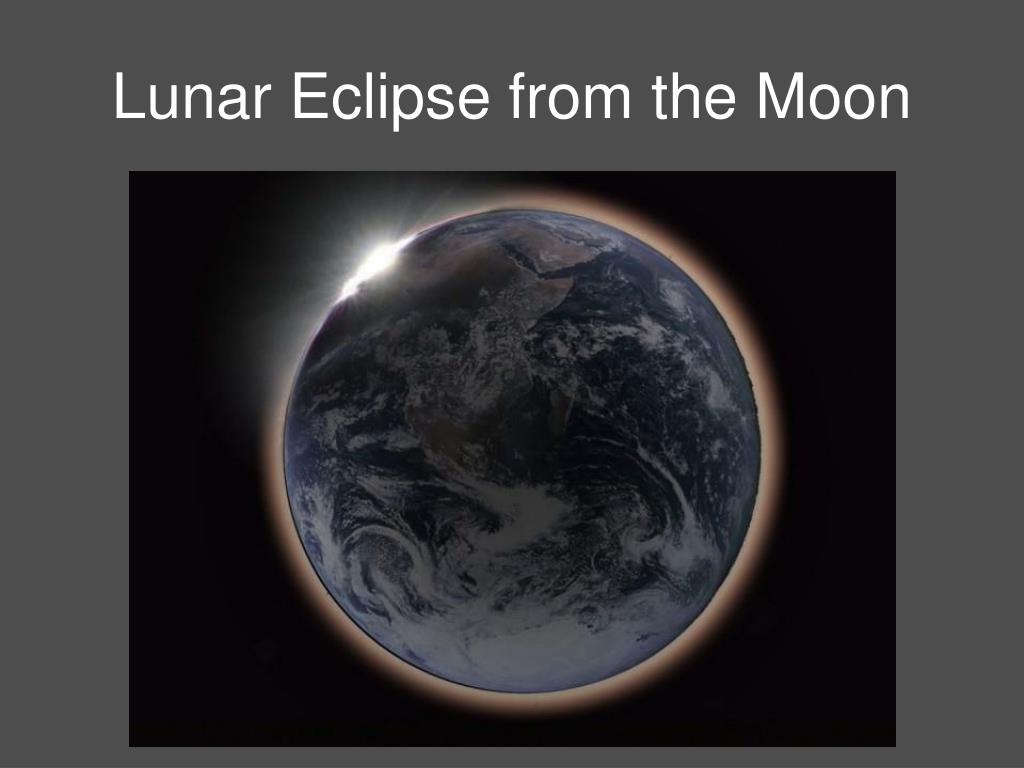

  36. Lunar Eclipse from the Moon

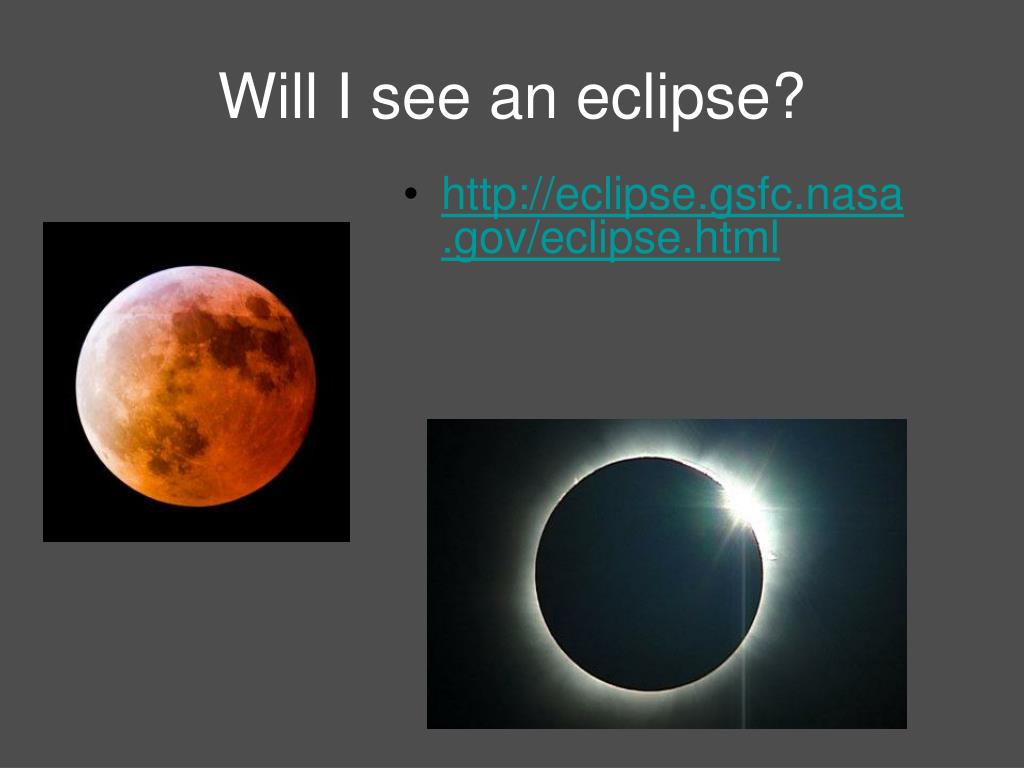

  37. Will I see an eclipse? • http://eclipse.gsfc.nasa.gov/eclipse.html

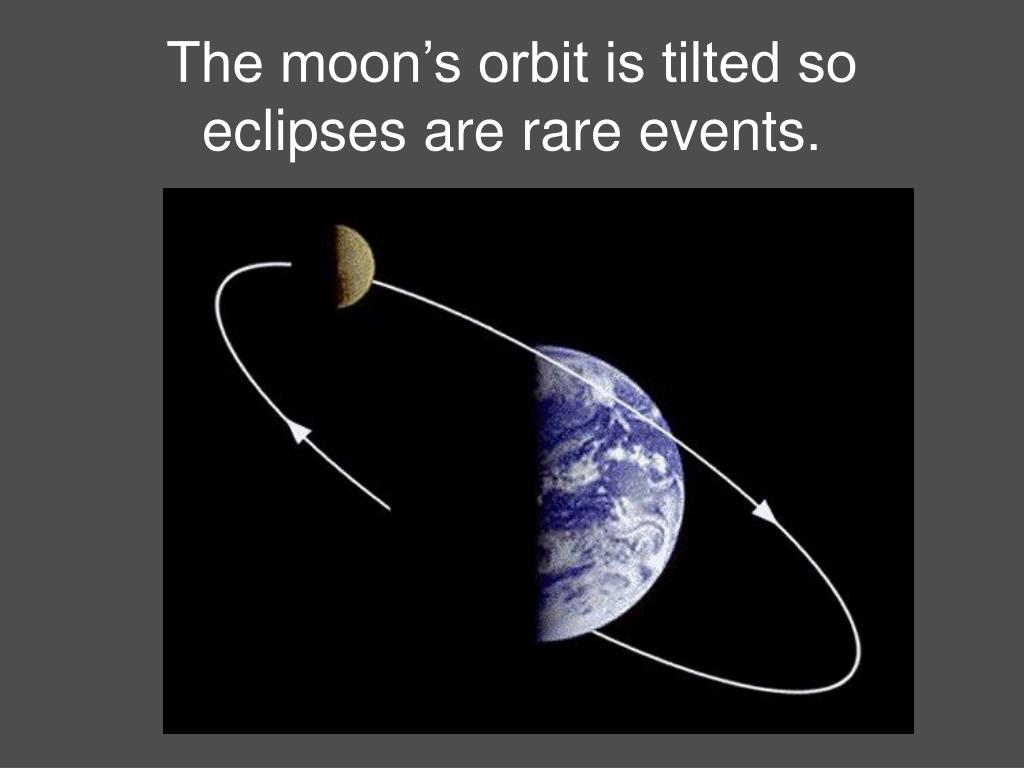

  38. The moon’s orbit is tilted so eclipses are rare events.
