Presentation Transcript

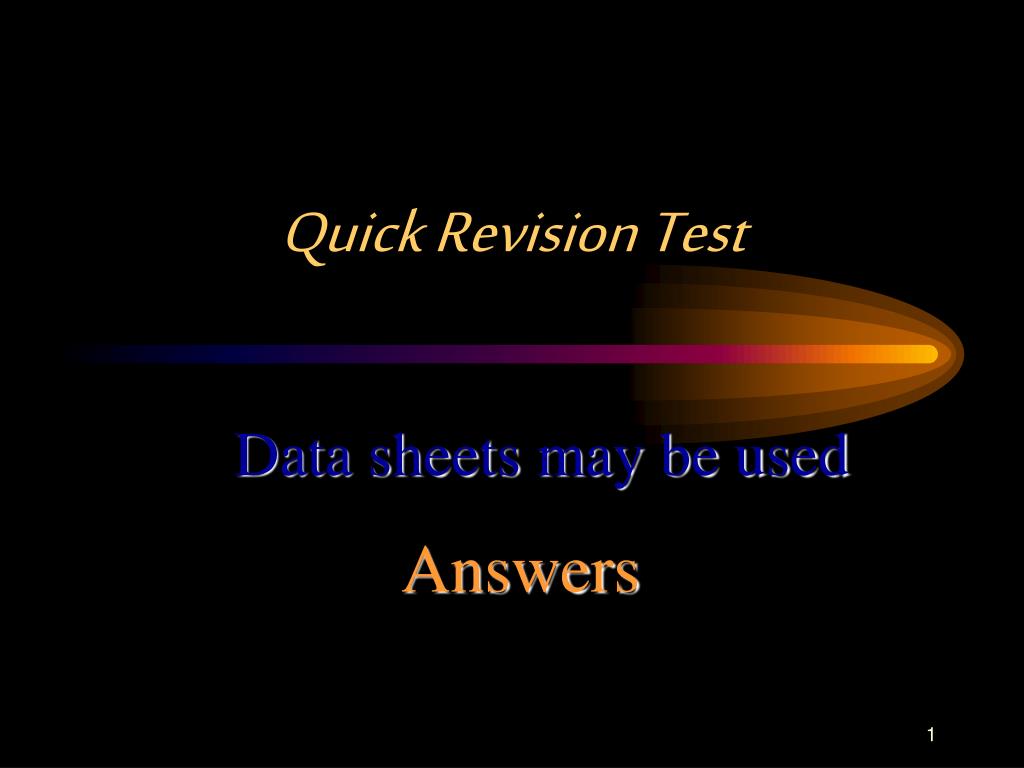

  1. Quick Revision Test Data sheets may be used Answers

  2. In which hadron family is the pion? meson

  3. In which hadron family is the proton? Baryon

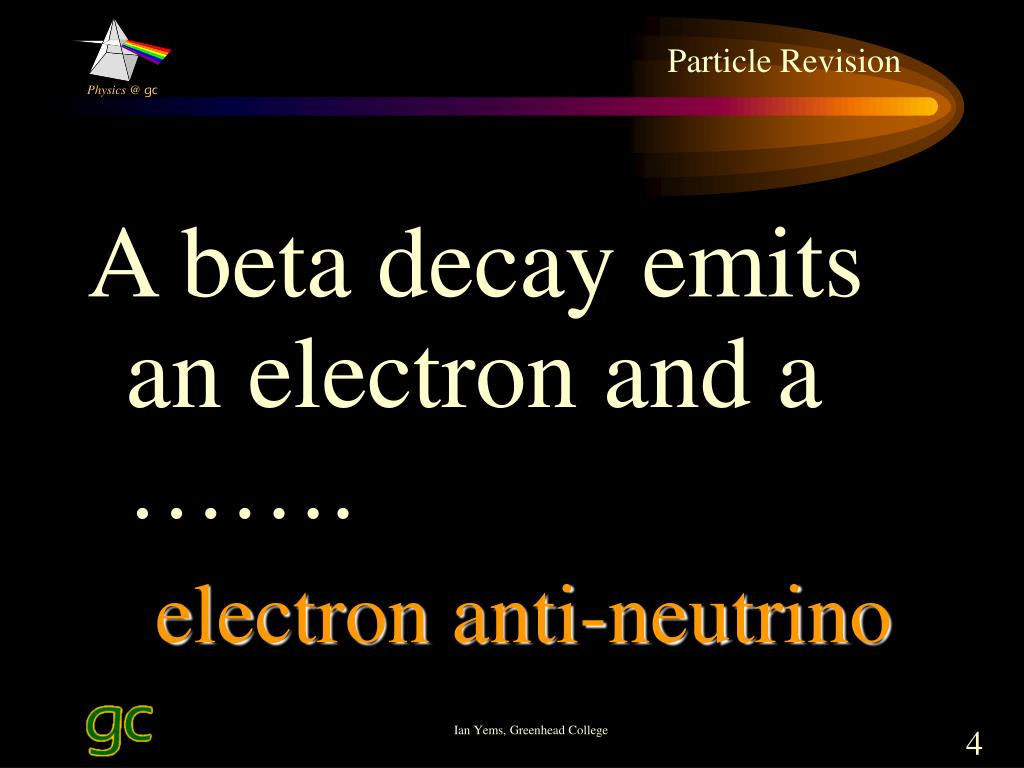

  4. A beta decay emits an electron and a ……. electron anti-neutrino

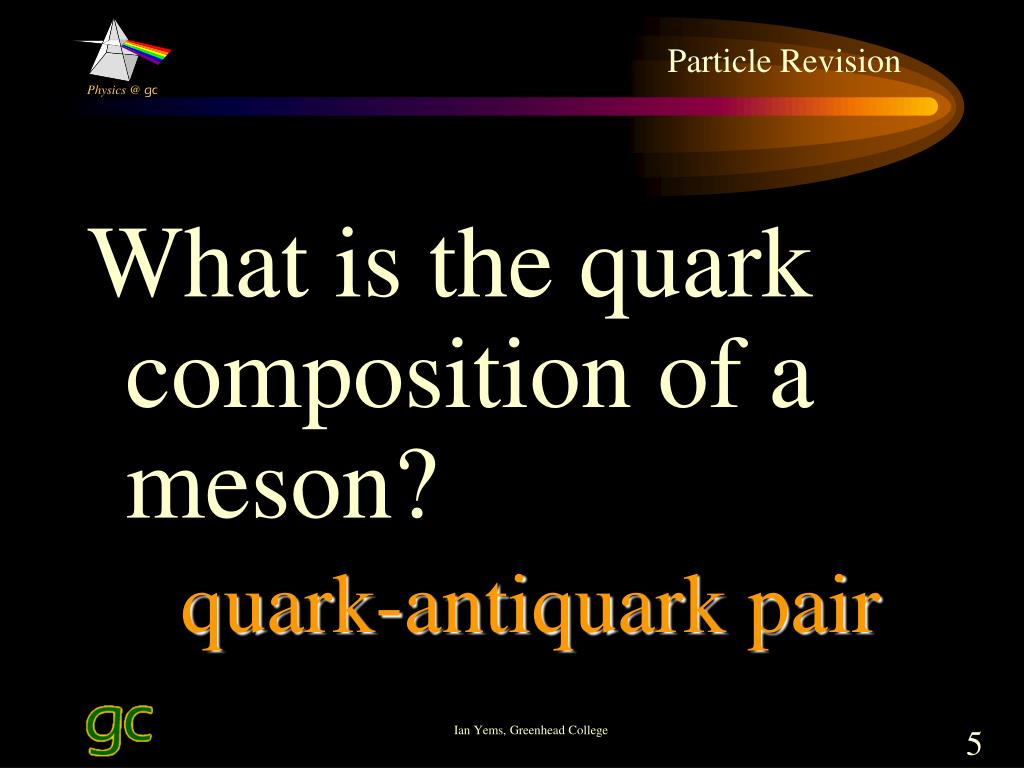

  5. What is the quark composition of a meson? quark-antiquark pair

  6. Which particle is the only stable baryon? proton

  7. Name two mesons pion & kaon

  8. Write down the quarks which make up a proton uud

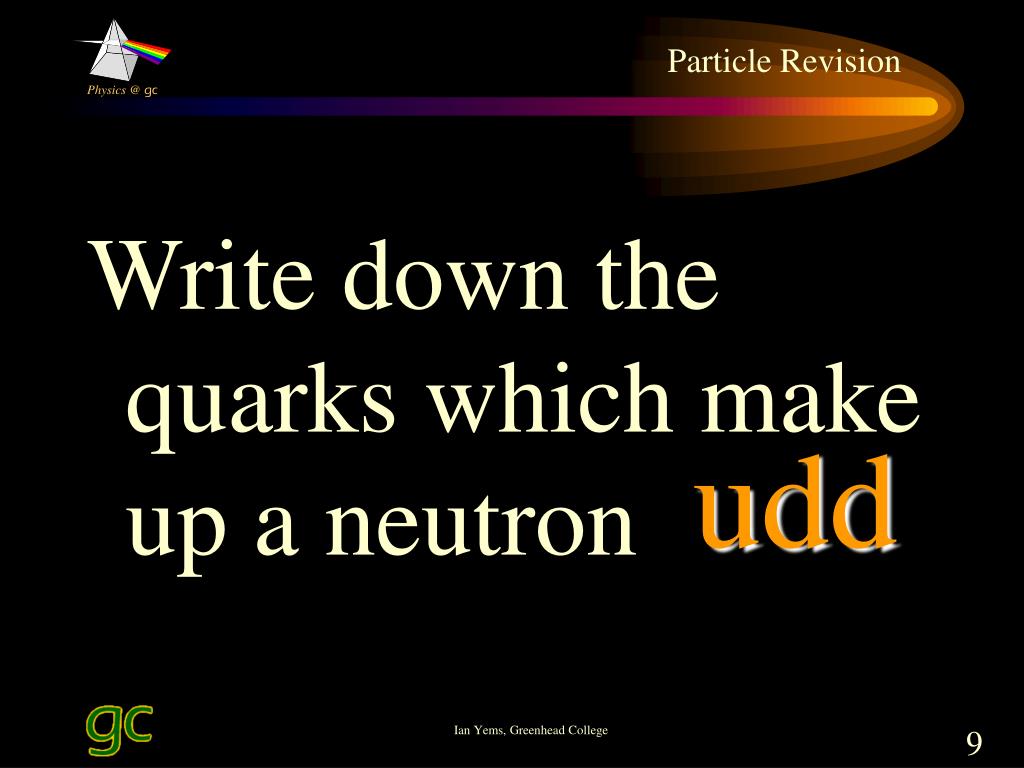

  9. Write down the quarks which make up a neutron udd

  10. Which particle is strange? kaon

  11. Which interaction is involved when a proton changes into a neutron? Weak interaction

  12. An electron capture results in what two particles being emitted? neutron & electron neutrino

  13. What is the mass of a proton relative to an electron? About 2000 times greater

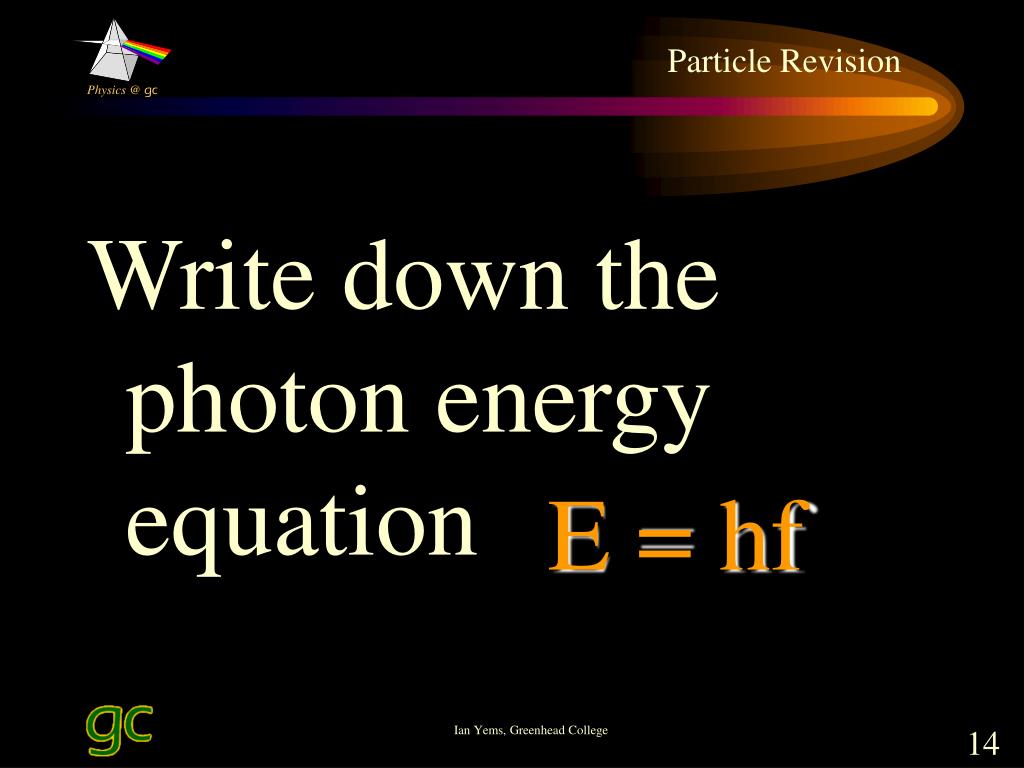

  14. Write down the photon energy equation E = hf

  15. What is the quark combination of a pion zero?

  16. Sketch a Feyman diagram for a proton decaying into a neutron

  17. More time to sketch a proton decaying into a neutron

  18. List the 4 fundamental interactions Weak nuclear Strong nuclear Gravitational Electromagnetic

  19. What is the difference between a lepton & a Hadron? Leptons are fundamental particles Or Hadrons involve the strong nuclear force, whereas leptons involve the weak nuclear force.

  20. Name 3 leptons neutrino electron muon

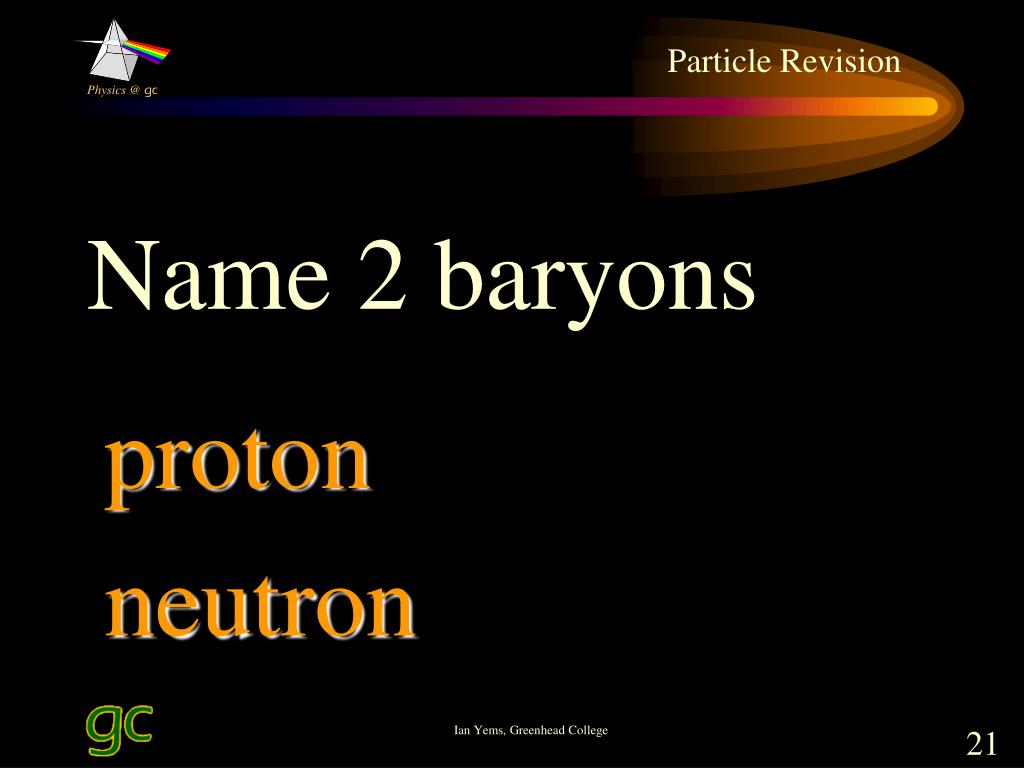

  21. Name 2 baryons proton neutron

  22. Which property is different between a neutrino & an antineutrino? Spin in opposite direction

  23. What is the difference between a meson & a baryon Meson is a quark & antiquark pair. Baryon is 3 quarks

  24. Name 3 quarks up, down, strange

  25. What is the strangeness of an up quark? zero

  26. What is the Baryon number of a down quark? +1/3

  27. What are the two families which make up Hadrons? Mesons & Baryons

  28. The end How did you do??
