Liquid-Scintillation-Counter-LSCL-A10

Liquid Scintillation Counter LSCL-A10 is a portable instrument controlled by SCM 8031, offers online data processing with sample capacity of 25 tubes and automatic change. Equipped with two position machine control; upper and lower position machine, can independently control the instrument sample change and measurement. With three working modes; count, DPM measurement, Quenched sample measurement, this device offers two curve fitting methods with curve fitting of the 3/2 degree equation; four parameter equation and abnormal point elimination function.

labtrondigital
Download Presentation

Liquid-Scintillation-Counter-LSCL-A10

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

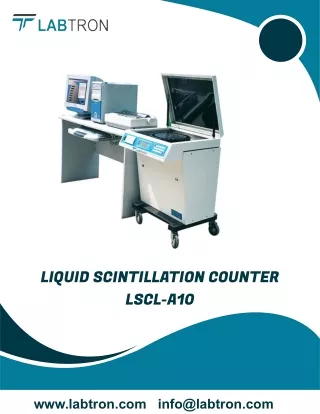

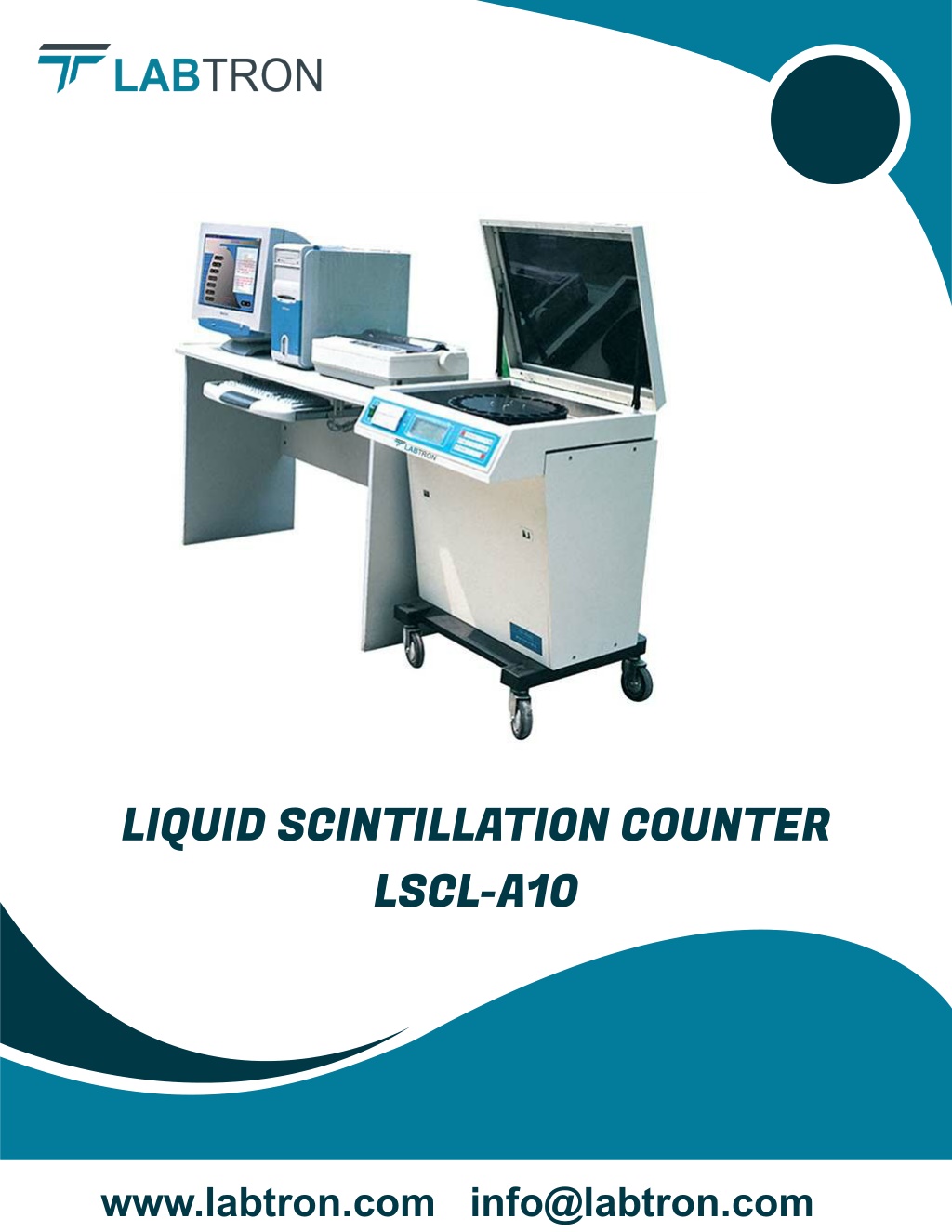

  1. LIQUID SCINTILLATION COUNTER LSCL-A10 www.labtron.com info@labtron.com

  2. Liquid Scintillation Counter LSCL-A10 Liquid Scintillation Counter LSCL-A10 is a portable instrument controlled by SCM 8031, offers online data processing with sample capacity of 25 tubes and automatic change. Equipped with two position machine control; upper and lower position machine, can independently control the instrument sample change and measurement. With three working modes; count, DPM measurement, Quenched sample measurement, this device offers two curve fitting methods with curve fitting of the 3/2 degree equation; four parameter equation and abnormal point elimination function. This device can be used in the area to measure the intensity of low range β in the samples in 3H and 14C. Device is without computer setup, user have to use own computer setup. FEATURES Online data processing with sample capacity of 25 tubes and automatic change Portable instrument controlled by SCM 8031 2 position machine control, can independently control the instrument sample change and measurement 3 working modes; count, DPM measurement, Quenched sample measurement with quench correction curve 2 curve fitting methods; curve fitting of the 3/2 degree equation; four parameter equation and abnormal point elimination function Can be used in the area to measure the intensity of low range β in the samples in 3H and 14C High quality, large sample capacity and strong data process APPLICATIONS Liquid scintillation counter is ideally used in the radioactive contamination, radiation survey meters, radiometric assay, nuclear plant safety, and medical imaging, screening technologies, In vivo and ELISA alternative technologies, cancer research, epigenetics, and cellular research, protein interaction and detection, academic research, pharmaceutical, for the virus HP detection across hospital, sanitation, biochemistry, agriculture, hydrology and geology for the study and application of the Isotope.

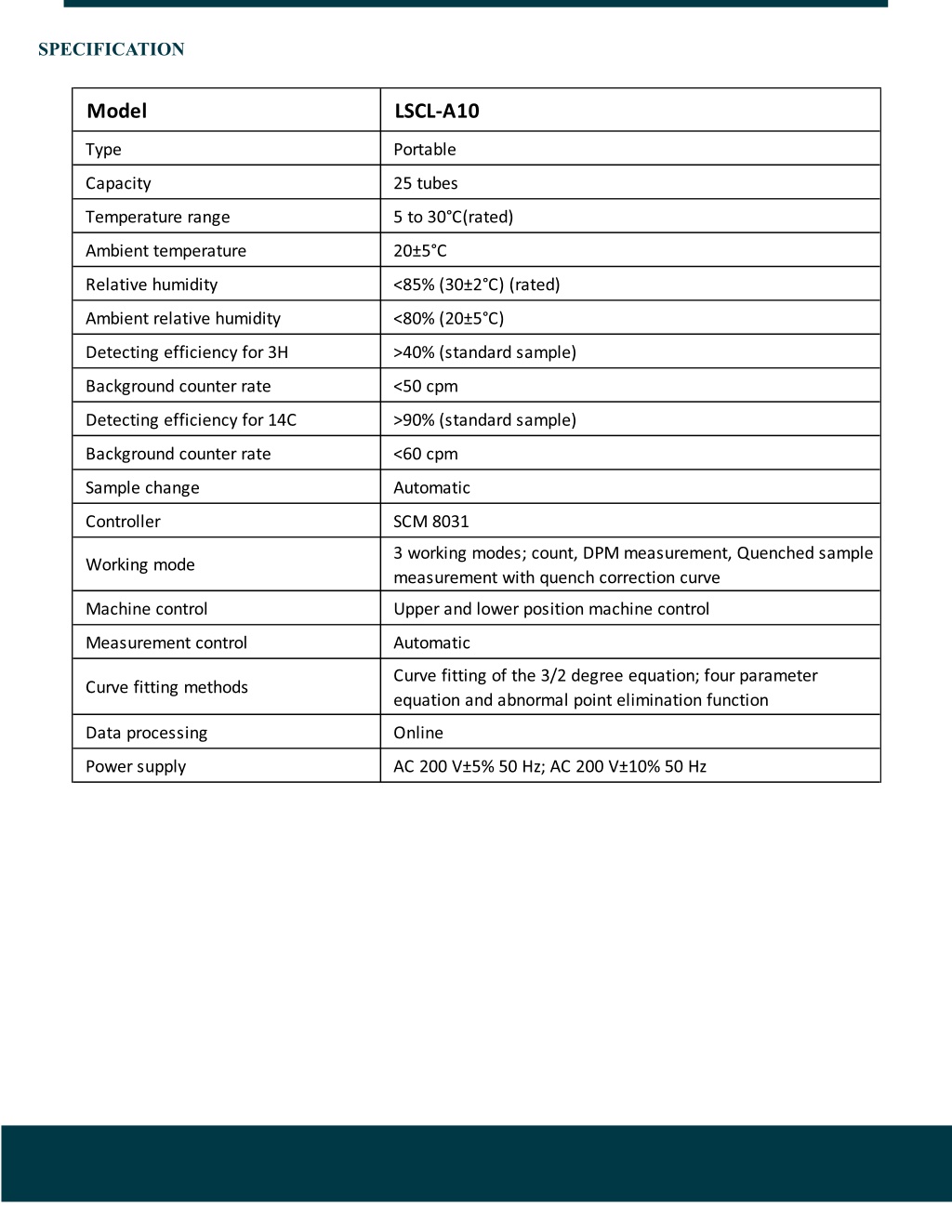

  3. SPECIFICATION Model LSCL-A10 Type Portable Capacity 25 tubes Temperature range 5 to 30°C(rated) Ambient temperature 20±5°C Relative humidity <85% (30±2°C) (rated) Ambient relative humidity <80% (20±5°C) Detecting efficiency for 3H >40% (standard sample) Background counter rate <50 cpm Detecting efficiency for 14C >90% (standard sample) Background counter rate <60 cpm Sample change Automatic Controller SCM 8031 3 working modes; count, DPM measurement, Quenched sample Working mode measurement with quench correction curve Machine control Upper and lower position machine control Measurement control Automatic Curve fitting of the 3/2 degree equation; four parameter Curve fitting methods equation and abnormal point elimination function Data processing Online Power supply AC 200 V±5% 50 Hz; AC 200 V±10% 50 Hz
