Hematocrit Centrifuge It is used for the determination of erythrocyte fractions in blood as well as micro solution separations using a twenty-four (24)-place capillary rotor. For more information, visit www.Labozon.com.

labozonscientific
Download Presentation

Hematocrit-Centrifuge-

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

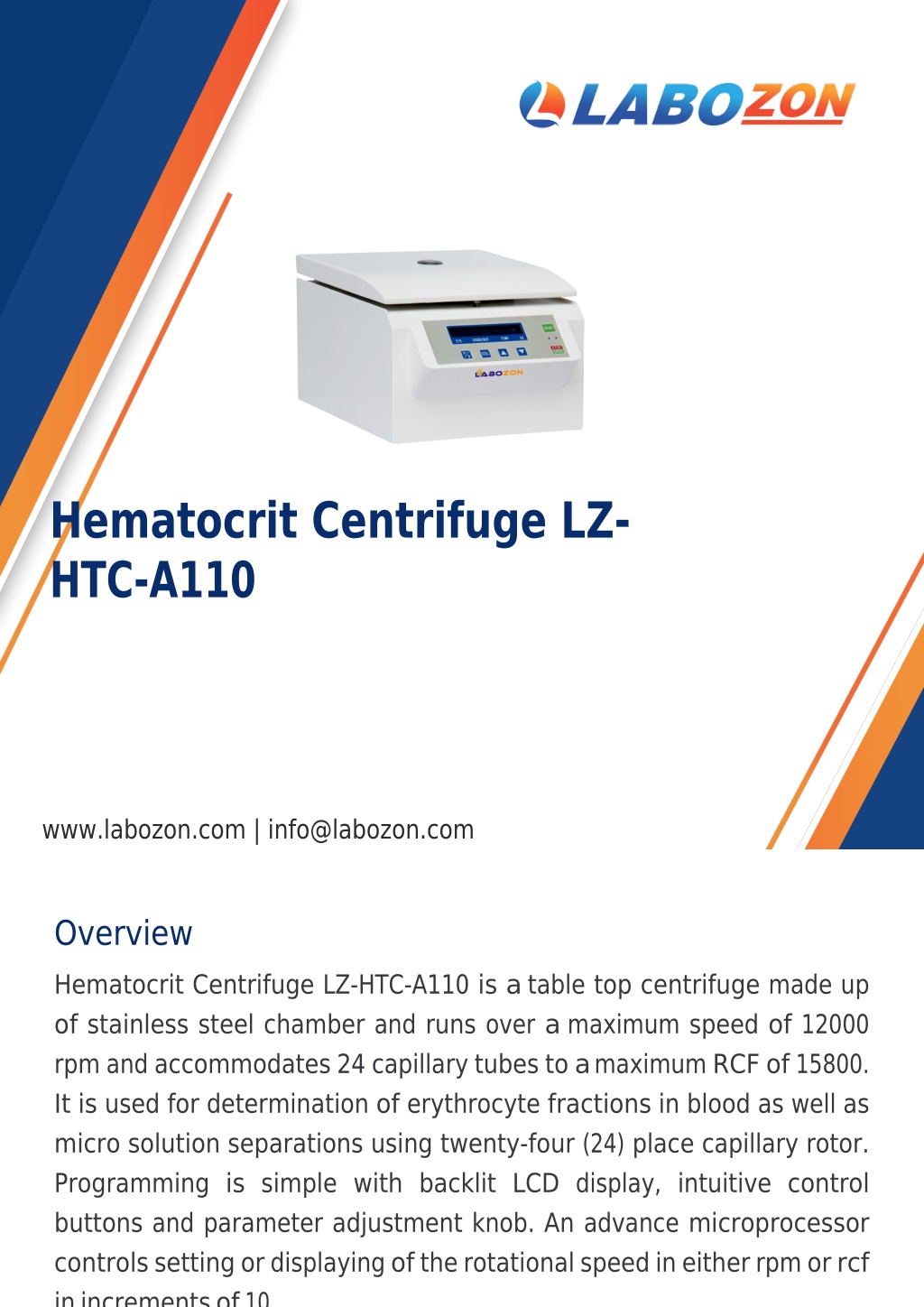

  1. Hematocrit Centrifuge LZ- HTC-A110 www.labozon.com | info@labozon.com Overview Hematocrit Centrifuge LZ-HTC-A110 is a table top centrifuge made up of stainless steel chamber and runs over a maximum speed of 12000 rpm and accommodates 24 capillary tubes to amaximum RCF of 15800. It is used for determination of erythrocyte fractions in blood as well as micro solution separations using twenty-four (24) place capillary rotor. Programming is simple with backlit LCD display, intuitive control buttons and parameter adjustment knob. An advance microprocessor controls setting or displaying of the rotational speed in either rpm or rcf in increments of 10.

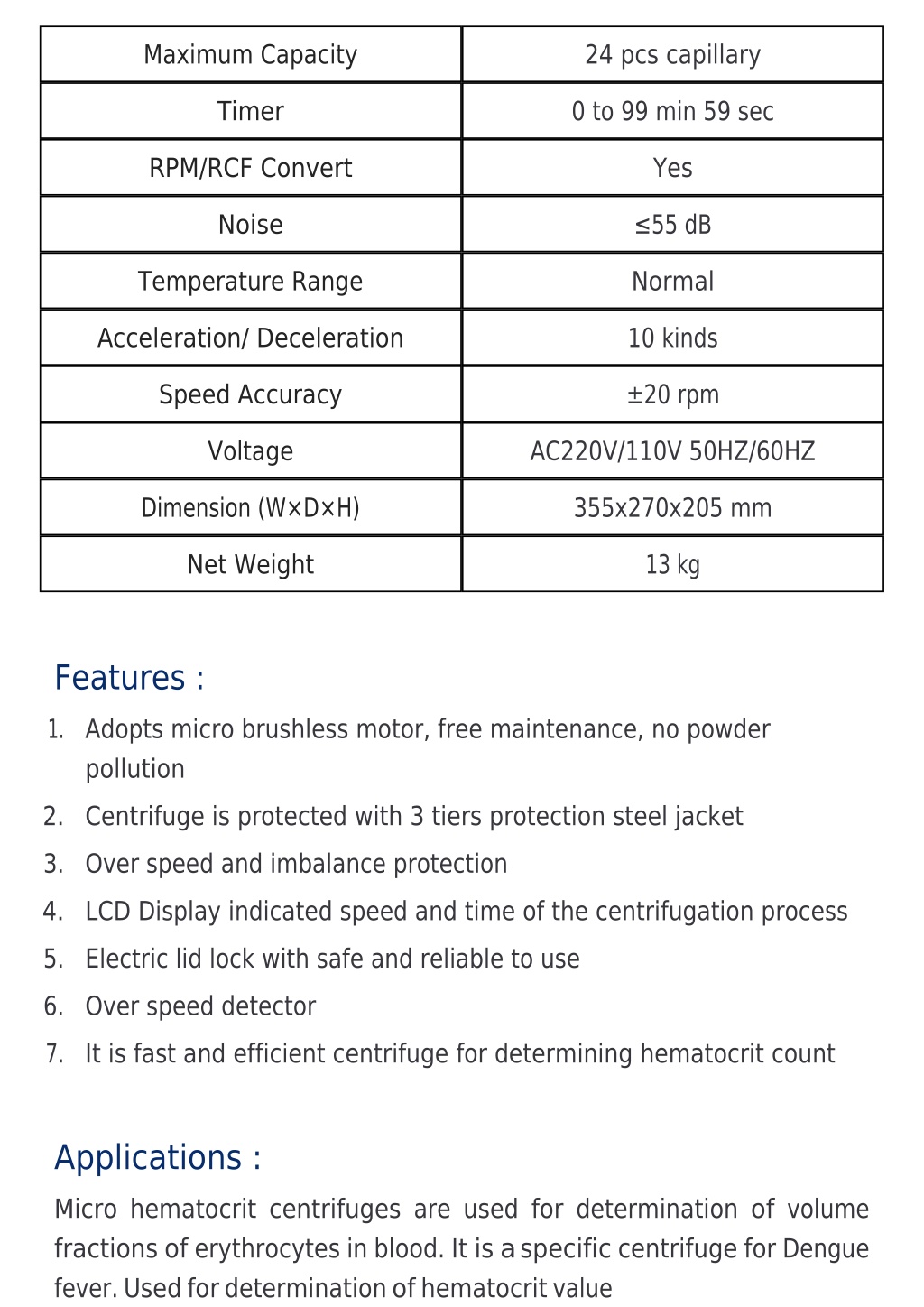

  2. Maximum Capacity 24 pcs capillary Timer 0 to 99 min 59 sec RPM/RCF Convert Yes Noise ≤55 dB Temperature Range Normal Acceleration/ Deceleration 10 kinds Speed Accuracy ±20 rpm Voltage AC220V/110V 50HZ/60HZ Dimension (W×D×H) 355x270x205 mm Net Weight 13 kg Features : 1. Adopts micro brushless motor, free maintenance, no powder pollution 2. Centrifuge is protected with 3 tiers protection steel jacket 3. Over speed and imbalance protection 4. LCD Display indicated speed and time of the centrifugation process 5. Electric lid lock with safe and reliable to use 6. Over speed detector 7. It is fast and efficient centrifuge for determining hematocrit count Applications : Micro hematocrit centrifuges are used for determination of volume fractions of erythrocytes in blood. It is aspecific centrifuge for Dengue fever. Used for determination of hematocrit value

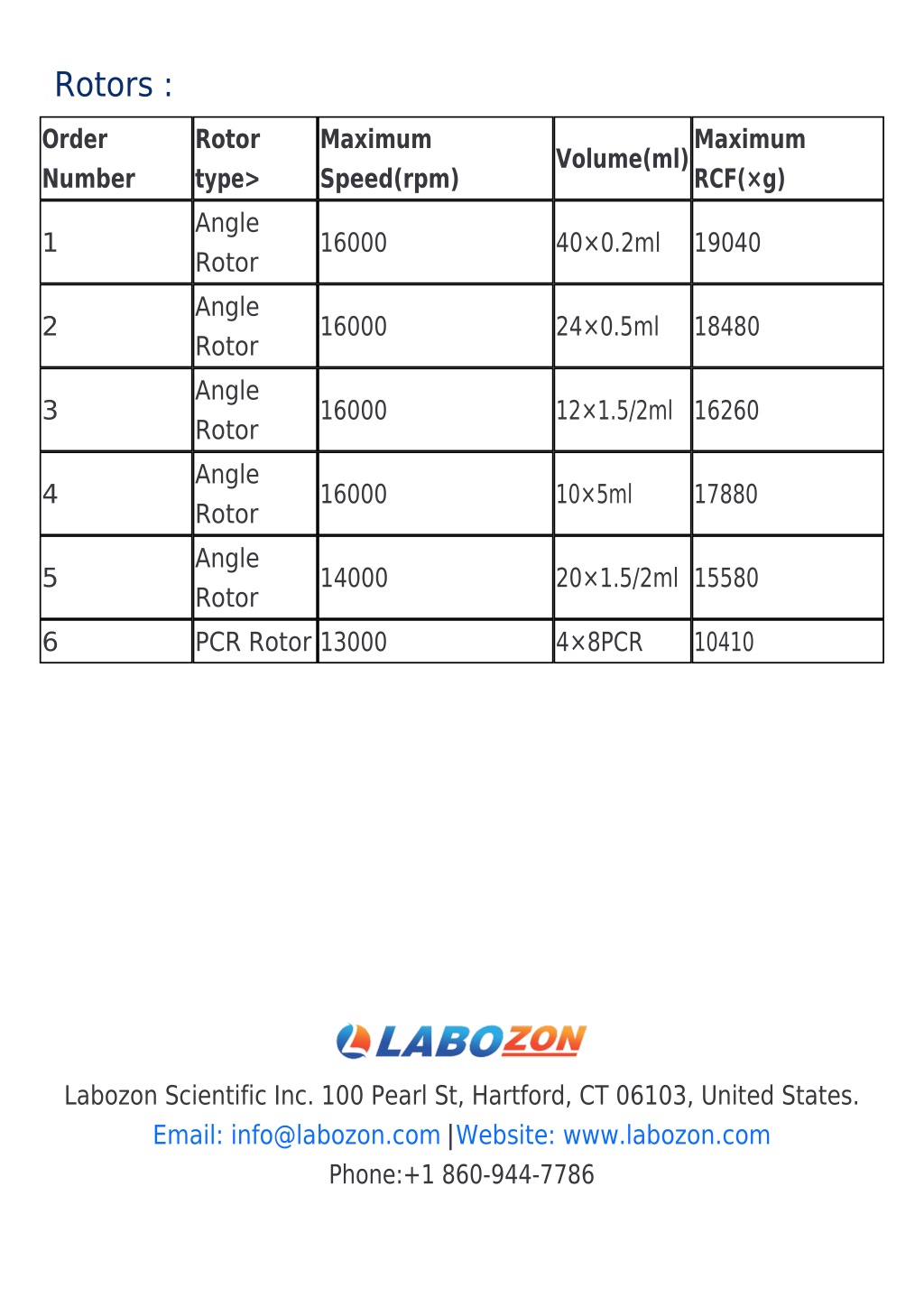

  3. Rotors : Order Number Rotor type> Maximum Speed(rpm) Volume(ml)Maximum RCF(×g) Angle Rotor 1 16000 40×0.2ml 19040 Angle Rotor 2 16000 24×0.5ml 18480 Angle Rotor 3 16000 12×1.5/2ml 16260 Angle Rotor 4 16000 10×5ml 17880 Angle Rotor 5 14000 20×1.5/2ml 15580 6 PCR Rotor 13000 4×8PCR 10410 Labozon Scientific Inc. 100 Pearl St, Hartford, CT 06103, United States. | Phone:+1 860-944-7786 Email: info@labozon.com Website: www.labozon.com
