OMAX Jet Machining Center: Precision Waterjet Cutting with Advanced Control Systems

Discover the OMAX Jet Machining Center, designed for high-precision cutting with a high-accuracy motion controller. This system integrates advanced CAD/CAM software to enhance efficiency, allowing direct use of DXF files. Featuring ultrahigh-pressure pumps and abrasive jet delivery systems, it delivers sharp edges without heat distortion. Its two-axis machining table supports material sizes up to 160"x80". Operating quietly under 80 dB, it ensures rapid setup without the need for complex fixtures, making it an eco-friendly choice for various materials.

kylia
Download Presentation

OMAX Jet Machining Center: Precision Waterjet Cutting with Advanced Control Systems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

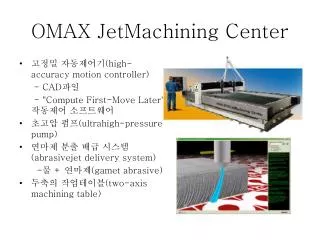

  1. OMAX JetMachining Center • 고정밀 자동제어기(high-accuracy motion controller) - CAD파일 - "Compute First-Move Later" 작동제어 소프트웨어 • 초고압 펌프(ultrahigh-pressure pump) • 연마제 분출 배급 시스템(abrasivejet delivery system) -물 + 연마제(gamet abrasive) • 두축의 작업테이블(two-axis machining table)

  2. 사 양 • 작 업 범 위 최대공작물크기160"×80" (4060mm × 2030mm) 테이블사이즈170"×83" (4310mm × 2100mm) • 컴퓨터 제어시스템 하드웨어 퍼스널 컴퓨터 ( Windows XP ) 소프트웨어PC Based, DXF파일을 직접 사용 할 수 있는 통합CAD/CAM • 정 밀 도 Over entire travel ±0.005" (0.127 mm) Over 1 foot travel ±0.003" (0.076 mm) 반복성±0.002" (0.051 mm) 직각도0.002" per ft (0.17 mm/m) 직진도0.003" per ft (0.25 mm/m) 백래쉬0.0007" max (0.018 mm) (Specifications per National Machine Tool Builders Association Standard) • 속 도 표준사양기준 : 분당 200 inch ( 5,080 mm ),스피드는 더 빠르게 할수있음 • 공 급 전 원 208- 230 VAC 한국(CE) : 380 - 440 VAC, 60 Hz / 3Phase

  3. Abrasivejet 이점 • 공작물의 재질과 두께에 상관없이 폭넓게 가공 • 자국이 남지 않고 깨끗하게 가공되는 샤프한 모서리 • 제품에 영향을 끼치는 열이나 구조변형이 생기지 않음 • 대부분의 수중절단 작업은 소음정도 80db이하에서 완료 • 신속한 셋업, 공구교환이 필요 없음 • 제품을 고정시키는 최소한의 고정공구만 필요 • 작업공정 내에 유해가스, 액체나 기름이 사용되지 않아 환경오염의 염려가 전혀 없음

  4. 가공 제품

  5. Waterjet 동영상 <3D cutting>

  6. Waterjet 동영상 <tilt-A-Jet cutting>
