  1. EXTREMITAS CAUDALIS(HIND LIMB)

  2. THE HIND LIMB HAVE FOUR SEGMENTS : CINGULUM MEMBRI PELVINA (PELVIC GIRDLE) FEMURALIS (THIGH) CRURIS (LEG) PEDIS (PES)

  3. OSSA COXARUM • THE OSSA COXARUM ARE COMPOSED OF THE OS COXAE OF EACH SIDE, WHICH FORM A CARTILAGINOUS JOINT ALONG THE MEDIAN LINE (PELVIC SYMPHYSIS). • THE PELVIC SYMPHYSIS, IN TURN, CONSISTS OF THE PUBIC SYMPHISIS AND THE ISCHIATIC SYMPHYSIS. • THE COXAE CONSISTS PRIMARILY OF THREE PARTS, * OS ILEUM * OS ISCHIUM ACETABULUM * OS PUBIS

  4. PELVIS ILEUM ISCHIUM il is p ACETABULUM FOR.OBT. PUBIS

  5. GAMBARAN UMUM PELVIS PADA BEBERAPA SPESIES Ileum Pubis Ischium

  6. CAVUM PELVIS • OS COXAE + OS SACRUM + OS Cy I – III • VENTRAL = OS ISCHIUM + OS PUBIS • DORSAL = OS SACRUM + OS Cy I – III • LATERAL = OS ILEUM + OS ISCHIUM • PELVIS INLET (APPERTURA PELVIS CRANIALIS) • PELVIS OUTLET (APPERTURA PELVIS CAUDALIS)

  7. OS ILEUM KUDA CRISTA ILIACA TUBER SACRUM ALAE OSSIS ILEUM TUBER COXAE CORPUS OSSIS ILEUM INSERTIO TENDON M. RECTUS FEMORIS

  8. OS ILEUM INCISSURA ISCHIADICA MAJOR SPINA ISCHIADICA INCISSURA ISCHIADICA MINOR

  9. OS ISCHIUM SAPI(lateral view) INC. ISC. MINOR CORPUS TABULA TUBER ISCHIADICUM SYMPHISIS PELVIS

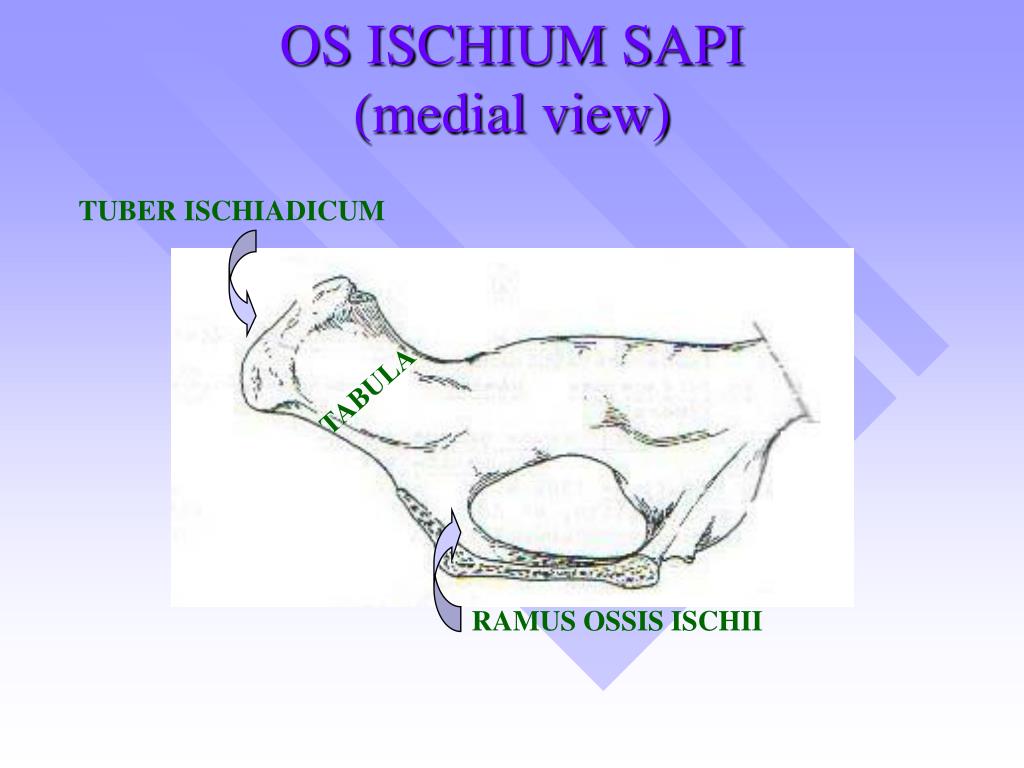

  10. OS ISCHIUM SAPI(medial view) TUBER ISCHIADICUM TABULA RAMUS OSSIS ISCHII

  11. ARCHUS ISCHIADICUS

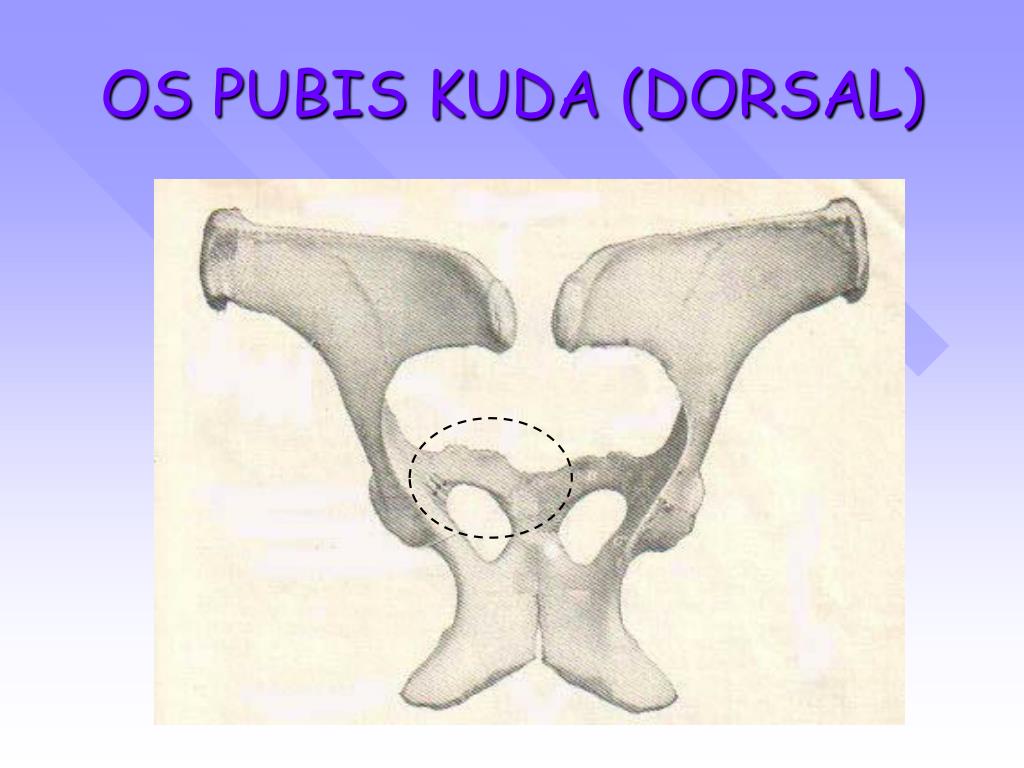

  12. OS PUBIS KUDA (DORSAL)

  13. OS PUBIS KUDA (DORSAL) FACIES PELVINA

  14. OS PUBIS KUDA (DORSAL) EMINENTIA ILIOPUBICUM SULCUS A/V/N OBTURATORIUS

  15. ACETABULUM FACIES LUNATA FOSSA ACETABULARIS

  16. FORAMEN OBTURATORIA INCISSURA ACETABULARIS

  17. OS FEMUR Thigh bone, is the largest and most massive of the long bones. It extends obliquely distally and craniad, articulating with acetabulum proximally and the tibia and patella distally. The structure of the thigh bone, divided into 3 part :1. Extremitasproximalis 2. Corpus ossisfemoris 3. Extremitasdistalis

  18. EXTREMITAS PROXIMAL OSSIS FEMUR CORPUS OSSIS FEMUR EXTREMITAS DISTAL OSSIS FEMUR

  19. CAPUT FEMUR PARS CAUDAL TROCHANTER MAJOR FOVEA CAPITIS PARS CRANIAL TROCHANTER MAJOR COLLUM FEMUR FEMUR HORSE (CAUDAL VIEW)

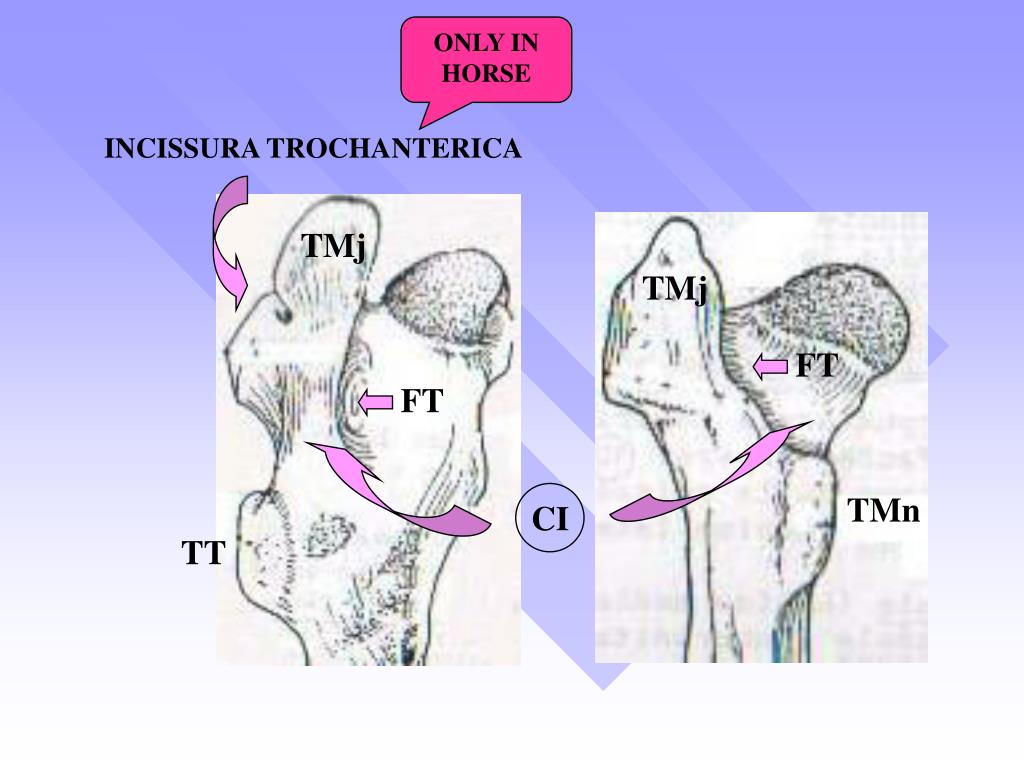

  20. ONLY IN HORSE INCISSURA TROCHANTERICA TMj TMj FT FT TMn CI TT

  21. CORPUS FEMUR

  22. TROCHANTER TERTIUS FOSSA SUPRACONDYLOIDEA (FOSSA PLANTARIS)

  23. EXTREMITAS DISTAL OS FEMUR CONDYLUS TROCHLEA

  24. TUBERCULUM TROCHLEARIS MEDIALIS TUBERCULUM TROCHLEARIS LATERALIS * * CONDYLUS MEDIALIS CONDYLUS LATERALIS

  25. OS PATELLA (CRANIAL) BASIS MARGO LATERAL MARGO MEDIAL APEX

  26. OS PATELLA (CAUDAL) PROC. CARTILAGINOUS

  27. OS TIBIA et FIBULA EXT. PROX. TIBIA OS FIBULA CORPUS TIBIA EXT. DISTAL TIBIA

  28. EXTREMITAS PROXIMAL TIBIA TUBEROSITAS TIBIALIS CONDYLUS LATERALIS CONDYLUS MEDIALIS

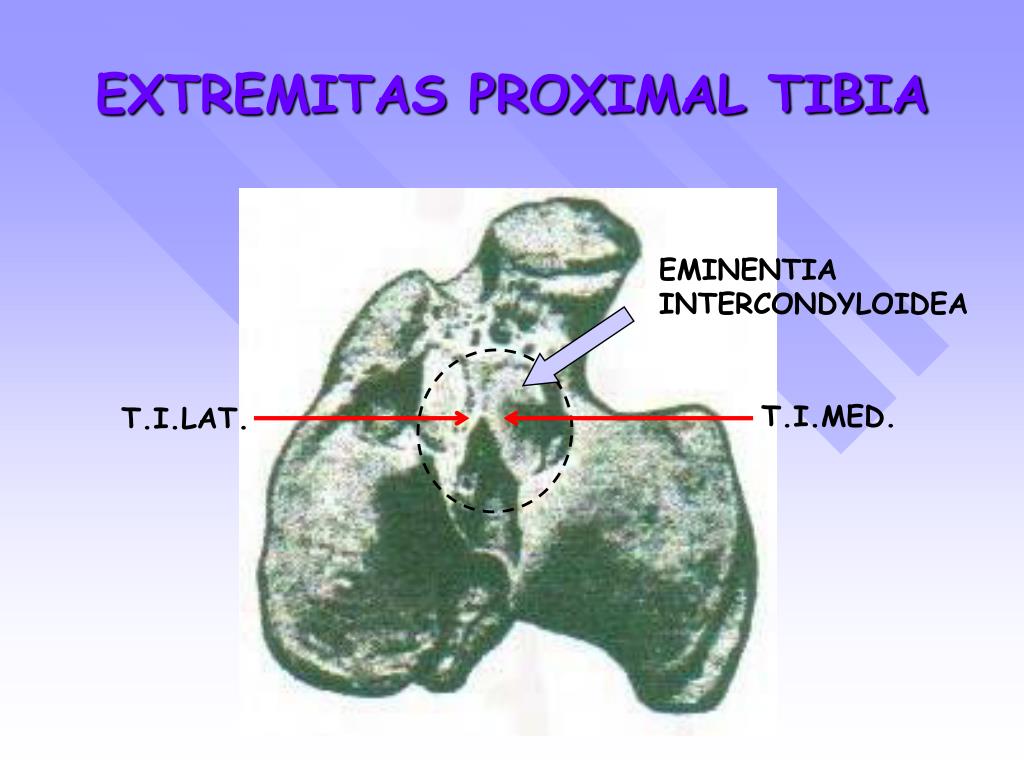

  29. EXTREMITAS PROXIMAL TIBIA EMINENTIA INTERCONDYLOIDEA T.I.MED. T.I.LAT.

  30. STT SE TT CL CM IP

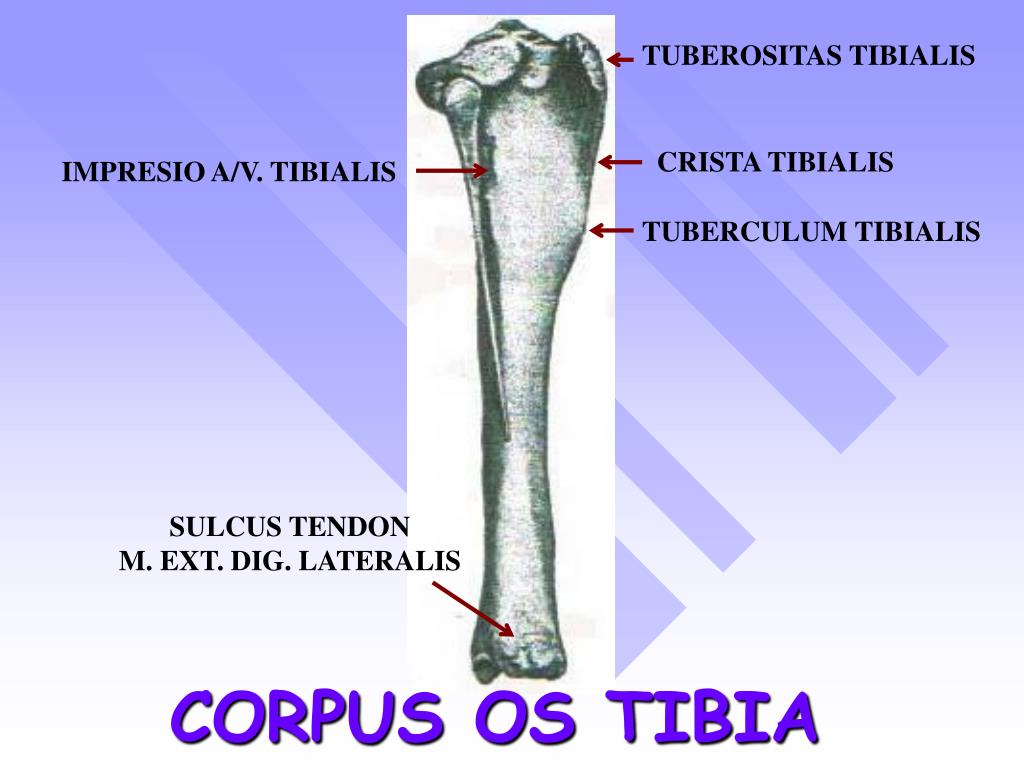

  31. CORPUS OS TIBIA TUBEROSITAS TIBIALIS CRISTA TIBIALIS IMPRESIO A/V. TIBIALIS TUBERCULUM TIBIALIS SULCUS TENDON M. EXT. DIG. LATERALIS

  32. INCISSURA POPLITEA SPATIUM INTEROSSEUS CRURIS LINEA POPLITEA LIGAMENTUM CRUCIATUM CAUDALIS

  33. EXTREMITAS DISTAL OS TIBIA (COCHLEA TIBIA) FOSSA SYNOVIALIS MALLEOLUS LATERALIS FUSI TIBIA & FIBULA MALLEOLUS MEDIALIS SULCUS ARTICULARIS

  34. OSSA TARSUS

  35. VARIASI OSSA TARSUS

  36. OS CALCANEUS TUBER CALCIS PLANTAR VIEW LATERAL VIEW DORSAL VIEW

  37. DORSAL VIEW FOSSA SYNOVIALIS (SINUS TARSI) SULCUS CALCANEI FACIES ARTICULARIS TALARES

  38. TUBER CALCIS PROCESSUS CORACOIDEUS LATERAL VIEW

  39. SULCUS TENDON M. FLEXOR DIGITI I HALLUCIS LONGUS SUSTENTACULUM TALI PLANTAR VIEW

  40. OS TALUS PLANTAR VIEW LATERAL VIEW DORSAL VIEW

  41. DORSAL VIEW TROCHLEA TALI FACIES ARTICULARIS NAVICULARIS

  42. PLANTAR VIEW FACIES ARTICULARIS CALCANEI FOSSA SYNOVIALIS (SINUS TARSI)

  43. OS METATARSAL HORSE COW DORSAL VIEW PLANTAR VIEW

  44. PERBEDAAN MC - MT METACARPAL METATARSAL

  45. JUMPA LAGI DI LAB ANATOMI SENIN DEPAN PUKUL 12.00 PRAKTIKUM EXT. CAUDALIS

  46. PELVIC GIRDLE • OS SACRUM • OSSA CAUDALIS • OSSA COXAE AXIALIS

  47. OS FEMUR

  48. OS TIBIA OS FIBULA OS PATELLA

  49. OSSA TARSAL • OSSA METATARSAL • OSSA PHALANX • OSSA SESSAMOIDEA

  50. PELVIS INLET • DORSAL = BASIS OSSIS SACRUM • LATERAL = LINEA ILIOPECTINEAL • VENTRAL = PECTEN OSSIS PUBIS
