Presentation Transcript
contents
CONTENTS
  • Introduction
  • Topics dealt with…
  • Underwater gliders
  • Working of an underwater glider
  • Applications
  • Objective of the experiment
  • Glider operations
  • Future developments and applications at the Institute Of Ocean Technology
  • ASMT
  • Laboratory scale glider
  • Conclusion
  • Thank you…
introduction
INTRODUCTION
  • Sampling of oceans has traditionally been conducted from ships.
  • HMS challenger(1872-1876).
  • Took an awesome period of 23yrs.to compile the results.
  • Emergence of alternative technologies
  • Has brought us a long way from the “CHALLENGER CRUISE”.
topics dealt with

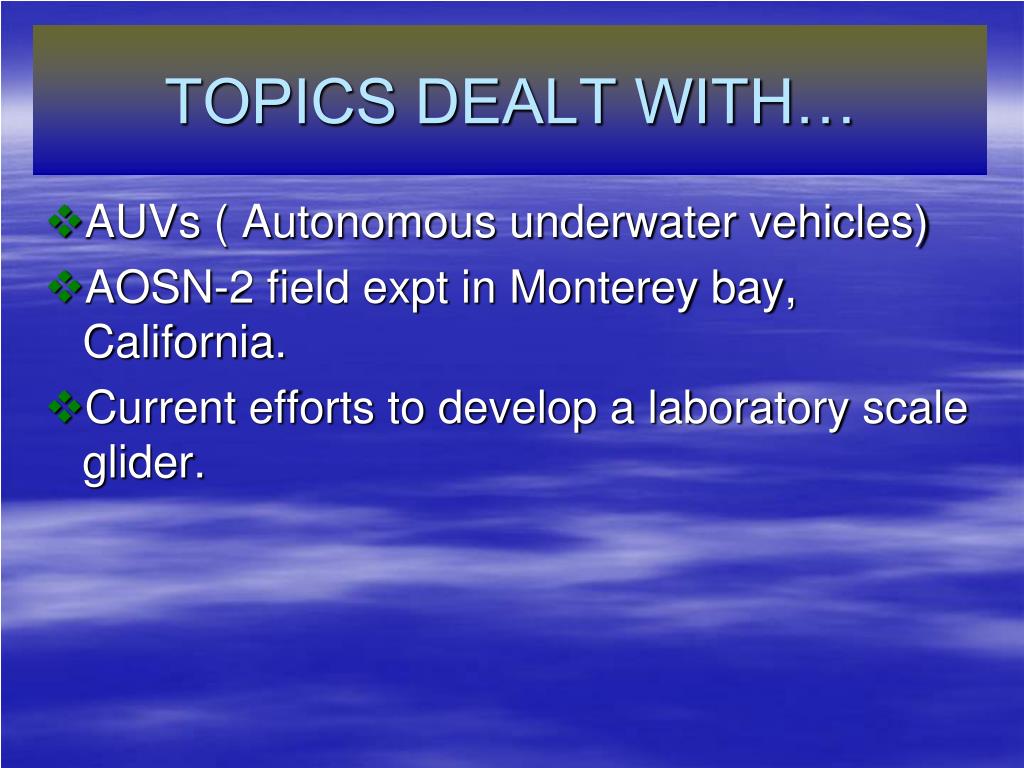

TOPICS DEALT WITH…
  • AUVs ( Autonomous underwater vehicles)
  • AOSN-2 field expt in Monterey bay, California.
  • Current efforts to develop a laboratory scale glider.
underwater gliders

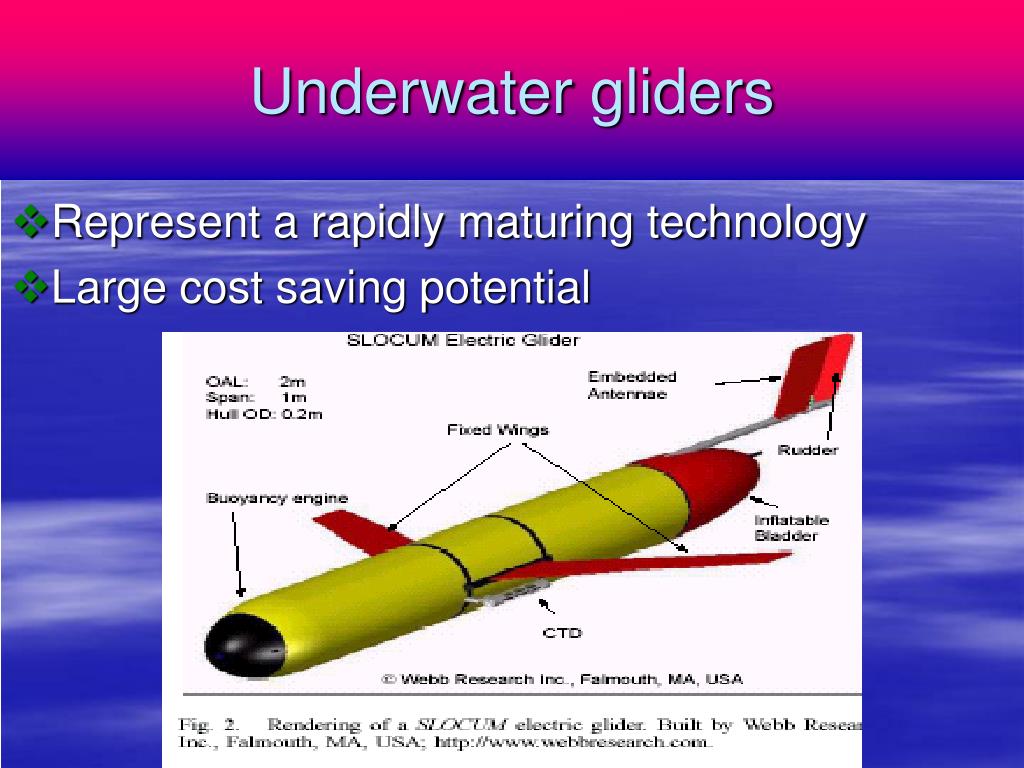

Underwater gliders
  • Represent a rapidly maturing technology
  • Large cost saving potential
working of an underwater glider

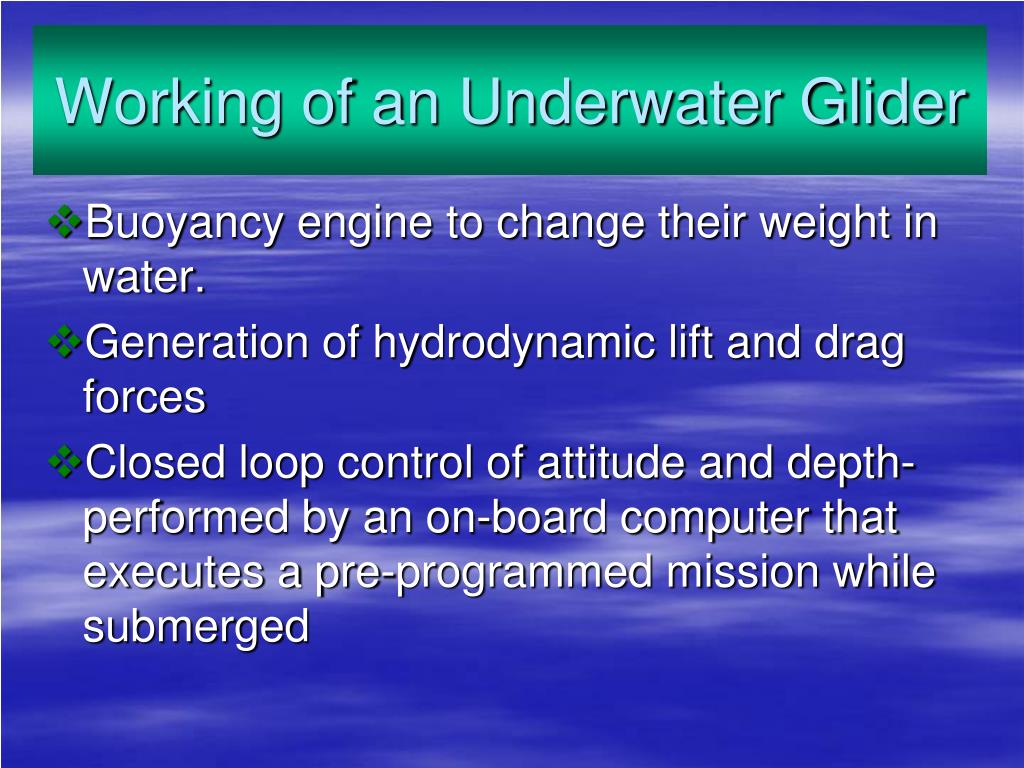

Working of an Underwater Glider
  • Buoyancy engine to change their weight in water.
  • Generation of hydrodynamic lift and drag forces
  • Closed loop control of attitude and depth- performed by an on-board computer that executes a pre-programmed mission while submerged
slide8

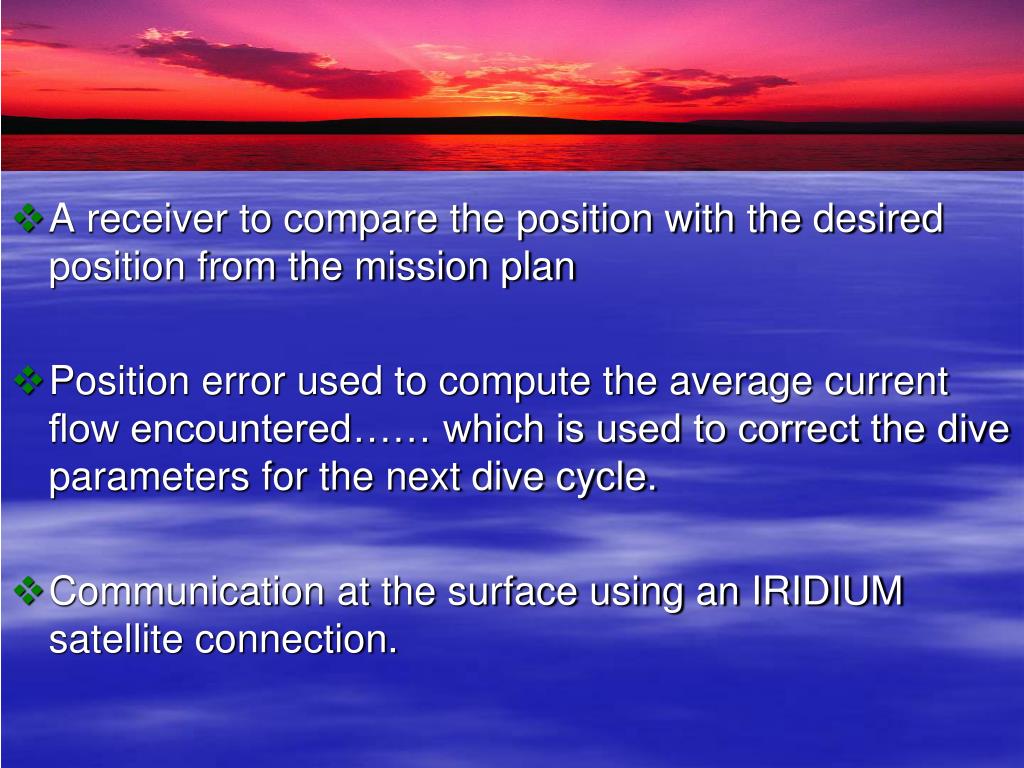

A receiver to compare the position with the desired position from the mission plan
  • Position error used to compute the average current flow encountered…… which is used to correct the dive parameters for the next dive cycle.
  • Communication at the surface using an IRIDIUM satellite connection.
slide9
Antennae’s are integrated into the gliders
  • For a SLOCUM glider antennae and receiver are embedded within the rudder assembly.
  • Glider collects data from their scientific sensors
  • Besides CTD sensors, they even carry PAR sensors

and Fluorometers

applications

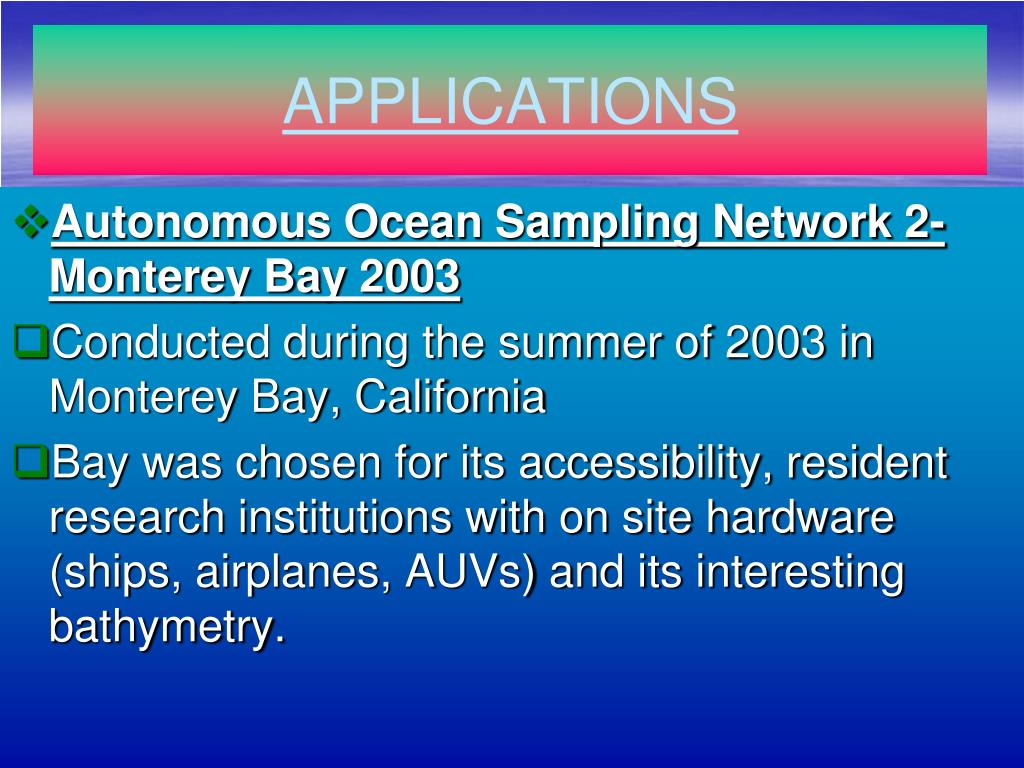

APPLICATIONS
  • Autonomous Ocean Sampling Network 2-Monterey Bay 2003
  • Conducted during the summer of 2003 in Monterey Bay, California
  • Bay was chosen for its accessibility, resident research institutions with on site hardware (ships, airplanes, AUVs) and its interesting bathymetry.
slide11

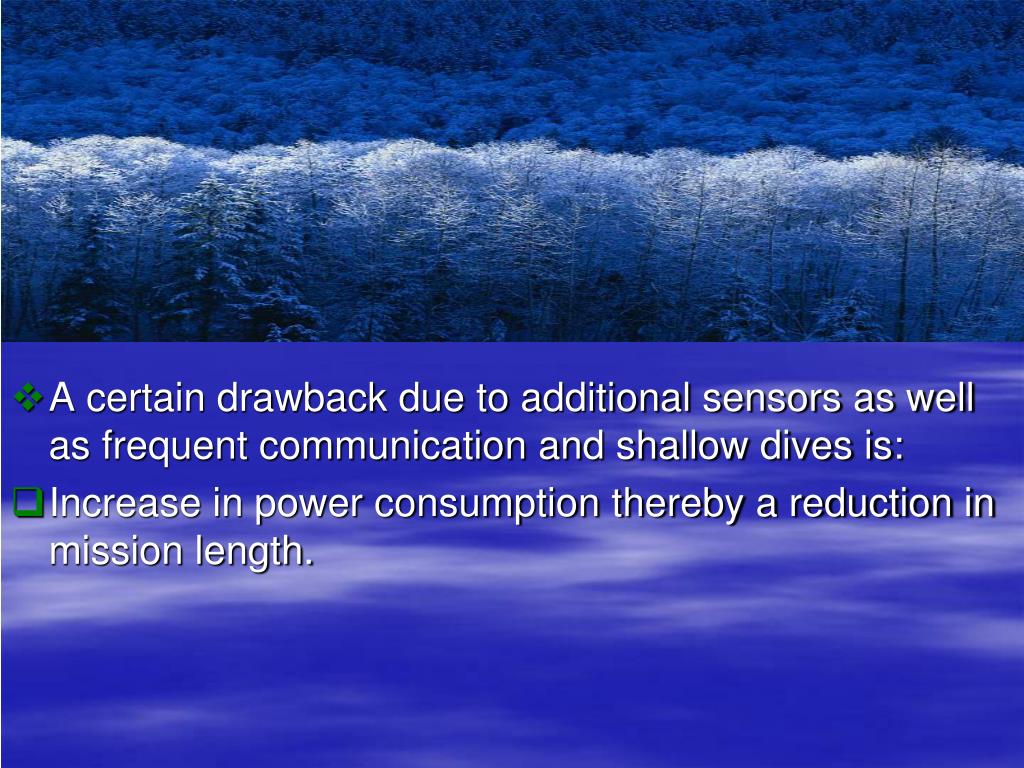

A certain drawback due to additional sensors as well as frequent communication and shallow dives is:
  • Increase in power consumption thereby a reduction in mission length.
objective of the experiment
OBJECTIVE OF THE EXPERIMENT
  • To demonstrate the feasibility of an integrated ocean observation ,modeling and prediction system.
  • This expt differs from the previous efforts because of its high degree of system integration
glider operations
GLIDER OPERATIONS
  • Two types of gliders were available: SPRAY gliders & SLOCUM gliders
  • Prior to the expt all gliders were shipped to the MBARI in Moss landing, California.
  • Sensor data were closely monitored during the course of the experiment.
  • Undue advantage of the different depth capabilities of gliders were taken
slide14
.communication to and from the gliders using IRIDIUM satellite.
  • Due to more frequent inflections and higher sensor load SLOCUM gliders were recovered during the course of the experiment.
  • After recovery ,gliders battery packs were replaced system re-ballasted, checked out and readied for deployment.
  • A real time operational display was made available at the control center at MBARI.
slide15
The display was improved during the course of the expt. (display was automated)
  • FINDINGS
  • Gliders sometimes advanced marginally over the course of some several hours
  • Far above its theoretical limits
  • This phenomenon was observed 3-4 times
slide16

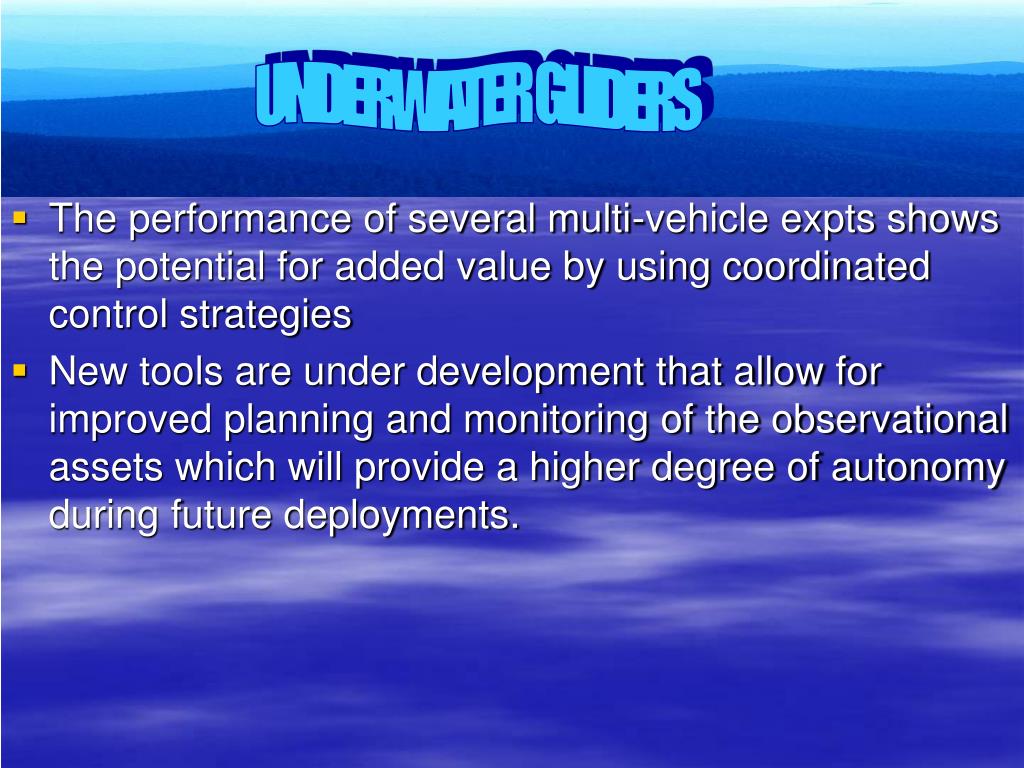

UNDERWATER GLIDERS

  • The performance of several multi-vehicle expts shows the potential for added value by using coordinated control strategies
  • New tools are under development that allow for improved planning and monitoring of the observational assets which will provide a higher degree of autonomy during future deployments.
future developments and applications at theinstitute of ocean technology

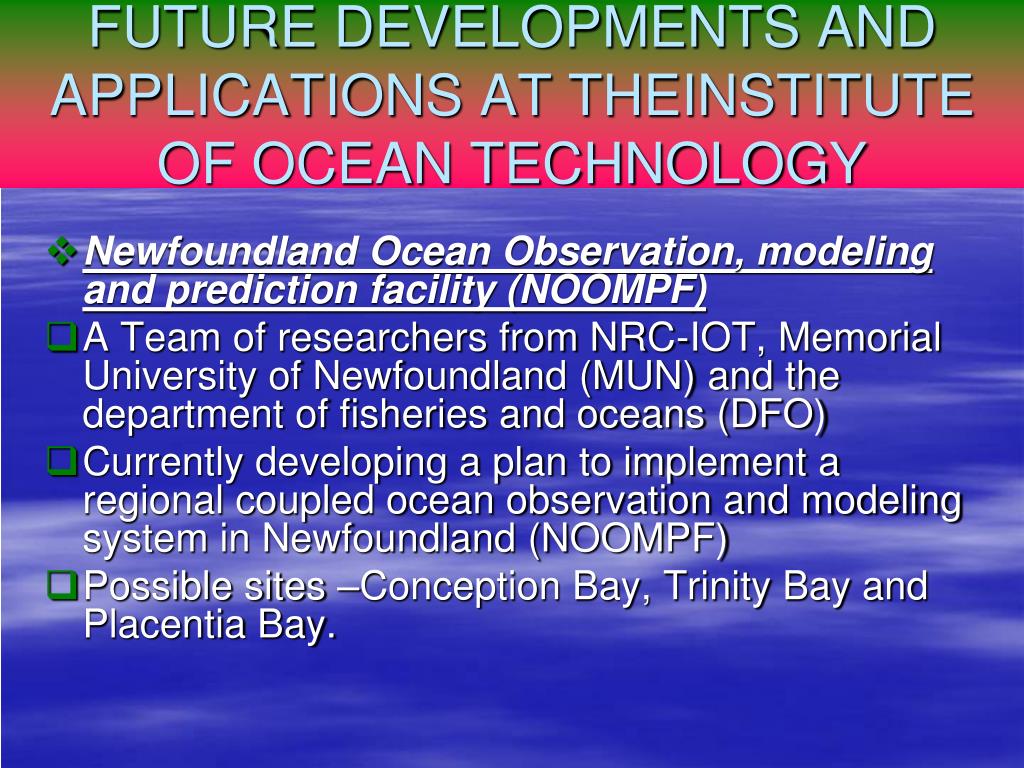

FUTURE DEVELOPMENTS AND APPLICATIONS AT THEINSTITUTEOF OCEAN TECHNOLOGY
  • Newfoundland Ocean Observation, modeling and prediction facility (NOOMPF)
  • A Team of researchers from NRC-IOT, Memorial University of Newfoundland (MUN) and the department of fisheries and oceans (DFO)
  • Currently developing a plan to implement a regional coupled ocean observation and modeling system in Newfoundland (NOOMPF)
  • Possible sites –Conception Bay, Trinity Bay and Placentia Bay.
slide18

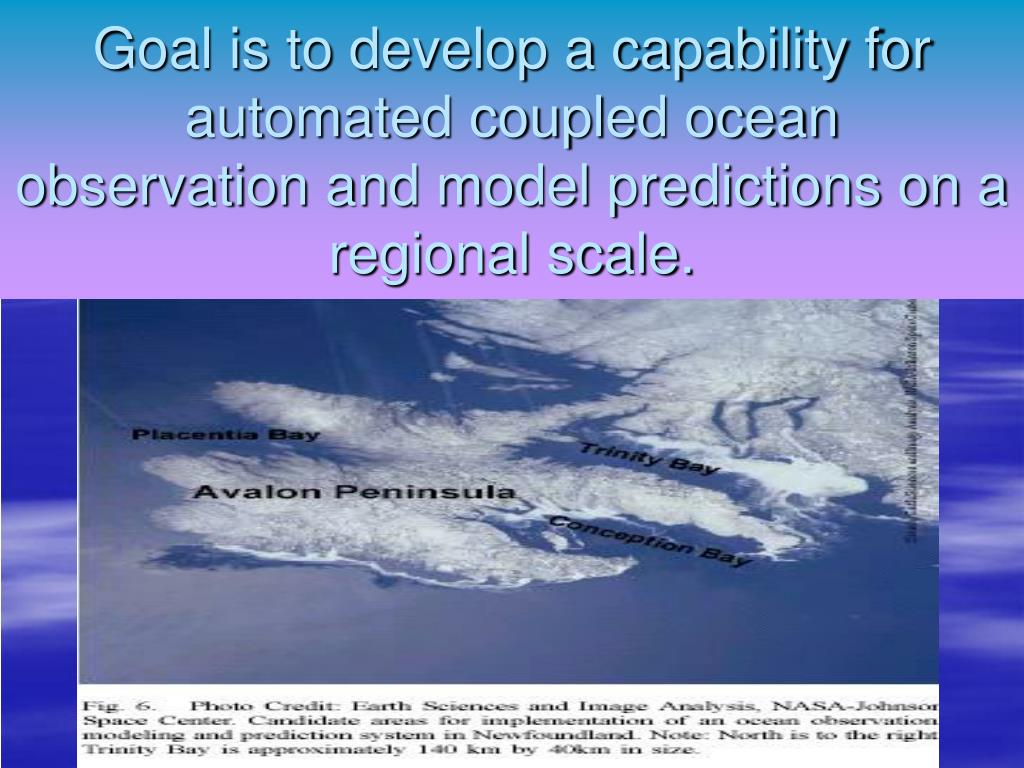

Goal is to develop a capability for automated coupled oceanobservation and model predictions on a regional scale.
slide19

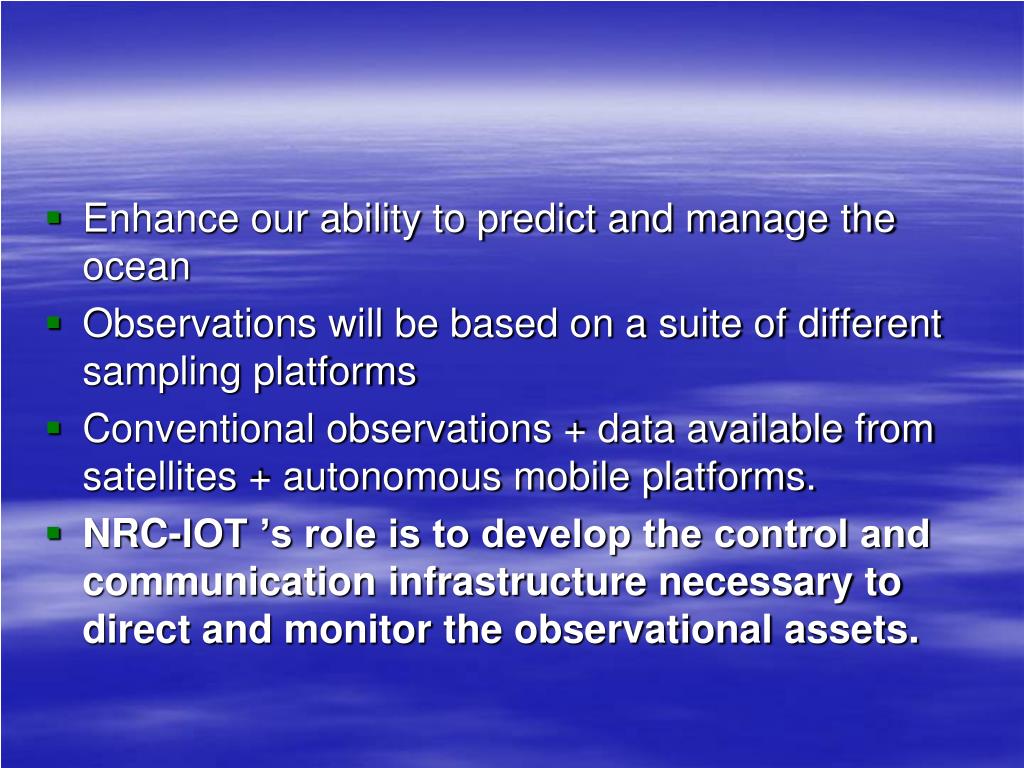

Enhance our ability to predict and manage the ocean
  • Observations will be based on a suite of different sampling platforms
  • Conventional observations + data available from satellites + autonomous mobile platforms.
  • NRC-IOT ’s role is to develop the control and communication infrastructure necessary to direct and monitor the observational assets.
slide20

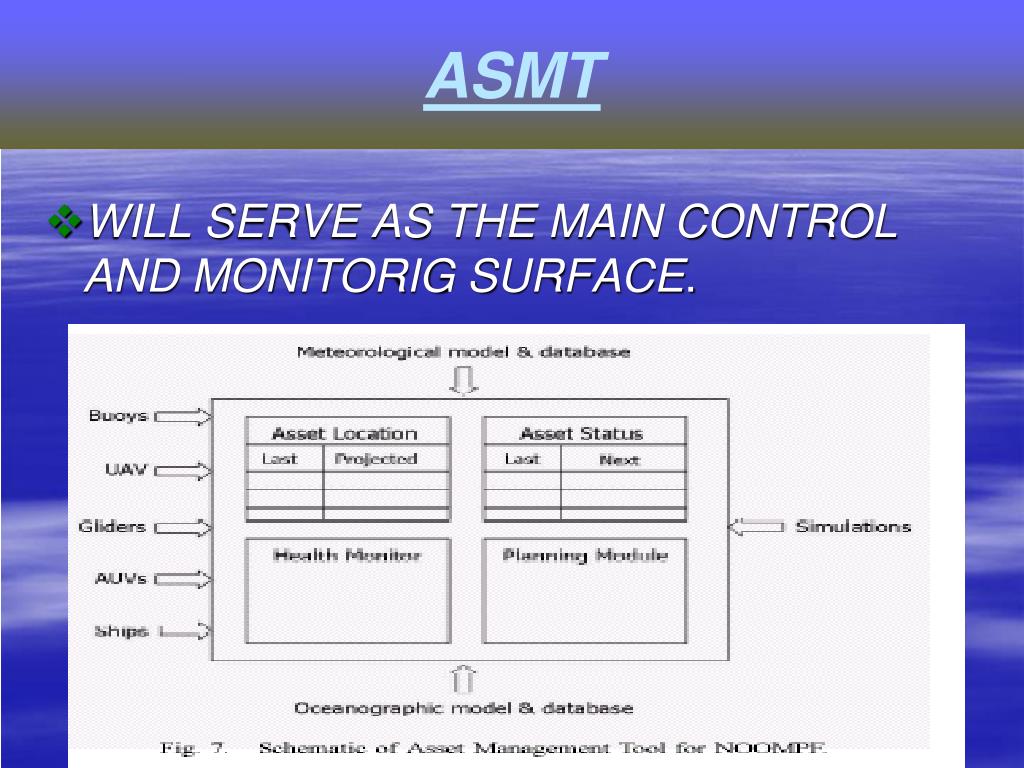

ASMT
  • WILL SERVE AS THE MAIN CONTROLAND MONITORIG SURFACE.
laboratory scale glider
LABORATORY SCALE GLIDER
  • NRC-IOT is considering developing a lab. Scale glider
  • Purpose of a lab. Scale glider is to conduct expts. for hydrodynamic testing and control and to provide a test –bed for new actuation and flow sensing technologies
  • Design alternatives and constraints of a buoyancy engine
  • Vertical motion tests
  • After completion of design of buoyancy engine –hydrodynamic design of the glider
conclusion

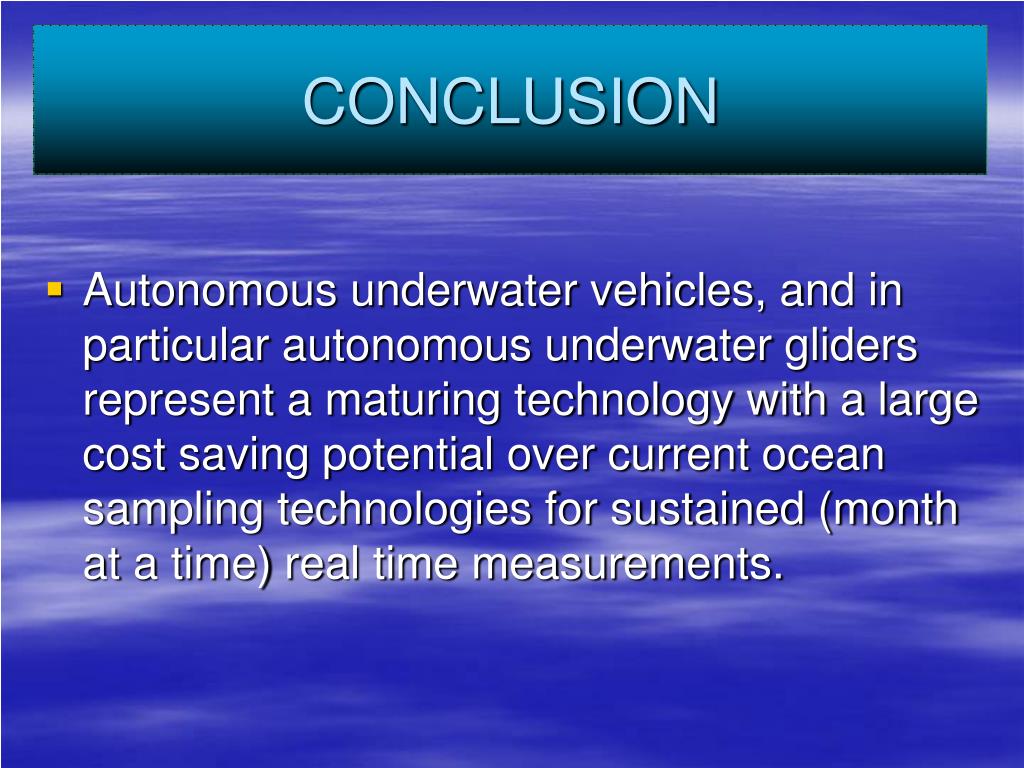

CONCLUSION
  • Autonomous underwater vehicles, and in particular autonomous underwater gliders represent a maturing technology with a large cost saving potential over current ocean sampling technologies for sustained (month at a time) real time measurements.
