  1. UNDERWATER GLIDERS

  2. CONTENTS • Introduction • Topics dealt with… • Underwater gliders • Working of an underwater glider • Applications • Objective of the experiment • Glider operations • Future developments and applications at the Institute Of Ocean Technology • ASMT • Laboratory scale glider • Conclusion • Thank you…

  3. INTRODUCTION • Sampling of oceans has traditionally been conducted from ships. • HMS challenger(1872-1876). • Took an awesome period of 23yrs.to compile the results. • Emergence of alternative technologies • Has brought us a long way from the “CHALLENGER CRUISE”.

  4. TOPICS DEALT WITH… • AUVs ( Autonomous underwater vehicles) • AOSN-2 field expt in Monterey bay, California. • Current efforts to develop a laboratory scale glider.

  5. Underwater gliders • Represent a rapidly maturing technology • Large cost saving potential

  6. Working of an Underwater Glider • Buoyancy engine to change their weight in water. • Generation of hydrodynamic lift and drag forces • Closed loop control of attitude and depth- performed by an on-board computer that executes a pre-programmed mission while submerged

  7. A receiver to compare the position with the desired position from the mission plan • Position error used to compute the average current flow encountered…… which is used to correct the dive parameters for the next dive cycle. • Communication at the surface using an IRIDIUM satellite connection.

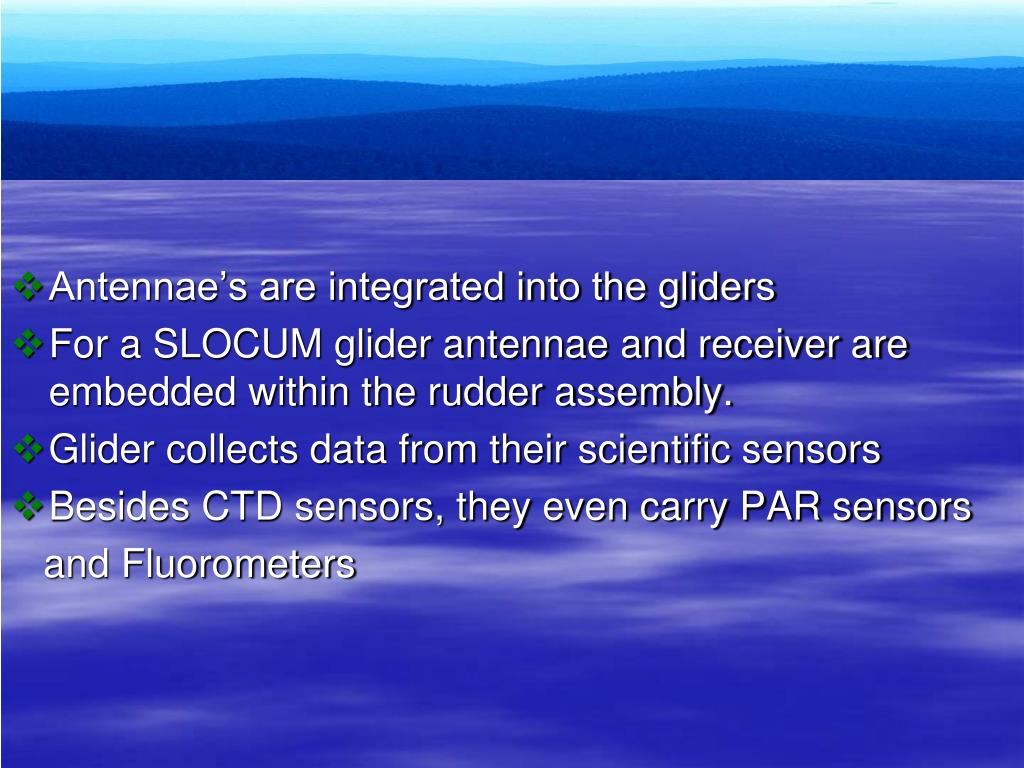

  8. Antennae’s are integrated into the gliders • For a SLOCUM glider antennae and receiver are embedded within the rudder assembly. • Glider collects data from their scientific sensors • Besides CTD sensors, they even carry PAR sensors and Fluorometers

  9. APPLICATIONS • Autonomous Ocean Sampling Network 2-Monterey Bay 2003 • Conducted during the summer of 2003 in Monterey Bay, California • Bay was chosen for its accessibility, resident research institutions with on site hardware (ships, airplanes, AUVs) and its interesting bathymetry.

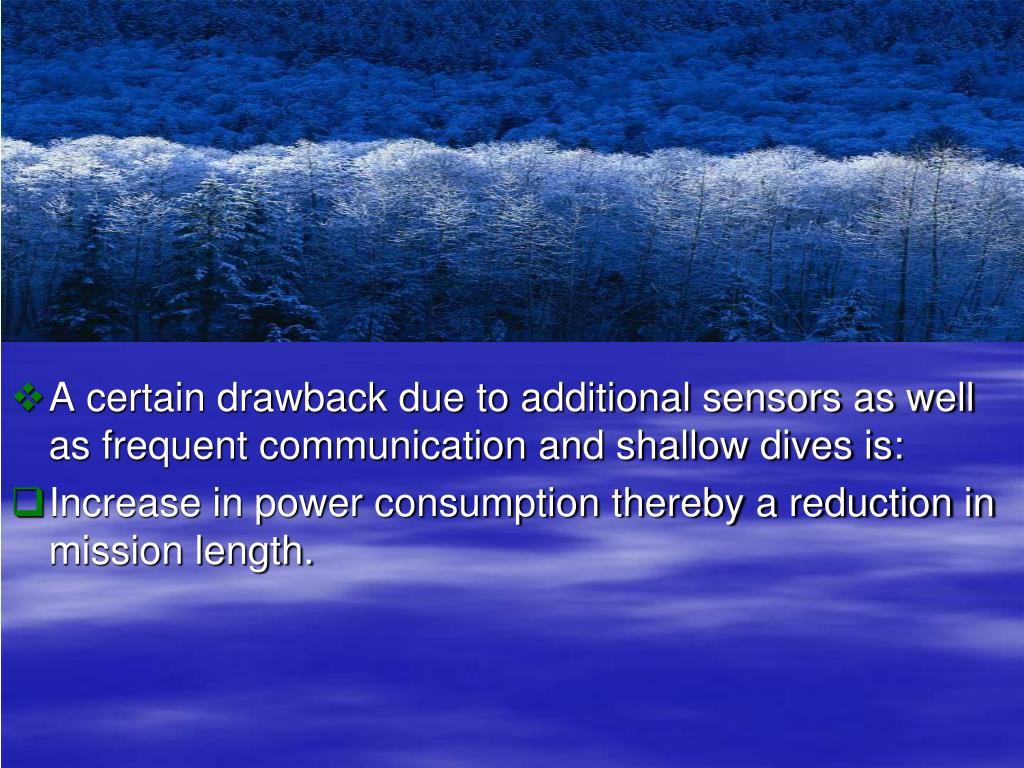

  10. A certain drawback due to additional sensors as well as frequent communication and shallow dives is: • Increase in power consumption thereby a reduction in mission length.

  11. OBJECTIVE OF THE EXPERIMENT • To demonstrate the feasibility of an integrated ocean observation ,modeling and prediction system. • This expt differs from the previous efforts because of its high degree of system integration

  12. GLIDER OPERATIONS • Two types of gliders were available: SPRAY gliders & SLOCUM gliders • Prior to the expt all gliders were shipped to the MBARI in Moss landing, California. • Sensor data were closely monitored during the course of the experiment. • Undue advantage of the different depth capabilities of gliders were taken

  13. .communication to and from the gliders using IRIDIUM satellite. • Due to more frequent inflections and higher sensor load SLOCUM gliders were recovered during the course of the experiment. • After recovery ,gliders battery packs were replaced system re-ballasted, checked out and readied for deployment. • A real time operational display was made available at the control center at MBARI.

  14. The display was improved during the course of the expt. (display was automated) • FINDINGS • Gliders sometimes advanced marginally over the course of some several hours • Far above its theoretical limits • This phenomenon was observed 3-4 times

  15. UNDERWATER GLIDERS • The performance of several multi-vehicle expts shows the potential for added value by using coordinated control strategies • New tools are under development that allow for improved planning and monitoring of the observational assets which will provide a higher degree of autonomy during future deployments.

  16. FUTURE DEVELOPMENTS AND APPLICATIONS AT THEINSTITUTEOF OCEAN TECHNOLOGY • Newfoundland Ocean Observation, modeling and prediction facility (NOOMPF) • A Team of researchers from NRC-IOT, Memorial University of Newfoundland (MUN) and the department of fisheries and oceans (DFO) • Currently developing a plan to implement a regional coupled ocean observation and modeling system in Newfoundland (NOOMPF) • Possible sites –Conception Bay, Trinity Bay and Placentia Bay.

  17. Goal is to develop a capability for automated coupled oceanobservation and model predictions on a regional scale.

  18. Enhance our ability to predict and manage the ocean • Observations will be based on a suite of different sampling platforms • Conventional observations + data available from satellites + autonomous mobile platforms. • NRC-IOT ’s role is to develop the control and communication infrastructure necessary to direct and monitor the observational assets.

  19. ASMT • WILL SERVE AS THE MAIN CONTROLAND MONITORIG SURFACE.

  20. LABORATORY SCALE GLIDER • NRC-IOT is considering developing a lab. Scale glider • Purpose of a lab. Scale glider is to conduct expts. for hydrodynamic testing and control and to provide a test –bed for new actuation and flow sensing technologies • Design alternatives and constraints of a buoyancy engine • Vertical motion tests • After completion of design of buoyancy engine –hydrodynamic design of the glider

  21. CONCLUSION • Autonomous underwater vehicles, and in particular autonomous underwater gliders represent a maturing technology with a large cost saving potential over current ocean sampling technologies for sustained (month at a time) real time measurements.

  22. THANK YOU.
