  1. AV Control System Efficient Multimedia System Integrator & Controller

  2. INTRODUCTION AV Control System is a practical multimedia integrator which can integrate 2 VGA and 4 AV devices and control via sensor panel. With long-distance supportive VGA/Audio receiver, it can broadcast integrated sources to many outputs with maximum 300 meters over CAT5 cable. Except broadcasting source switching, built-in IR function allows user directly command AV devices without using original remote controller. Hence multimedia total control environment can be easily achieved in education, conference, digital signage, broadcasting, public speaking etc.

  3. FEATURES • Multimedia Integration: Powerful system combination to integrate 2 VGA and 4 AV devices. • Convert 4 AV to VGA signal: AV control can convert 4 AV inputs signals to VGA signal easily. • Total Control Panel: Total control all connected AV devices by only one high-quality sensor panel. • IR learning: AV Control can learn 4 AV devices’ remote controllers and centrally manipulate them by the sensor panel only. • Matrix-Switch Broadcasting: Easily and instantly project appointed signal to output source like LCD/Projector. • VGA/audio extension in remote: AV control can extend VGA/Audio signals far away in different lengths up to 300 meters and 1920*1080(100M). • Masters don’t need to take so many remote controllers on the hands to easy the operation(play, forward, rewind…).

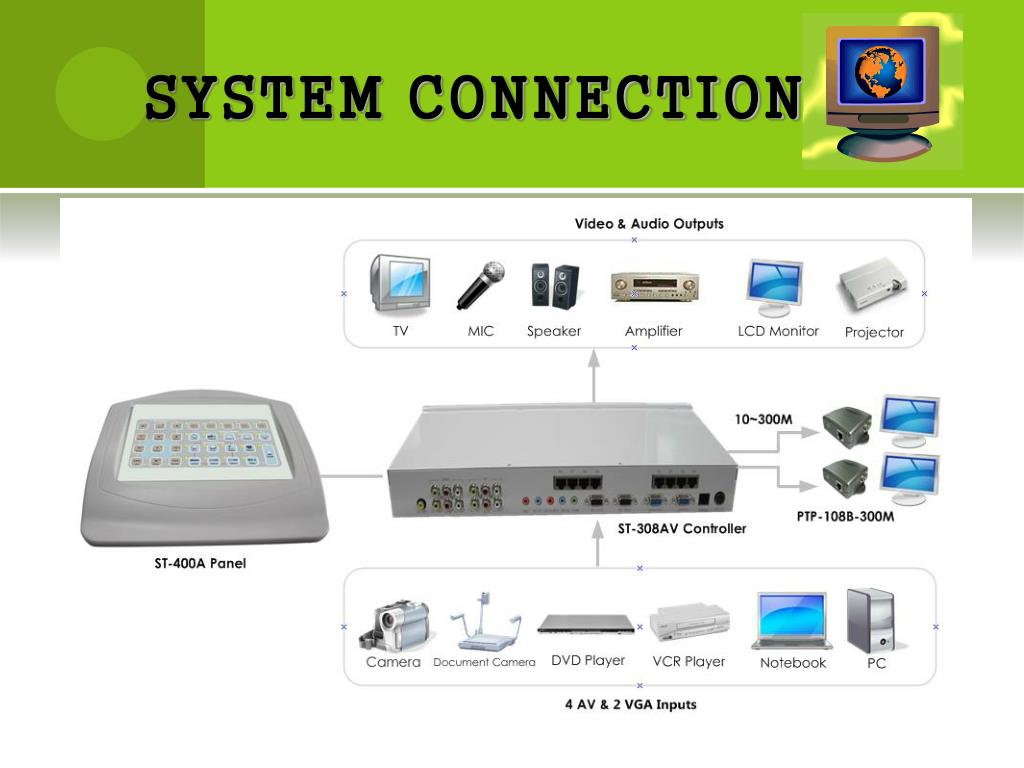

  4. SYSTEM CONNECTION

  5. SENSOR PANEL

  6. PANEL FUNCTION • Output Select - Selecting target output to broadcast to LCD(master screen), projector, all terminal displays, or group terminal displays • Source Select - Choose broadcasting source from PC1, PC2, and Video 1~4. • Darken - Darken all terminal’ screen. • Mute - Audio control to mute or un-mute broadcasting source. • Break - Return to original status. • IR Control - Learn 12 control keys of integrated AV devices.

  7. SPECIFICATION

  8. CASE STUDY

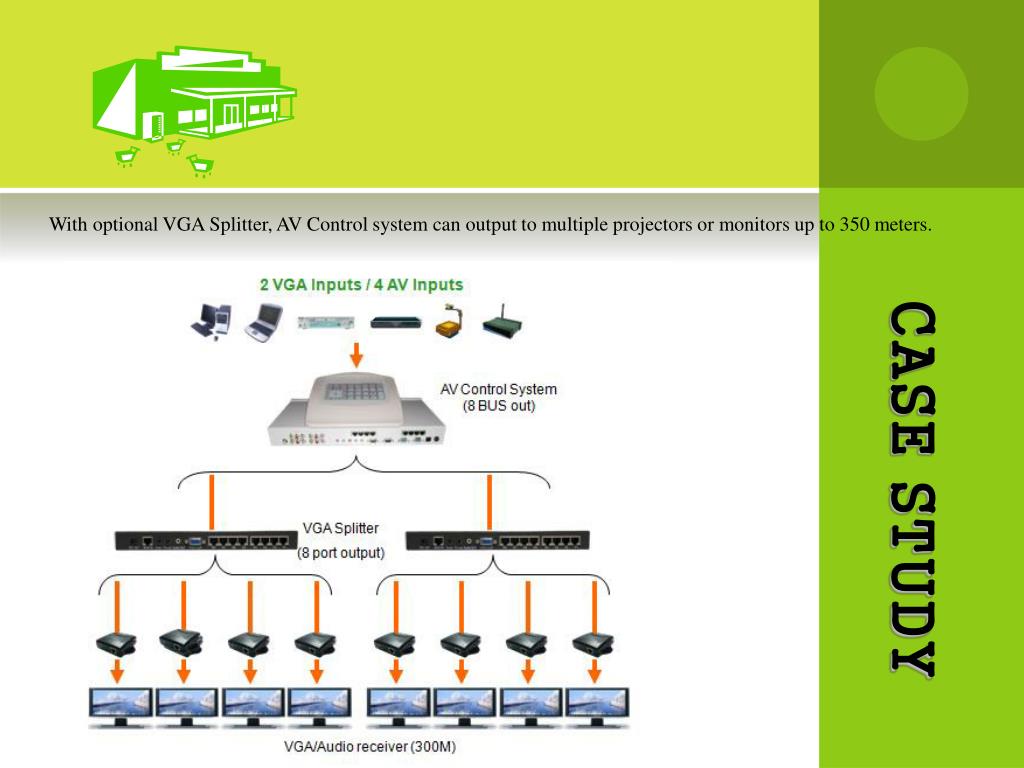

  9. With optional VGA Splitter, AV Control system can output to multiple projectors or monitors up to 350 meters. CASE STUDY

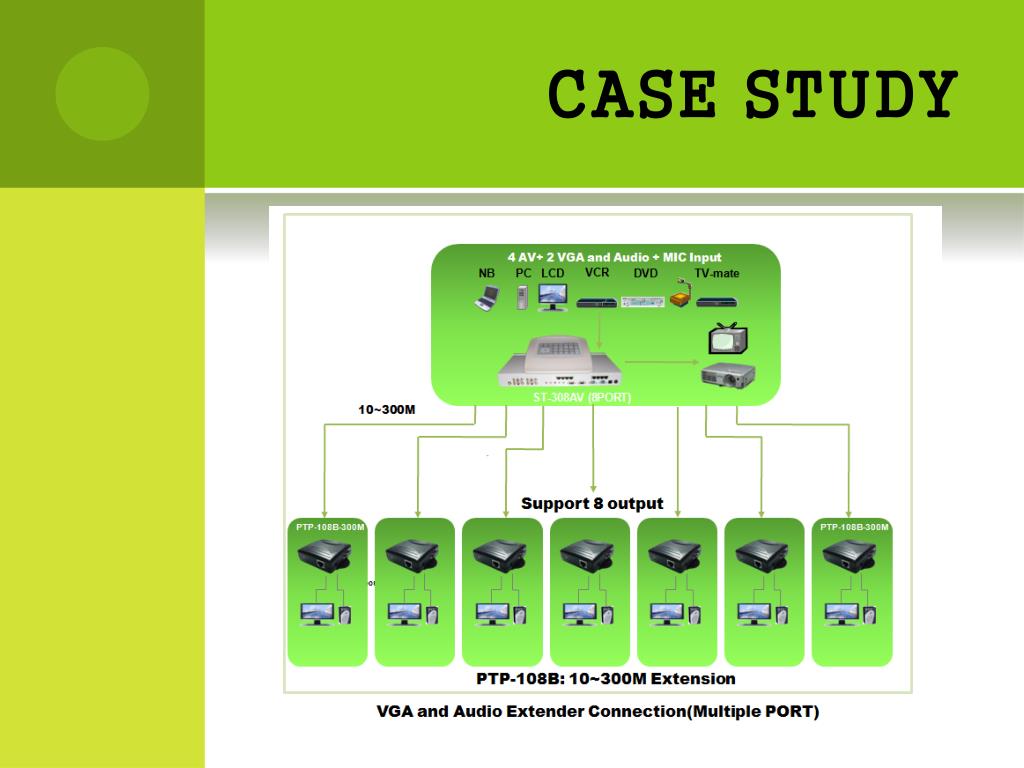

  10. CASE STUDY

  11. APPLICATION EDUCATION CONFERENCE DIGITAL SIGNAGE
