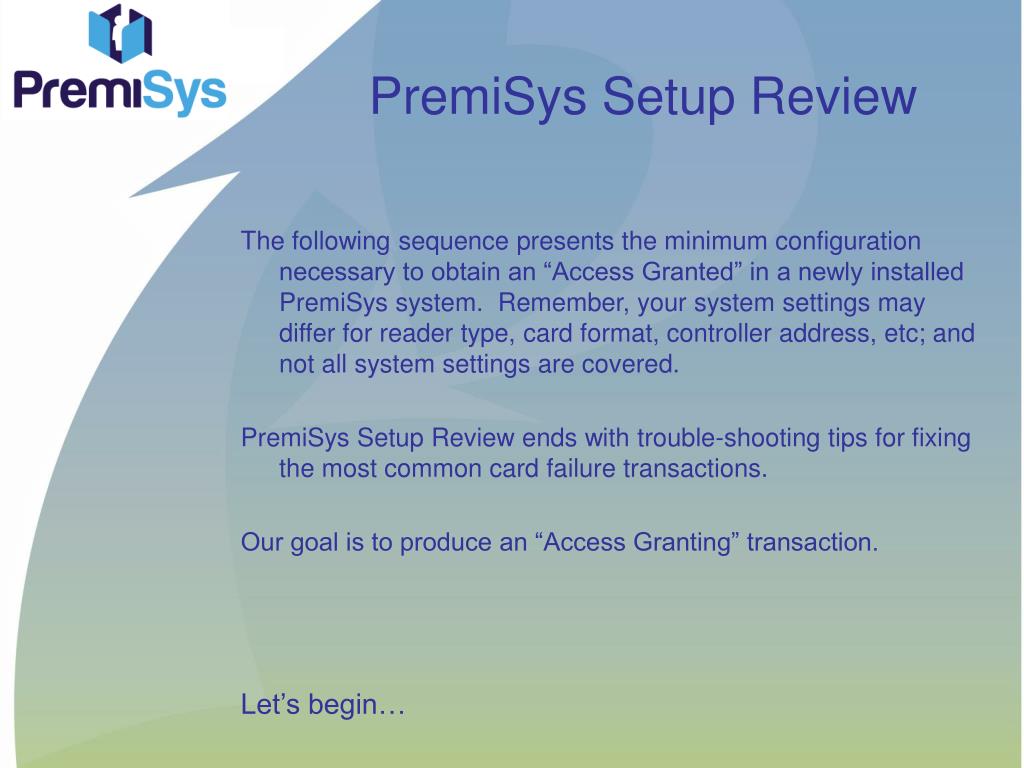

PremiSys Setup Review. The following sequence presents the minimum configuration necessary to obtain an “Access Granted” in a newly installed PremiSys system. Remember, your system settings may differ for reader type, card format, controller address, etc; and not all system settings are covered.
Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.
The following sequence presents the minimum configuration necessary to obtain an “Access Granted” in a newly installed PremiSys system. Remember, your system settings may differ for reader type, card format, controller address, etc; and not all system settings are covered.
PremiSys Setup Review ends with trouble-shooting tips for fixing the most common card failure transactions.
Our goal is to produce an “Access Granting” transaction.
First-Time Users: Please press <Enter> to move from start to finish. Press <Backspace> at any point to back up.
Returning Users: Click a topic name below to jump ahead
Go to Access Settings
Create 24/7 Time Zone
Activate Card Format
Configure Card Database
Add I/O Board
Set up Access Group
Assign Card Access Rights

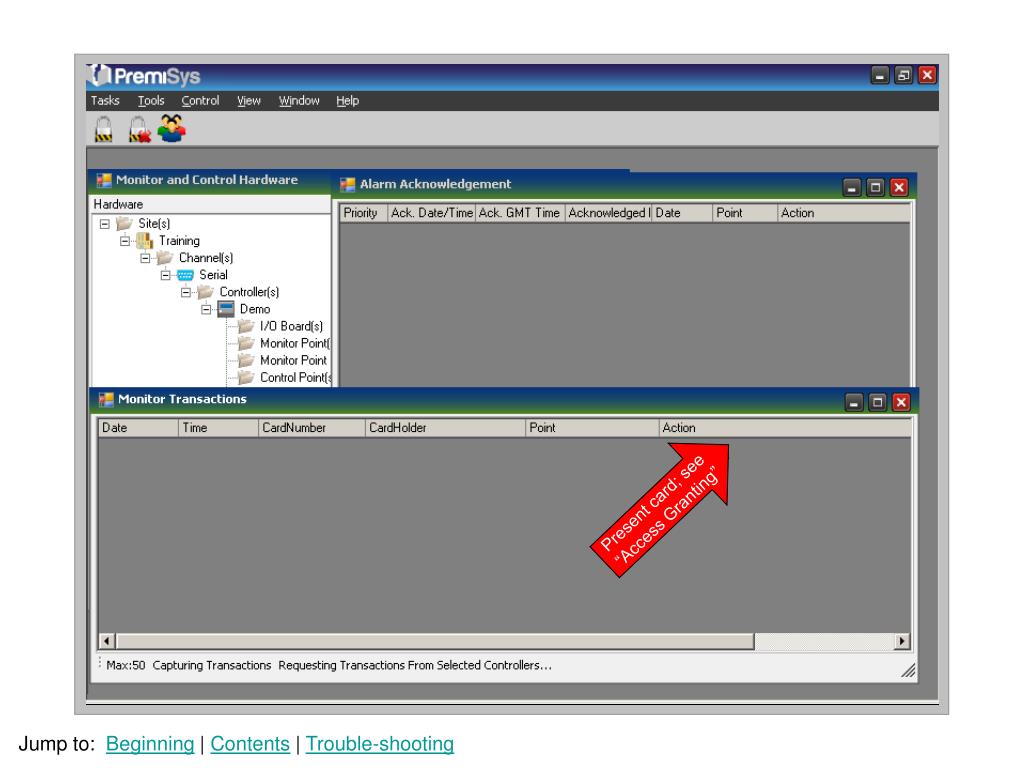

Test the CardTrouble-shooting Tips
No transactions at all – download (also required after system setting changes)
Reader beeps, but no transactions appear – check Weigand pulse in reader setup
“Invalid Card Format” – check card format setup, confirm format is assigned to door
“Invalid Site Code” – check door’s card format(s), update format w/correct site code
“Card not in Controller” – assign the card number to a cardholder
“Card has no access at anytime” – assign an access group to the card
“Access denied: Invalid time” – check time zone and/or access level settings
Can’t find cardholder to update card – Go to navigator, click , search by name
Card database error – create/modify one and/or assign one to the controller
Wrong lock relay, door position input, and/or RTE are associated with the reader – “Generate Door” feature assumes the first reader’s associated points are: first relay is door lock; first input is RTE; second input is door position. (If different, update settings in the “Door” tab in the door setup window.)Trouble-shooting Tips
