introduction
Introduction
  • Sheet metal forming is a process that materials undergo permanent deformation by cold forming to produce a variety of complex three dimensional shapes.
  • The process is carried out in the plane of sheet by tensile forces with high ratio of surface area to thickness.
  • Friction conditions at the tool-metal interface are very important and controlled by press conditions, lubrication, tool material and surface condition, and strip surface condition.
classification of sheet metal parts based on contour
Classification of sheet metal parts (based on contour)

1) Singly curved parts

2) Contoured flanged parts, i.e., parts with stretch flanges and shrink flanges.

3) Curved sections.

4) Deep-recessed parts, i.e., cups and boxes with either vertical or sloping walls.

5) Shallow-recessed parts, i.e., dish-shaped, beaded, embossed and corrugated parts.

classification of sheet metal forming based on operations

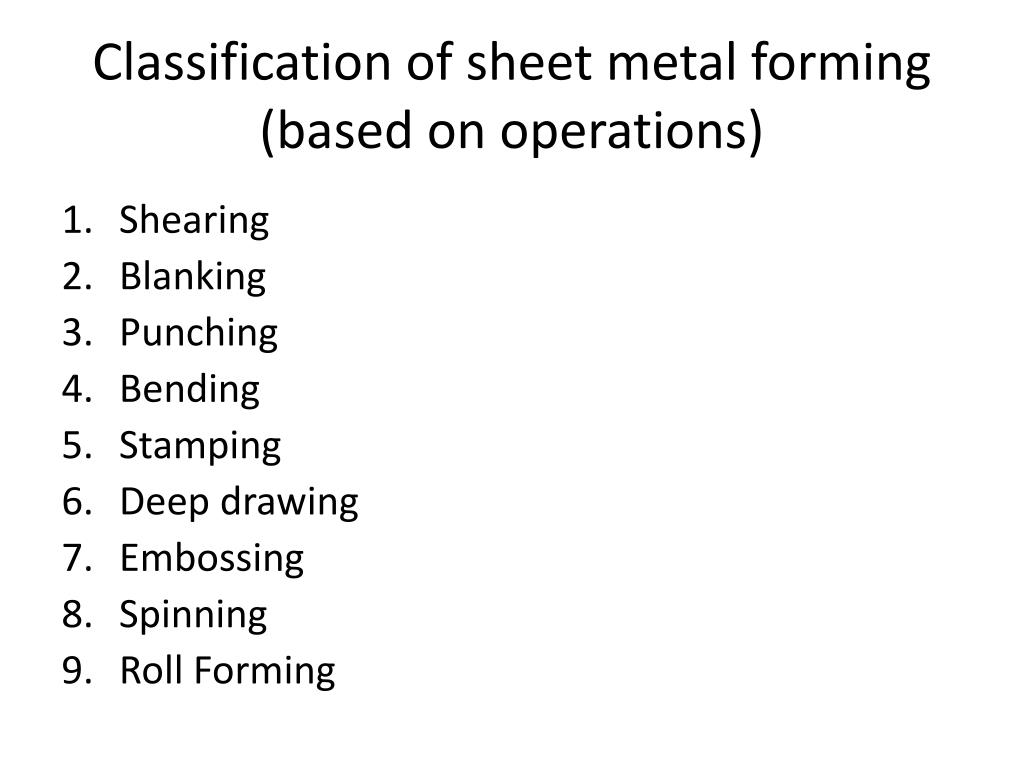

Classification of sheet metal forming (based on operations)
  • Shearing
  • Blanking
  • Punching
  • Bending
  • Stamping
  • Deep drawing
  • Embossing
  • Spinning
  • Roll Forming
forming machines
Forming machines

Press

A press is a machine used for performing most of the cold working operations.

  • Rigid Machine Frame
  • Press Tools
  • Ram
  • Power Source and Mechanism
  • Die Assy
  • Press Accessories
types of press
Types of Press
  • Source of Power
    • Manual Press
    • Mechanical Press
    • Hydraulic Press
    • Pneumatic Press
slide7

Mechanical presses

  • energy stored in a flywheel is transferred to the movable slide on the down stroke of the press.
  • quick - acting , short stroke.

Hydraulic presses

  • slower - acting, longer stroke.
2 actions of presses
2.Actions of presses

According to number of slides, which can be operated independently of each other.

1) Single - action press

- one slide

- vertical direction

2) Double - action press

- two slides

- the second action is used to operated the hold-down, which prevents wrinkling in deep drawing.

3) Triple - action press

- two actions above the die, one action below

3 method of transmitting power to ram
3. Method of transmitting power to ram
  • Crank shaft and connecting rod system
  • Cam
  • Eccentric
  • Toggle joint
  • Knuckle joint
  • Rack and Pinion
  • Screw
  • Gears
slide11

4. Position of the Ram

  • Vertical
  • Inclined

5. Use

Blanking press, embossing press, Drawing press etc.

6 design of frame
6. Design of Frame

7. Capacity or Size

die assembly
Die Assembly
  • Die Block
  • Die retainer & Die shoe
  • Stripper
  • Punch
  • Punch retainer & Punch pad
  • Pressure Plate
  • Punch Holder
  • Guide Pillars
  • Stock Guide
classification of die
Classification of Die
  • Single Operation Die
    • Cutting Die
    • Forming Die
  • Multi Operation Die
    • Compound Die
    • Progressive Die
    • Transfer Die
single operation die
Single Operation Die

Cutting Die

Forming Die

multi operation die1
Multi Operation Die

Progressive Die

  • Punches and dies are designed so that successive stages in the forming of the part are carried out in the same die on each stroke of the press.
  • The strip is fed from left to right.
  • The first punch is to make the hole of the washer.
  • The washer is then blanked from the strip.
  • The punch A is piercing the hole for the next washer.
bending process1
Bending Process
  • A process by which a straight length is transformed into a curved length.
  • Produce channels, drums, tanks.
bending operation
Bending Operation

V-Die Bending

press brake forming
Press Brake Forming
  • A single action press with a very long narrow bed.

• Used to form long, straight bends in pieces such as channels and corrugated sheets.

press brake forming1
Press Brake Forming
  • A single action press with a very long narrow bed.

• Used to form long, straight bends in pieces such as channels and corrugated sheets.

method of bending
Method of Bending
  • Three-roll bender:
  • Wiper-type bender:
  • Wrap forming:
spring back
Spring Back
  • Springback - the elastic recovery of the material after unloading of the tools
  • To compensate with the unbending action of the springback, the metal should be slightly overbent.
slide54

Shaving

  • finishing operation in which a small amount of metal is sheared away from the edge of an already blanked part
  • can be used to produce a smoother edge
