4 time study l.jpg

4. Time Study

The major objective of this chapter is to learn how to calculate a time standard based on stopwatch time study procedures.


Time study l.jpg
Time Study

  • A process for measuring the required time for performing a given task, by a given method, by a trained worker, working in a normal pace.

  • Why needed?

    • For methods improvement

    • For determining time standards


Needs for time standard l.jpg
Needs for Time Standard

  • Developing schedules

  • Determining wage payment plans

  • Estimating production costs

  • Providing a base for estimating productivity goals

  • Appraising employee performance

  • Evaluating alternative process, equipment


Methods for creating time standards l.jpg
Methods for Creating Time Standards

  • Direct time study

    • Cyclic work

    • Non cyclic work

  • Work sampling

  • Synthetic data

    • Predetermined times



Direct time study l.jpg
Direct Time Study

  • Methods improvement

  • Selection of the examined workers

  • Explanation (union, managers, workers)

  • Collecting and recording information

  • Task division into elements


Methodology l.jpg
Methodology

  • Who to choose?

    • Select an Average Worker (What is average?)

    • Experienced operator

    • Normal pace

      • Consistency (well defined, understood by all)

      • No undue strain for entire day (speed/effort)

      • Pace that should be performed, not average of current rate

    • Rating accuracy

    • Worker acceptance

  • Can you suggest a better method?


Preparation for timing l.jpg
Preparation for Timing

  • Identify the TASK/ CYCLE to be studied before time study

  • Analyze the Complete Task

    • Method

    • Layout of workplace

    • Equipment used

    • Environmental conditions

    • Machine speeds and feeds

    • Inspection equipment

  • Communications with foreman, workers

    • Documents for process, task instructions

    • Establish relationship

  • Elemental analysis

    • Break task into elements


Fundamental definitions l.jpg
Fundamental definitions

  • What is an ELEMENT?

    • Element is a component of job or task that are logical divisions with easily identifiable starting and end points, and are repeated on a regular basis

  • What is a CYCLE?

    • Cycle is the completion of the activities (elements) required to perform the job under study.


Element analysis l.jpg
Element Analysis

  • Every element must have an easily identifiable starting and ending point (breakpoints)

  • No discontinuities between elements

  • Elements times: 0.04min (short), 0.25min (reasonable)

  • Relative frequency must be included


Timing methods l.jpg
Timing Methods

  • Continuous

    • Advantage: Clock never stops, no time omitted

    • Disadvantage: observer does not know at the job how individual elements vary

  • Snapback

    • Advantage: Observer can note individual variability within an element and eliminate substraction

    • Disadvantages: difficult to coordinate eye, watch and task! Especially when operations are short

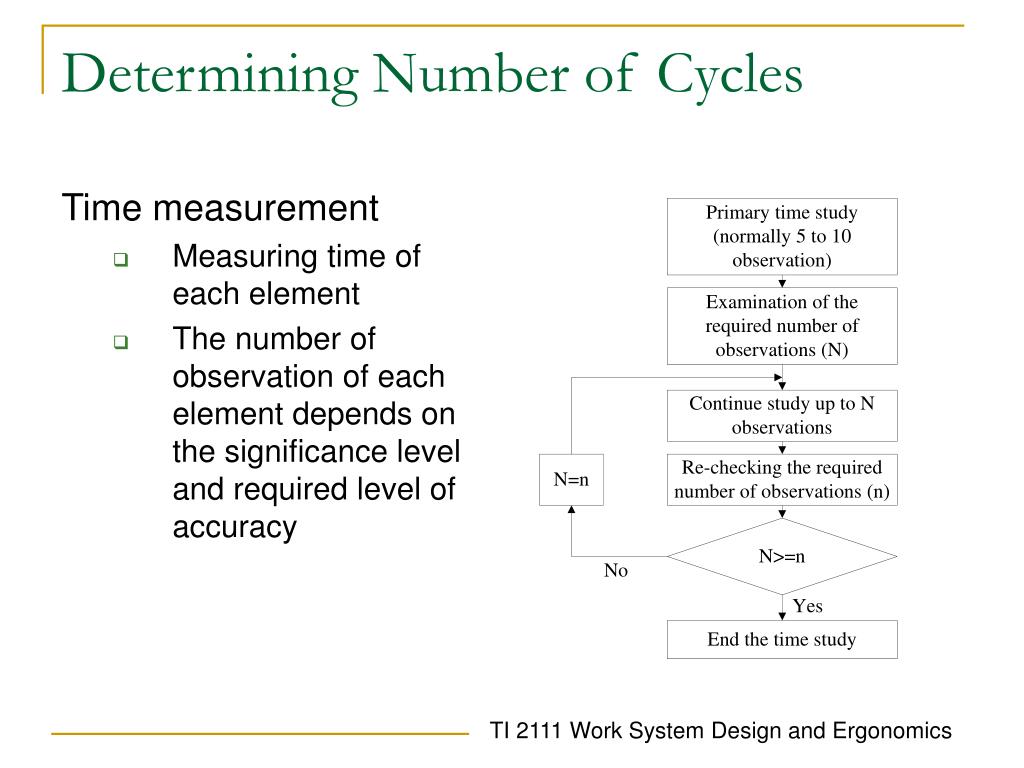

Determining number of cycles l.jpg
Determining Number of Cycles

Time measurement

  • Measuring time of each element

  • The number of observation of each element depends on the significance level and required level of accuracy




Rules for performing time study l.jpg
Rules for Performing Time Study

  • Don’t comment to the worker during the task

  • Stand (don’t sit) beside the worker

  • Write every event (even though it may seems not important)

  • Have a good position to observe

  • Stop the study if the worker seems to be under pressure and it affects his/her work


Time study on cyclic work l.jpg
Time Study On Cyclic Work

  • Rating evaluation may be written once in a couple of cycles

  • Elements times: 0.04min (short), 0.25min (reasonable)

  • Denoting non-cyclic elements

  • The breakpoint between elements should be clear (touch, push, etc.).


Types of elements l.jpg
Types of Elements

  • Manual/machine (determines the task duration)

  • Cyclic/non cyclic

  • Fixed time/ variable time (i.e. loading time as a function of weight)

  • Avoidable/unavoidable unproductive elements (sometimes hard to identify)


Time study on non cyclic work l.jpg
Time Study on Non Cyclic Work

  • Use continuous timing

  • Divide the task into relatively large elements

  • Write the evaluated performance rate at the end of each element

  • Multiply the observed time with the rate and summarize the data




Rating evaluation methods l.jpg
Rating Evaluation Methods

  • Subjective judgment

  • Practice by watching movies

  • For a study with long elements, rate each separately

  • Methods:

    • Speed rating

    • Westinghouse



Criteria for successful speed rating evaluation l.jpg
Criteria for Successful Speed Rating Evaluation

  • Experience in the class of work performed

  • Selection of an operator who gives performances between 85 and 115

  • Use of the average value of three or more independent studies


Elements of allowances l.jpg
Elements of Allowances

Personal Need

Basic Fatigue

Variable Fatigue

Unavoidable Delays

Avoidable Delays

Extra Allowances

Constant Allowances

Special Allowances

Total Allowances Allowances

+

Normal Time

=

Standard Time


Standard data systems l.jpg
Standard Data Systems

Elemental times, based on previous time studies, which have been proven to be accurate and reliable.

Tabulated element standards that allow the measurement of a specific job without the use of timing devices.


Construction cost estimating l.jpg
Construction Cost Estimating

Given we have the plans for a new building, how much labor is needed and what will it be used for?


Punch press standard data 40 strip l.jpg
Punch Press Standard Data(40” strip)

Given we have a new part to run through the punch press, what will be the standard time for the part?

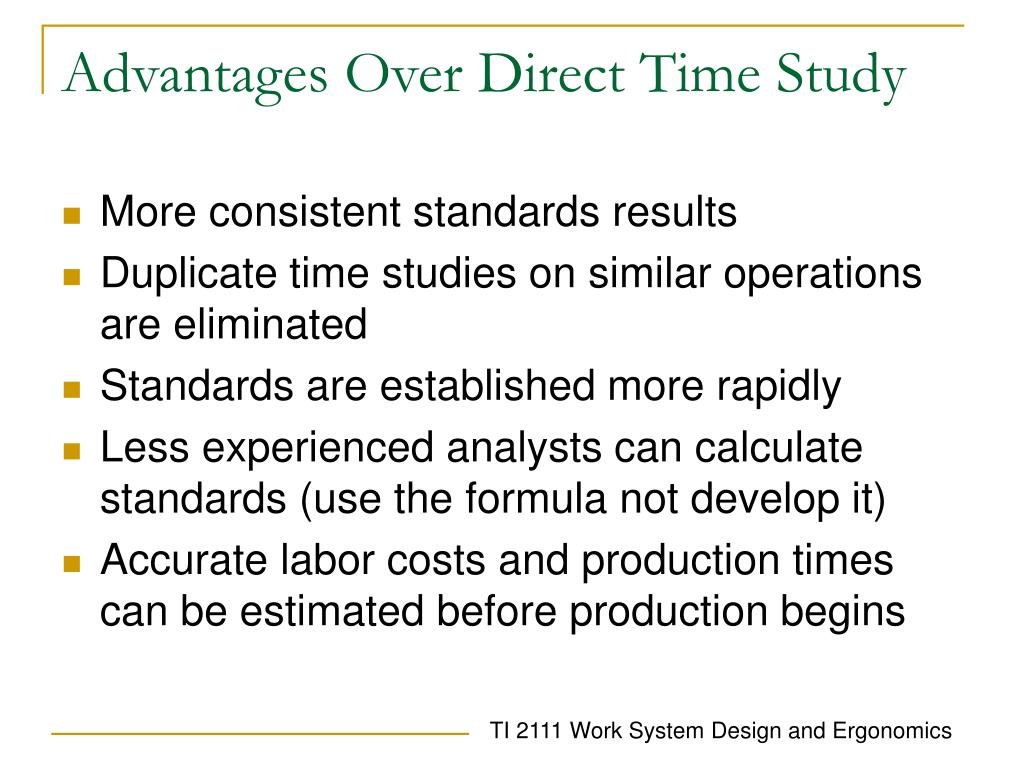

Advantages over direct time study l.jpg
Advantages Over Direct Time Study

  • More consistent standards results

  • Duplicate time studies on similar operations are eliminated

  • Standards are established more rapidly

  • Less experienced analysts can calculate standards (use the formula not develop it)

  • Accurate labor costs and production times can be estimated before production begins


To illustrate the development of standard data l.jpg

Model

Element119130220310311322329

10 0.24 0.22 0.23 0.23 0.24 0.22 0.23

20 0.38 0.35 0.35 0.37 0.36 0.36 0.37

30 12.06 10.44 8.71 6.58 10.83 6.34 7.25

40 3.66 4.81 0.00 2.79 5.84 4.55 4.10

50 0.00 1.63 1.91 1.69 1.80 1.45 0.00

60 0.12 0.12 0.13 0.11 0.14 0.14 0.13

To Illustrate the development of standard data…


Possible drivers l.jpg
Possible Drivers

ModelNT 3/4/5D1D2

119 15.72 18.00 27.25

130 16.88 23.50 33.50

220 10.62 2.50 1.50

310 11.06 3.00 7.25

311 18.47 25.00 44.00

322 12.34 12.00 18.25

329 11.35 3.00 8.00

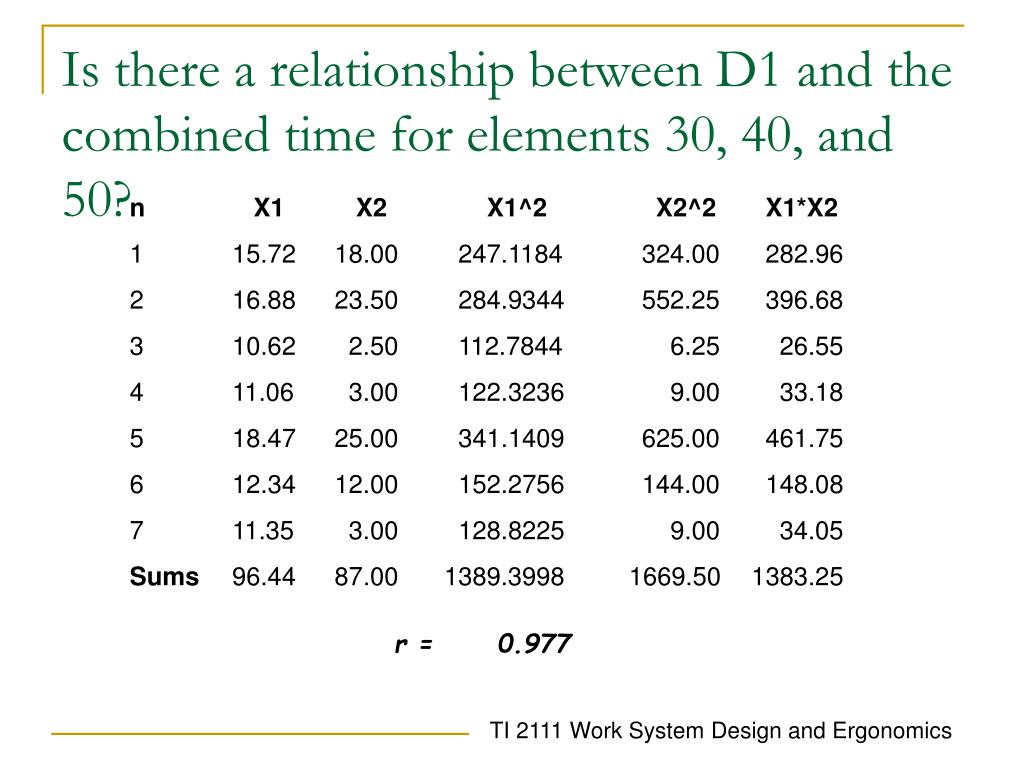

Is there a relationship between d1 and the combined time for elements 30 40 and 50 l.jpg
Is there a relationship between D1 and the combined time for elements 30, 40, and 50?

n X1 X2 X1^2 X2^2 X1*X2

1 15.72 18.00 247.1184 324.00 282.96

2 16.88 23.50 284.9344 552.25 396.68

3 10.62 2.50 112.7844 6.25 26.55

4 11.06 3.00 122.3236 9.00 33.18

5 18.47 25.00 341.1409 625.00 461.75

6 12.34 12.00 152.2756 144.00 148.08

7 11.35 3.00 128.8225 9.00 34.05

Sums 96.44 87.00 1389.3998 1669.50 1383.25

r = 0.977


Linear regression l.jpg

Y elements 30, 40, and 50?

X

Linear Regression

Y = b0 + b1X


Standard times for machining operations l.jpg
Standard Times for Machining Operations elements 30, 40, and 50?

  • How long will it take to drill a 1-inch hole through two inches of malleable cast iron?
