Presentation Transcript
slide2

Core Networking and Diagnostics Group:

  • Open Goddard and navigate to an ECU
  • Click on the “Download” button for an ECU that is in Ready for Release state
  • Click the Eng2 link and send to engineers for testing with CDA 6.

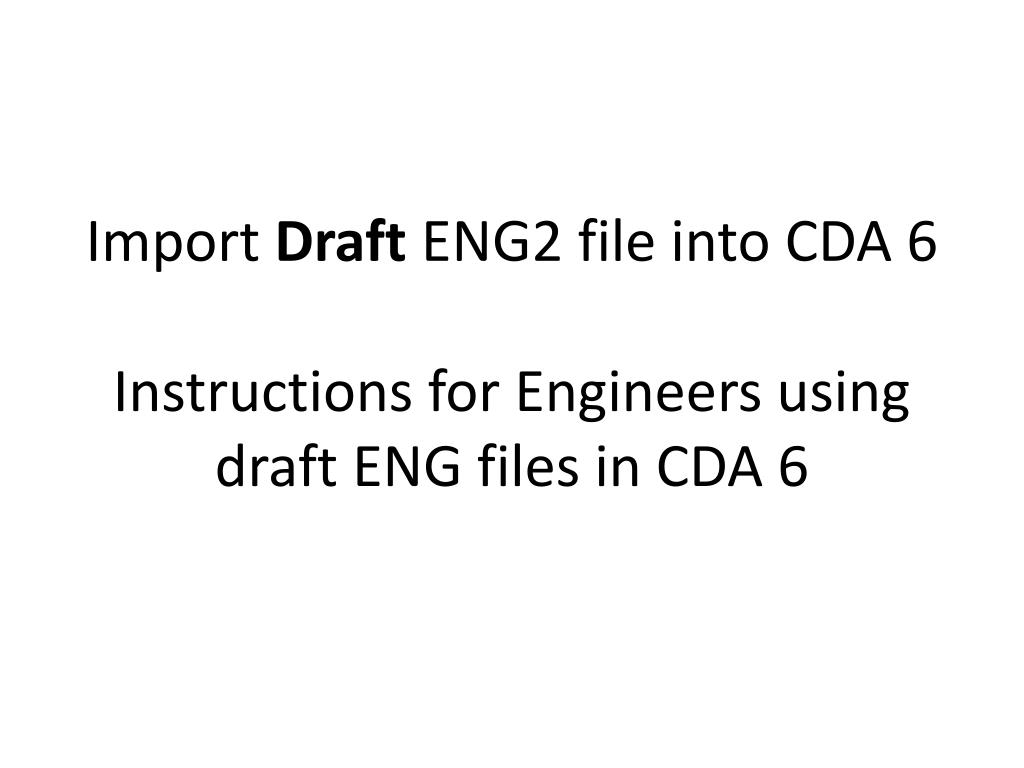

slide4

Engineers using Draft ENG files in CDA 6:

  • Open CDA 6
  • Click File -> Manage Draft Databases
  • Add Database Files as needed using the screen below
    • Note: You can remove databases from the list as well using the screen below
slide5

Engineers using Draft ENG files in CDA 6:

  • Click the “Engineering Files” side tab
  • Select the draft ENG file you want to use
    • Draft ENG files will have a pencil-paper icon next to them
  • If you don’t see the ENG file, try clicking the “Refresh” button near the top
