  1. Search CPSC 386 Artificial Intelligence Ellen Walker Hiram College

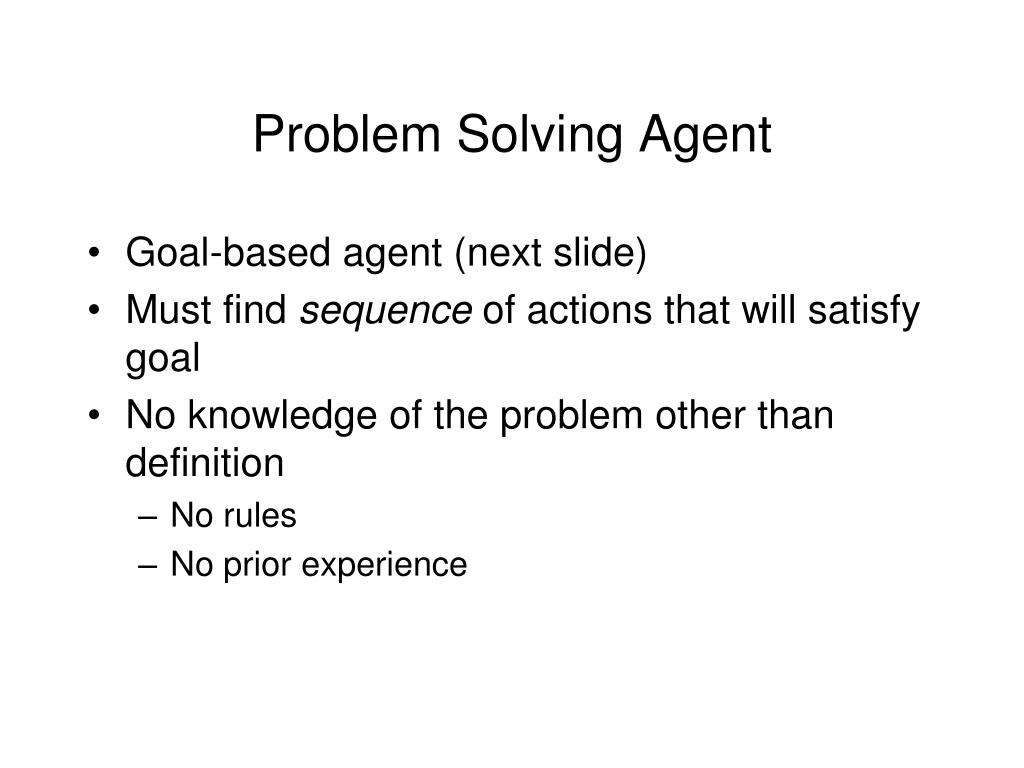

  2. Problem Solving Agent • Goal-based agent (next slide) • Must find sequence of actions that will satisfy goal • No knowledge of the problem other than definition • No rules • No prior experience

  3. Model-based, Goal Based

  4. Defining the Problem • World state • All relevant information about the world (even if it cannot be perceived) • E.g. “vacuum at left, left is dirty, right is clean” • Initial state • World state in which the agent starts • Goal state • World state in which the problem is solved (can be multiple) • Actions • What the agent can do • Table: (current state, action) -> new state • Solution • A recommended action sequence that will lead from the current state to a goal state

  5. Searching for a Solution • If the initial state is a goal state, return an empty sequence of actions • Repeat (until a sequence is found) [SEARCH] • Choose an action sequence • If the sequence leads to a goal, save it. • Repeat (until the sequence is empty) [EXECUTE] • Remove the first step from the sequence and execute it.

  6. Environmental requirements • Static • so the plan will still work later • Fully Observable • so agent knows the initial state • Discrete • so agent can enumerate choices • Deterministic • so agent can plan a sequence of actions, believing each will lead to a specific intermediate state

  7. State Space Formulation • State space • Graph of states connected by actions • Usually too big to be explicitly represented, we create a Successor Function instead • Successor (state) -> ((action state) (action state)…) • Goal test • Is this state a goal state? • Path cost • (we assume) sum of costs of actions in a path • Solution • Path from initial state to a goal state • Optimal: least-cost path from initial state to a goal state

  8. Example: Water Pouring • Problem • We have two buckets; one holds 4 gallons, and one holds 3 gallons. There are no markings on the buckets. • How can we get exactly 2 gallons into one bucket?

  9. Problem Formulation • Initial state • Two empty buckets (0 0) • Goal state • (x 2) or (2 x) • Actions & successor function • Fill a bucket • (x y) -> (3 y) or (x y) -> (x 4) • Empty a bucket • (x y) -> (0 y) or (x y) -> (y 0) • Pour from one bucket to another (stop when full) (x y) -> (0 x+y) or (x+y-4, 4) (x y) -> (x+y 0) or (3, x+y-3) • Path cost: 1 unit per step

  10. Partial State Space for Water Pouring

  11. Graph Node Formulation • State (world state at this node) • Parent-node (previous node on path) • Action (action taken to generate this node) • Path cost, g(n) (from initial state to this node) • Depth (number of steps taken so far)

  12. Generic Searching • Create a node for the initial state, and put it into the set of unexpanded nodes • While the problem is not solved… • Pick an unexpanded node [according to strategy] • Stop (and report the path) if it is a goal state • Expand it (create nodes for every possible action that can be applied to that state)

  13. Terminology • Expanded nodes (visited) • Nodes that we have already created child nodes for • Save these to avoid repetition • Fringe nodes (generated but unvisited) • Nodes that exist but we have not yet created child nodes for them.

  14. Uninformed Search Strategies • Random (if you let it run long enough) • Depth-first • Choose the most recently generated fringe node • Save fringe nodes on a stack • Breadth-first • Choose the least recently generated fringe node • Save fringe nodes on a queue • Uniform cost • Choose the least cost fringe node • Save fringe nodes on a priority queue, based on path cost

  15. Maze Example

  16. Paths with Costs C 10 A 12 5 15 B 6 D E 3 8 G 8 F 9 9 15 I 6 H J 11

  17. Variations on DFS • Backtracking search • Instead of generating all children at once and putting them on the stack, generate them one at a time • Obvious recursive implementation • Minimal space requirements, since only the current path is stored • Depth-limited search • Recursive implementation with a depth limit • If limit has been reached, return immediately • Distinguish between “cutoff” and “failure”

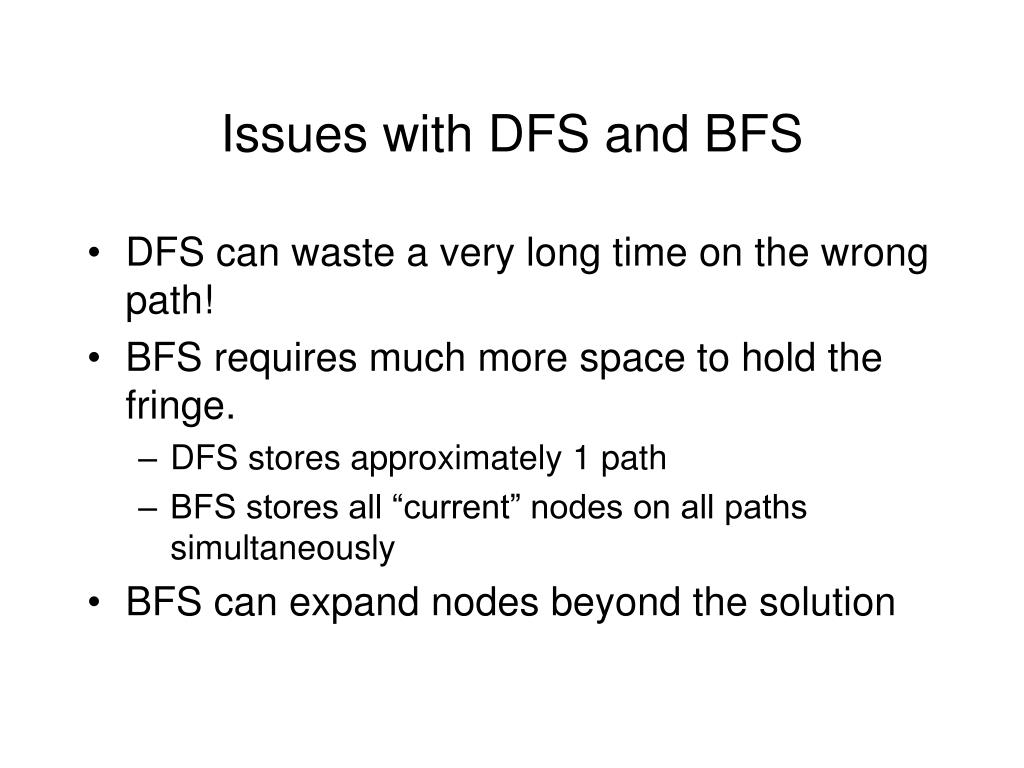

  18. Issues with DFS and BFS • DFS can waste a very long time on the wrong path! • BFS requires much more space to hold the fringe. • DFS stores approximately 1 path • BFS stores all “current” nodes on all paths simultaneously • BFS can expand nodes beyond the solution

  19. Iterative Deepening Search • Do a depth-limited search at 1, then at 2, etc. • Properties • Finds shortest path (like BFS) • Cost of additional searches isn’t much, in the big-O sense. (Because the number of nodes expanded at a level is comparable to all nodes expanded at earlier levels) • Doesn’t expand nodes beyond solution (which BFS does) • Cost is O(bd) while BFS is O(bd+1) • IDS is the preferred uninformed search method when there is a large search space and the depth of the solution is not known.

  20. Bidirectional Search • Two searches at once • Initial state toward goal state • Goal state toward initial state • Before expanding a node, see if it’s at the fringe of the other tree. • If so, you have found a complete path • 2 trees of depth d/2 have much fewer nodes than 1 tree of depth d • Space cost is high, though - one tree must be kept in memory for testing against.

  21. Evaluating Search Strategies • Completeness • Will a solution always be found if one exists? • Optimality • Will the optimal (least cost) solution be found? • Time Complexity • How long does it take to find the solution? • Often represented by # nodes expanded • Space Complexity • How much memory is needed to perform the search? • Represented by max # nodes stored at once
