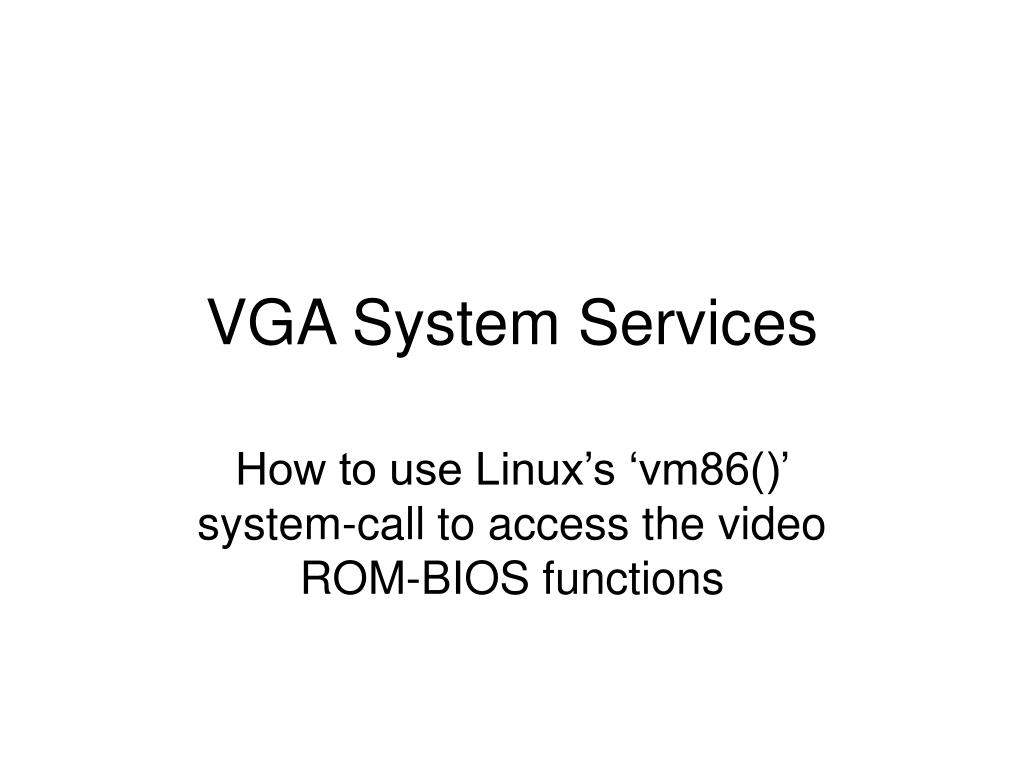

  1. VGA System Services How to use Linux’s ‘vm86()’ system-call to access the video ROM-BIOS functions

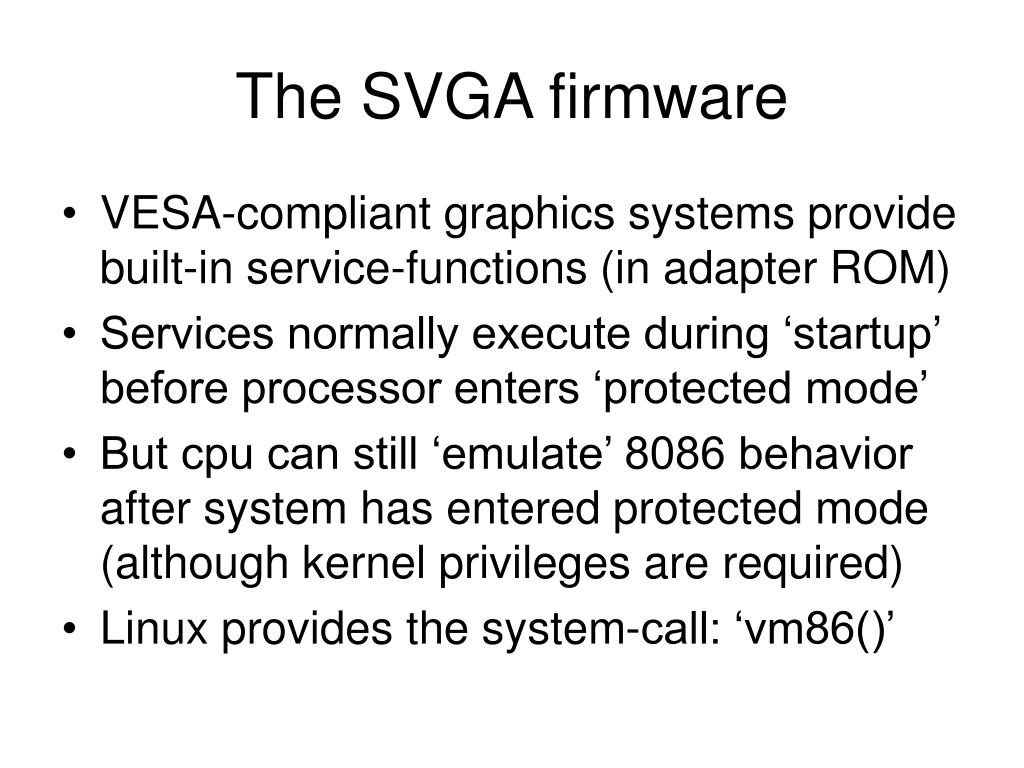

  2. The SVGA firmware • VESA-compliant graphics systems provide built-in service-functions (in adapter ROM) • Services normally execute during ‘startup’ before processor enters ‘protected mode’ • But cpu can still ‘emulate’ 8086 behavior after system has entered protected mode (although kernel privileges are required) • Linux provides the system-call: ‘vm86()’

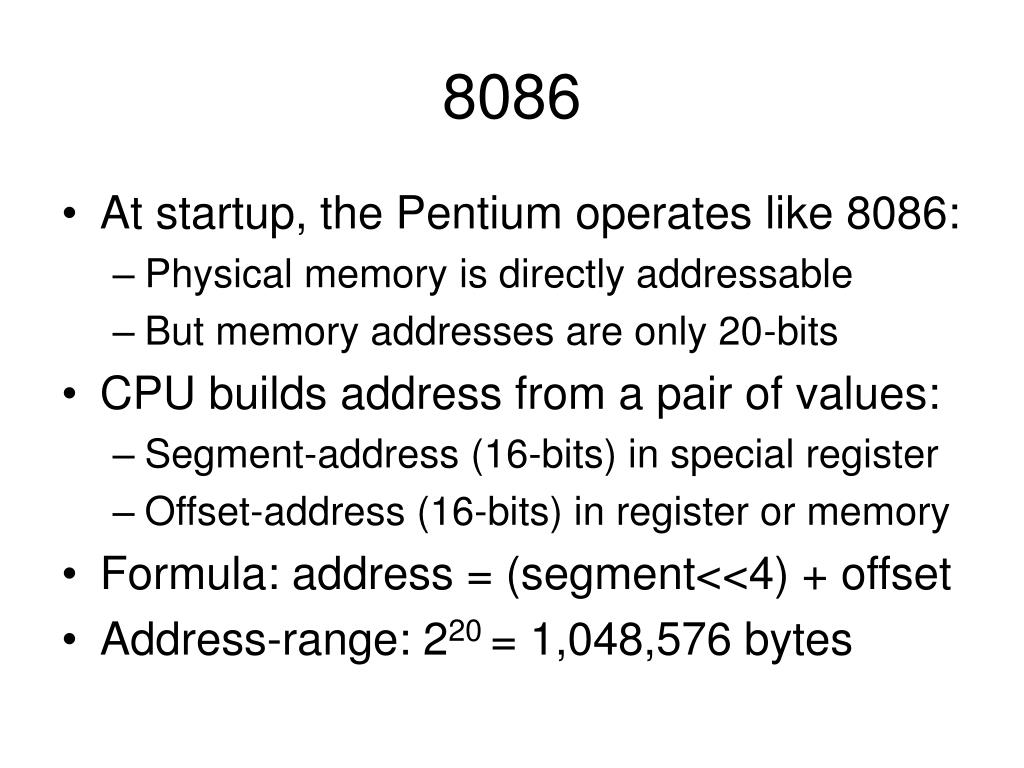

  3. 8086 • At startup, the Pentium operates like 8086: • Physical memory is directly addressable • But memory addresses are only 20-bits • CPU builds address from a pair of values: • Segment-address (16-bits) in special register • Offset-address (16-bits) in register or memory • Formula: address = (segment<<4) + offset • Address-range: 220 = 1,048,576 bytes

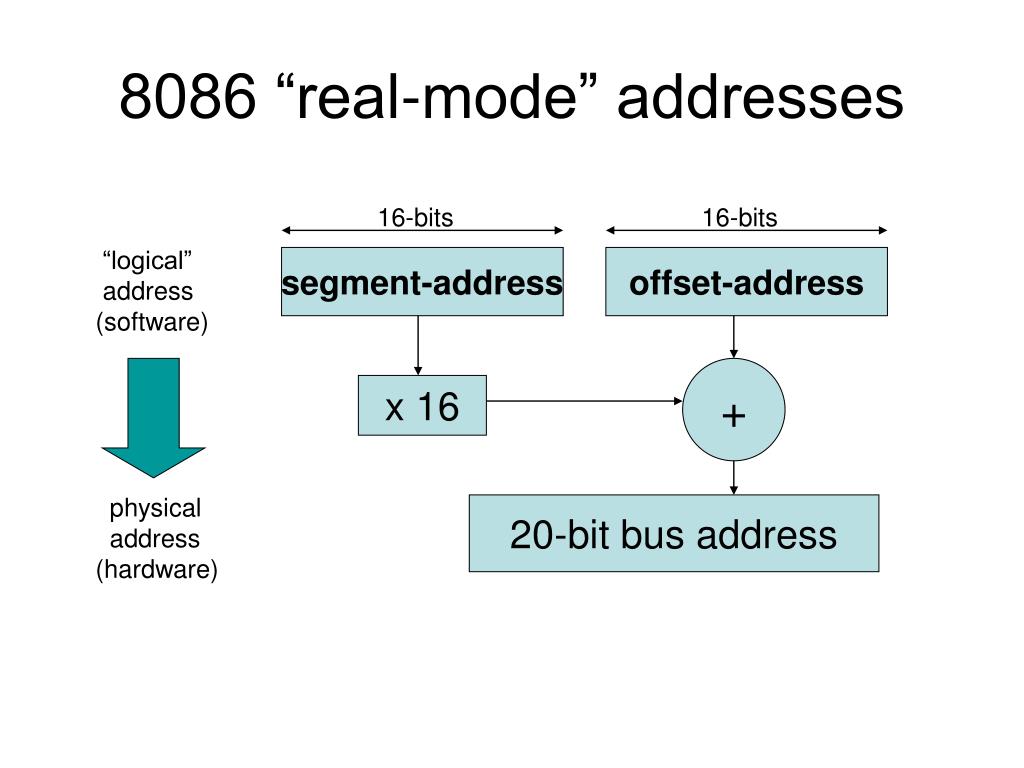

  4. 8086 “real-mode” addresses 16-bits 16-bits “logical” address (software) segment-address offset-address + x 16 physical address (hardware) 20-bit bus address

  5. Effect in the Pentium 4 Gigabyte address-range 1 Megabyte address-range

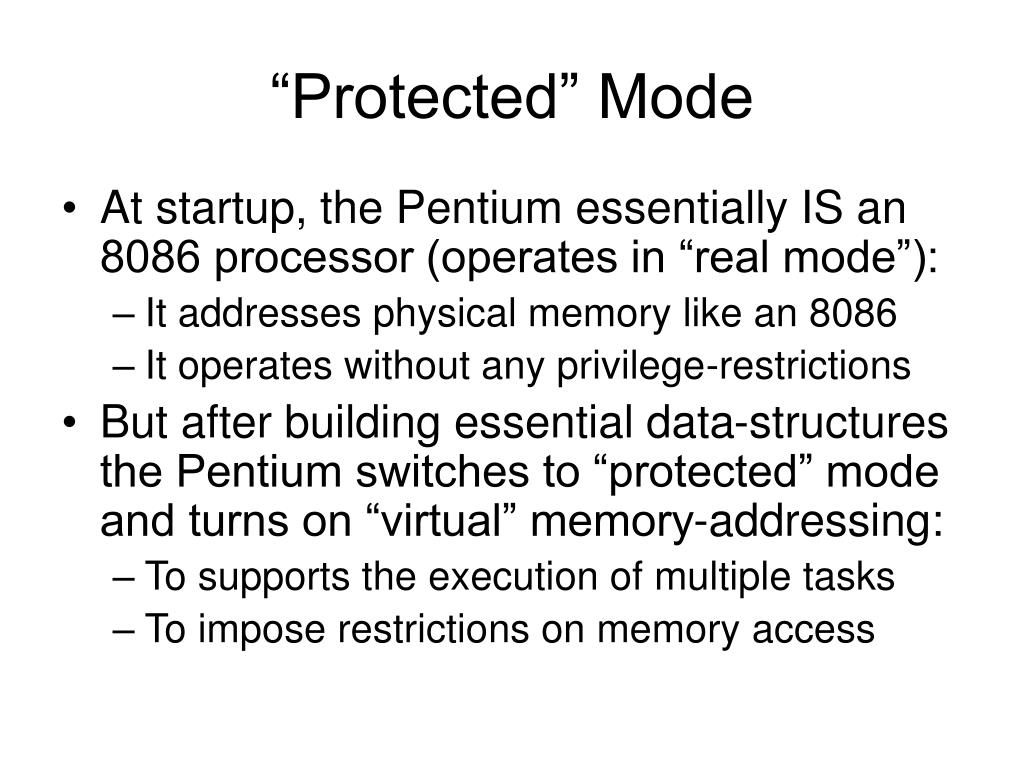

  6. “Protected” Mode • At startup, the Pentium essentially IS an 8086 processor (operates in “real mode”): • It addresses physical memory like an 8086 • It operates without any privilege-restrictions • But after building essential data-structures the Pentium switches to “protected” mode and turns on “virtual” memory-addressing: • To supports the execution of multiple tasks • To impose restrictions on memory access

  7. Pentium can ‘emulate’ 8086 • Even after it enters “protected” mode, the Pentium can still ‘emulate’ 8086 behavior • This works by creating a ‘virtual 8086’ cpu represented by a special data-structure in memory and triggered by a special opcode • But a few 8086 instructions aren’t allowed (if they could perhaps interfere with other tasks): • Device i/o: IN and OUT • Interrupts: CLI / STI, PUSHF / POPF, INT-n / IRET • Execution: HLT

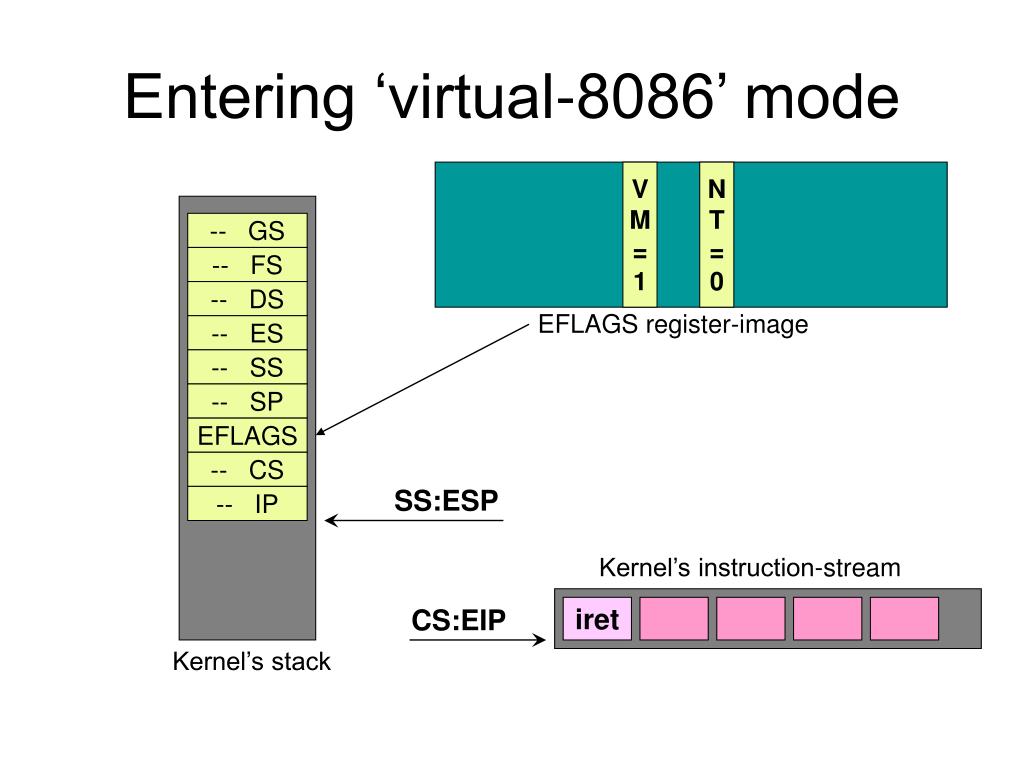

  8. Entering ‘virtual-8086’ mode V M = 1 N T = 0 -- GS -- FS -- DS EFLAGS register-image -- ES -- SS -- SP EFLAGS -- CS SS:ESP -- IP Kernel’s instruction-stream CS:EIP iret Kernel’s stack

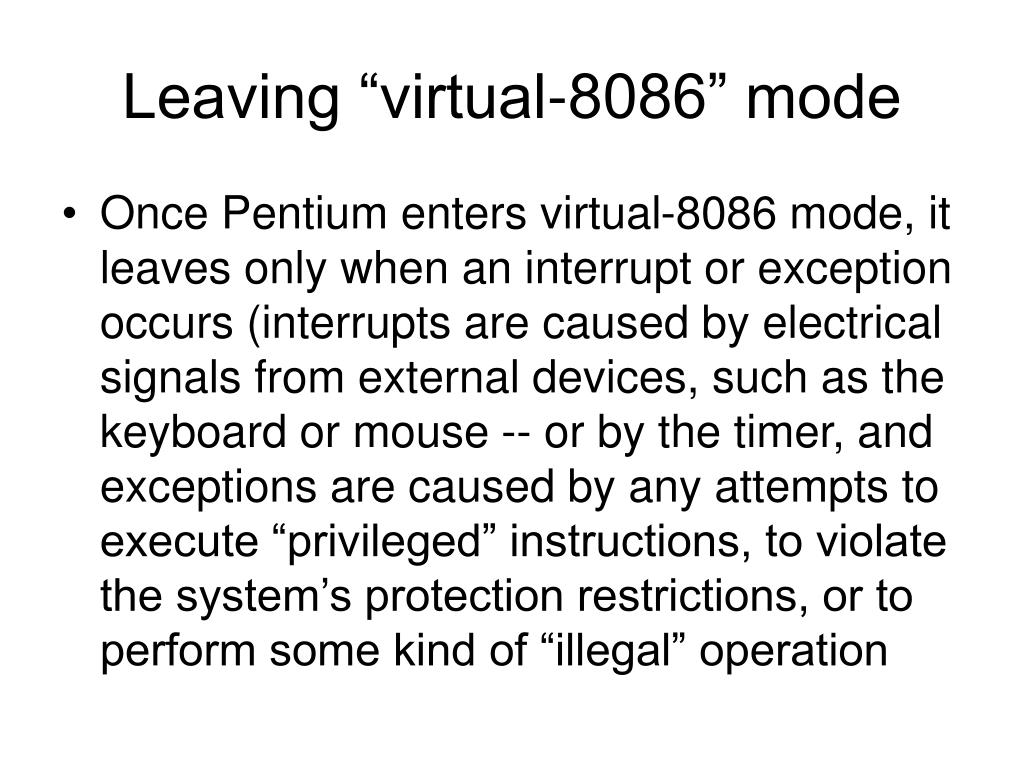

  9. Leaving “virtual-8086” mode • Once Pentium enters virtual-8086 mode, it leaves only when an interrupt or exception occurs (interrupts are caused by electrical signals from external devices, such as the keyboard or mouse -- or by the timer, and exceptions are caused by any attempts to execute “privileged” instructions, to violate the system’s protection restrictions, or to perform some kind of “illegal” operation

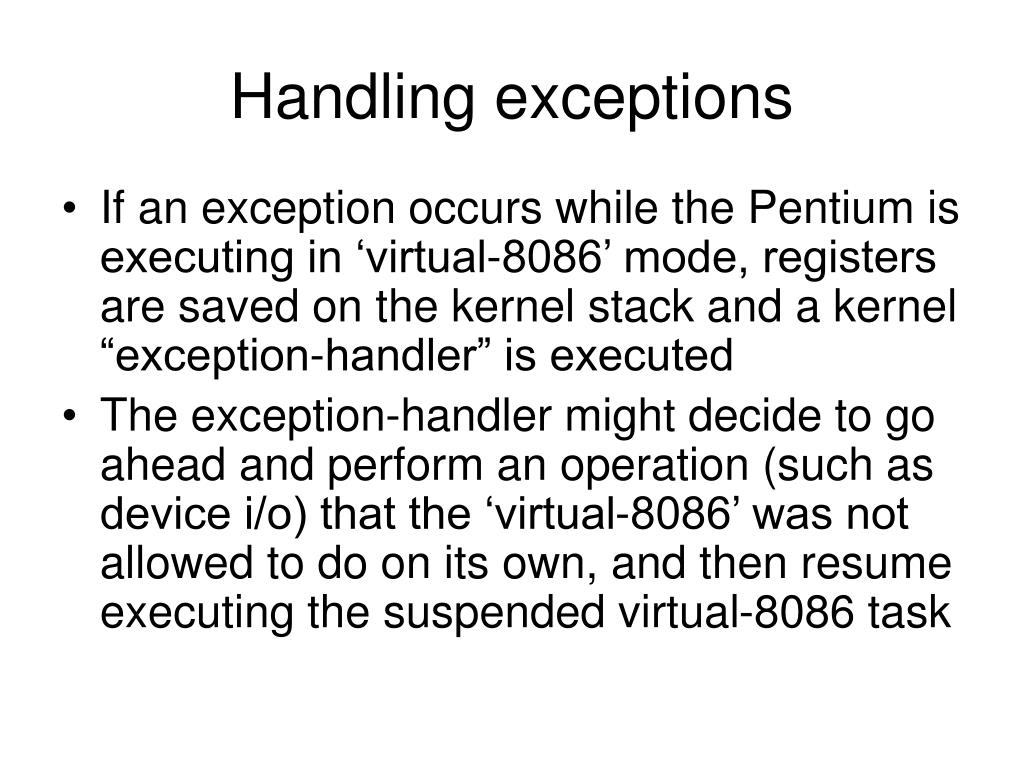

  10. Handling exceptions • If an exception occurs while the Pentium is executing in ‘virtual-8086’ mode, registers are saved on the kernel stack and a kernel “exception-handler” is executed • The exception-handler might decide to go ahead and perform an operation (such as device i/o) that the ‘virtual-8086’ was not allowed to do on its own, and then resume executing the suspended virtual-8086 task

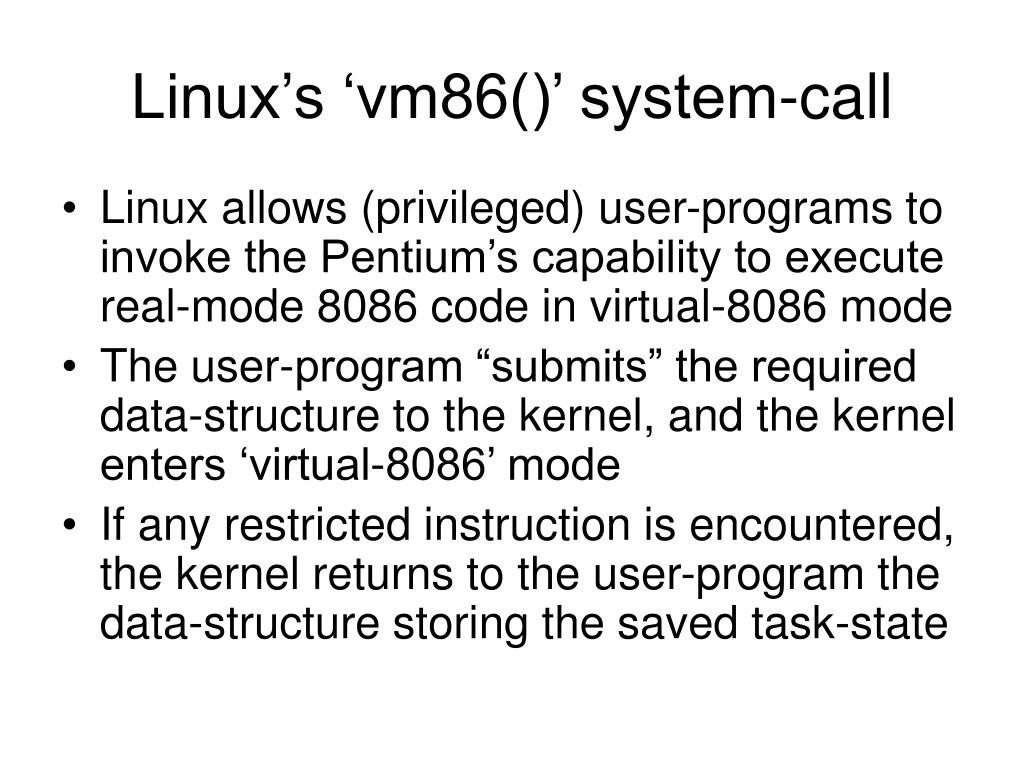

  11. Linux’s ‘vm86()’ system-call • Linux allows (privileged) user-programs to invoke the Pentium’s capability to execute real-mode 8086 code in virtual-8086 mode • The user-program “submits” the required data-structure to the kernel, and the kernel enters ‘virtual-8086’ mode • If any restricted instruction is encountered, the kernel returns to the user-program the data-structure storing the saved task-state

  12. Recall the LRMI • We used a software package called LRMI to assist us in executing ‘real mode’ code • The ‘mode3’ utility is built on this package • Now we shall see how LRMI really works! • We propose to write a ‘standalone’ demo- program that executes a useful ‘real mode’ video ROM-BIOS routine (using ‘vm86()’)

  13. Linux Device-Drivers • We will need a way to ‘map’ certain special memory-regions into the user address-space • These regions must be mapped to addresses that an 8086 processor could access (i.e., must be in bottom one-megabyte of virtual memory) • Linux normally “maps” nothing else there • We’ll need device-drivers to perform mappings: /dev/zero (This is a standard part of Linux) /dev/dos (This is a ‘custom’ driver we built)

  14. How ‘/dev/zero’ works • This device lets a user map some unused pages of physical memory into user-space • As the name ‘zero’ suggests, the memory that is provided is initialized to ‘all-zeros’ • This region will be used for the real mode code’s stack-area and data-structures; it could also be loaded with executable code

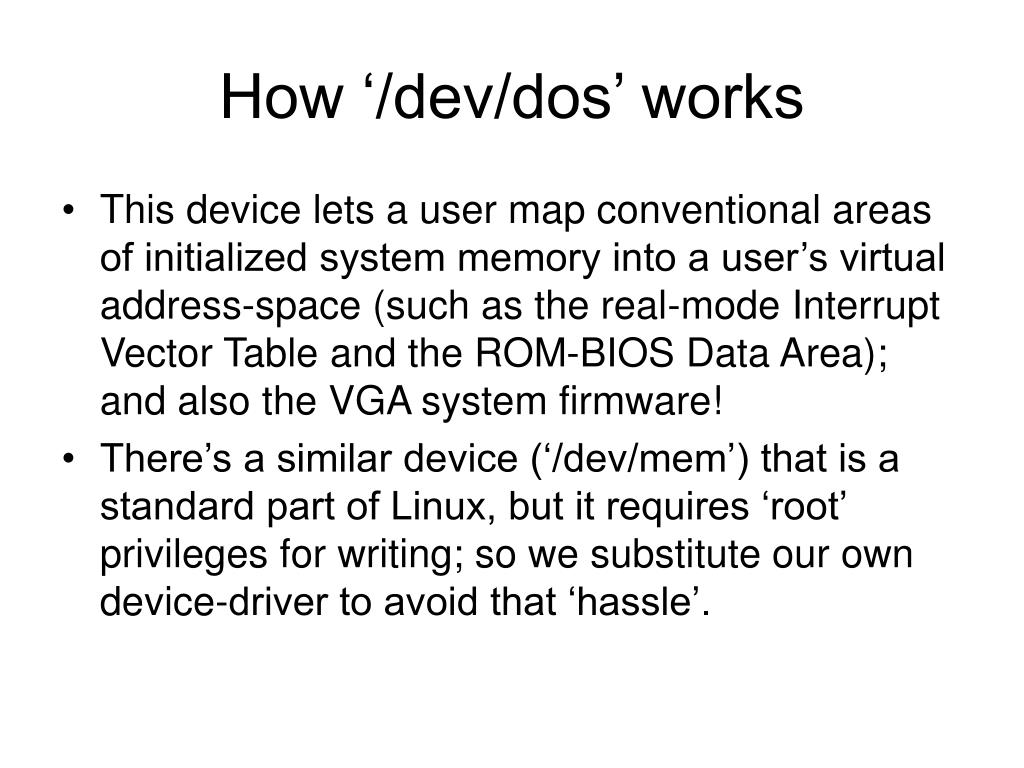

  15. How ‘/dev/dos’ works • This device lets a user map conventional areas of initialized system memory into a user’s virtual address-space (such as the real-mode Interrupt Vector Table and the ROM-BIOS Data Area); and also the VGA system firmware! • There’s a similar device (‘/dev/mem’) that is a standard part of Linux, but it requires ‘root’ privileges for writing; so we substitute our own device-driver to avoid that ‘hassle’.

  16. The 8086 memory-map ROM-BIOS 0xF0000 – 0xFFFFF Standard parts of the PC design that much code does rely upon VGA ROM 0xC0000 – 0xCFFFF VRAM 0xA0000 – 0xBFFFF one megabyte Real Mode Stack Area Data and Text This arena’s location and size can be adjusted to suit our particular purpose BIOS DATA 0x00400 – 0x00502 Standard parts of the PC design that much code does rely upon IVT 0x00000 – 0x003FF

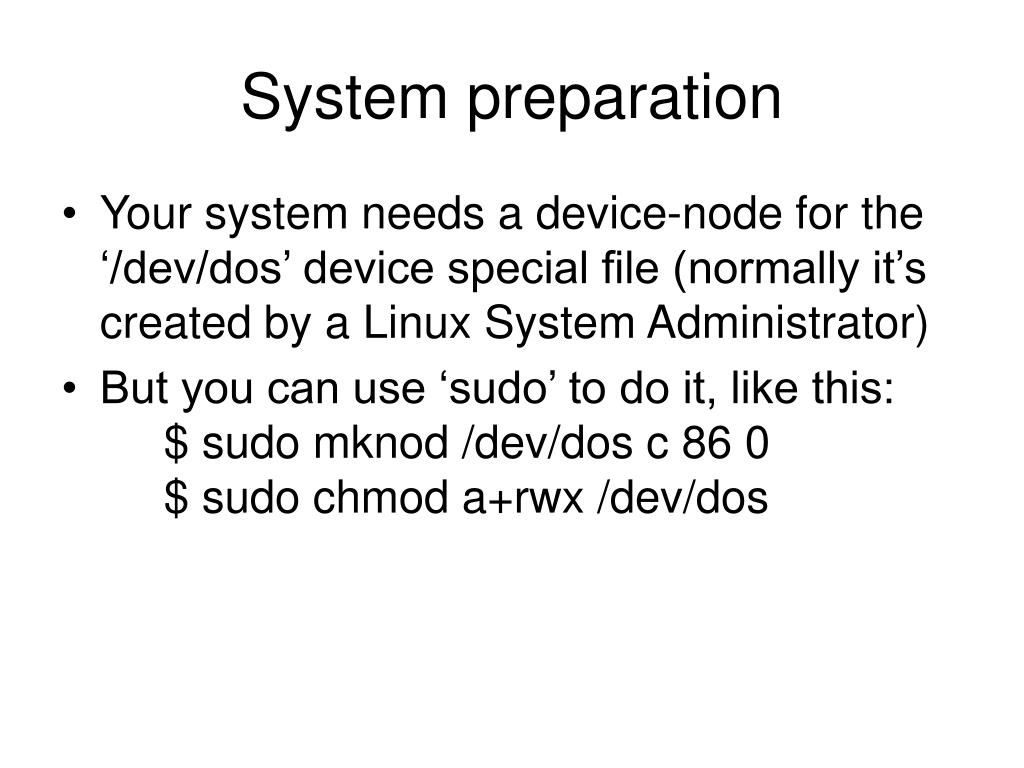

  17. System preparation • Your system needs a device-node for the ‘/dev/dos’ device special file (normally it’s created by a Linux System Administrator) • But you can use ‘sudo’ to do it, like this: $ sudo mknod /dev/dos c 86 0 $ sudo chmod a+rwx /dev/dos

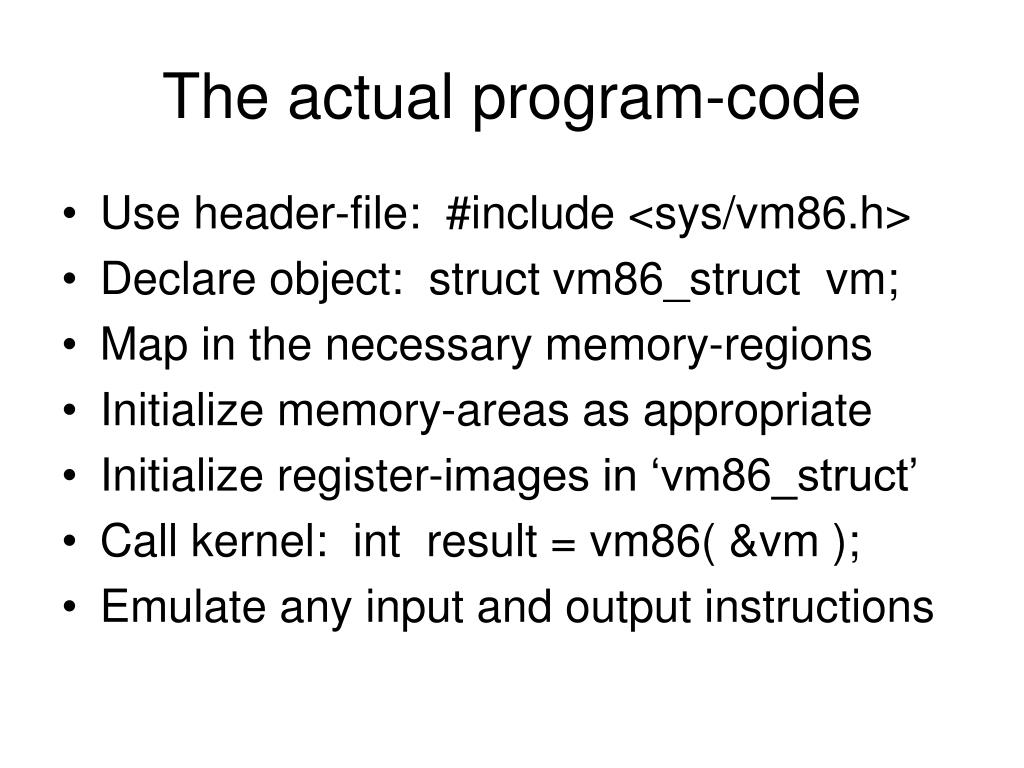

  18. The actual program-code • Use header-file: #include <sys/vm86.h> • Declare object: struct vm86_struct vm; • Map in the necessary memory-regions • Initialize memory-areas as appropriate • Initialize register-images in ‘vm86_struct’ • Call kernel: int result = vm86( &vm ); • Emulate any input and output instructions

  19. Specific SVGA ROM function • We show how to execute VESA function 0 ‘Get VESA BIOS-Extensions Information’) • It fills in the values of a data-structure that gives information about our SVGA system • Name of that data-structure is ‘VbeInfoBlk’ • Structure-size is 512 bytes, documented in VESA white paper: ‘vbe3.pdf’ (on website)

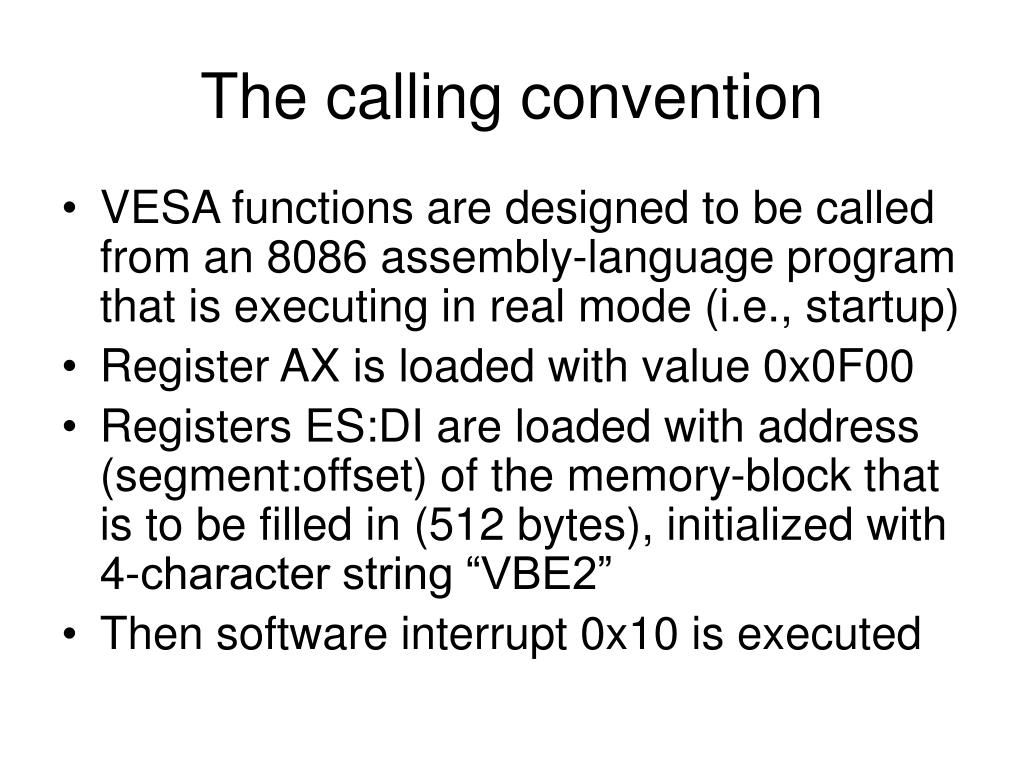

  20. The calling convention • VESA functions are designed to be called from an 8086 assembly-language program that is executing in real mode (i.e., startup) • Register AX is loaded with value 0x0F00 • Registers ES:DI are loaded with address (segment:offset) of the memory-block that is to be filled in (512 bytes), initialized with 4-character string “VBE2” • Then software interrupt 0x10 is executed

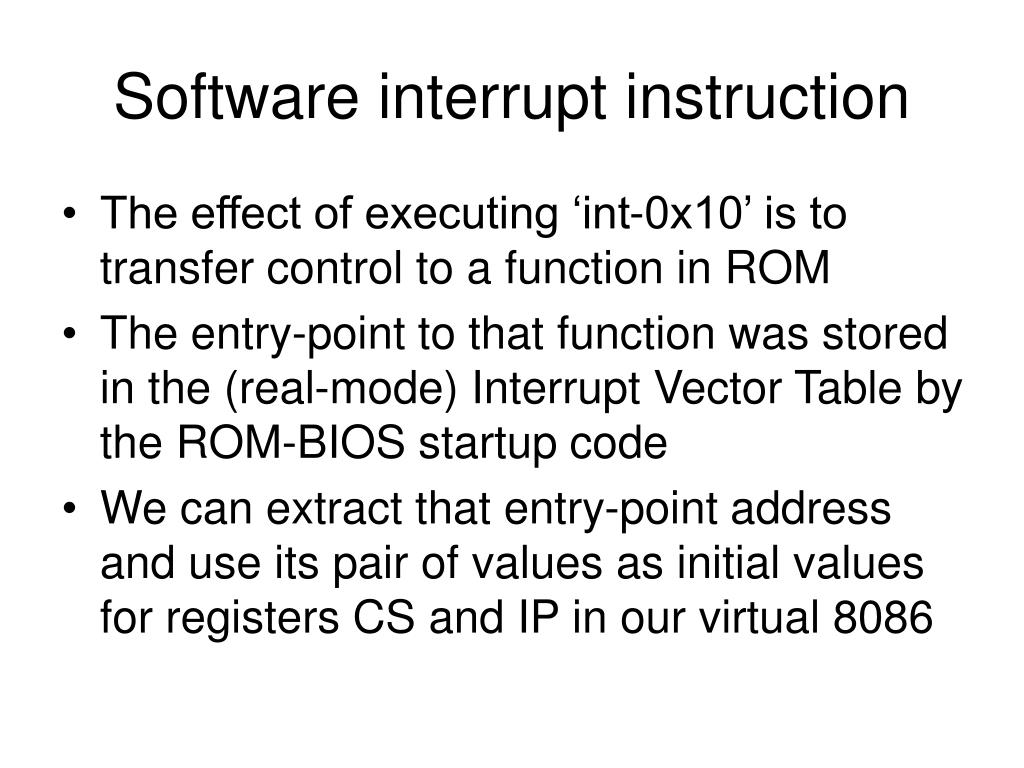

  21. Software interrupt instruction • The effect of executing ‘int-0x10’ is to transfer control to a function in ROM • The entry-point to that function was stored in the (real-mode) Interrupt Vector Table by the ROM-BIOS startup code • We can extract that entry-point address and use its pair of values as initial values for registers CS and IP in our virtual 8086

  22. Emulating ‘in’ and ‘out’ • Whenever an ‘in’ or ‘out’ instruction is encountered in ‘virtual-8086’ mode, our application can do an ‘emulation’ • We decode the instruction and execute it on behalf of the virtual-8086 task, and we increment the IP value to “skip” past that ‘in’ or ‘out’ instruction, then we can resume the interrupted virtual-8086 task by calling ‘vm86()’ again, using the adjusted ‘vm’

  23. Stopping the vm86 execution • We need a way to stop our execution-loop • We do it using a special 8086 instruction that cannot execute in virtual-8086 mode • Instead of emulating it, we stop our loop • Various instructions could serve this aim • We choose to use the ‘hlt’ instruction • It’s just 1-byte; its name suggests the idea

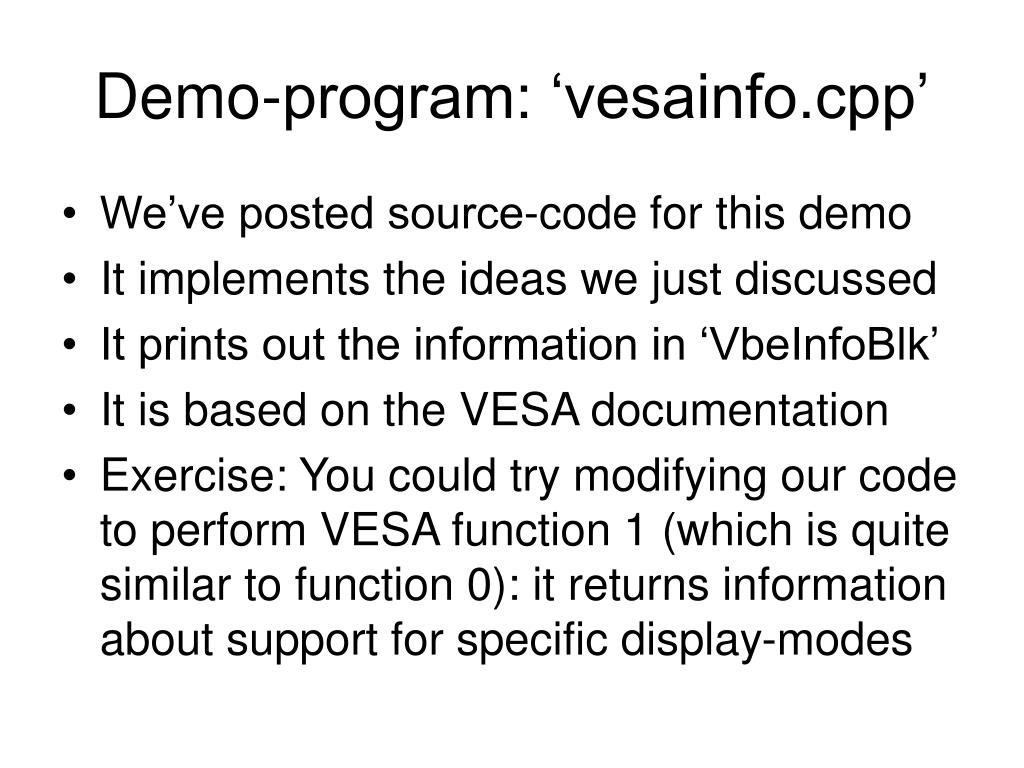

  24. Demo-program: ‘vesainfo.cpp’ • We’ve posted source-code for this demo • It implements the ideas we just discussed • It prints out the information in ‘VbeInfoBlk’ • It is based on the VESA documentation • Exercise: You could try modifying our code to perform VESA function 1 (which is quite similar to function 0): it returns information about support for specific display-modes

  25. Another application? • You can add some code to each case in the ‘my_emulate()’ function that prints out a description of a input or output operation • EXAMPLE: case 0xEE: // ‘outb’ opcode int al = vm->regs.eax & 0xFF; int dx = vm->regs.edx & 0xFFFF; printf( “outb( %02X, %04X )\n”, al, dx ); • May help us “reverse engineer” VGA BIOS
