  1. VGA cable USE – Projector and laptop

  2. 3.5 mm cable • Male to male 3.5mm stereo cable, TRS 3.5mm connector, Audio Jack, jack plug, headphone jack USE – Projector, Ipod, Speakers,

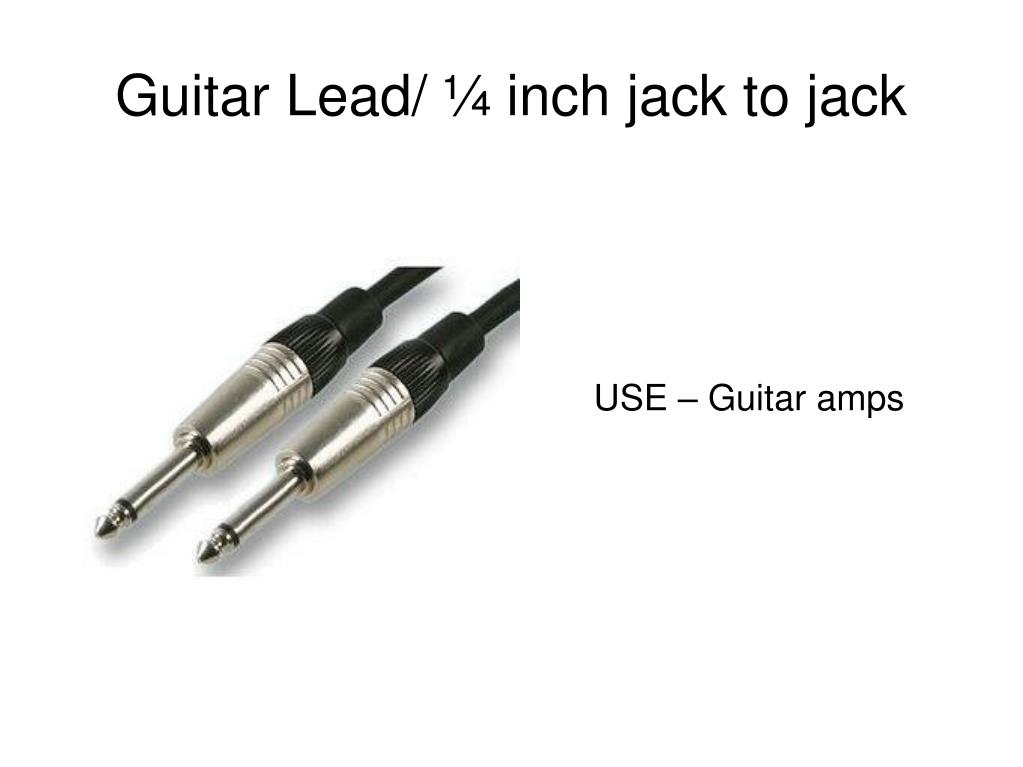

  3. Guitar Lead/ ¼ inch jack to jack USE – Guitar amps

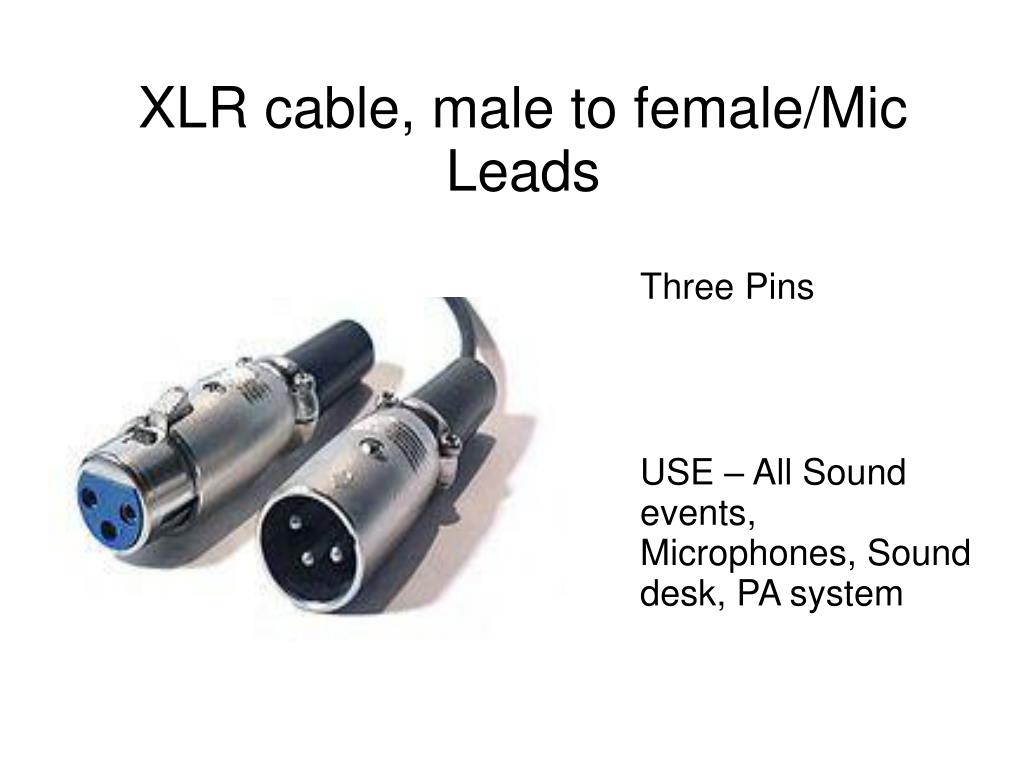

  4. XLR cable, male to female/Mic Leads Three Pins USE – All Sound events, Microphones, Sound desk, PA system

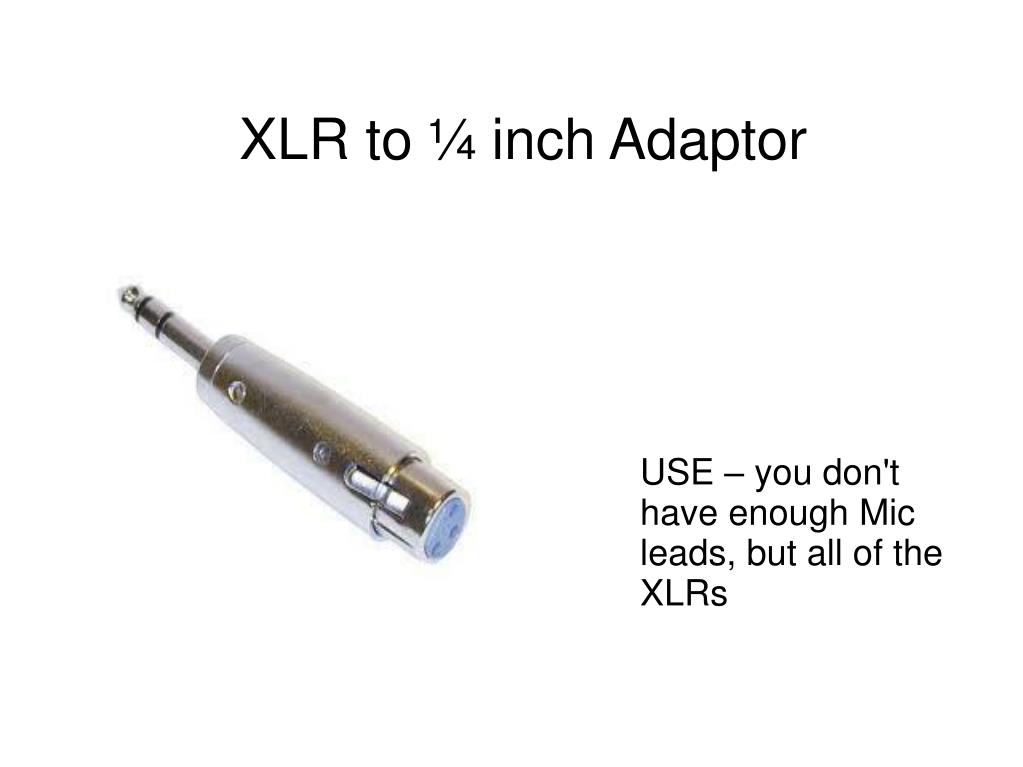

  5. XLR to ¼ inch Adaptor USE – you don't have enough Mic leads, but all of the XLRs

  6. XLR to 1/4inch Cable/Mic Lead USE – Microphones, sound desks

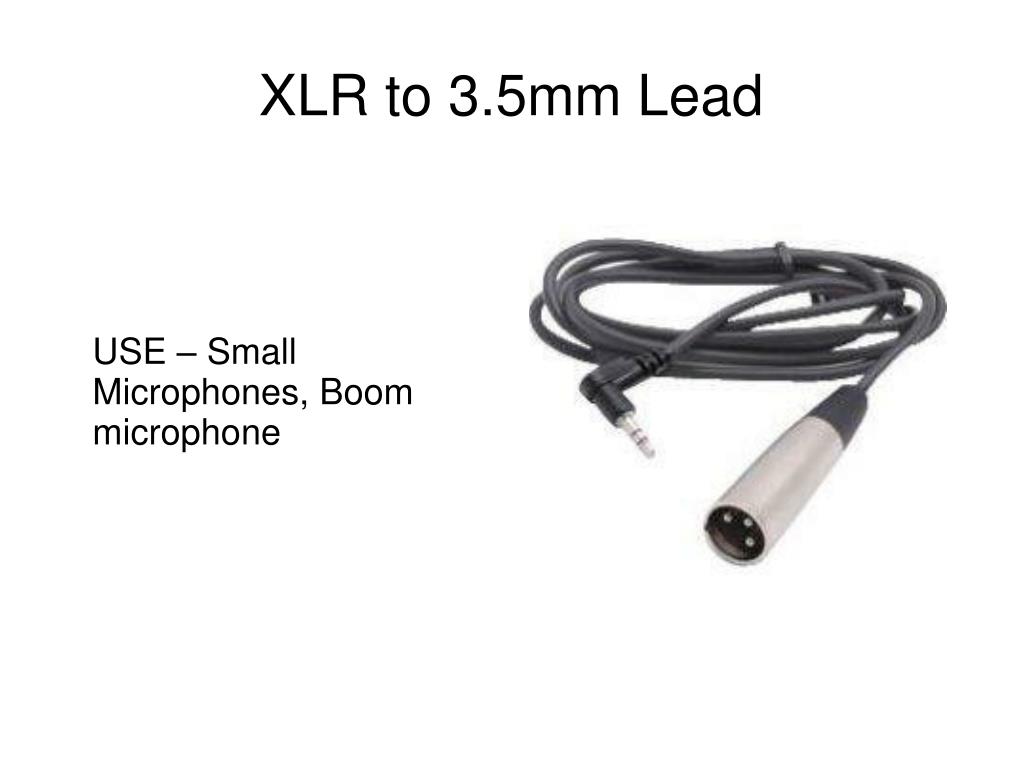

  7. XLR to 3.5mm Lead USE – Small Microphones, Boom microphone

  8. 3.5mm to Dual XLR Patch Cable/Cable to connect my ipod/laptop to the Soundesk for Bursary Awards USE – Magical cable of awesomeness

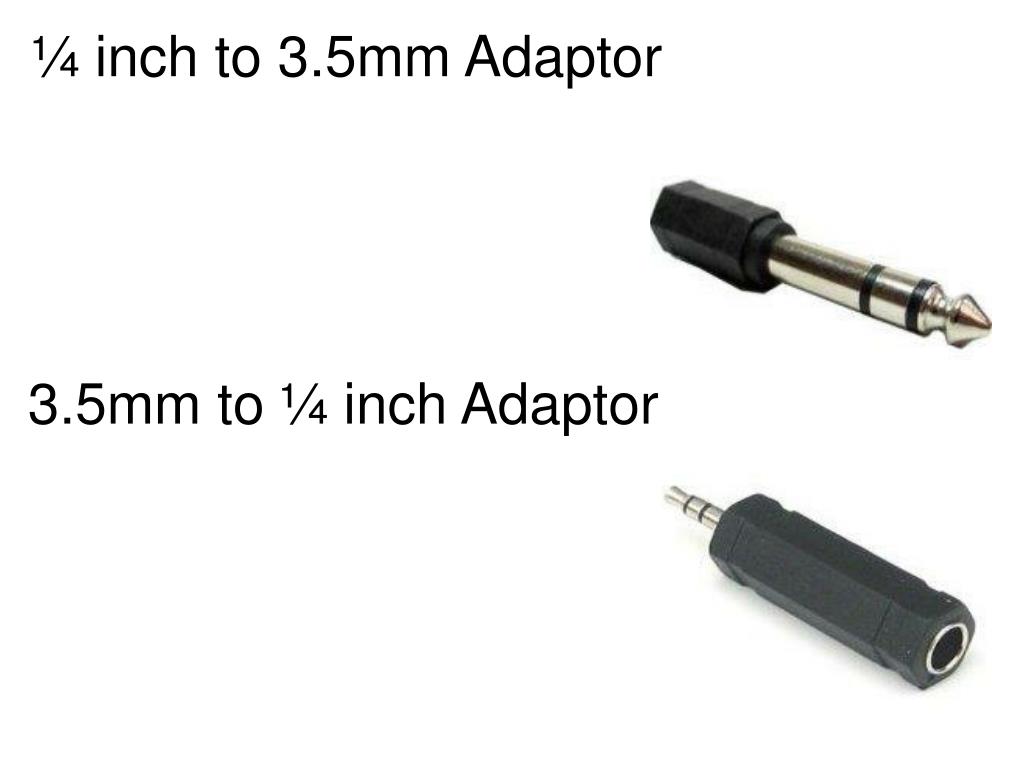

  9. ¼ inch to 3.5mm Adaptor 3.5mm to ¼ inch Adaptor

  10. DMX Cable Five Pins USE – Lighting. Does not belong with sound! USE – Lighting. Does not belong with sound!

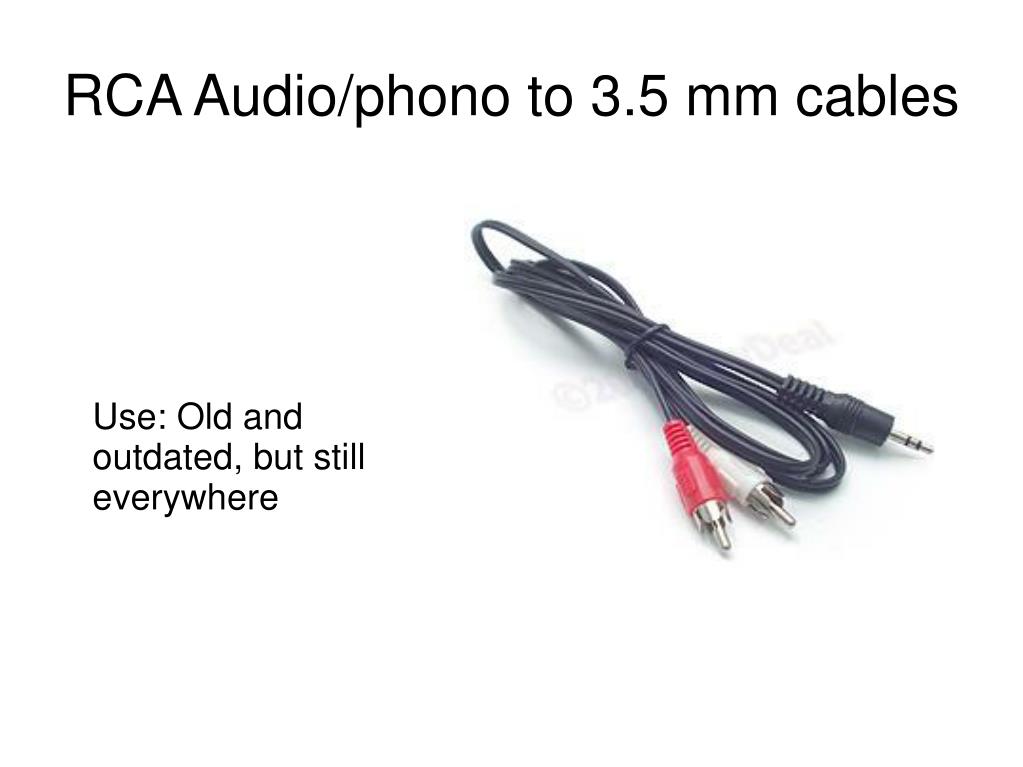

  11. RCA Audio/phono to 3.5 mm cables Use: Old and outdated, but still everywhere

  12. RCA to 3.5 mm Adaptor Use: Awesome, makes proper audio cables

  13. VGA adaptor for Macs

  14. DVI Cables Use: Visual, older versions of VGA cables, sometimes still relevant - “provides optional compatibility with the VGA interface”

  15. HDMI Cables Use: The Big Screen in the Hub

  16. Speakon Cables Use: Monitors (Specific Sound Equipment)

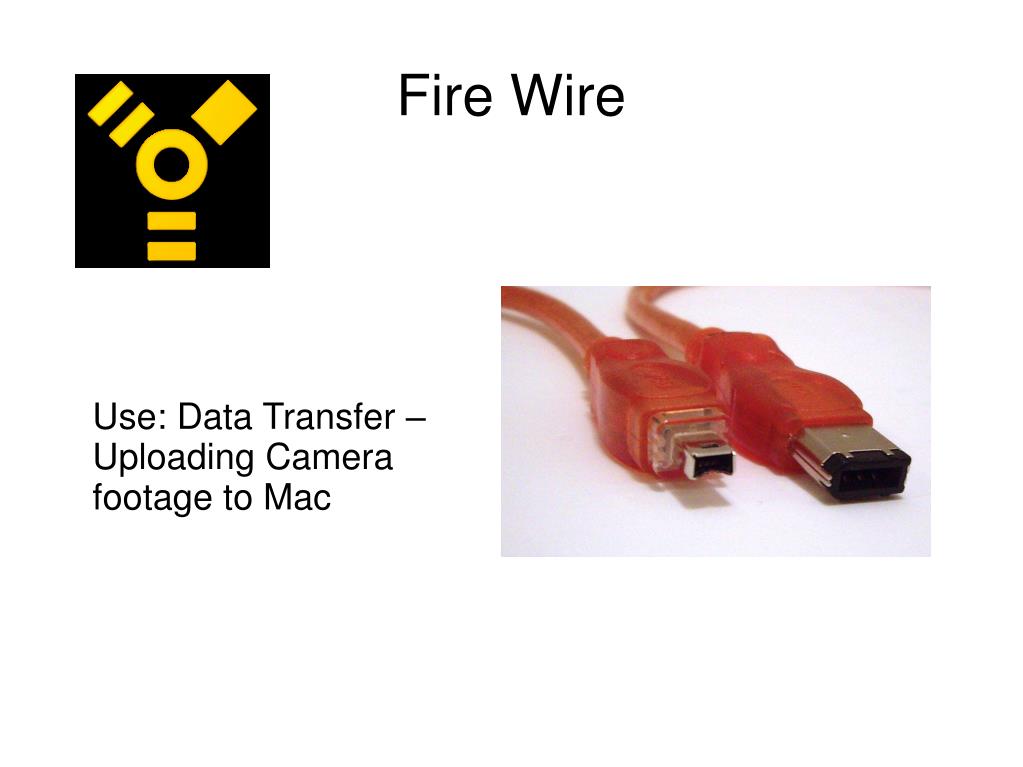

  17. Fire Wire Use: Data Transfer – Uploading Camera footage to Mac

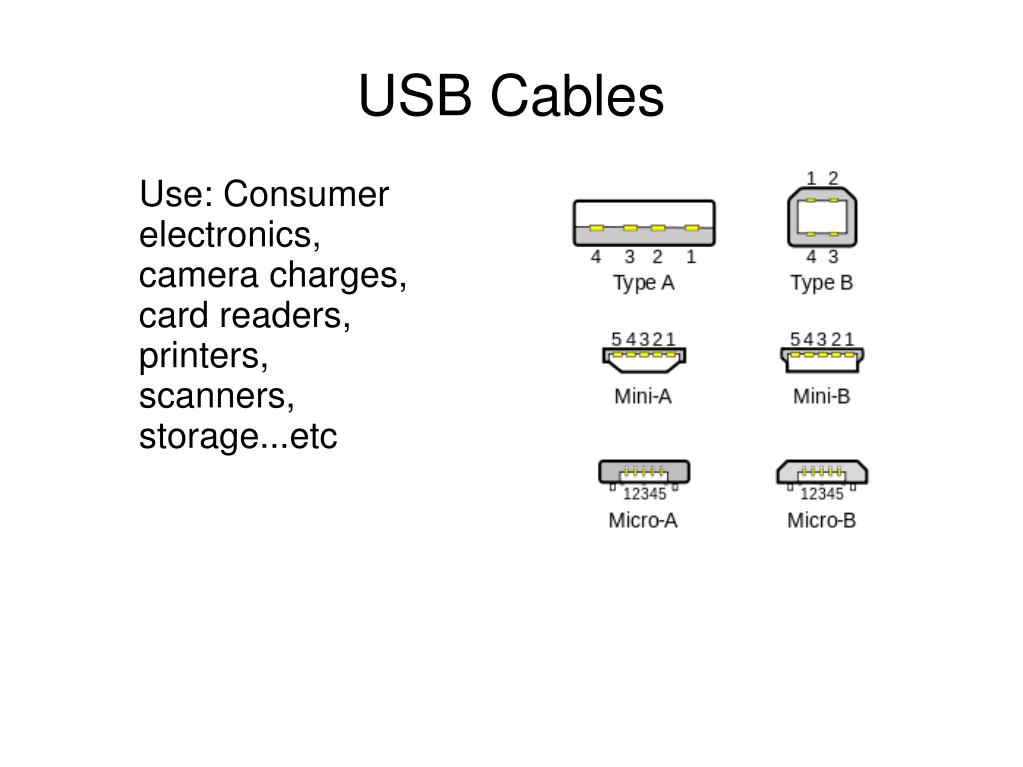

  18. USB Cables Use: Consumer electronics, camera charges, card readers, printers, scanners, storage...etc

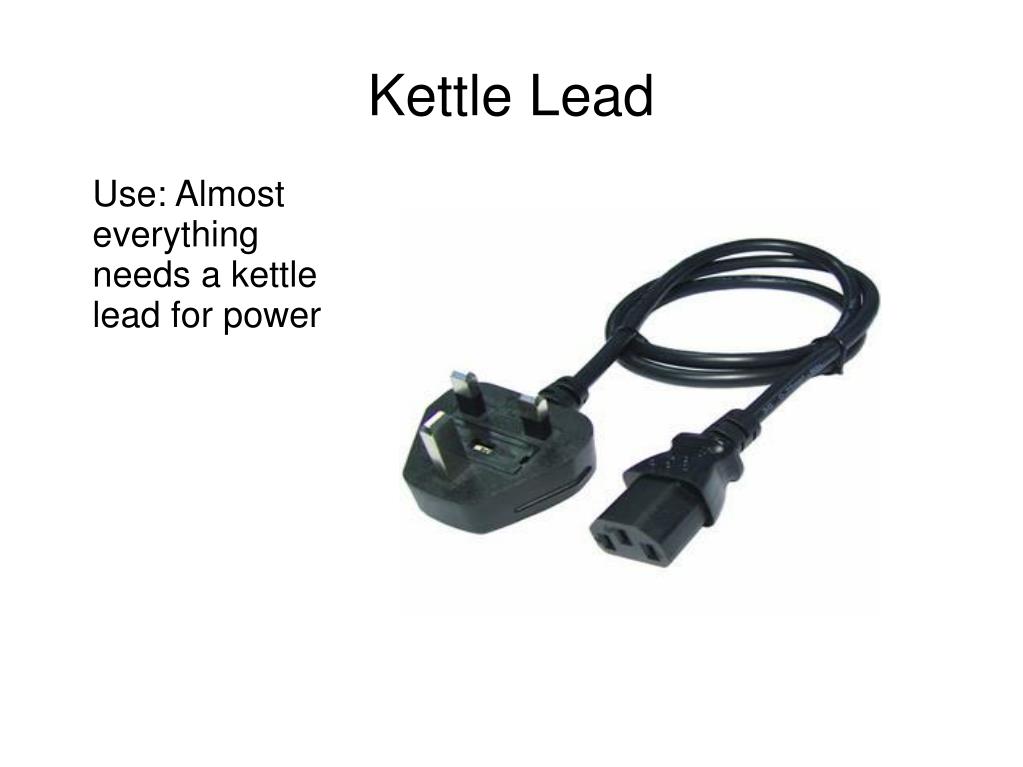

  19. Kettle Lead Use: Almost everything needs a kettle lead for power

  20. Figure 8 Cable USE - Or a figure 8 Cable (like the Socsbox MiniFridge)

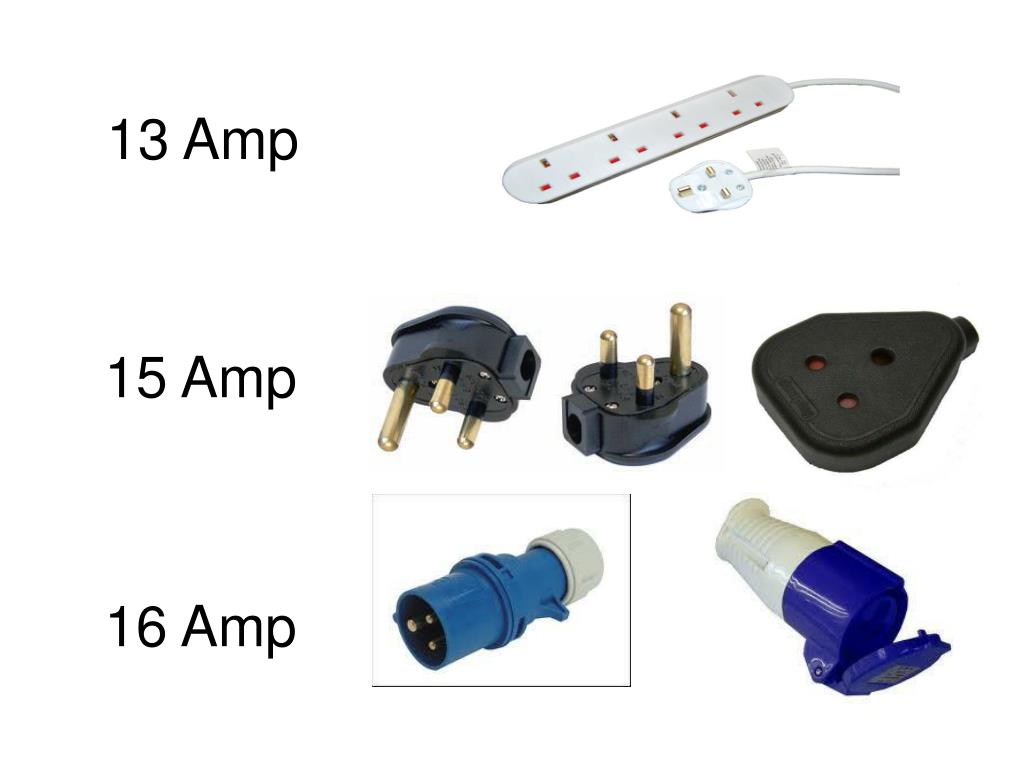

  21. 13 Amp 15 Amp 16 Amp

  22. Amp jumps, adaptors and extensions

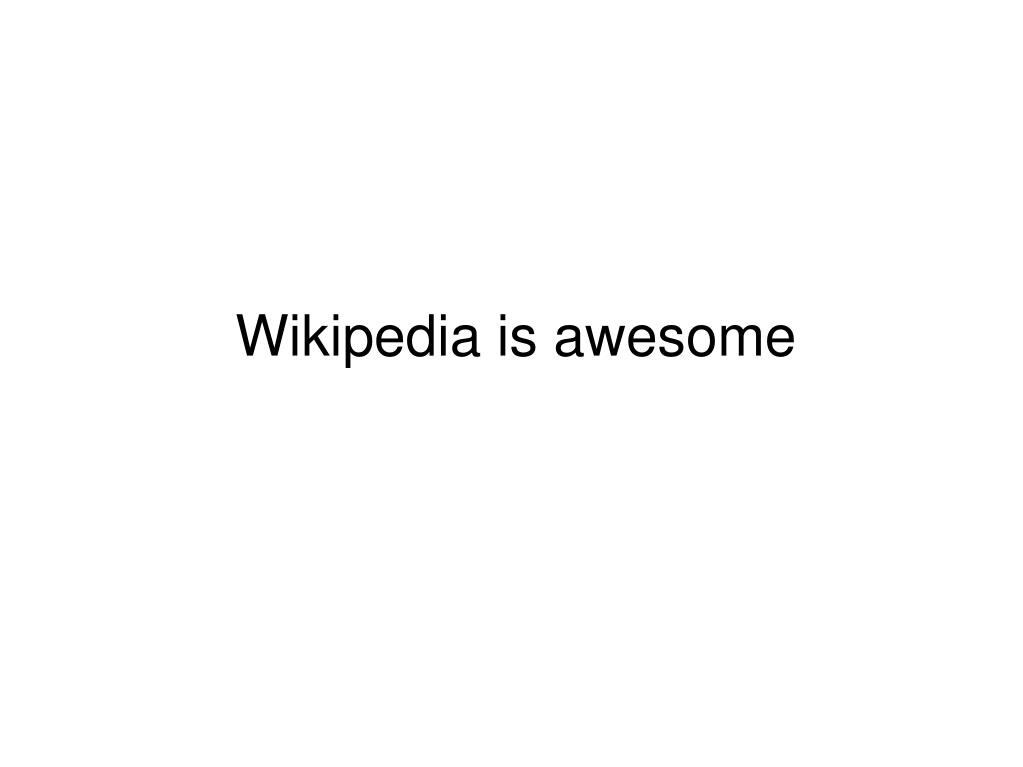

  23. Wikipedia is awesome

  24. So are these sites http://www.crutchfield.com/S-OA6xMi0bSYj/learn/learningcenter/home/connections_glossary.html http://www.kramerelectronics.com/products/glossary.asp
