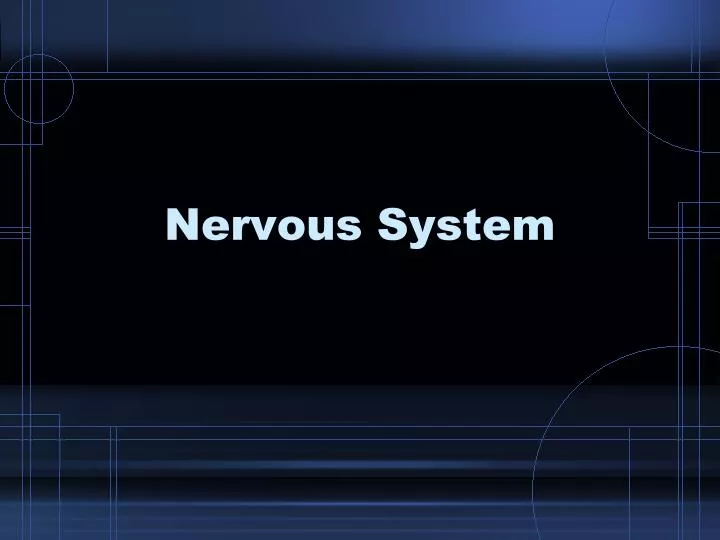

  1. Nervous System

  2. The Neuron • Also called the nerve cell • It is the basic structural unit of the nervous system

  3. The Neuron • Part of the Neuron • Cell Body • Nucleus (inside the cell body) • Nerve Fibers

  4. Nerve Fibers • Dendrites • Carries impulses TOWARD the cell body • Axon • Single nerve fiber that carries impulses AWAY from the cell body

  5. Nerve Fibers • Myelin Sheath • Lipid (fat) cover over the axon • Increases the rate of transmission of an impulse • Insulates and protects the axon

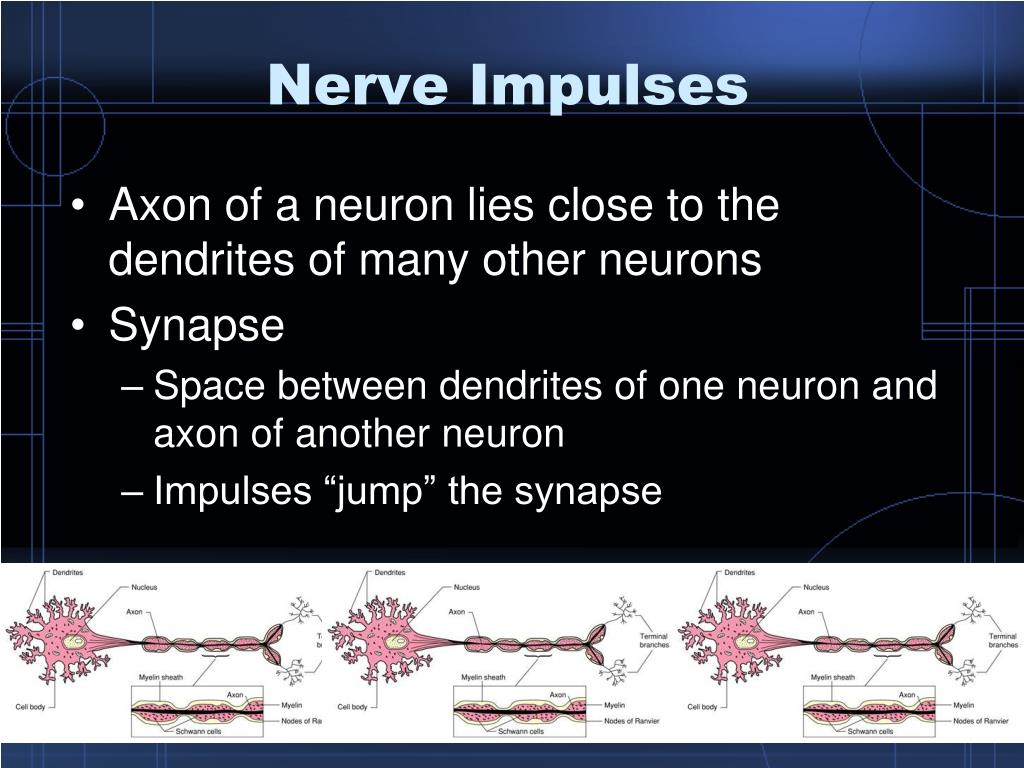

  6. Nerve Impulses • Axon of a neuron lies close to the dendrites of many other neurons • Synapse • Space between dendrites of one neuron and axon of another neuron • Impulses “jump” the synapse

  7. Nerve Impulses • Neurotransmitters • Special chemicals located at the end of each axon • Allows the nerve impulse to pass from one neuron to another via the synapse or synaptic cleft • Synapse is the space between the axon of one neuron and the dendrites of the next

  8. Nerves • Bundle of nerve fibers (neuron, dendrites, axons, etc) enclosed by connective tissue • Nerve impulses travel to and from the brain at the rate of 170 mph

  9. Types of Nerves • AFFERENT/Sensory • Carries messages from all parts of the body (sensory organs) to the brain and spinal cord • EFFERENT/Motor • Carries messages from the brain and spinal cord to muscles and glands

  10. Division of the Nervous System • Two main divisions • Central Nervous System • Brain and Spinal Cord • Peripheral Nervous System • Made up of the nerves in the body • Broken down into Autonomic and Somatic divisions

  11. Central Nervous System • Brain • Mass of nerve tissue • Protected by membranes and the cranium (skull)

  12. Central Nervous System CEREBRUM • Largest and highest section of the brain • Has convolutions (folds) • Separated into lobes which are named from the skull bones that surround them • Frontal (1 lobe) • Parietal (2 lobes) • Temporal (2 lobes) • Occipital (2 lobes)

  13. Central Nervous System Cerebellum Diencephalon Located between the cerebrum and midbrain Contains two structures Thalamus – acts as relay center Hypothalamus – regulates Autonomic Nervous System • Section below the cerebrum • Responsible for coordination of muscles, balance and posture, and muscle tone

  14. Central Nervous System • Midbrain • Located below the cerebrum at the top of the brain stem • Responsible for conducting impulses between brain parts • Responsible for certain eye reflexes

  15. Central Nervous System • Pons • Located below the midbrain in the brain stem • Responsible for conducting messages to other parts of the brain • Responsible for certain reflex actions including chewing, tasting, production of saliva • Assists with respirations

  16. Central Nervous System • Medulla Oblongata • Lowest part of the brain stem • Connects with the spinal cord • Responsible for regulating the heart beat, respirations, swallowing, coughing, and blood pressure

  17. Central Nervous System • Spinal Cord • Continues down from the medulla oblongata • Ends at the 1st or 2nd lumbar vertebra • Surrounded and protected by the vertebrae • Carries AFFERENT (sensory) messages to the brain • Carries EFFERENT (motor) messages from the brain to the nerves that go to muscles and glands

  18. Central Nervous System • Meninges • Three membranes that cover and protect the brain and spinal cord • Dura mater • Thick, tough outer layer • Arachnoid • Middle, delicate web like layer • Pia mater • Innermost layer • Closely attached to the brain and spinal cord • Contains blood vessels that nourish the nerve tissues

  19. Central Nervous System

  20. Peripheral Nervous System • Consists of cranial nerves and spinal nerves • 12 Cranial Nerves • On Old Olympus Towering Tops A Finn Versus German Viewed All Hops • See worksheet • Spinal nerves • 31 pairs and their branches • Carries messages to and from the spinal cord

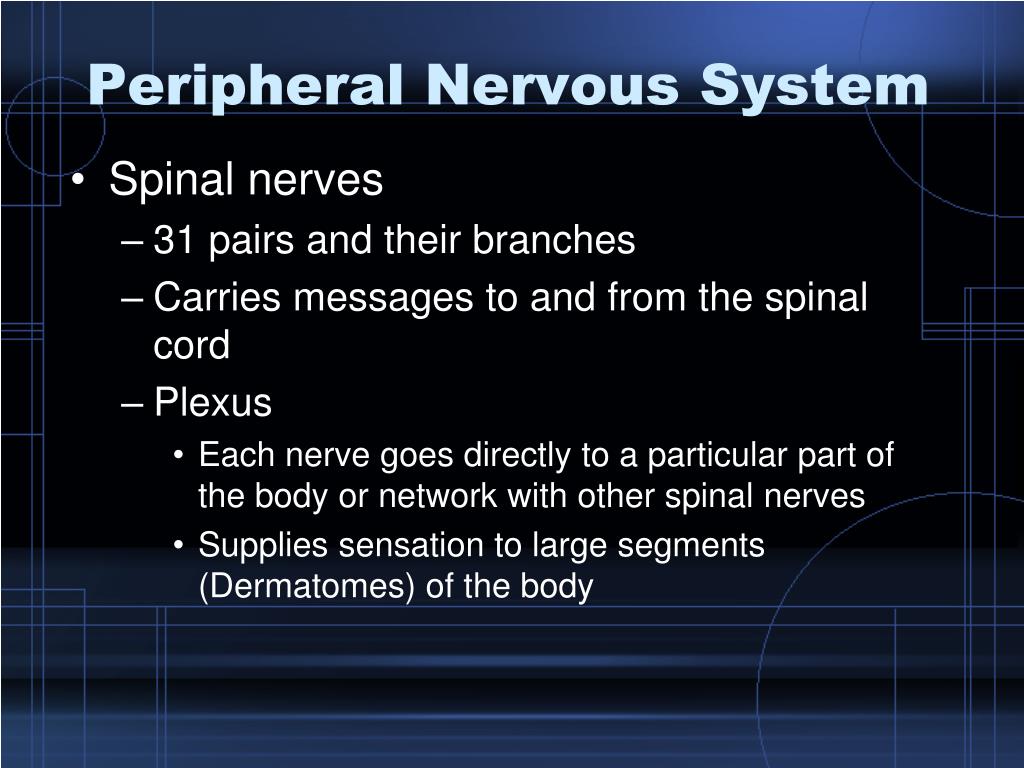

  21. Peripheral Nervous System • Spinal nerves • 31 pairs and their branches • Carries messages to and from the spinal cord • Plexus • Each nerve goes directly to a particular part of the body or network with other spinal nerves • Supplies sensation to large segments (Dermatomes) of the body

  22. Plexus Cervical Brachial Lumbar Sacral

  23. Dermatomes

  24. Autonomic Nervous System • Important part of the Peripheral Nervous System • Helps maintain a balance in the involuntary functions • Heart rate, respirations, temperature, digestion, etc. • Allows the body to react in times of emergency

  25. Autonomic Nervous System • Two divisions • Sympathetic Nervous System • Parasympathetic Nervous System • Two systems work together to • Maintain HOMEOSTASIS (balanced state) • Control involuntary body functions at proper rates

  26. Autonomic Nervous System • Sympathetic Nervous System • “Fight or Flight” • Acts in times of emergencies • Prepares the body to act • Increases heart rate, respirations, and blood pressure • Slows down the digestive tract

  27. Autonomic Nervous System • Parasympathetic Nervous System • Counteracts the actions of the Sympathetic system after an emergency • Lowers heart rate, respirations, and blood pressure • Increases activity of the digestive tract

  28. Graphic Organizer CNS and PNS

  29. Pathophysiology - CVA • Cerebrovascular Accident (CVA) • Also called Stroke • Blood flow to the brain has been interrupted resulting in lack of oxygen to the brain and therefore destruction of brain tissue • Causes • Cerebral hemorrhage from hypertension, aneurysm (weak blood vessel), trauma • Occlusion (blockage) caused by atherosclerosis (fat build up) or thrombus (blood clot)

  30. Pathophysiology - CVA • Symptoms • Varies depending on the area of the brain affected and the amount of brain tissue damaged • Loss of consciousness • Dizziness • Weakness • Paralysis on one side of the body (hemiplegia) • Mental confusion • Visual disturbances • Aphasia (speech and language impairment) • Incontinence

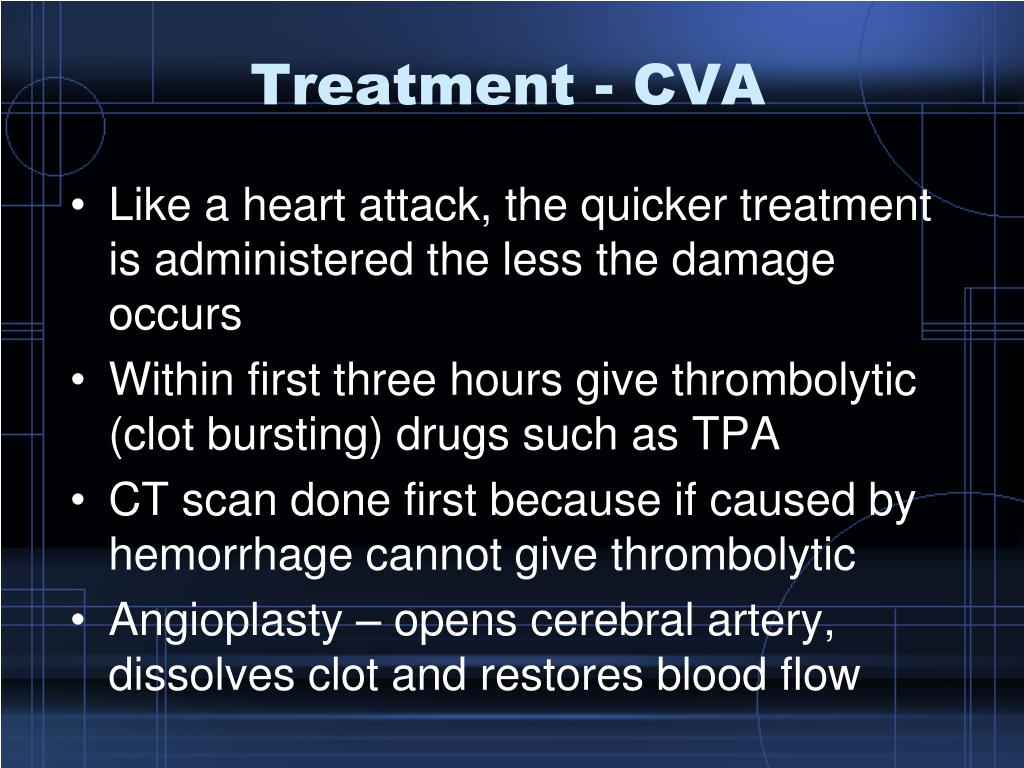

  31. Treatment - CVA • Like a heart attack, the quicker treatment is administered the less the damage occurs • Within first three hours give thrombolytic (clot bursting) drugs such as TPA • CT scan done first because if caused by hemorrhage cannot give thrombolytic • Angioplasty – opens cerebral artery, dissolves clot and restores blood flow

  32. Treatment - CVA • Long term treatment depends on the damage that has occurred • Often need therapies such as physical, occupational, and speech therapies • May need assistive devices such as canes, walkers, and braces • Prevention of blood clots – thin blood • Take ASA, Coumadin, etc for the rest of your life • Treat underlying conditions such as high blood pressure, atherosclerosis, diabetes, etc

  33. Pathophysiology – Parkinson’s Disease • Chronic, progressive condition involving degeneration of brain cells • Usually occurs in persons over 50 years of age but not always • Caused by lack of or imbalance of a neurotransmitter, dopamine, in the brain • Cells that produce dopamine stop producing and die • When dopamine levels drop neurons start firing abnormally causing the classic tremors

  34. Pathophysiology – Parkinson’s Disease • Symptoms • Tremors, stiffness, and muscular rigidity • Cog Wheeling • Pill rolling • Forward leaning position and a shuffling gait • Difficulty in stopping while walking • Loss of facial expression and drooling • Parkinson’s Mask • Mood swings, behavioral changes, and frequent depression

  35. Treatment – Parkinson’s Disease • No known cure • Medication to lessen symptoms and possibly slow progression • Levodopa – synthetic dopamine • Physical therapy and assistive devices to limit the muscular rigidity

  36. Other Diseases of the Nervous System • Paraplegia = paralysis of the lower extremities • Encephalitis = inflammation of the brain caused by virus, bacteria, or chemical agent • Hydrocephalus = excessive accumulation of cerebrospinal fluid in the ventricles

  37. Other Diseases of the Nervous System • Neuralgia = nerve pain • Epilepsy = condition involving abnormal electrical impulses in the brain resulting in convulsions or seizure • Cerebral palsy = disturbance in voluntary muscle action caused by brain damage • Multiple sclerosis = A chronic, progressive, disabling condition resulting from a degeneration of the myelin sheath
