Presentation Transcript
slide2

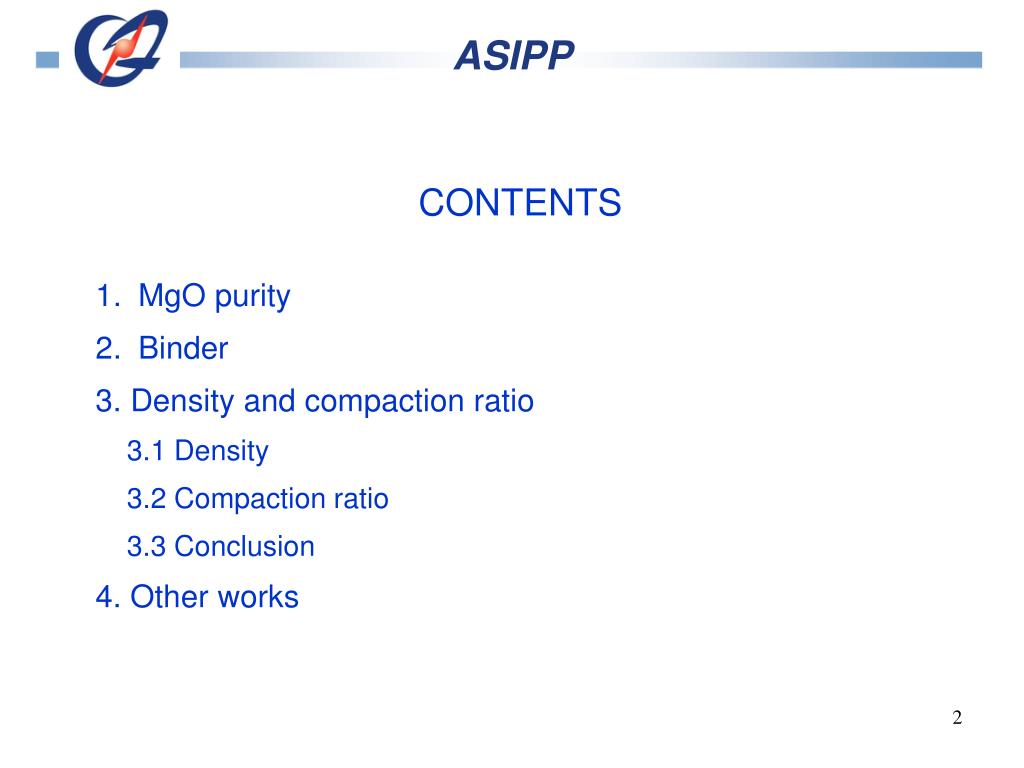

CONTENTS

  • MgO purity
  • Binder
  • 3. Density and compaction ratio
  • 3.1 Density
  • 3.2 Compaction ratio
  • 3.3 Conclusion
  • 4. Other works

2

slide3

MgO putity

Three suppliers for high purity MgO.

×

×

Potential supplier: Dashiqiao, analysis on the Carbon content of Mgo block before and after sintering.

3

slide4

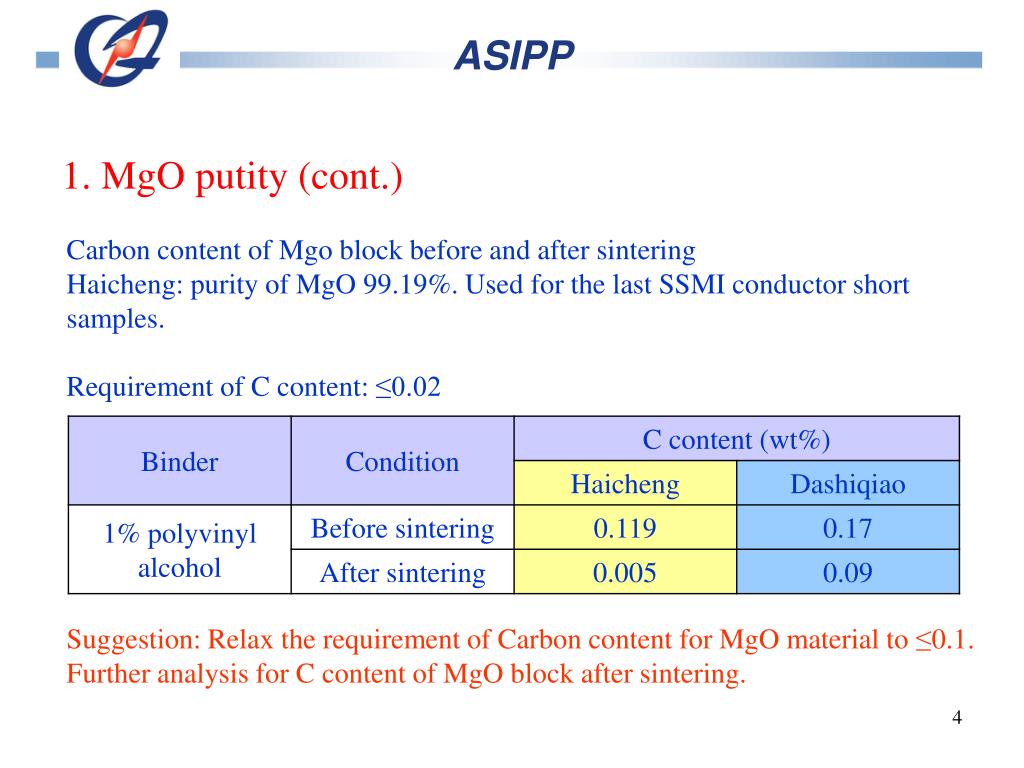

MgO putity (cont.)

Carbon content of Mgo block before and after sintering

Haicheng: purity of MgO 99.19%. Used for the last SSMI conductor short samples.

Requirement of C content: ≤0.02

Suggestion: Relax the requirement of Carbon content for MgO material to ≤0.1.

Further analysis for C content of MgO block after sintering.

4

slide5

2. Binder

  • Binder:
  • 107 glue
  • Deionized water
  • - Easy cracking
  • Polyvinyl alcohol
  • - 1% consistence and 2% mixture ratio with MgO

×

×

Insulation resistance of MgO block with different binder after baking exposed to air and N2.

5

slide6

3. Density and compaction ratio

Φ15mm MgO cake, polyvinyl alcohol binder

Sintering temperature: 1000℃, 1050℃, 1100℃, 1150℃, 1200℃

6

slide7

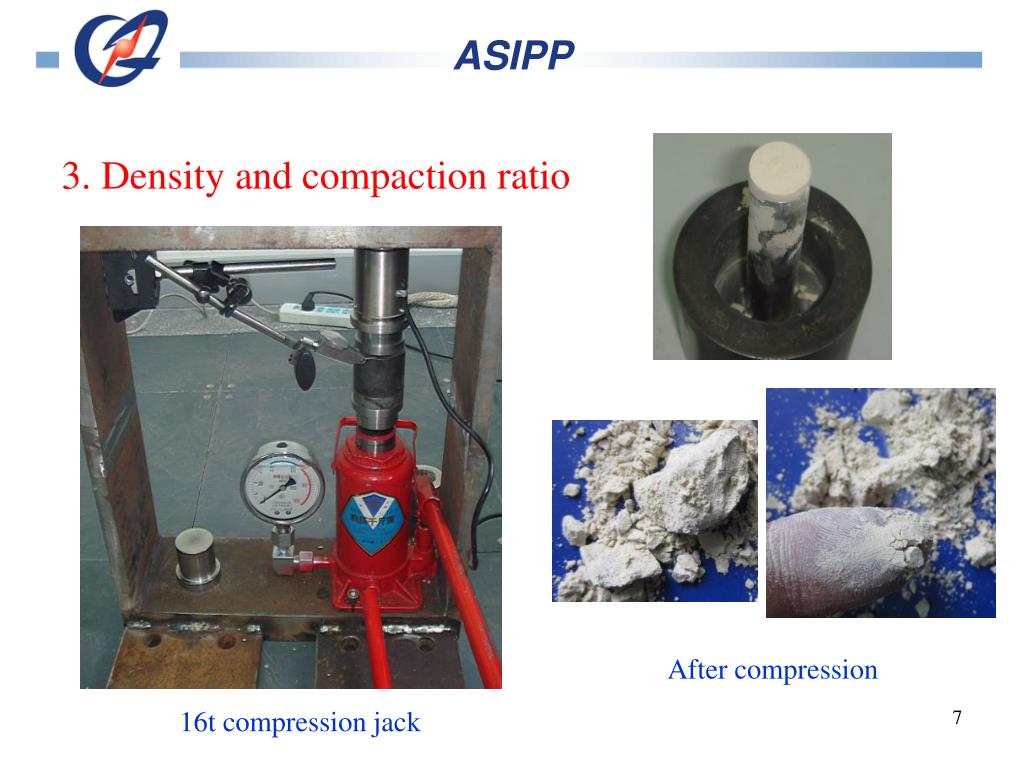

3. Density and compaction ratio

After compression

16t compression jack

7

slide8

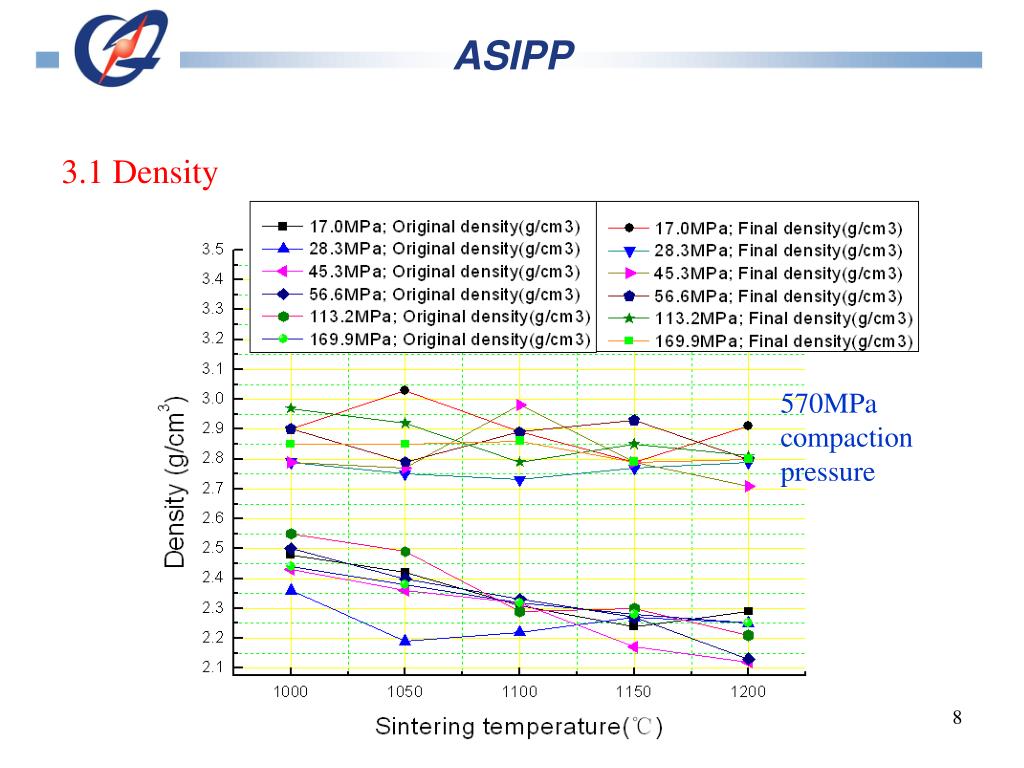

3.1 Density

570MPa compaction pressure

8

slide9

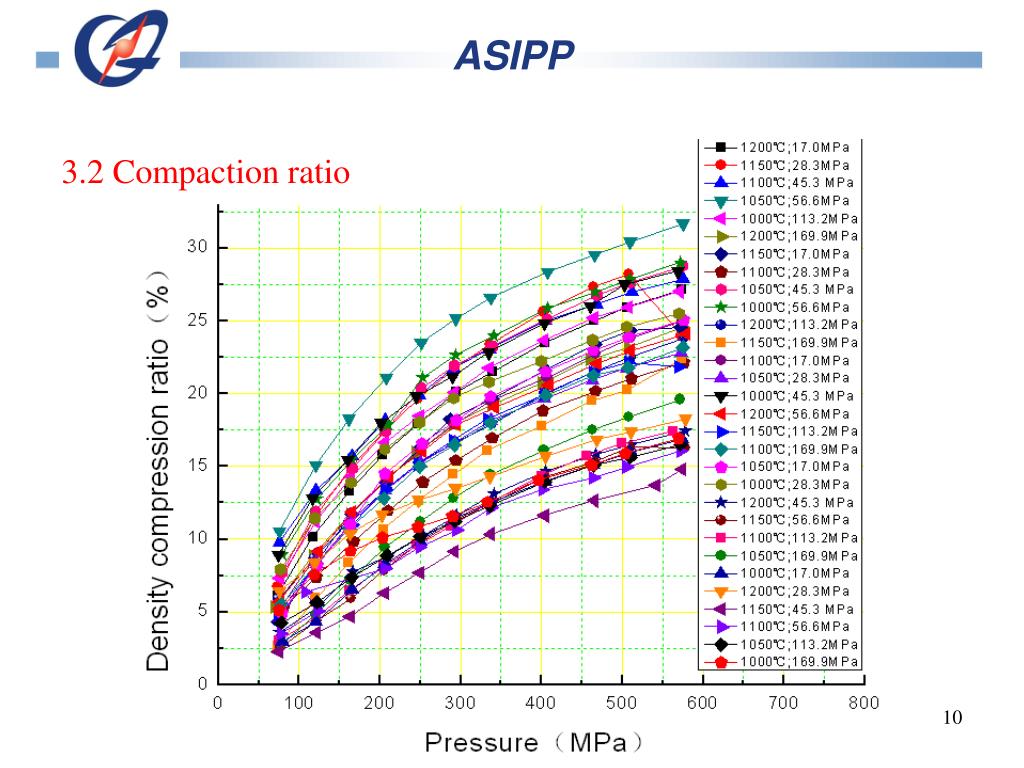

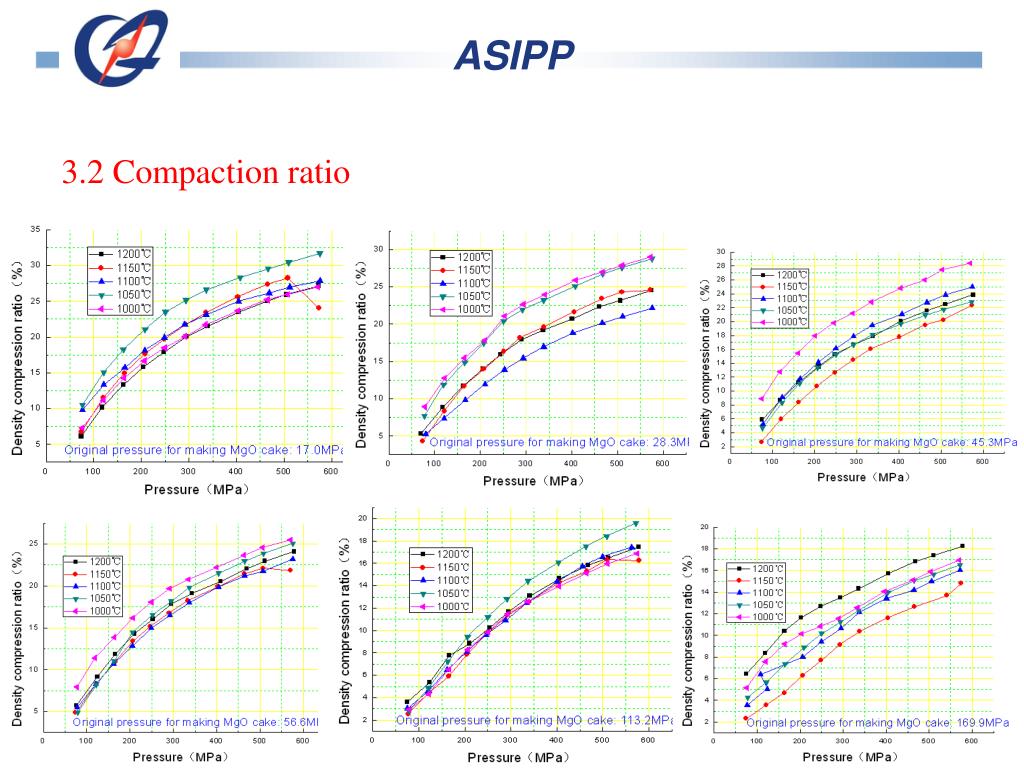

3.2 Compaction ratio

1t pressure force

9

slide12

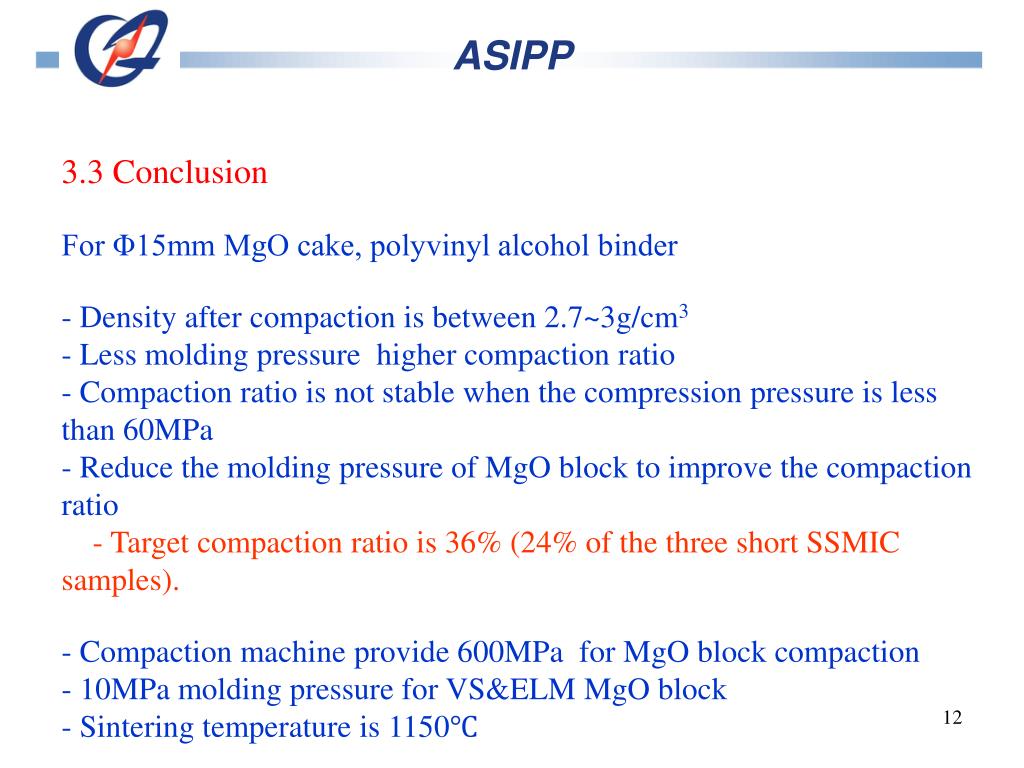

3.3 Conclusion

  • For Φ15mm MgO cake, polyvinyl alcohol binder
  • Density after compaction is between 2.7~3g/cm3
  • Less molding pressure higher compaction ratio
  • Compaction ratio is not stable when the compression pressure is less than 60MPa
  • Reduce the molding pressure of MgO block to improve the compaction ratio
  • - Target compaction ratio is 36% (24% of the three short SSMIC samples).
  • Compaction machine provide 600MPa for MgO block compaction
  • 10MPa molding pressure for VS&ELM MgO block
  • Sintering temperature is 1150℃

12

slide13

Free supports

  • Displacement in between the two supports:
  • 10m
  • Dy=362mm
  • 5m
  • Dy=10mm
  • 2m
  • Dy=0.19mm

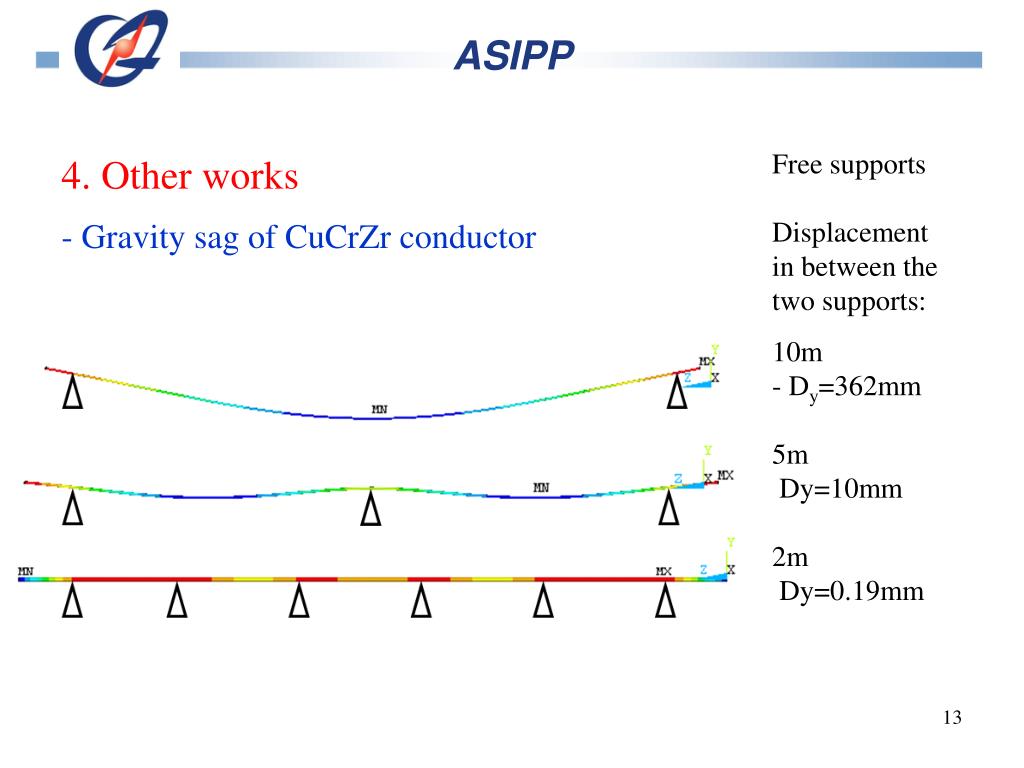

4. Other works

- Gravity sag of CuCrZr conductor

13

slide14

4. Other works

- Conductor baking (after compaction)

Baking: 450℃/4hours

Insulation resistance

Before baking: 0.03MΩ

After baking: >10GΩ@DC500V

Baking: 500℃/12hours

Insulation resistance

Before baking: 32MΩ

After baking: >10GΩ@DC500V

4 meters baking furnace in design for Cu conductor, jacket before assembly and SSMI conductor baking.

14

slide15

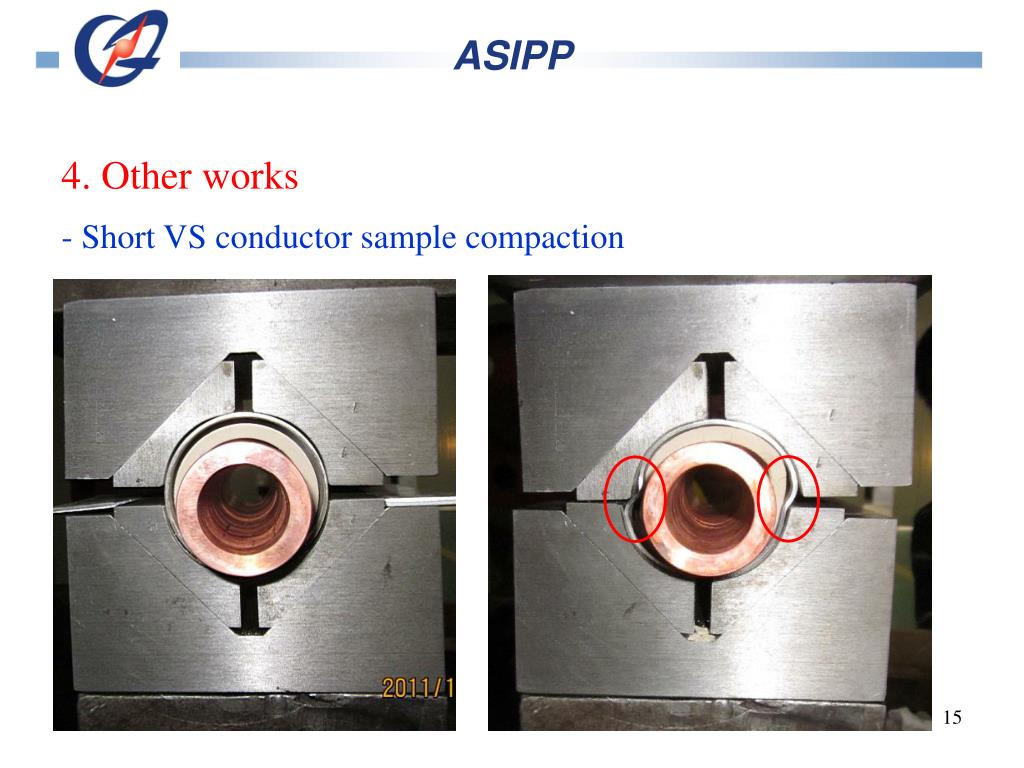

4. Other works

- Short VS conductor sample compaction

15
