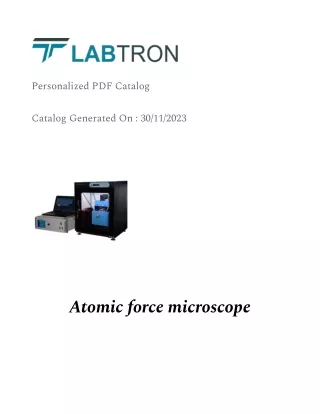

  1. Personalized PDF Catalog Catalog Generated On : 30/11/2023 Atomic force microscope

  2. https://www.labtron.info/ info@labtron.info | Description : Atomic force microscope comes with combined design of scan head and sample stage so as to give strong anti-vibration performance. It’s equipped with precision laser detection and probe alignment device for simple & easy adjustment of laser beam. Specifications : Contact mode, friction Operation mode, extended modes of modes tapping phase, MFM,

  3. EFM, scans at random angle Scan angle Random angle Maximum X/Y axis: 20 µm, Z axis: 2 scan range µm Optical system/ Magnification: 4x, Magnificati Resolution: 2.5 µm on of CCD X/Y axis: 0.2 nm, Z axis: Resolution 0.05 nm

  4. Sample size Ø≤ 90 mm, H≤ 20 mm Sample 0 to 20 mm movement Pulse width of 10 ± 2 ms approaching motor Scan rate 0.6 Hz to 4.34 Hz XY: 18 bit D/A & double 16 Scanning bit A/D multiple channel control simultaneously

  5. Types of sampling 256×256, 512×512 pixel Feedback DSP digital feedback type Feedback sampling 64 KHz rate PC USB 2.0 connections:

  6. Windows Compatible with windows so?ware 98/2000/XP/7/8 Instrument 415 × 410 × 545 mm Diemnsion Net weight 40 kg Gross 50 kg Weight Features : Large range of sample transfer

  7. Modular electronic system for easy maintenance Adopted with spring for vibration isolation Provides highly accurate results Optical observation system for checking tip & sample’s position

  8. Applications : It finds best solution for applications in biochemistry for tissues, cells, cellular components imaging, nanotechnology for imaging of polymers, nanomaterials, and in chemistry physics for imaging of surface metals elements.

  9. www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom

  10. Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
