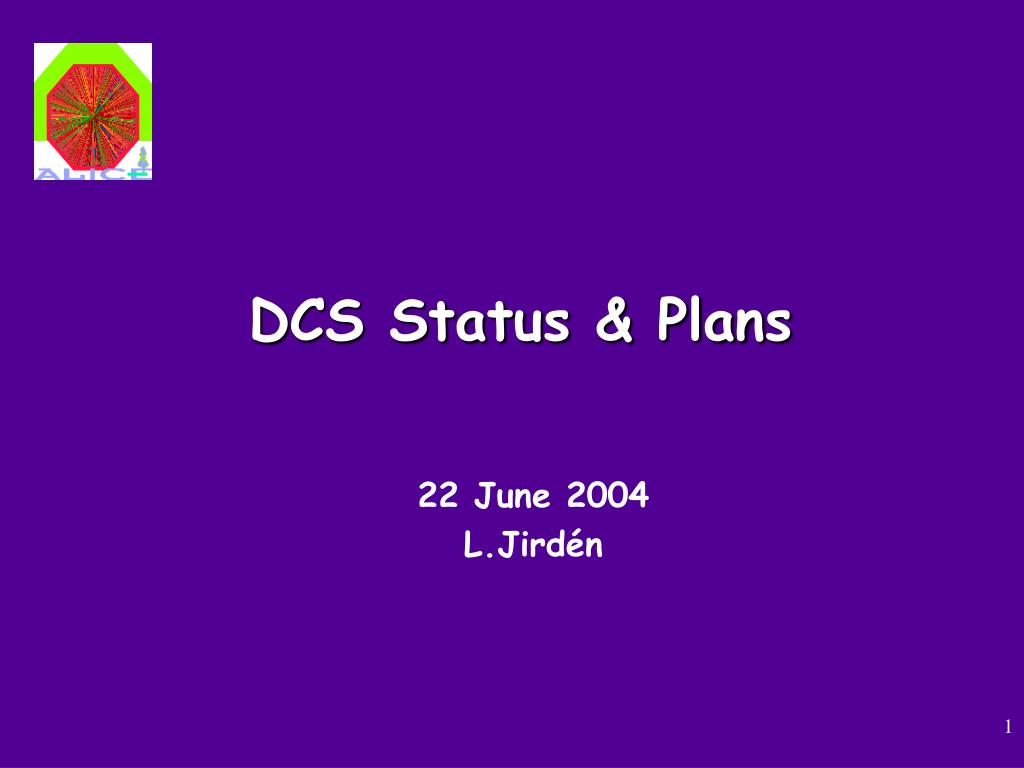

  1. DCS Status & Plans 22 June 2004 L.Jirdén

  2. URD Status 1st draft URD exists Discussion started Not started or unknown PHO MU CAL CPV TRG TRA DCS ITS TPC TRD TOF HMP ZDC FMD T0 V0 PMD EMC ACC Detectors SPD SDD SSD HV HV HV HV VHV HV HV HV HV HV HV HV HV HV HV HV HV HV HV LV LV LV LV LV LV LV LV LV LV LV LV LV LV LV subsystems FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE MON MON MON MON MON MON CCO MON MON MON MON MON MON MON MON MON CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT COO COO COO COO TS COO COO COO COO COO COO COO GAS PLS GAS GAS GAS GAS GAS GAS GAS GAS LSR ROD LIQ GMS

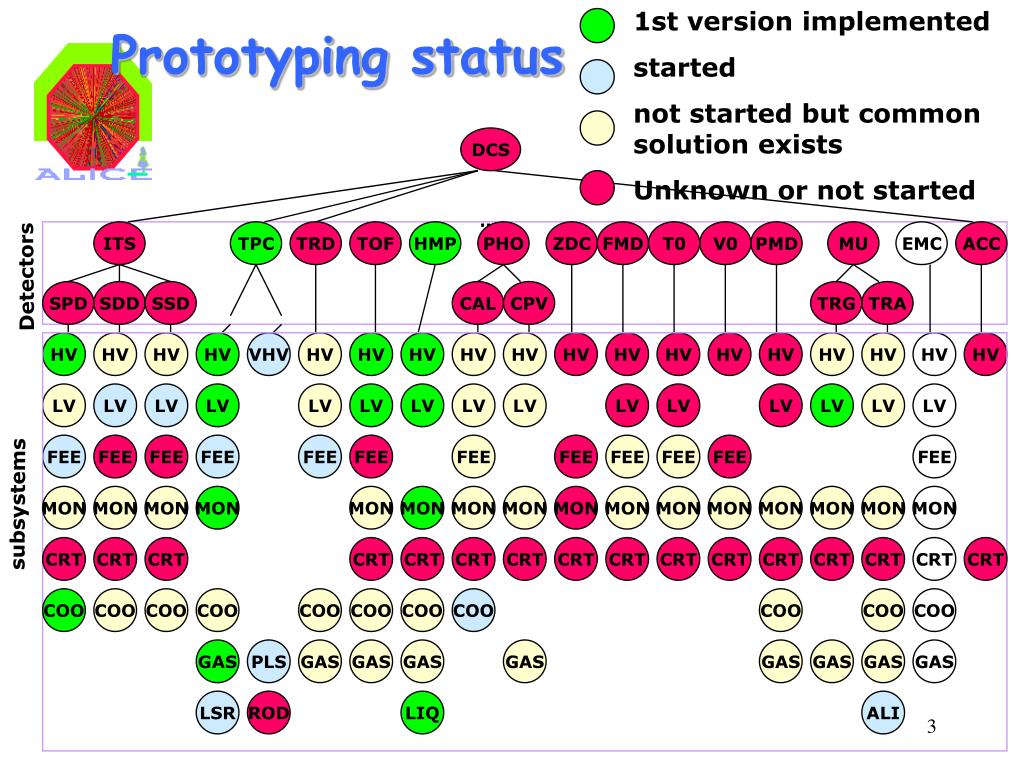

  3. Prototyping status 1st version implemented started not started but common solution exists Unknown or not started PHO MU CAL CPV TRG TRA DCS … ITS TPC TRD TOF HMP ZDC FMD T0 V0 PMD EMC ACC Detectors SPD SDD SSD HV HV HV HV VHV HV HV HV HV HV HV HV HV HV HV HV HV HV HV LV LV LV LV LV LV LV LV LV LV LV LV LV LV LV FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE FEE subsystems MON MON MON MON MON MON MON MON MON MON MON MON MON MON MON MON CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT CRT COO COO COO COO COO COO COO COO COO COO COO GAS PLS GAS GAS GAS GAS GAS GAS GAS GAS LSR ROD LIQ ALI

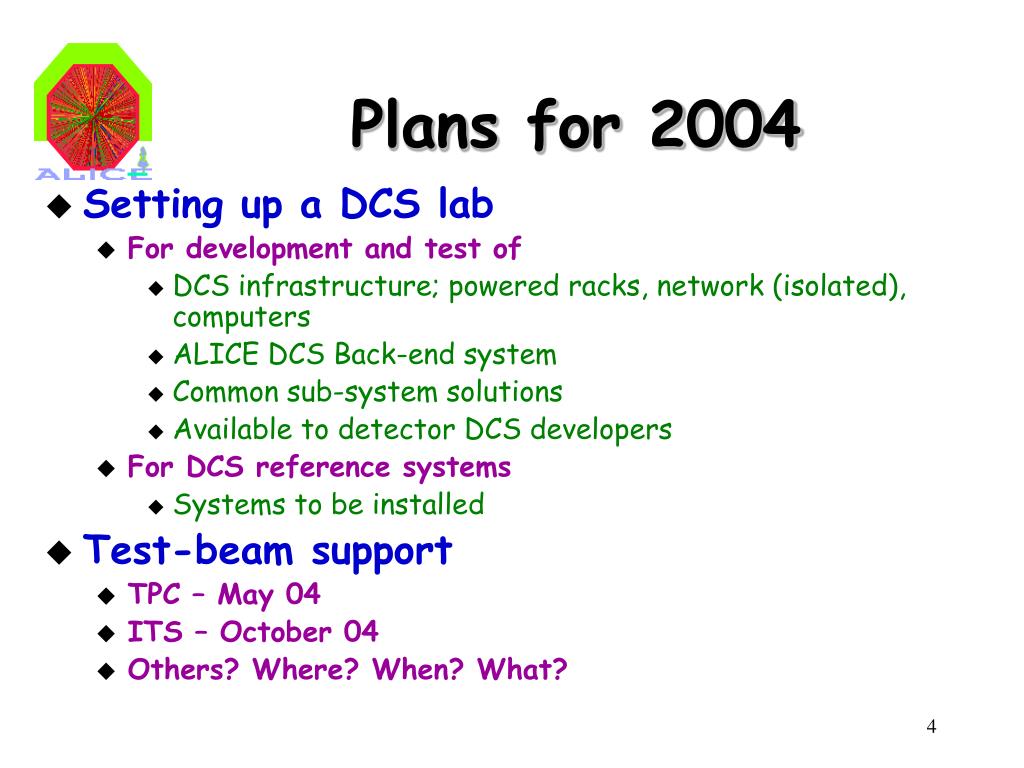

  4. Plans for 2004 • Setting up a DCS lab • For development and test of • DCS infrastructure; powered racks, network (isolated), computers • ALICE DCS Back-end system • Common sub-system solutions • Available to detector DCS developers • For DCS reference systems • Systems to be installed • Test-beam support • TPC – May 04 • ITS – October 04 • Others? Where? When? What?

  5. Plans for 2004-05 • Pre-installation at surface of P2 • TPC – start Dec 04 • HMPID – start Jan 05 • Others • Where? When? What? • Final installation at P2; detailed planning for each detector required • DCS Hardware infrastructure; • Common to all detectors; in two batches • Back-end system: common to all;operational versions; updates • Services: • power,safety common to all, • cooling & gas individual for each detector • Detector applications: individual for each detector

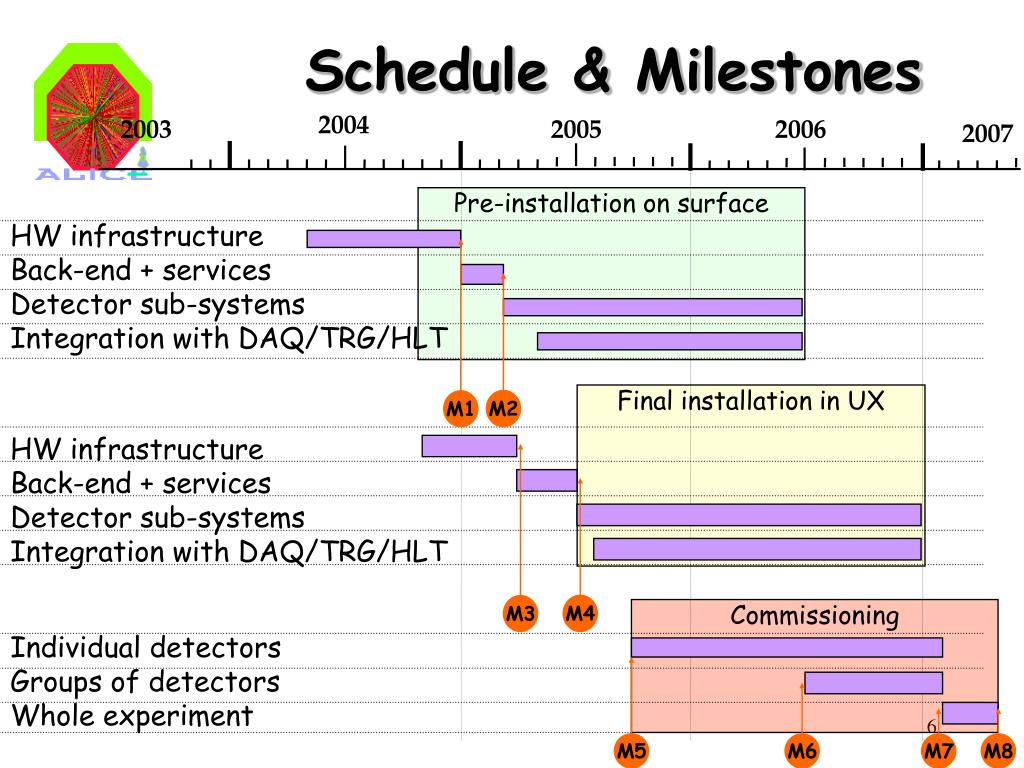

  6. 2004 2003 2005 2006 2007 HW infrastructure Back-end + services Detector sub-systems Integration with DAQ/TRG/HLT Pre-installation on surface Final installation in UX M3 M1 M2 M4 HW infrastructure Back-end + services Detector sub-systems Integration with DAQ/TRG/HLT Commissioning Individual detectors Groups of detectors Whole experiment M5 M6 M7 M8 Schedule & Milestones
