  1. د. بســام كحـالــه Dr. Bassam Kahhaleh 22345 Assembly Language

  2. Chapter 2: 22345 – Assembly Language Intel ArchitectureIA - 32

  3. Intel Processors History

  4. Register File ALU Microprocessor Architecture MEMORY Microprocessor Address Data

  5. Modes of Operation • Real-Address Mode • 20-Bit Address (1 MB Memory) • 8/16-Bit Data • 8/16-Bit Registers • Protected Mode • Virtual Mode • System Management Mode

  6. Real Mode Registers  8 Bits   8 Bits  AccumulatorRegister AH AL AX BaseRegister BH BL BX CountRegister CH CL CX DH DL DivisionRegister DX

  7. Real Mode Registers  16 Bits  Source Index SI DestinationIndex DI Base Pointer BP Stack Pointer SP InstructionPointer IP

  8. Real Mode Registers  16 Bits  Code Segment CS Data Segment DS Extra Segment ES Stack Segment SS

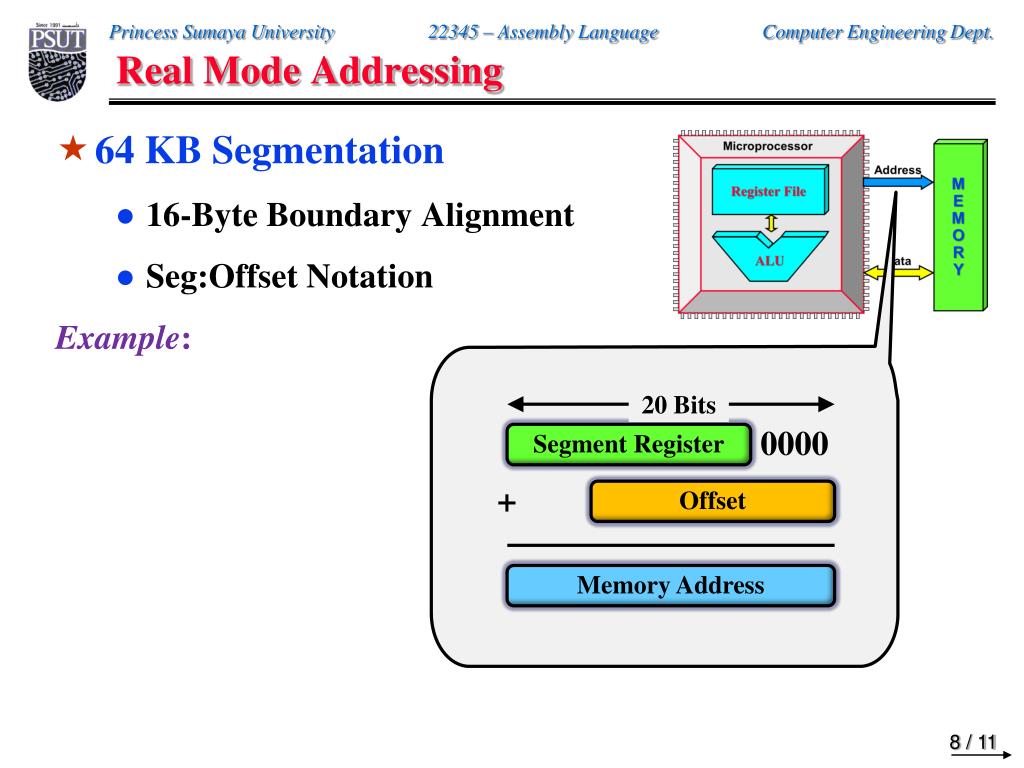

  9. Real Mode Addressing • 64 KB Segmentation • 16-Byte Boundary Alignment • Seg:Offset Notation Example: 20 Bits Segment Register 0000 Offset + Memory Address

  10. Flags • Status Flags • Carry (CF) • Overflow (OF) • Sign (SF) • Zero (ZF) • Auxiliary Carry (AC) • Parity (PF) • Control Flags • Direction, Interrupt, etc. - - - - OF DF IF TF SF ZF - AC - PF - CF

  11. Intel 8086/8088 AH AL BH BL CH CL DH DL ALU Operations: ADD SUB MUL DIV INC DEC AND OR   SI DI BP SP IP CS DS ES SS

  12. x86 Assembly Language • Instruction Format • Mnemonic • One or More Operands • Machine Code • Assembly Statement • Label • Instruction • Comment Opcode Mode Operands Mnemonic Operands

  13. Chapter 2
