  1. KX-TDA/TDE/NCP New Features/Functions Ver.3 (Edition-2) Panasonic Communications CO.,LTD.

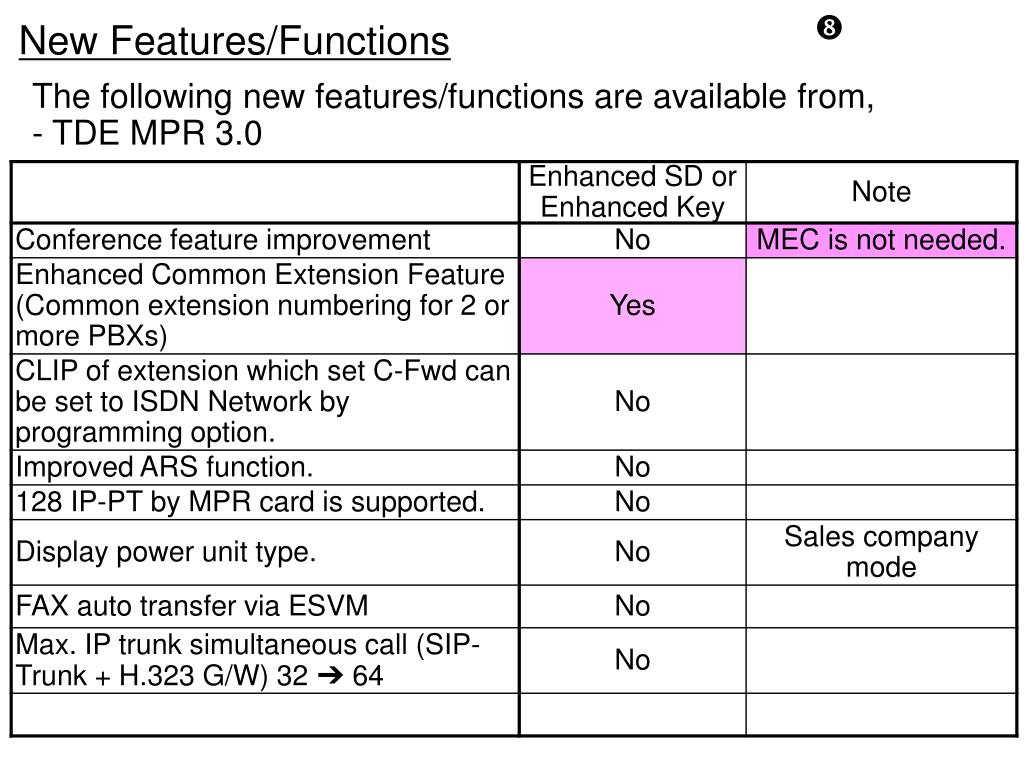

  2. New Features/Functions The following new features/functions are available from, - TDE MPR 3.0

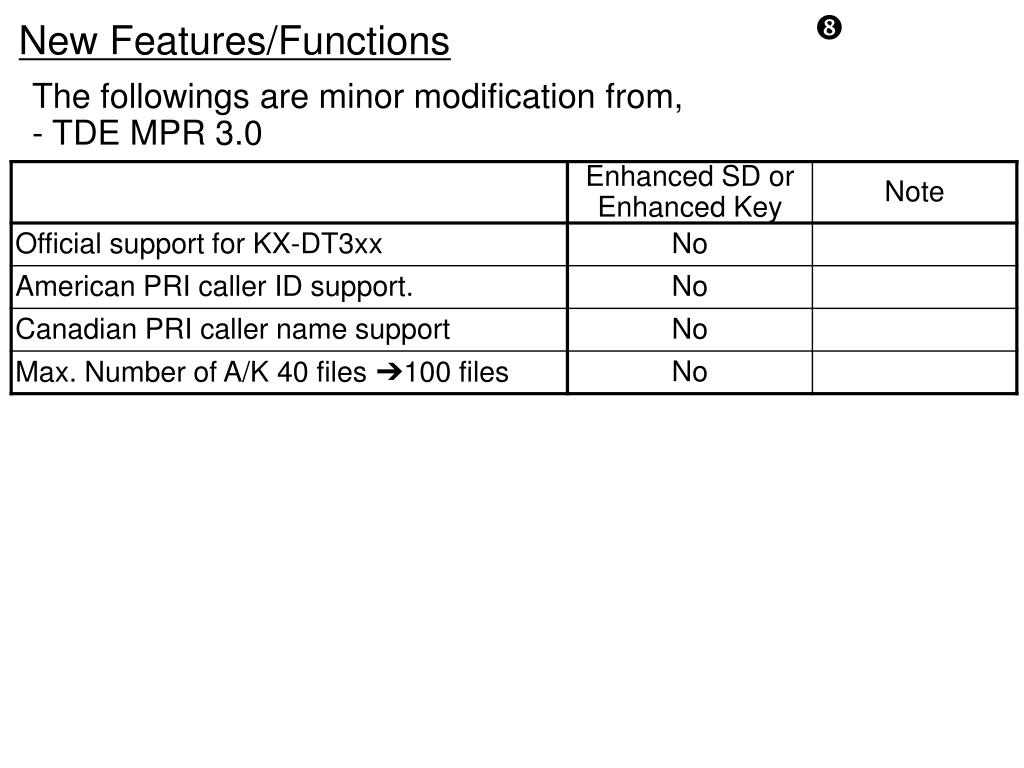

  3. New Features/Functions The followings are minor modification from, - TDE MPR 3.0

  4. New Conference Function (8-Party Conference and Broadcast)

  5. 8-Party Conference and Broadcast -1 Outline - A PT (Owner) can call multiple parties, assigned as members of a conference group. - Max. 8 conference groups can be programmed. - 2 Conference Mode: - 8-Party Conference Mode (Owner + 7 members): Two-way communication. - Broadcast Mode (Owner + 31 members): One way communication. Cannot mix Broadcast or Conference feature - not possible on same system. External terminals (ISDN/Analogue) can be members of a conference group. External ISDN Analogue Owner QSIG extensions (Remote office) can be member of a conference group. QSIG Local Remote

  6. 8-Party Conference and Broadcast - 2 8-Party Conference Mode N/A Owner Two-way Max. 7 Members One way Broadcast Mode N/A Owner Two-way One way Max. 31 Members The Owner can control local PBX members. Owner Two-way Max. 7 Members One way Max. 24 Members

  7. 8-Party Conference and Broadcast - 3 The number of simultaneous conference calls Group-1 N/A Owner Two-way One way Group-x N/A Owner Two-way One way Total 32 Terminals Group-8 Owner Two-way One way

  8. 8-Party Conference and Broadcast - 4 Member Control (8-Party Conference Mode) Available terminals Local PBX Extensions External parties ISDN/Analogue Non-listed Ext. Can Join Owner Two-way Max. 7 Members One way IN/OUT Disconnect The Owner can control local PBX members.

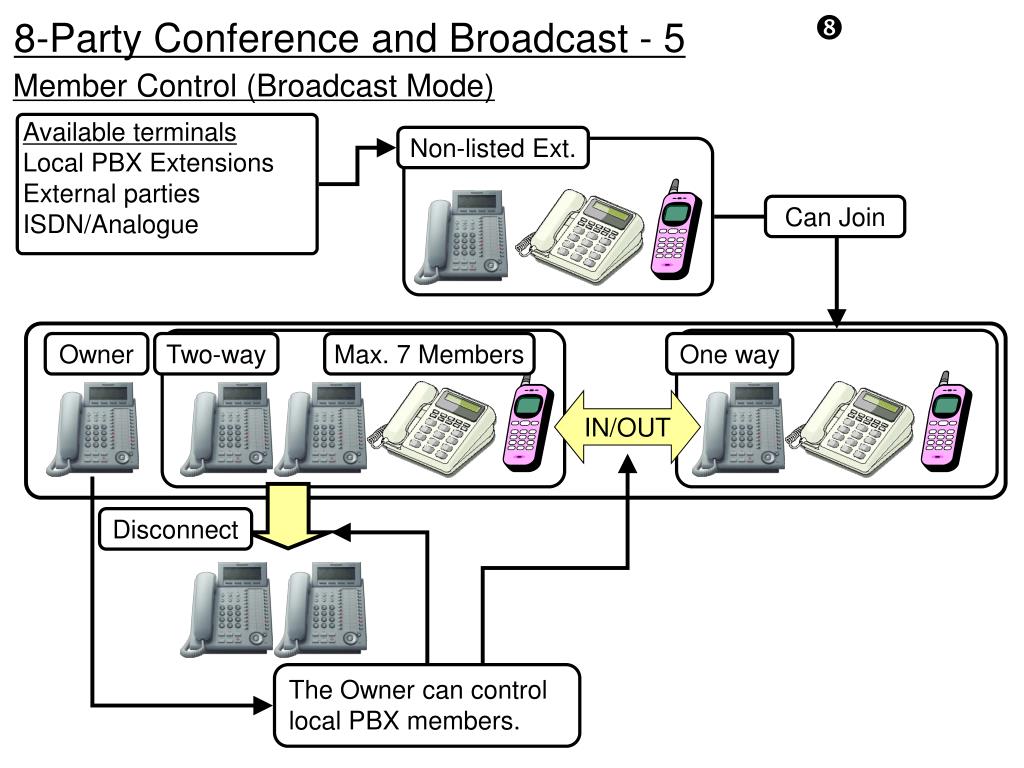

  9. 8-Party Conference and Broadcast - 5 Member Control (Broadcast Mode) Available terminals Local PBX Extensions External parties ISDN/Analogue Non-listed Ext. Can Join Owner Two-way Max. 7 Members One way IN/OUT Disconnect The Owner can control local PBX members.

  10. 8-Party Conference and Broadcast - 6 8-Party Conference Mode Owner System Programming 8-party conference Total 8 parties

  11. 8-Party Conference and Broadcast - 7 Broadcast Mode Owner System Programming 31 Broadcasting Total 32 parties

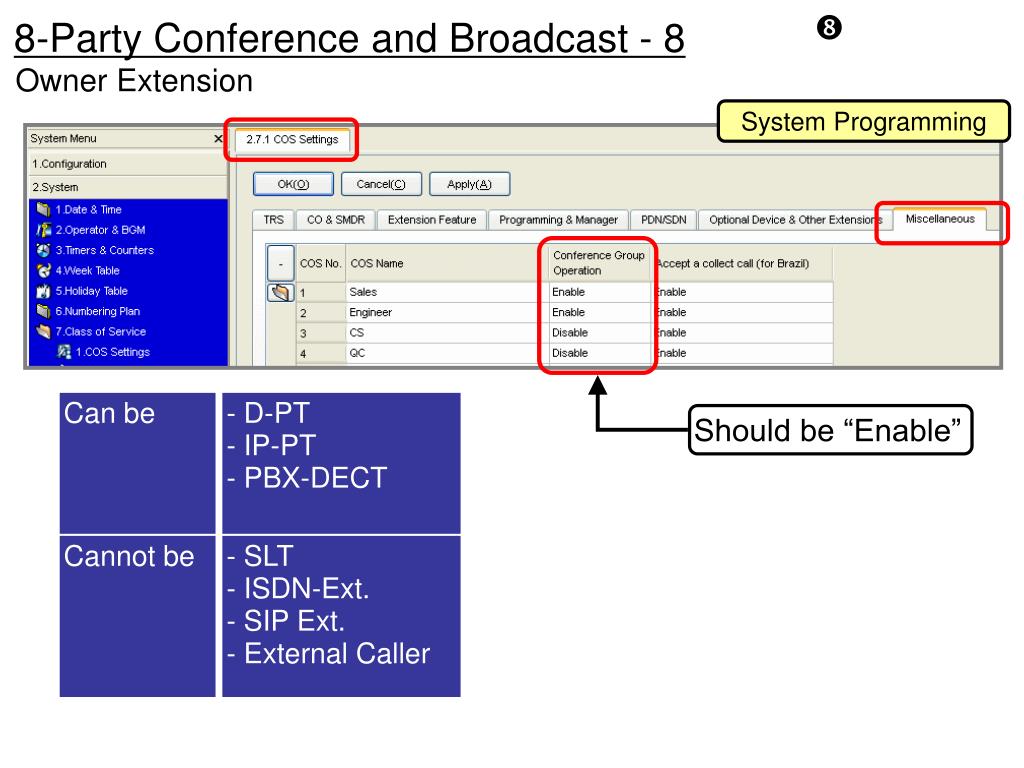

  12. 8-Party Conference and Broadcast - 8 Owner Extension System Programming Can be - D-PT - IP-PT - PBX-DECT Should be “Enable” Cannot be - SLT - ISDN-Ext. - SIP Ext. - External Caller

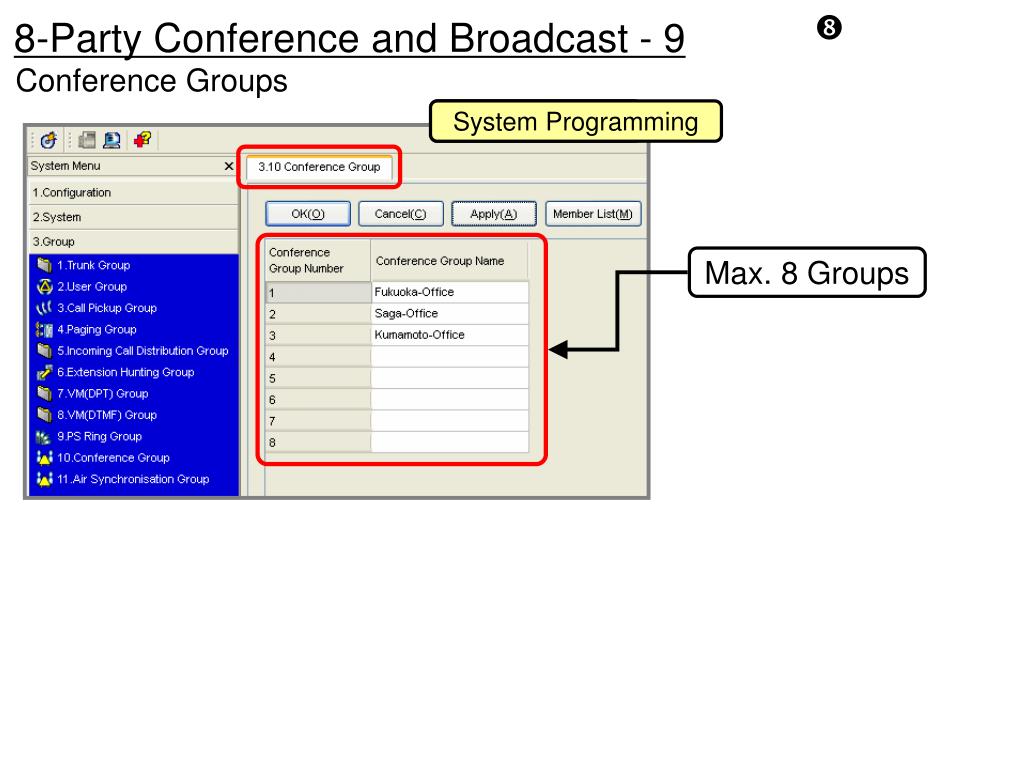

  13. 8-Party Conference and Broadcast - 9 Conference Groups System Programming System Program Max. 8 Groups

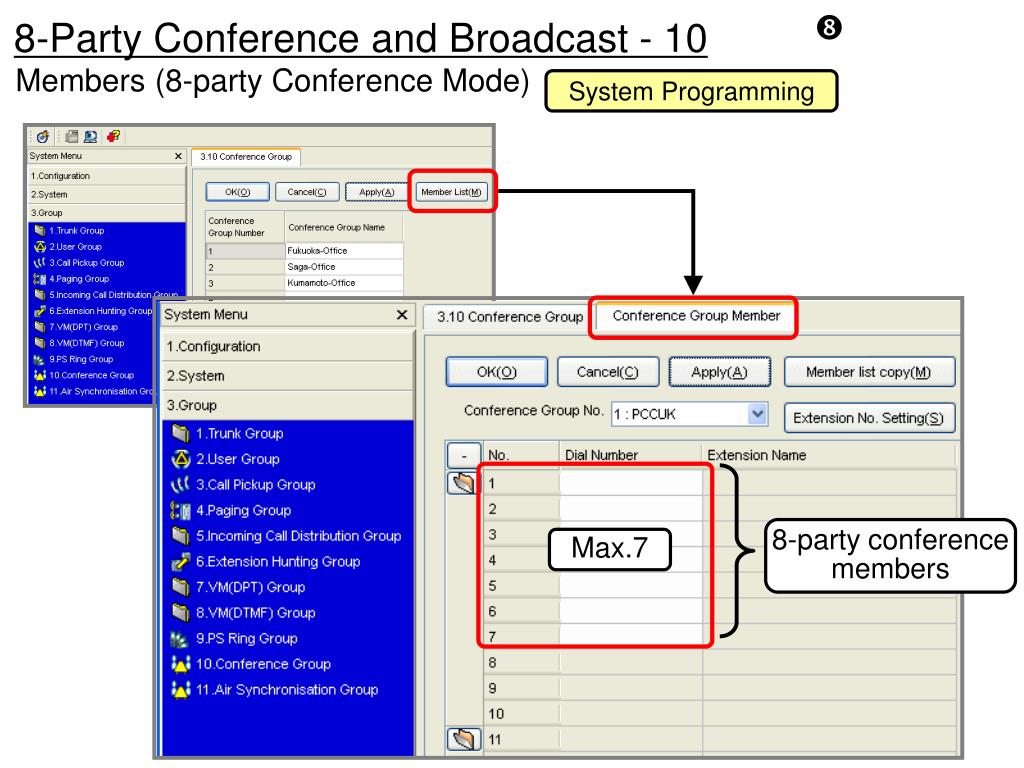

  14. 8-Party Conference and Broadcast - 10 Members (8-party Conference Mode) System Programming 8-party conference members Max.7

  15. 8-Party Conference and Broadcast - 11 Members (Broadcast Mode) System Programming Max.31 31Broadcast members

  16. 8-Party Conference and Broadcast - 12 Members System Programming 201 202 203 301 302 74771111 74771112 04771111 04771112 Member Can be - PT/SLT/ISDN - PS - SIP - TIE Extension - External line (ISDN/Analogue) Cannot be • - ICD-Group • - PS Ring Group • - VM Group • - External Pager • DISA

  17. No of member “ 8-Party Conference and Broadcast - 13 Make a conference From an owner Extension, Normal mode : Dial *32 + Conference group number + # Security mode : Dial *32 + Conference group number + Conference Password + # LCD: Calling / Called Extension Conference1: PCCUK When a member of the group answers the call. LCD: Calling Extension LCD: Called Extension Conference : 2 Conference

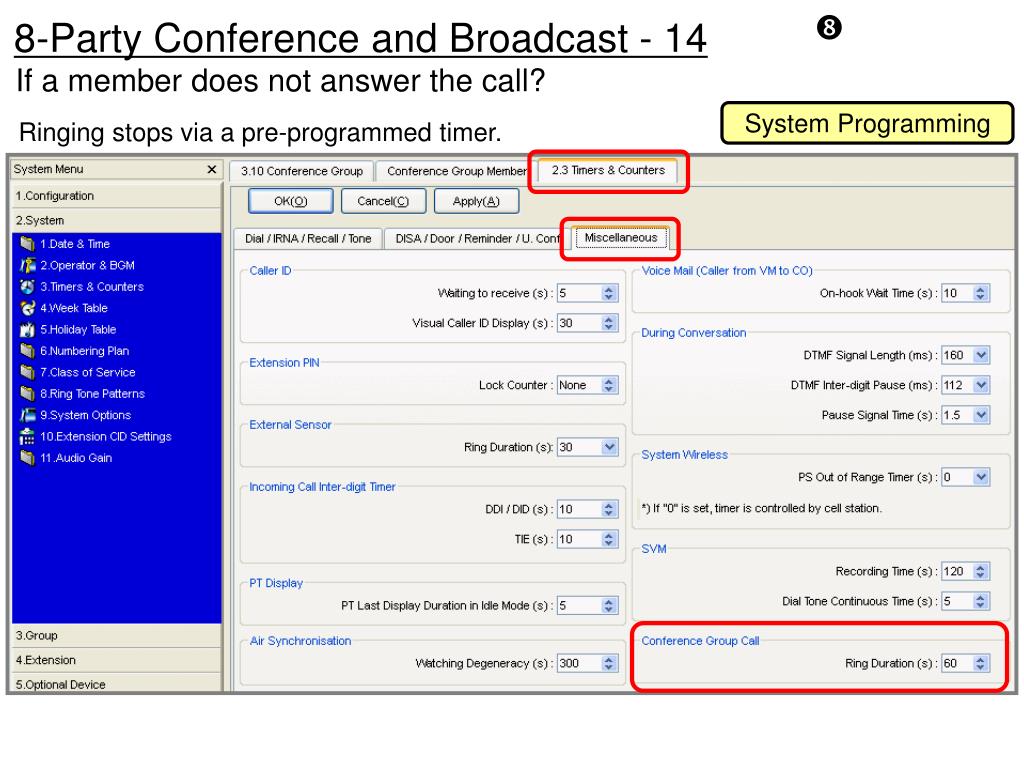

  18. 8-Party Conference and Broadcast - 14 If a member does not answer the call? System Programming Ringing stops via a pre-programmed timer.

  19. 201 202 203 DSS “ 8-Party Conference and Broadcast - 15 Member Control (8-party Conference Mode) Dial *32 + conference group number # ➔ Extension answers (All Extension are in conference mode). Group-1 7 Members Multi party Conference 201 202 203 Owner 201 Two Way 202 203

  20. 8-Party Conference and Broadcast - 16 Member Control (8-party Conference Mode) ➔ Press “DSS” button (Owner) ➔ Remove the member from conference mode ➔ Press “DSS” button (Owner) again ➔ Establish the conversation again. (Similar Operation can be done by the CONF/TRANSFER keys.) Group-1 7 Members Multi party Conference 201 202 203 DSS Owner 201 201 Two Way DSS 202 202 201 202 203 203 One Way DSS

  21. 8-Party Conference and Broadcast - 17 Member Control (8-party Conference Mode) Non listed Member: Dial *32# + Conference group number + # ➔ Join the conference. Group-1 7 Members Multi party Conference 201 202 203 Owner 201 Two Way 202 KX-HGT100 Possible If a customer needs security, please use the security conference mode. 201 202 203 203 DSS *32# + Conference group number + # 204 204

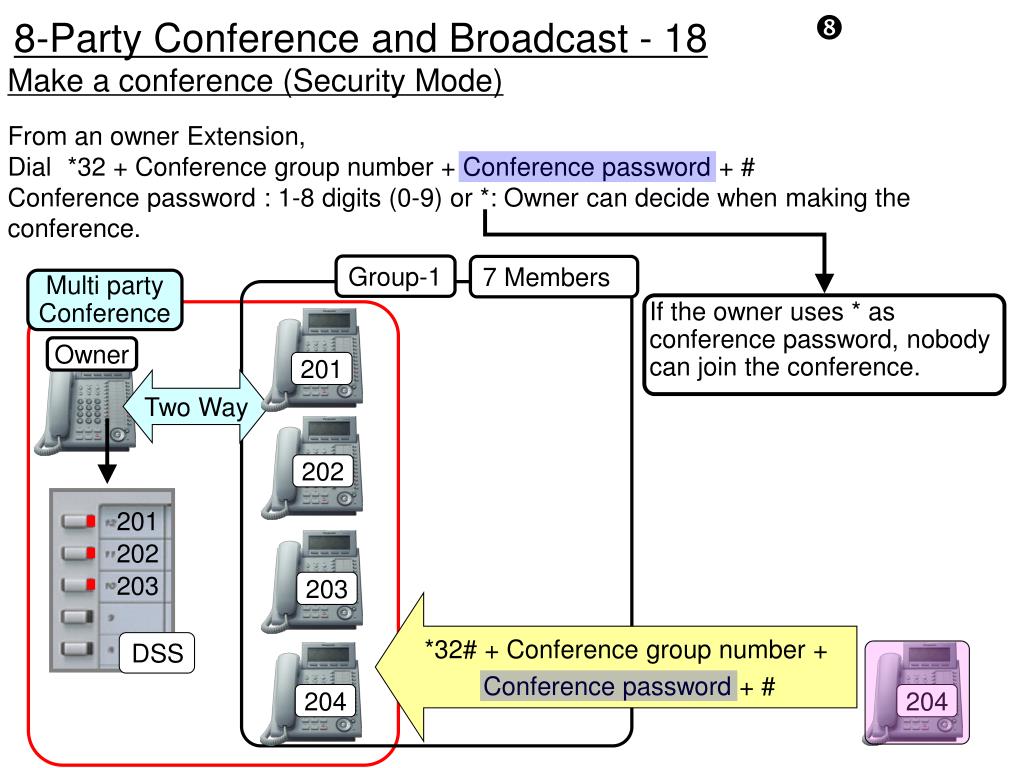

  22. 8-Party Conference and Broadcast - 18 Make a conference (Security Mode) From an owner Extension, Dial *32 + Conference group number + Conference password + # Conference password : 1-8 digits (0-9) or *: Owner can decide when making the conference. Group-1 7 Members Multi party Conference If the owner uses * as conference password, nobody can join the conference. Owner 201 Two Way 202 201 202 203 203 *32# + Conference group number + Conference password + # DSS 204 204

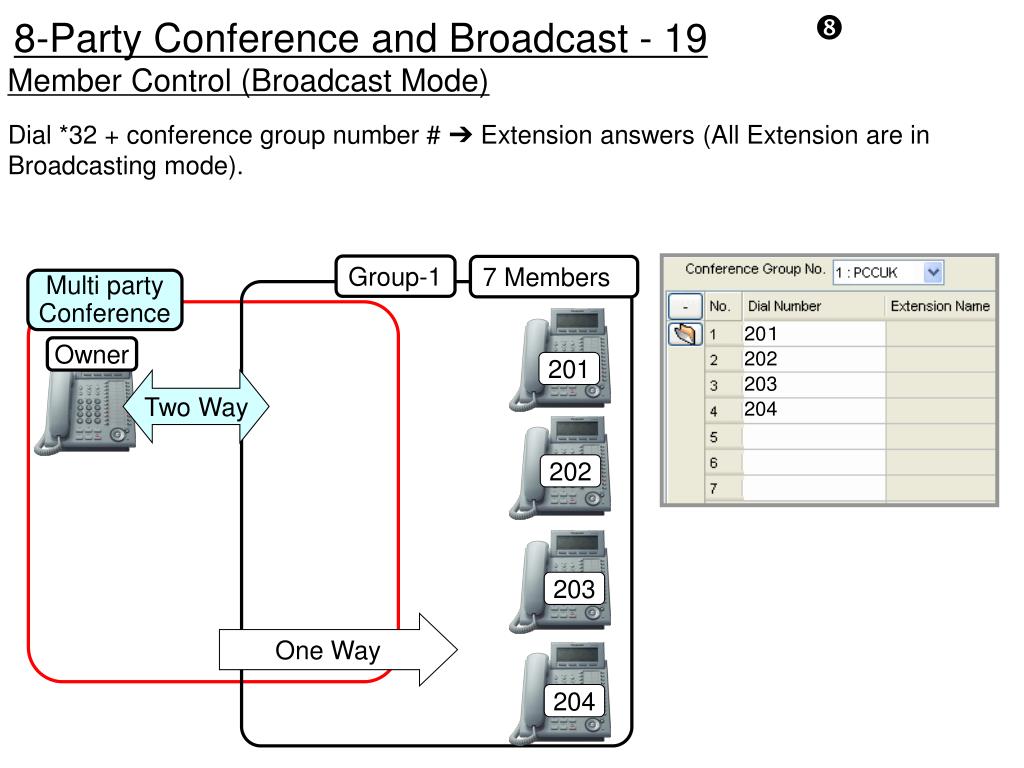

  23. 8-Party Conference and Broadcast - 19 Member Control (Broadcast Mode) Dial *32 + conference group number # ➔ Extension answers (All Extension are in Broadcasting mode). Group-1 7 Members Multi party Conference 201 202 203 204 Owner 201 Two Way 202 203 One Way 204

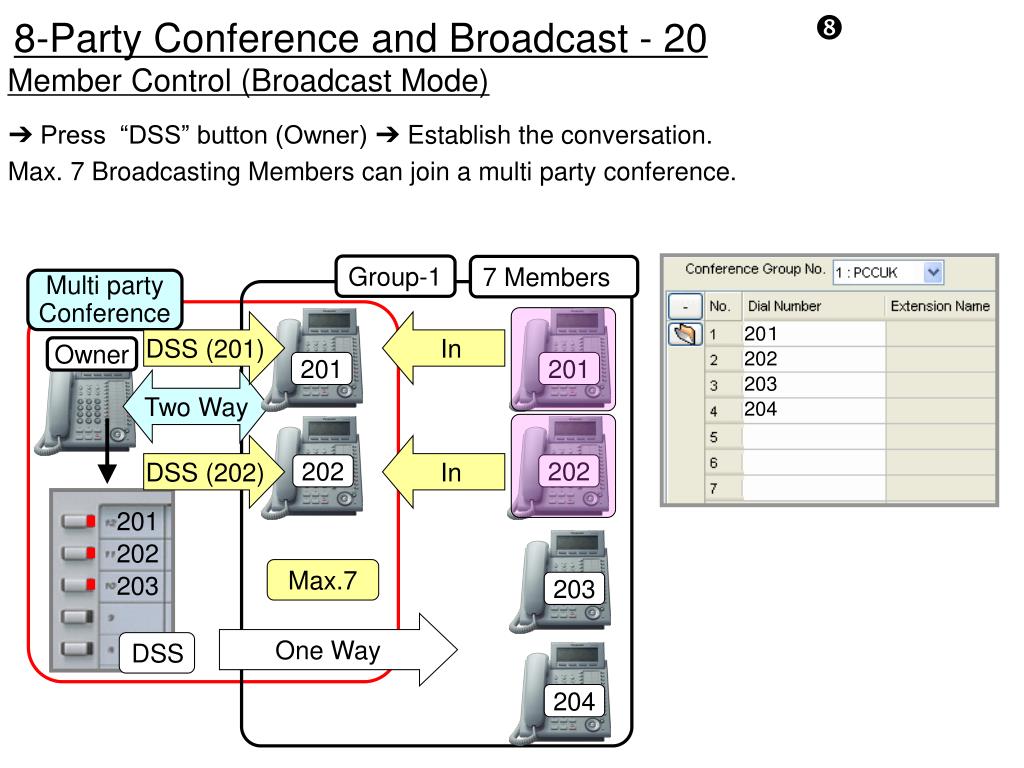

  24. 8-Party Conference and Broadcast - 20 Member Control (Broadcast Mode) ➔ Press “DSS” button (Owner) ➔ Establish the conversation. Max. 7 Broadcasting Members can join a multi party conference. Group-1 7 Members Multi party Conference DSS (201) In 201 202 203 204 Owner 201 201 Two Way DSS (202) In 202 202 201 202 203 Max.7 203 One Way DSS 204

  25. 8-Party Conference and Broadcast - 21 Member Control (Broadcast Mode) ➔ Press “DSS” button (Owner) ➔ Remove the member from conference mode. Group-1 7 Members Multi party Conference DSS (201) Out 201 202 203 204 Owner 201 201 Tow Way DSS (202) Out 202 202 201 202 203 203 One Way DSS 204

  26. 8-Party Conference and Broadcast - 22 Member Control (Broadcast Mode) If a Broadcasting member wants to join, ➔ Press “200 DSS” button (Ext.201) ➔ Off-hook call tone on the owner Ext. ➔ Press “201 DSS” button (Owner) ➔ Establish the conversation. Group-1 7 Members Press “DSS” Multi party Conference 200 202 203 I want to join (Meet Me) Owner 201 Two Way 200 DSS 202 Off-hook call tone 203 This function is only possible on local extensions. Not possible: Remote Extensions External Parties

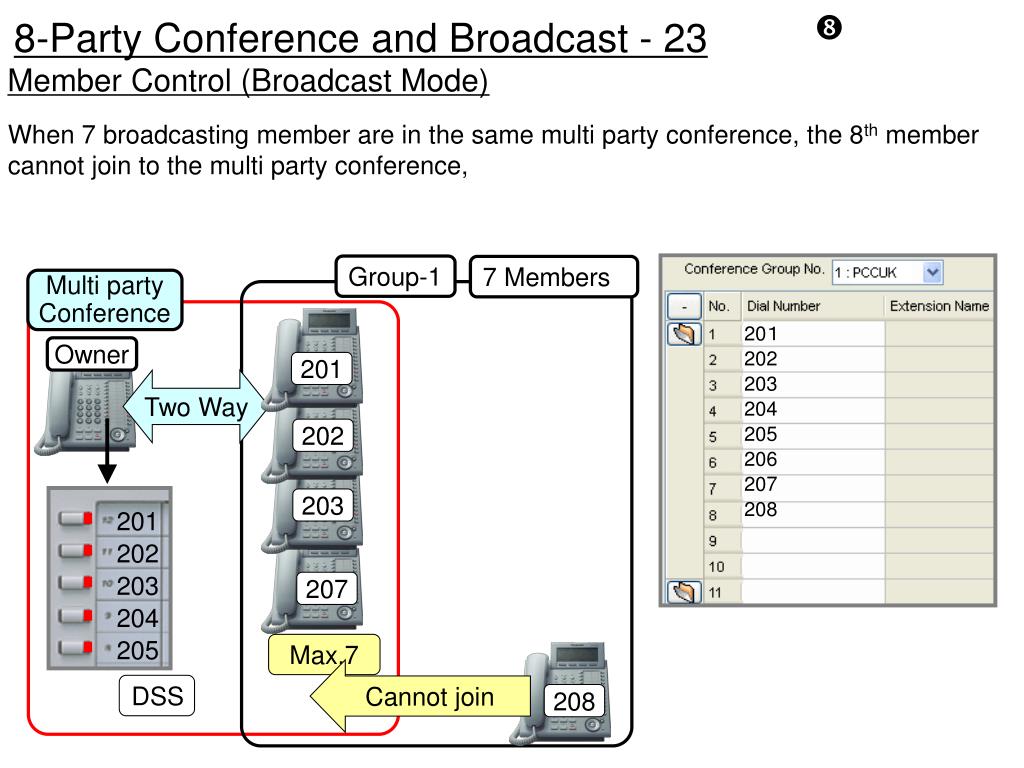

  27. 8-Party Conference and Broadcast - 23 Member Control (Broadcast Mode) When 7 broadcasting member are in the same multi party conference, the 8th member cannot join to the multi party conference, Group-1 7 Members Multi party Conference 201 202 203 204 205 206 207 208 Owner 201 Two Way 202 203 201 202 203 204 205 207 Max.7 Cannot join DSS 208

  28. 8-Party Conference and Broadcast - 24 Member Control (Remote Ext./External Party) Join Conference Possible: - Local Extensions - External parties through ISDN - External parties through Analogue Not Possible: - Remote Extensions External External ISDN Analogue Great !!!! QSIG Yes No Yes Remote Local Owner Conference

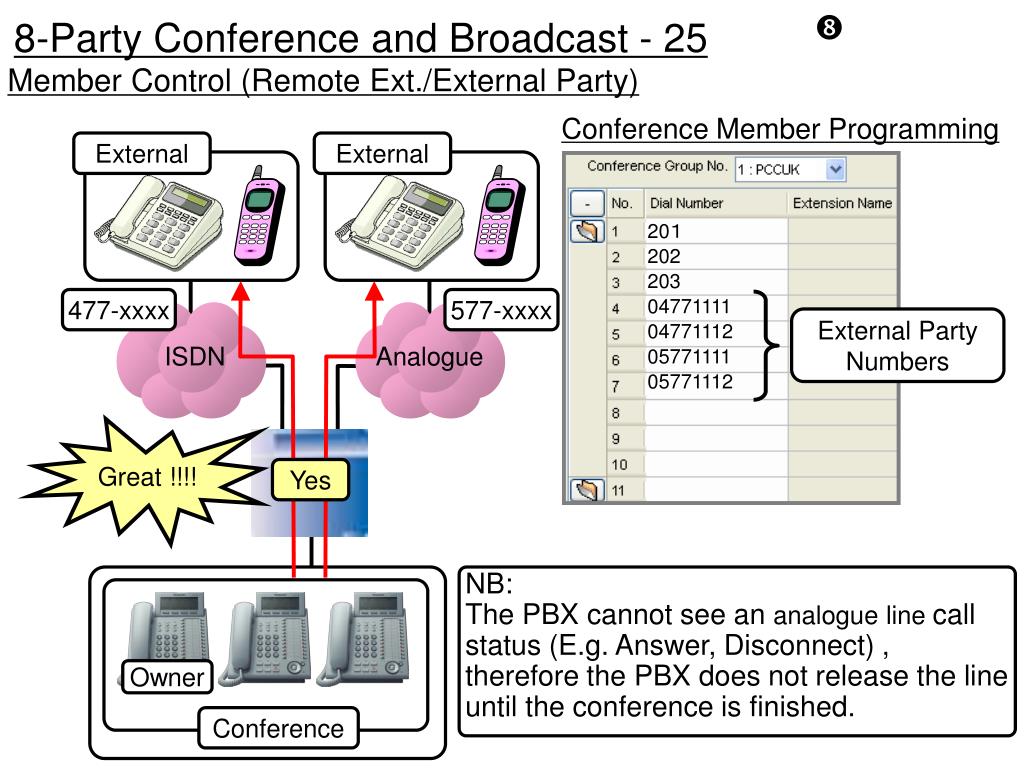

  29. 8-Party Conference and Broadcast - 25 Member Control (Remote Ext./External Party) Conference Member Programming External External 201 202 203 04771111 04771112 05771111 05771112 477-xxxx 577-xxxx External Party Numbers ISDN Analogue Great !!!! Yes NB: The PBX cannot see an analogue line call status (E.g. Answer, Disconnect) , therefore the PBX does not release the line until the conference is finished. Owner Conference

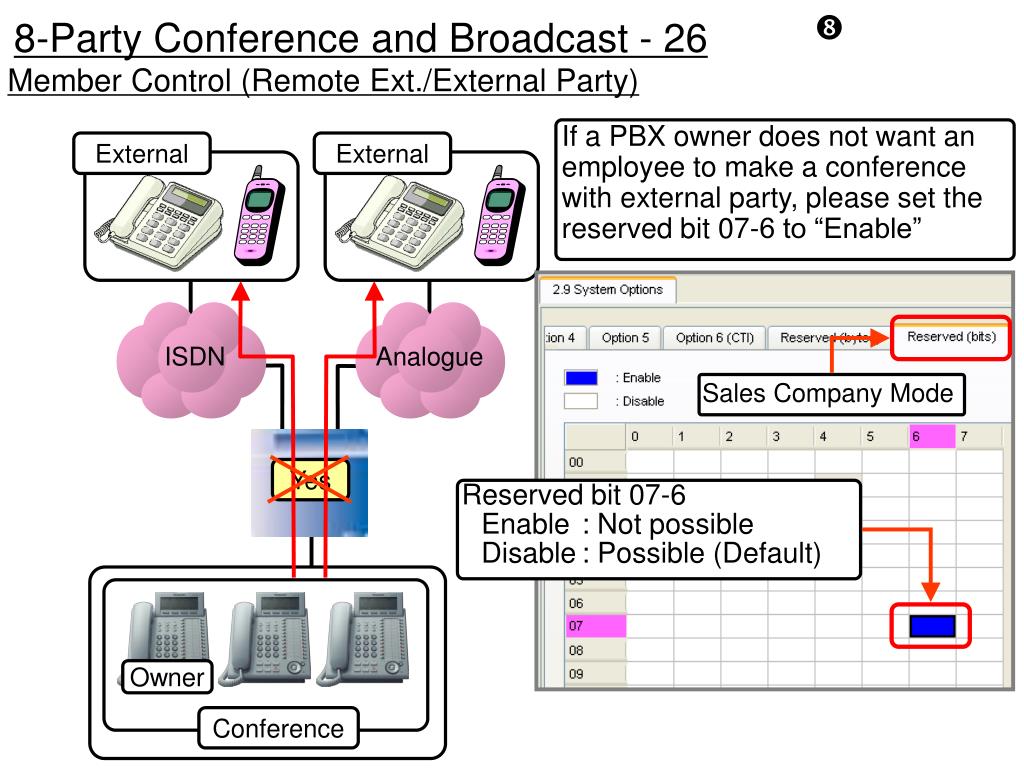

  30. 8-Party Conference and Broadcast - 26 Member Control (Remote Ext./External Party) If a PBX owner does not want an employee to make a conference with external party, please set the reserved bit 07-6 to “Enable” External External ISDN Analogue Sales Company Mode Yes Reserved bit 07-6 Enable : Not possible Disable : Possible (Default) Owner Conference

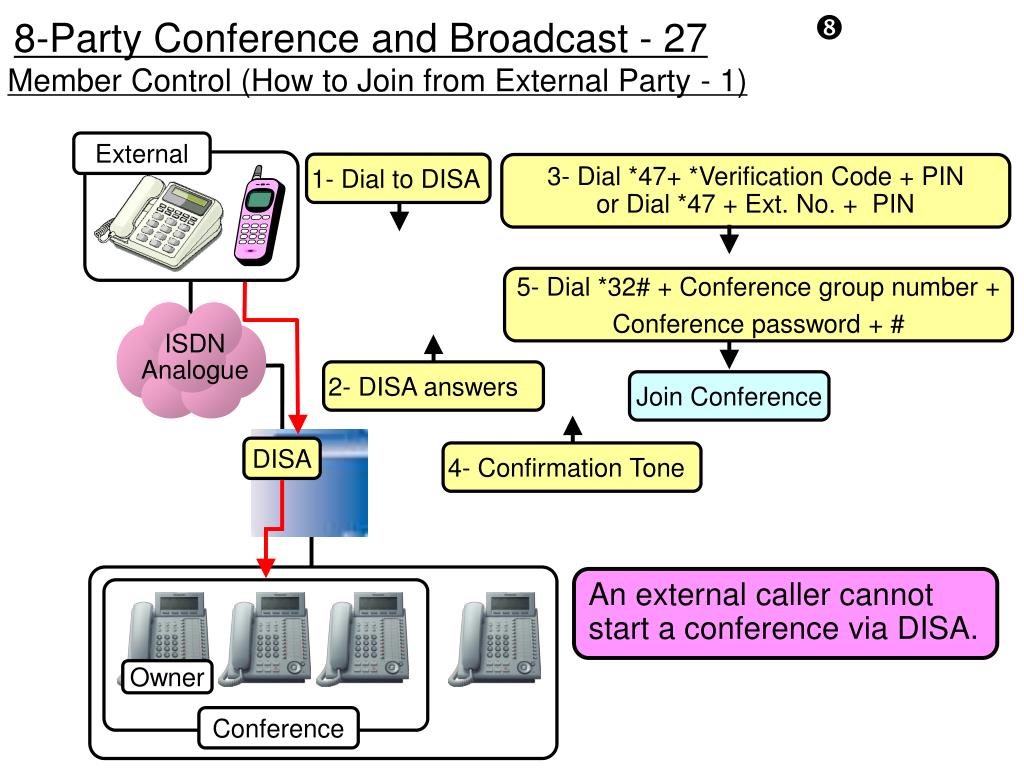

  31. 8-Party Conference and Broadcast - 27 Member Control (How to Join from External Party - 1) External 1- Dial to DISA 3- Dial *47+ *Verification Code + PIN or Dial *47 + Ext. No. + PIN 5- Dial *32# + Conference group number + Conference password + # ISDN Analogue 2- DISA answers Join Conference DISA 4- Confirmation Tone An external caller cannot start a conference via DISA. Owner Conference

  32. 8-Party Conference and Broadcast - 28 Member Control (How to Join from External Party - 2) External CLIP 488-1234 1- Dial to DISA 3- Dial *32# + Conference group number + Conference password + # ISDN Join Conference 2- DISA answers System Speed Dial (SSD) Entry 000: 0488-1234: CLI Ext.201 DISA Enhanced SD or Enhanced Key An external caller cannot start a conference via DISA. Owner Conference

  33. 8-Party Conference and Broadcast - 29 System Programming Default: Disable Option: Enable System Programming (System Speed Dial) Tanaka 04881234 201 Yamada 04881235 202 Toyota 04881236 203

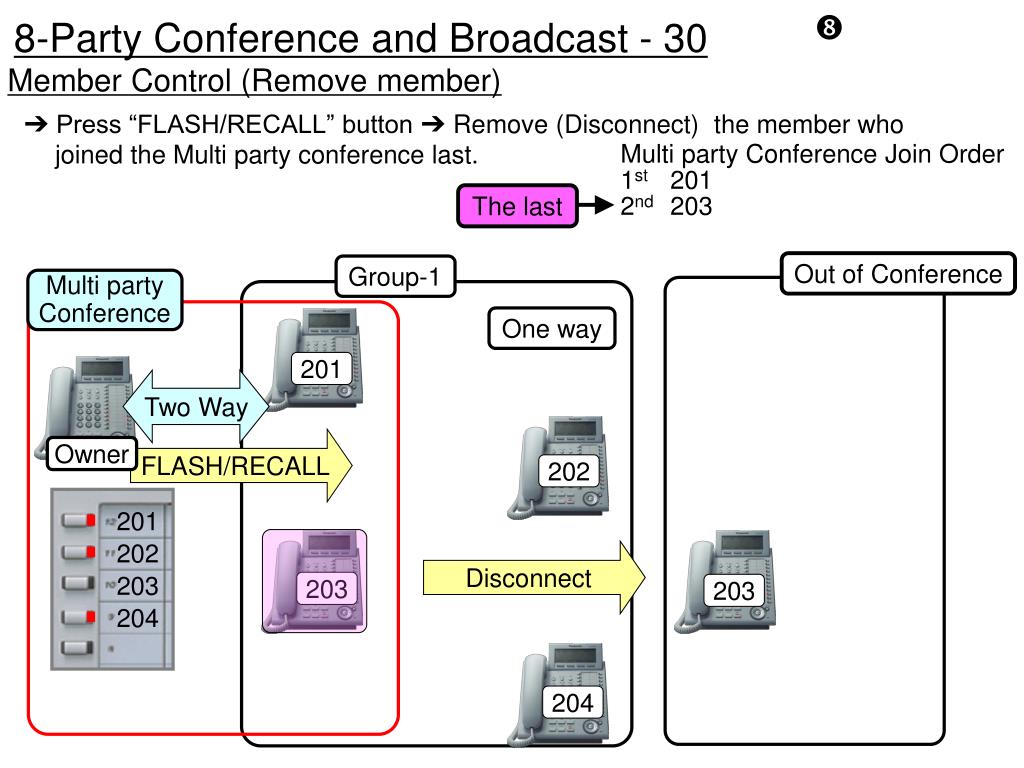

  34. 8-Party Conference and Broadcast - 30 Member Control (Remove member) ➔ Press “FLASH/RECALL” button ➔ Remove (Disconnect) the member who joined the Multi party conference last. Multi party Conference Join Order 1st 201 2nd 203 The last Out of Conference Group-1 Multi party Conference One way 201 Two Way FLASH/RECALL Owner 202 201 202 203 204 Disconnect 203 203 204

  35. 8-Party Conference and Broadcast - 31 Member Control (Remove member) ➔ Press “FLASH/RECALL” button ➔ Remove (Disconnect) the member who joined the Multi party conference last. Multi party Conference Join Order 1st 202 2nd 201 The last Out of Conference Group-1 Multi party Conference Disconnect 201 201 Two Way FLASH/RECALL Owner 202 201 202 203 204 203 204

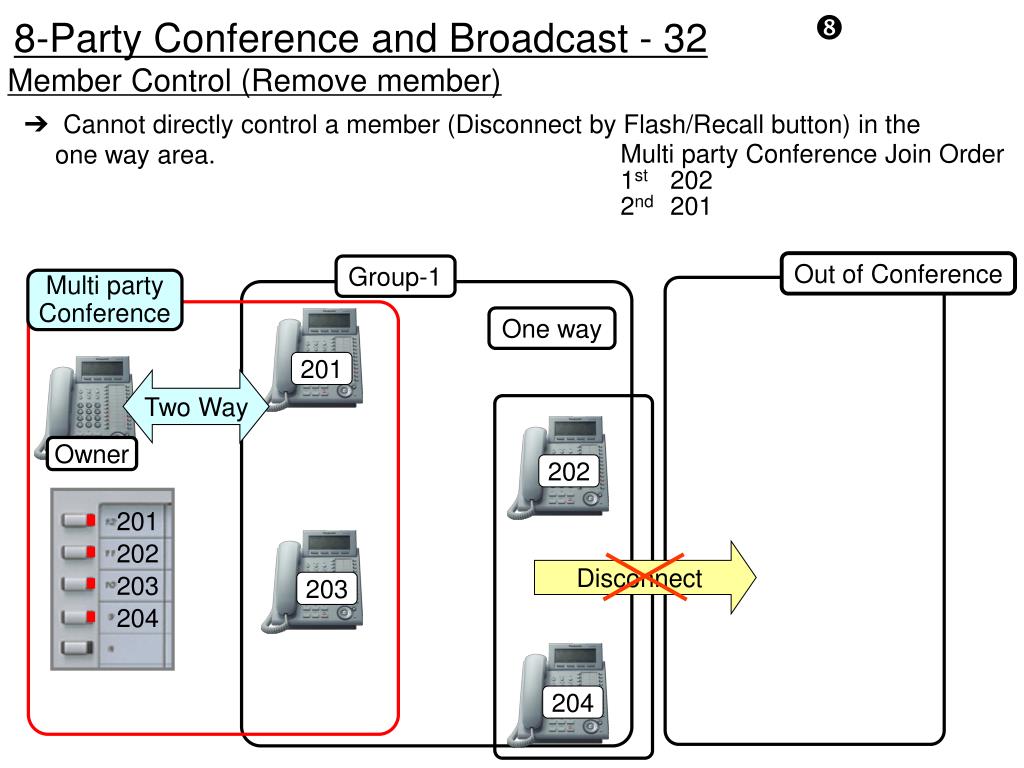

  36. 8-Party Conference and Broadcast - 32 Member Control (Remove member) ➔ Cannot directly control a member (Disconnect by Flash/Recall button) in the one way area. Multi party Conference Join Order 1st 202 2nd 201 Out of Conference Group-1 Multi party Conference One way 201 Two Way Owner 202 201 202 203 204 Disconnect 203 204

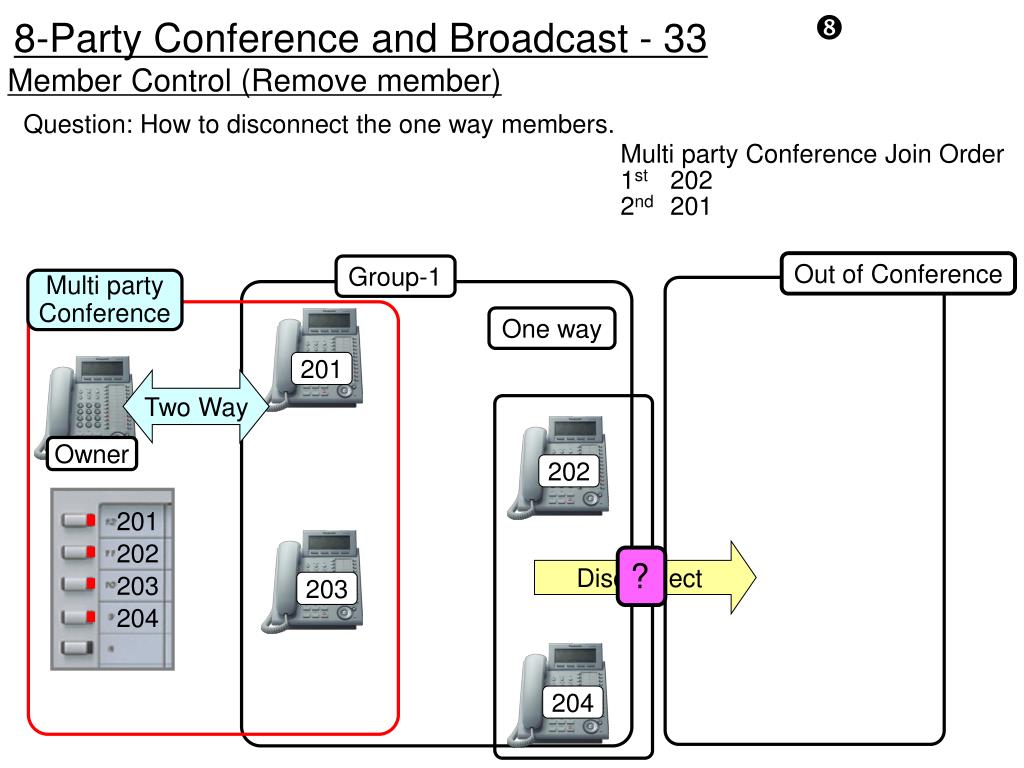

  37. 8-Party Conference and Broadcast - 33 Member Control (Remove member) Question: How to disconnect the one way members. Multi party Conference Join Order 1st 202 2nd 201 Out of Conference Group-1 Multi party Conference One way 201 Two Way Owner 202 201 202 203 204 Disconnect ? 203 204

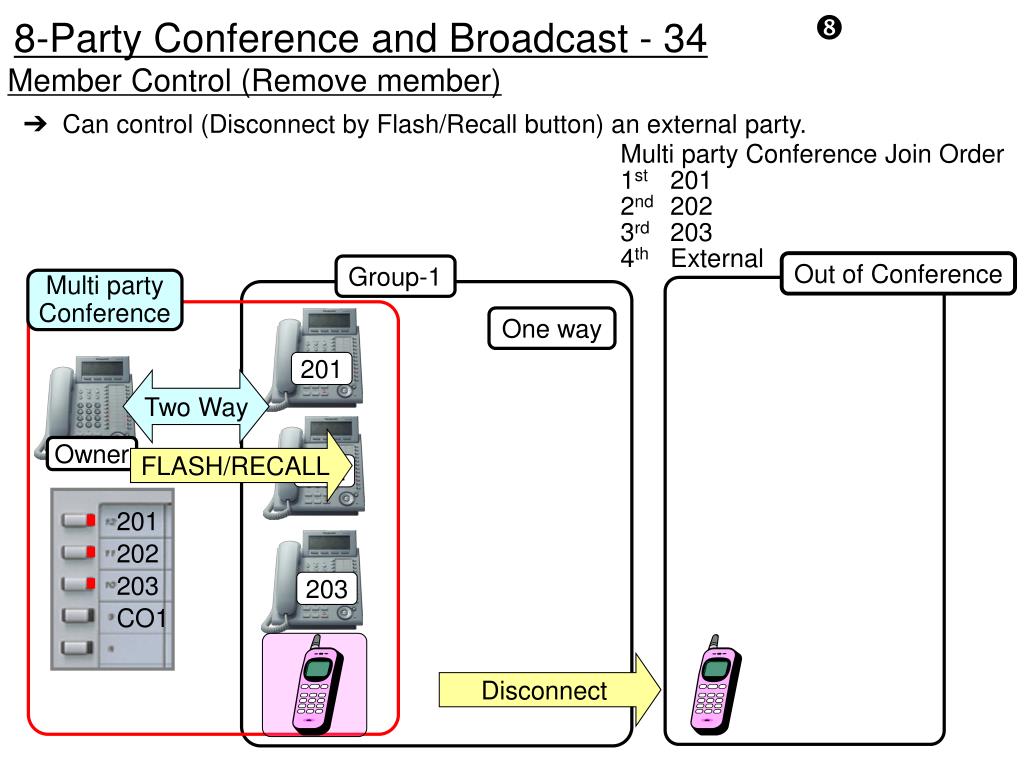

  38. 8-Party Conference and Broadcast - 34 Member Control (Remove member) ➔ Can control (Disconnect by Flash/Recall button) an external party. Multi party Conference Join Order 1st 201 2nd 202 3rd 203 4th External Out of Conference Group-1 Multi party Conference One way 201 Two Way FLASH/RECALL Owner 202 201 202 203 CO1 203 Disconnect

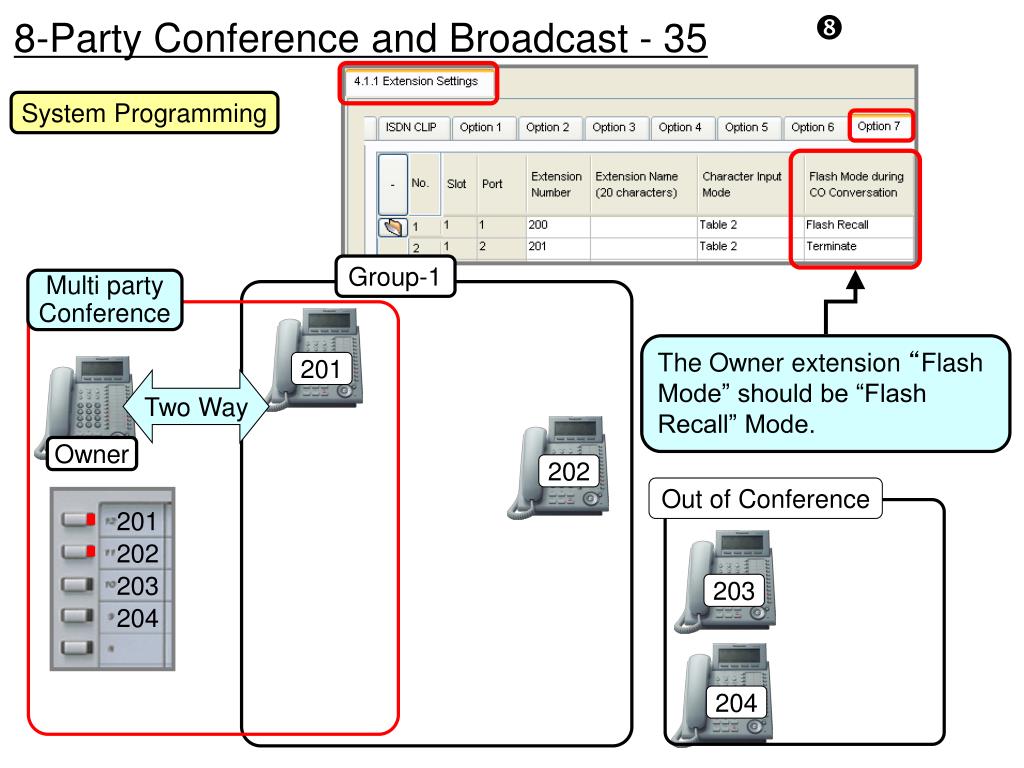

  39. 8-Party Conference and Broadcast - 35 System Programming Group-1 Multi party Conference The Owner extension “Flash Mode” should be “Flash Recall” Mode. 201 Two Way Owner 202 Out of Conference 201 202 203 204 203 204

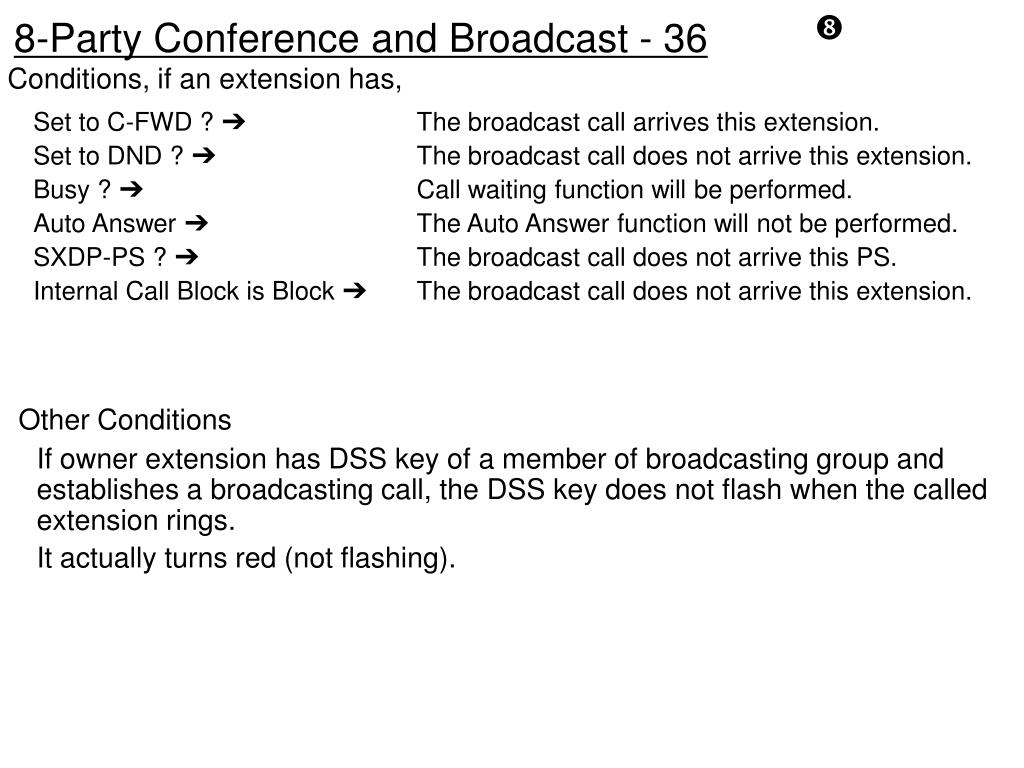

  40. 8-Party Conference and Broadcast - 36 Conditions, if an extension has, Set to C-FWD ? ➔ The broadcast call arrives this extension. Set to DND ? ➔ The broadcast call does not arrive this extension. Busy ? ➔ Call waiting function will be performed. Auto Answer ➔ The Auto Answer function will not be performed. SXDP-PS ? ➔ The broadcast call does not arrive this PS. Internal Call Block is Block ➔ The broadcast call does not arrive this extension. Other Conditions If owner extension has DSS key of a member of broadcasting group and establishes a broadcasting call, the DSS key does not flash when the called extension rings. It actually turns red (not flashing).

  41. Enhanced Common Extension FeatureCommon extension numbering for 2 or more PBXs

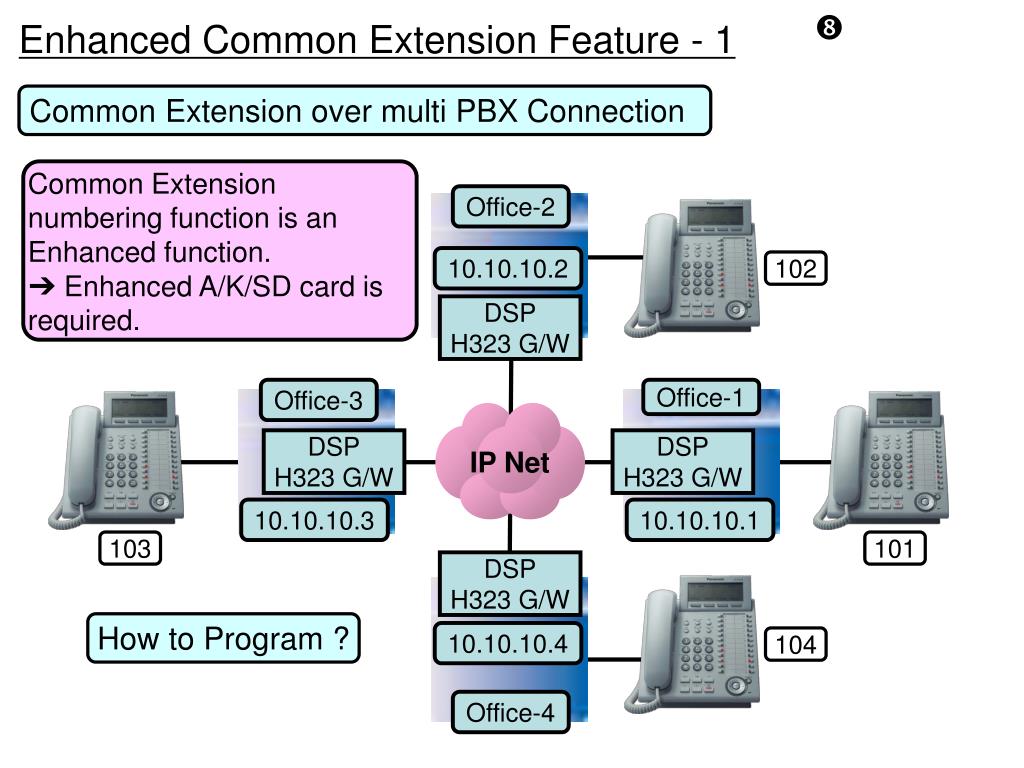

  42. Enhanced Common Extension Feature - 1 Common Extension over multi PBX Connection Common Extension numbering function is an Enhanced function. ➔ Enhanced A/K/SD card is required. Office-2 10.10.10.2 102 DSP H323 G/W Office-3 Office-1 DSP H323 G/W DSP H323 G/W IP Net 10.10.10.3 10.10.10.1 103 101 DSP H323 G/W How to Program ? 10.10.10.4 104 Office-4

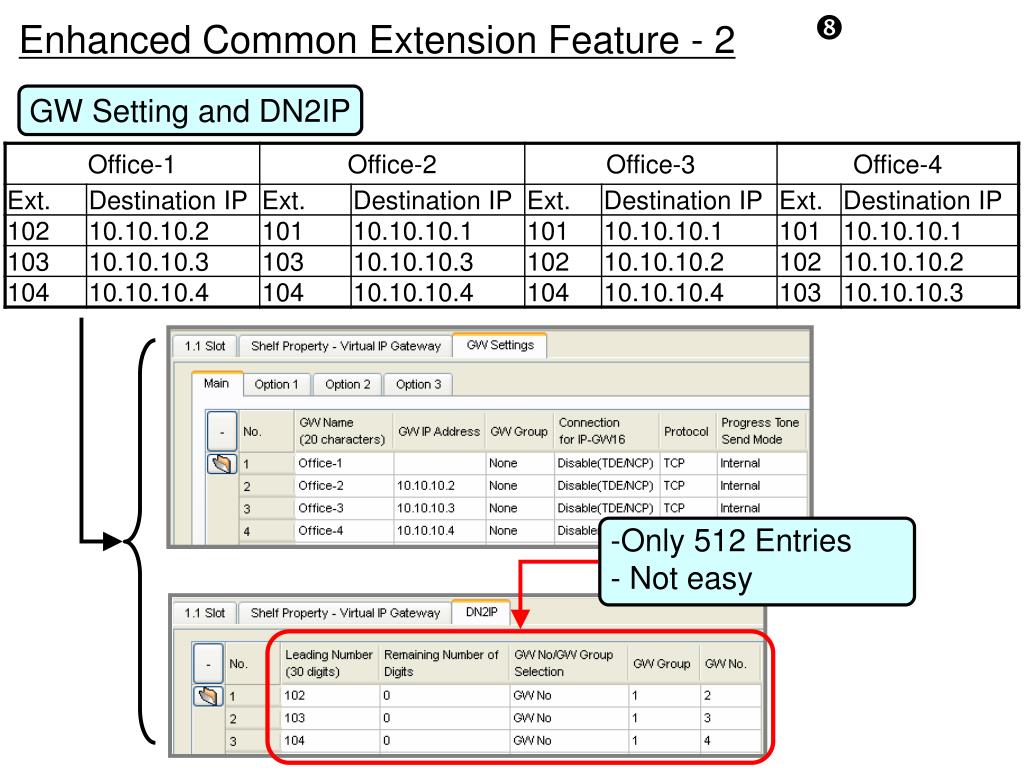

  43. Enhanced Common Extension Feature - 2 GW Setting and DN2IP • Only 512 Entries • Not easy

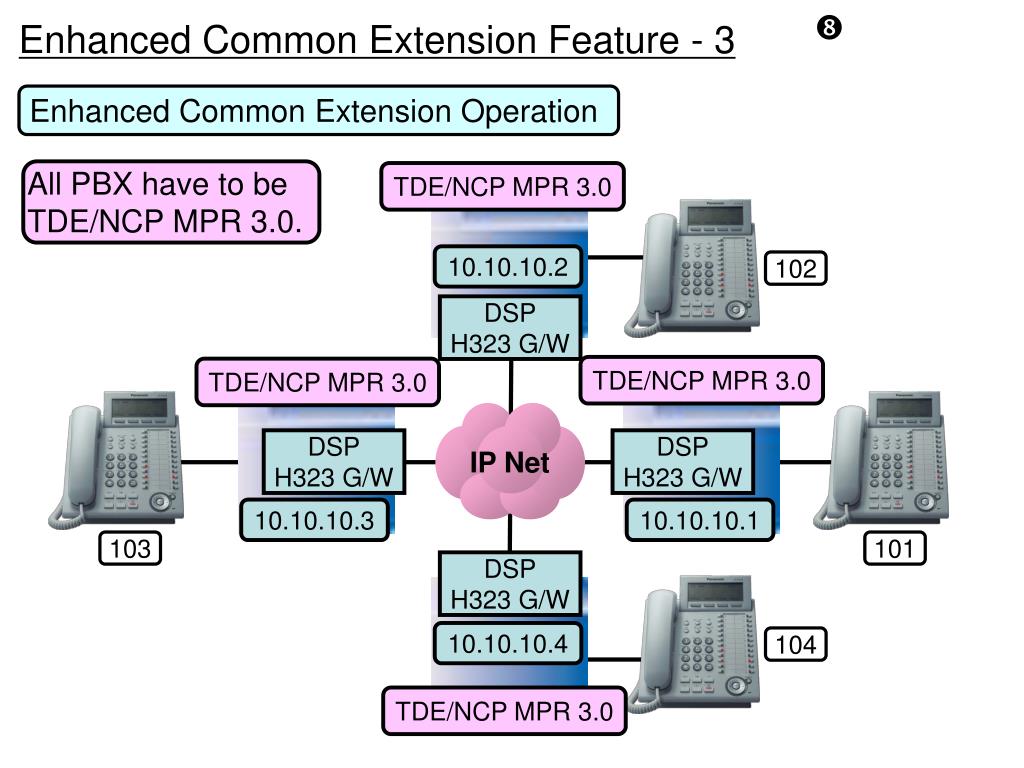

  44. Enhanced Common Extension Feature - 3 Enhanced Common Extension Operation All PBX have to be TDE/NCP MPR 3.0. TDE/NCP MPR 3.0 10.10.10.2 102 DSP H323 G/W TDE/NCP MPR 3.0 TDE/NCP MPR 3.0 DSP H323 G/W DSP H323 G/W IP Net 10.10.10.3 10.10.10.1 103 101 DSP H323 G/W 10.10.10.4 104 TDE/NCP MPR 3.0

  45. Enhanced Common Extension Feature - 4 GW Setting and DN2IP Program Point Very easy !!!! This function is available on Virtual-IPG/W-16, not on Physical IP-GW16.

  46. Enhanced Common Extension Feature - 5 How to works 10.10.10.2 102 1- Dial 103 3- It is not mine 2- Setup IP Net 10.10.10.3 10.10.10.1 5- Setup 103 101 4-Hunting

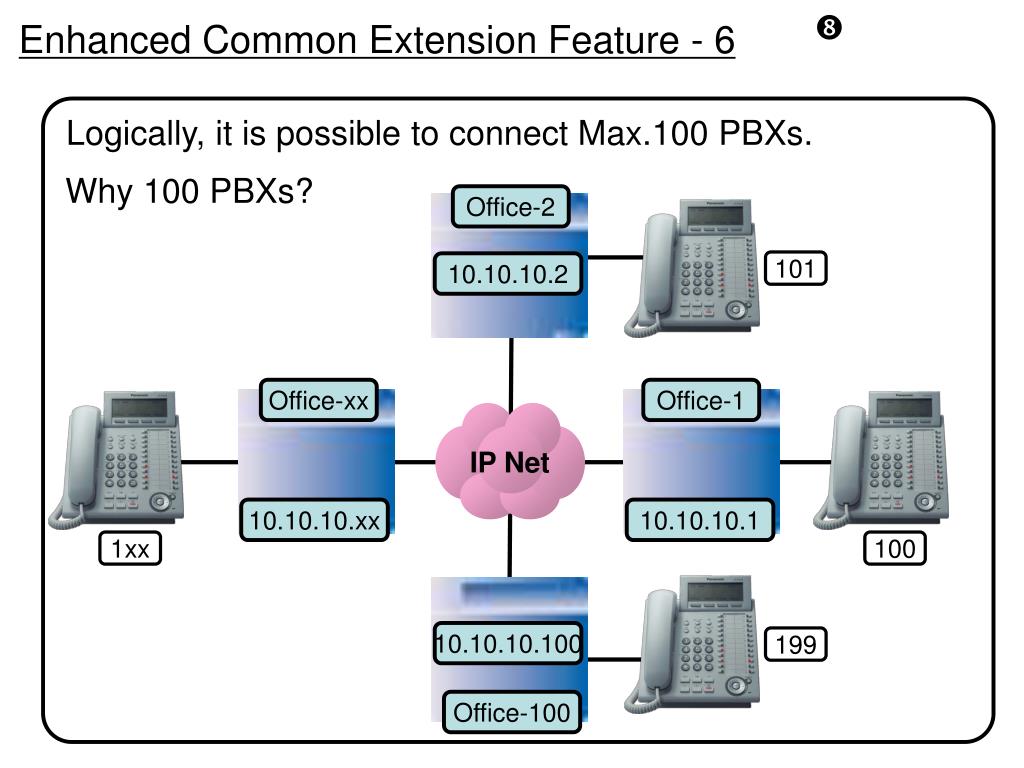

  47. Enhanced Common Extension Feature - 6 Logically, it is possible to connect Max.100 PBXs. Why 100 PBXs? Office-2 101 10.10.10.2 Office-xx Office-1 IP Net 10.10.10.xx 10.10.10.1 1xx 100 10.10.10.100 199 Office-100

  48. Call-FWD CLIP

  49. Call-FWD CLIP - 1 Previous Function My Extension CLIP 577-1234 Subscriber-A CLIP 477-1111 1 C-FWD to my cellular ISDN 2 3 4 CLIP = 477-1111 My cellular 1- Subscriber-A (CLIP 477-1111) calls your extension. 2- The call is re-routed to your cellular. ➔ CLIP = 477-1111 3- The ISDN provider does not accept “CLIP=477-1111” Because, 477-1111 is Out of DDI range 577-1111-1999. 4- The ISDN provider sends the main DDI number “577-1111” to the C-FWD destination. ➔ But, I want to have CLIP=577-1234.

  50. Call-FWD CLIP - 2 New Function My Extension CLIP 577-1234 Subscriber-A CLIP 477-1111 1 C-FWD to my cellular ISDN 2 3 4 CLIP = 577-1234 My cellular Please select “Disable”
