stepper motor control using hc11 microcontroller

STEPPER MOTOR CONTROL USING HC11 MICROCONTROLLER

Project Presentation for ELET 5330

Dr. C.Wu – Instructor

Presented by

Sriteja Tarigopula

04/30/03

stepper motor control using hc11 microcontroller problem statement

Stepper Motor Control using HC11 MicrocontrollerProblem Statement

To calculate the speed of a simple motor and displaying the speed using a HC11Microcontroller from Motorola

stepper motor control using hc11 microcontroller hardware requirements
Stepper Motor Control using HC11 MicrocontrollerHardware Requirements
  • HC11 EVB.
  • Stepper Motor.
  • Connecting wires.
stepper motor control using hc11 microcontroller circuit diagram

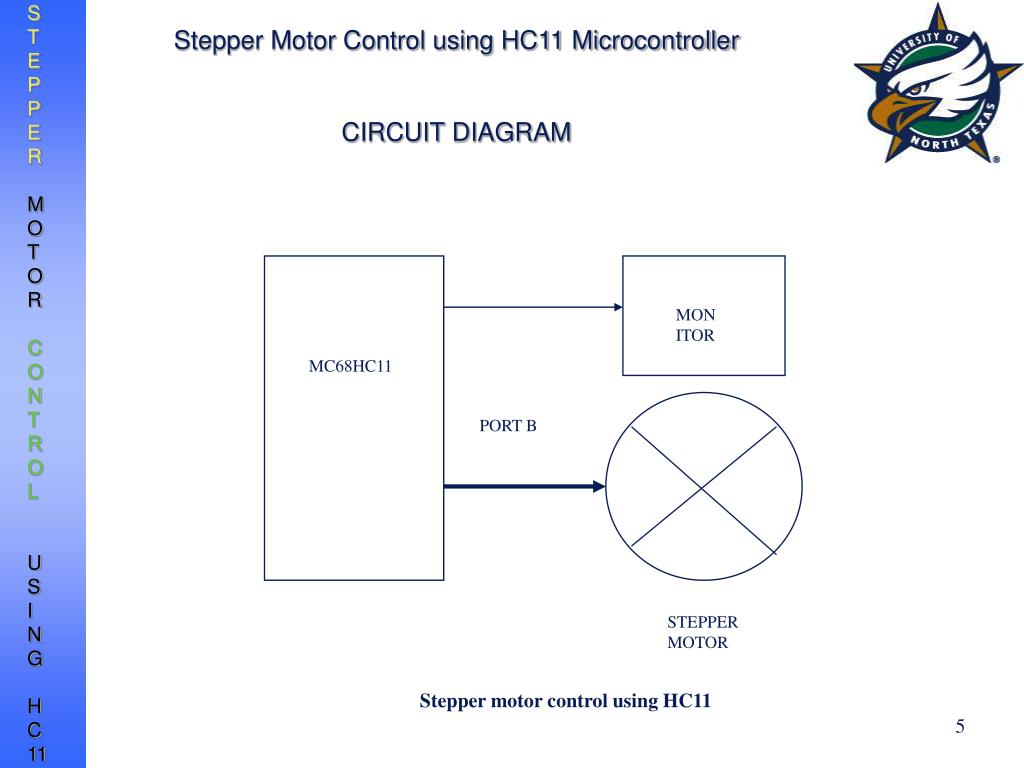

Stepper Motor Control using HC11 MicrocontrollerCIRCUIT DIAGRAM

MONITOR

MC68HC11

PORT B

STEPPER

MOTOR

Stepper motor control using HC11

stepper motor control using hc11 microcontroller applications
Stepper Motor Control using HC11 MicrocontrollerApplications
  • 1. Robotic Controllers.
  • 2. Turning Machine Tools.
  • 3. Shaft Positioning Control Systems.
stepper motor control using hc11 microcontroller references
Stepper Motor Control using HC11 MicrocontrollerReferences
  • Data Acquisition and Process Control with M68HC11 microcontroller by Driscoll, Coughlin,Villanucci.
  • Design of Embedded Systems using 68HC12/11 microcontrollers by Richard E.Haskell.
  • www.motorola.com
