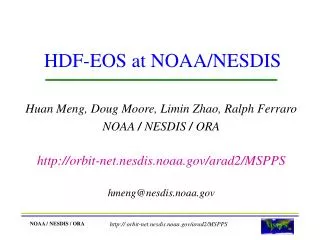

HDF-EOS at NOAA/NESDIS. Huan Meng, Doug Moore, Limin Zhao, Ralph Ferraro NOAA / NESDIS / ORA http://orbit-net.nesdis.noaa.gov/arad2/MSPPS hmeng@nesdis.noaa.gov. NOAA / NESDIS / ORA. http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS. Presentation Outline.

kele
Download Presentation

HDF-EOS at NOAA/NESDIS

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. HDF-EOS at NOAA/NESDIS Huan Meng, Doug Moore, Limin Zhao, Ralph Ferraro NOAA / NESDIS / ORA http://orbit-net.nesdis.noaa.gov/arad2/MSPPS hmeng@nesdis.noaa.gov NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  2. Presentation Outline Microwave Surface and Precipitation Products (MSPPS) Project Background MSPPS System Introduction Product Display and Monitoring Lessons Learned Using HDF-EOS Future Plans Other NESDIS Projects Using HDF/HDF-EOS Summary NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  3. MSPPS Project Background Project Motivation NWS/NCEP interest and demand Team Setup Satellite and Instruments NOAA-15 or NOAA-K (May 13, 1998) AMSU-A (23.8 ~ 89.0 GHz) AMSU-B (89.0 ~ 190.31 GHz) Project Goal Produce near-real-time operational surface and precipitation products from AMSU-A and AMSU-B antenna temperatures NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  4. MSPPS System Introduction Day-1 System (operational, near-real-time) Product suite Level 1 ~ 3 data processing procedure HDF-EOS file structure Prototype Day-2 System (for research, next day) Combined AMSU-A and -B swath/grid files Day-2 System (testing, near-real-time) Product suite Level 1 ~ 3 data processing procedure HDF-EOS file structure NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  5. Uniqueness of MSPPS for NESDIS First Using HDF-EOS Format Workstation Processing Day-1 System Operational in 12 ~ 18 Months NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  6. Day-1 Product Suite Product Surface AMSU-A AMSU-B Antenna Temperature Global  Snow Cover Land  Rain Rate Global  Sea Ice Concentration Ocean  Total Precipitable Water Ocean  Cloud Liquid Water Ocean  NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  7. MSPPS Day-1 System NCEP (BUFR) CIRA (HDF-EOS) AMSU-A, -B Level-1B Data Ingestion NCEP GDAS (GriB -> HDF-EOS) NCEP Rainfall (GriB) Level-2 Product Generation SWATH (HDF-EOS) Product Validation & Monitoring 1b (Binary) Radiosonde (Binary) SWATH (HDF-EOS) GRID (HDF-EOS) ARM (netCDF) Level-3 Product Generation SSM/I (Binary -> HDF-EOS) TRMM (HDF) NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  8. AMSU-A Swath AMSU-A Grid - Geographic AMSU-A Grid - Polar Stereographic Day-1 AMSU-A File Structures (HDF-EOS format) Attributes Geolocation, etc. Antenna Temperatures Products Geolocation, etc. Antenna Temperatures Products Geolocation, etc. Products NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  9. Day-1 AMSU-B File Structures (HDF-EOS format) AMSU-B Swath AMSU-B Grid - Geographic Attributes Geolocation, etc. Antenna Temperatures Geolocation, etc. Antenna Temperatures NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  10. Prototype Day-2 System ‘Combined’ Swath File Input from both AMSU-A and AMSU-B swaths Day-1 products using improved, physically-based, multispectral algorithms in day-2 More products Improved resolution and sensitivity ‘Combined’ Grid File - Geographic Projection Web site utilization NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  11. Day-2 Product Suite Product Surface AMSU-A AMSU-B Antenna Temperature Global  Snow Cover Land  Rain Rate Global  Ice Water Path Global  Sea Ice Concentration Ocean  Total Precipitable Water Ocean  Cloud Liquid Water Ocean  Emissivity Land  Surface/Skin Temperature Land  Snow Depth Land  Ocean Wind Speed Ocean  Surface Wetness Land  NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  12. MSPPS Day-2 System AMSU-A Level-1B Data Ingestion AMSU-A Level-2 Product Generation Level-3 Product Generation SWATH (HDF-EOS) 1b (Binary) GRID (HDF-EOS) SWATH (HDF-EOS) AMSU-B Level-1B Data Ingestion AMSU-B Preliminary Level-2 Data AMSU-B Level-2 Product Generation 1b (Binary) SWATH (HDF-EOS) Product Validation & Monitoring NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  13. Day-2 AMSU-B File Structures (HDF-EOS format) AMSU-B Swath AMSU-B Grid - Geographic Attributes Geolocation, etc. Antenna Temperatures Products Geolocation, etc. Antenna Temperatures Products NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  14. Product Display and Monitoring Display Tools IDL, GUI for validation with subsetting SeaDAS, view_hdf, LinkWinds/WebWinds, GrADS Web Site http://orbit-net.nesdis.noaa.gov/arad2/MSPPS Display and Monitoring Day-1 image products Day-1 product monitoring Climate images Day-2 image products and comparison with day-1 NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

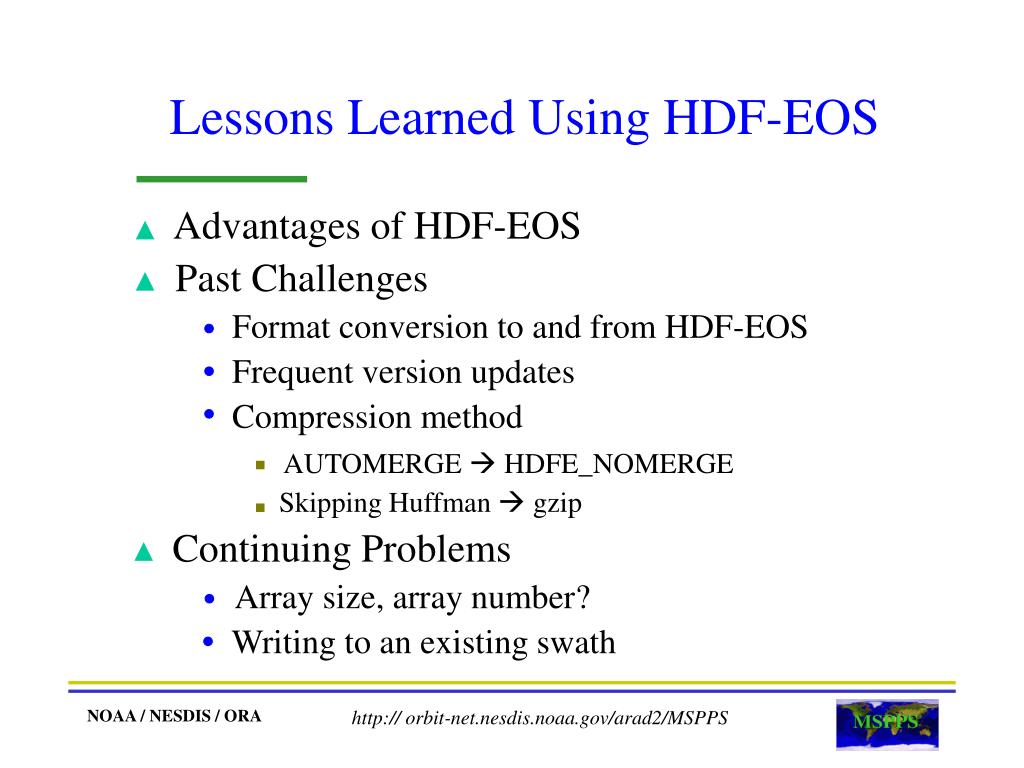

  15. Lessons Learned Using HDF-EOS Advantages of HDF-EOS Past Challenges Format conversion to and from HDF-EOS Frequent version updates Compression method AUTOMERGE  HDFE_NOMERGE Skipping Huffman  gzip Continuing Problems Array size, array number? Writing to an existing swath NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  16. Future Plans NOAA-16 or NOAA-L Launch date: Sept. 20, 2000 Instruments: AMSU-A and AMSU-B Operational Day-2 System NOAA-16 product system System delivery: Dec. 2000 Validation of Day-2 Products Launch of DMSP SSMIS Launch date: Dec. 2000 NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  17. Other NESDIS Projects Using HDF/HDF-EOS Atmosphere Infrared Sounder (AIRS) Project EOS_AQUA, July 2001 Input (simulated) level 1b data in HDF-EOS format from JPL Output desired fields in HDF format to NCEP within 3 hrs Unified Validation Project Group 1: Input NCEP observation data in BUFR to HDF format Operational, next day Group 2: Input binary observation data and convert to HDF-EOS format Validation of AIRS, SSM/I, SSMIS, and IPO products NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS

  18. Summary HDF-EOS as Standard Output Format for MSPPS Increased Utilization of HDF-EOS at NESDIS Advantages of HDF-EOS Application Remaining Challenges NOAA / NESDIS / ORA http:// orbit-net.nesdis.noaa.gov/arad2/MSPPS
