  1. ArmaflexDuct Systems VENTILATION

  2. 2 Ventilation • Target: • prevent condensation • limit heat transfer (energy savings) • provideacousticinsulation

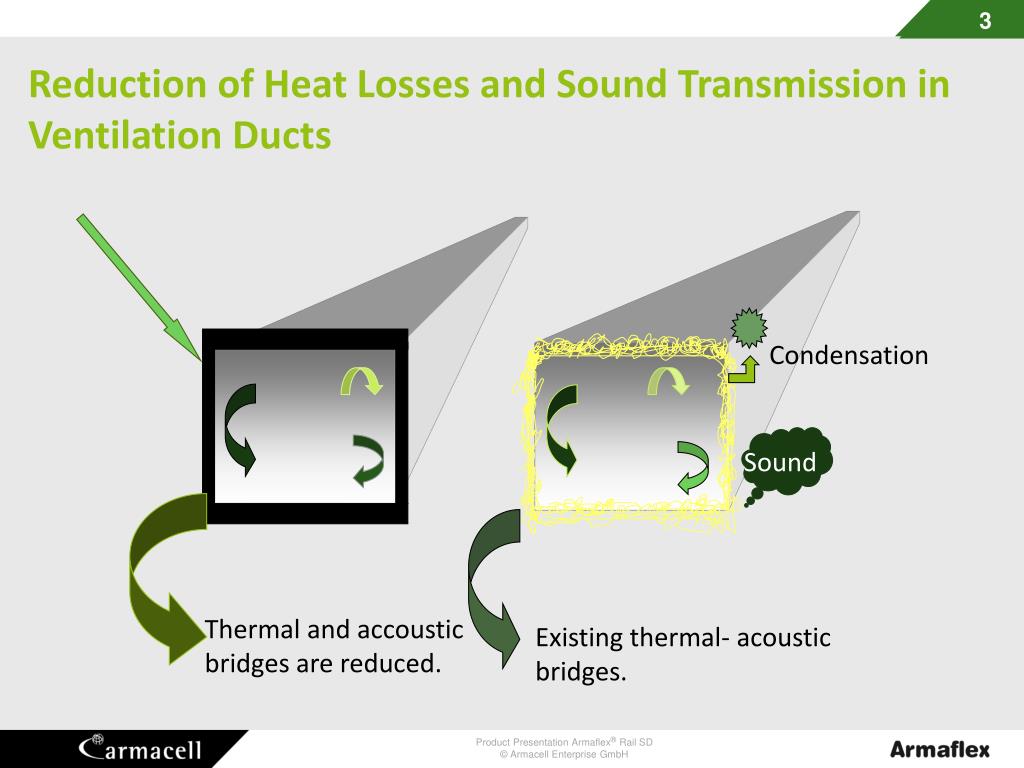

  3. 3 • Reduction of HeatLosses and Sound Transmission in VentilationDucts Condensation • Sound • Thermal and accousticbridgesarereduced. Existing thermal- acousticbridges.

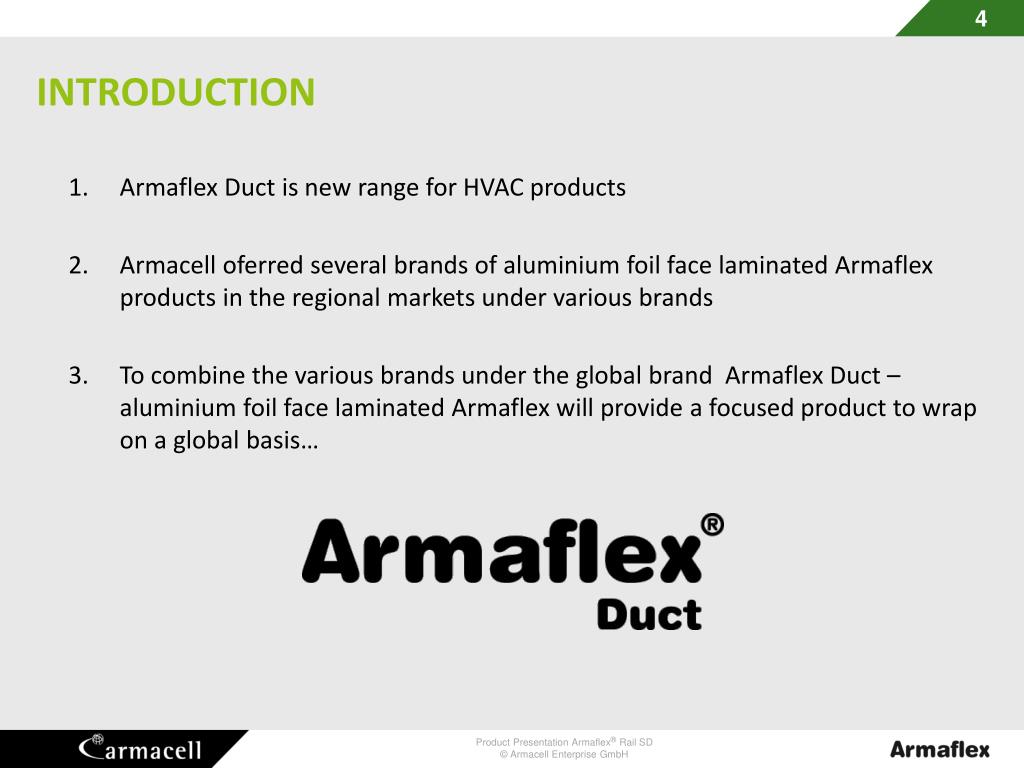

  4. INTRODUCTION • ArmaflexDuctis new rangefor HVAC products • Armacelloferredseveralbrands of aluminiumfoilfacelaminatedArmaflexproducts in the regional marketsundervariousbrands • To combine thevariousbrandsunderthe global brandArmaflexDuct – aluminiumfoilfacelaminatedArmaflexwillprovide a focusedproducttowrapon a global basis…

  5. 5 • ArmaflexDuct PRODUCTS: ArmaflexDuct ArmaflexDuct Al ArmaflexDuct Plus

  6. ArmaflexDuct- group of products Technical Parameters

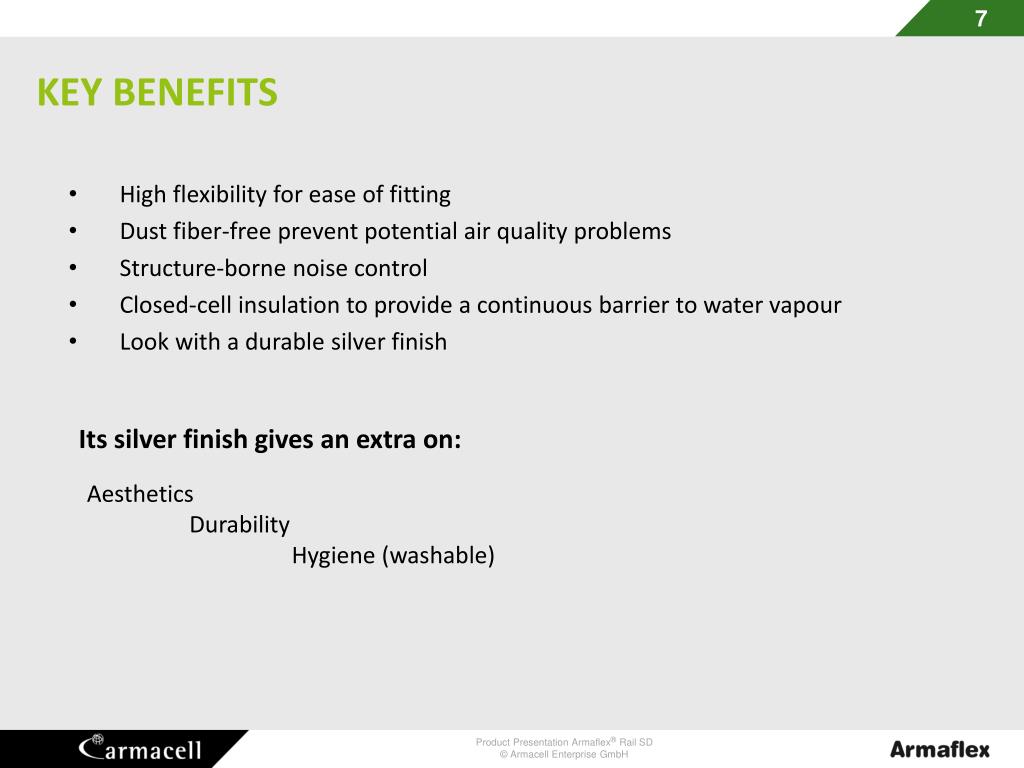

  7. KEY BENEFITS • Highflexibilityforease of fitting • Dust fiber-free prevent potential air quality problems • Structure-bornenoisecontrol • Closed-cellinsulationtoprovide a continuousbarriertowatervapour • Look with a durable silverfinish Its silver finish gives an extra on: Aesthetics Durability Hygiene (washable)

  8. KEY BENEFITS - Installer • Easytoapply! • In 4 steps

  9. KEY BENEFITS - Installation • Aesthetic and durablefinishing

  10. ArmaflexDuct • Endlesssheets standard and autoadhesive 9, 13, 19, 25, 32 and 40 mm in 1,5 m. width. • Precoveredsheets (AL) standard and autoadhesive 9, 13, 19, 25, 32 and 40 mm in 1m. and 1,5 m. width. • ArmaflexDuct Plus • Endlesssheets standard and autoadhesive 9, 13, 19, 25, 32 and 40 mm in 1,5 m. width. Range

  11. Armaflex 520 Adhesive • new generation,solvent-based high performance adhesive for NBR based FEF products • for medium temperatures between -50°C up to +110°C Armaflex SF990 Adhesive • top oftheline, water-based, high-techadhesive • SF990 iscompletely solvent-free, no VOC • futureoriented, trullyenvironment-friendlyadhesive • nosmelloremissions • ideal forclosed, confinedspacesorfor Green Buildings • for medium temperatures between -50°C up to +110°C Adhesives for ArmaflexDuct Systems • Armaflex HT 625 Adhesive • new generation,solvent-based high performance adhesive for all FEF products • for medium temperatures between -50°C up to +110°C Armaflex RS850 Adhesive • highperformance solvent-reducedadhesive • thixotropic, highviscoscitygel • doesn‘tdrip • doesn‘tevaporatewhenleft open (untilstirred) • for medium temperatures between -50°C up to +70°C

  12. Thank you www.armacell.com
