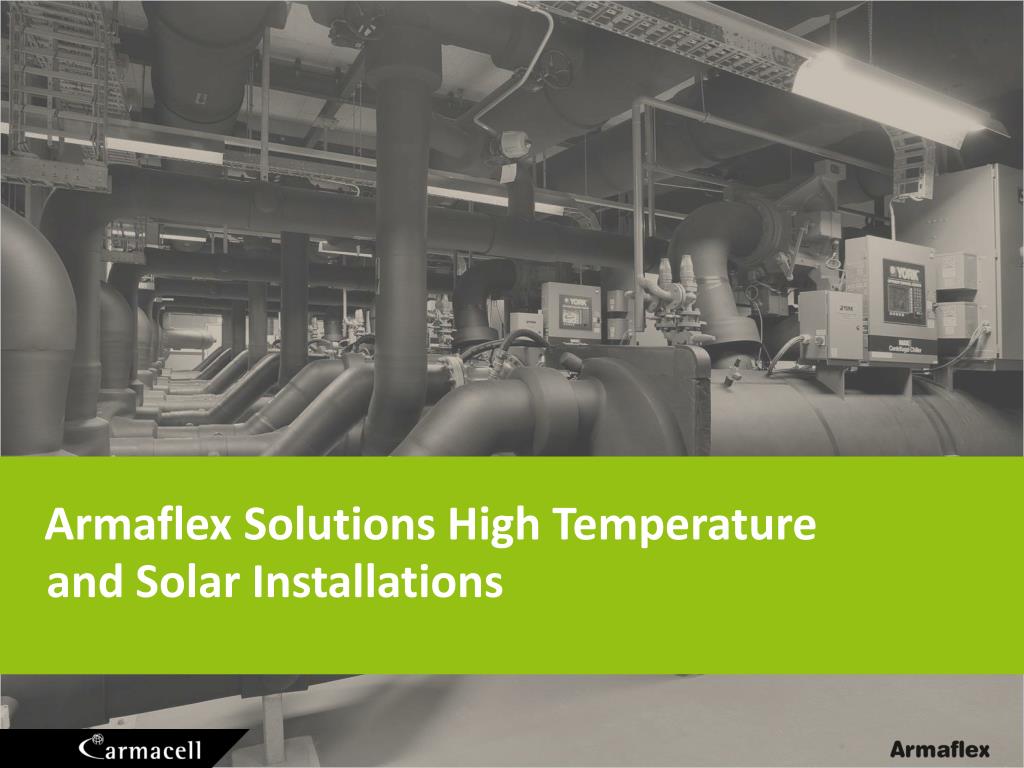

  1. ArmaflexSolutions High Temperature and SolarInstallations

  2. High Temperature, Solarinstallations • Insulationmaintarget: • limit heat losses (energy saving) • protectfrom hot surfaces • protectfromweatherconditions

  3. In high temperatureapplicationsArmacell EPDM materials can be used as insulation • Why ? • The target is tolimit heatlosses • Insulation withlowheatconductivityfactorλarerequired. • High temperatureresistantmaterialisrequired • For outdoorinstallation UV protectionis a must

  4. HeatLosses

  5. Thermal conductivityλ Thermalconductivityis a material propertyrepresenting the ability of the material to conductheat. λ [W/mK] The thermal conductivity is the heat in joules which, per unit of time , flows through 1 m² of a 1 m thick flat layer of a substance (heat flow density) when the temperature difference is 1 K.

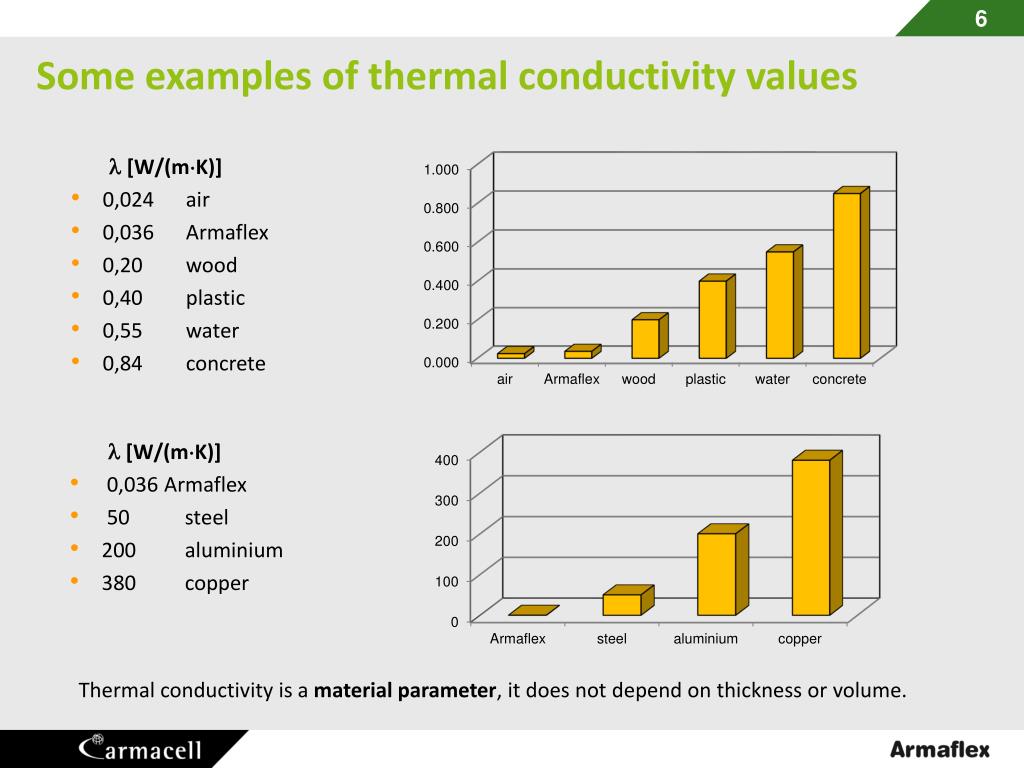

  6. Some examples of thermal conductivity values •  [W/(mK)] • 0,024 air • 0,036 Armaflex • 0,20 wood • 0,40 plastic • 0,55 water • 0,84 concrete •  [W/(mK)] • 0,036Armaflex • 50steel • 200aluminium • 380 copper Thermal conductivityis a materialparameter, itdoes not depend on thicknessorvolume.

  7. Heatloss from a pipekl[W/mK] λ Thelowerλthelowerheatlosses

  8. Heatloss from a pipe The biggerinsulationthickness Thelowerheatlosses

  9. High Temperature and SolarApplications

  10. Products for High Temperature and Solar High Temperature and Solar 1. EPDM insulation products: HT/Armaflex HT/Armaflex S 2. Preinsulated products: ArmaflexSolar ArmaflexDuoSolar ArmaflexDuoSolar 220

  11. High Temperature and SolarApplications ArmaflexDuoSolar • Armaflex HT S Armaflex HT

  12. Thank you www.armacell.com
